UHV Series
Ultra-High Voltage Chip Resistor
Features:
•
•
•
•
•
•
•
•
Stackpole Electronics, Inc.
Resistive Product Solutions
Voltage ratings to 20,000 Volts
Resistance values to 10 Gohms
Ultra-high stability
Very low noise
Tolerances to 1%
Tolerances 10% and wider are typically untrimmed
TCR to 100 ppm/ºC
RoHS compliant and halogen-free
Electrical Specifications
Type / Code
Resistance Temperature
Coefficient
100 ppm/ºC
200 ppm/ºC
Maximum Working Voltage
3000V
UHV2010
4000V
6000V
4000V
UHV2512
100 ppm/ºC
200 ppm/ºC
6000V
8000V
10000V
4000V
6000V
UHV3512
100 ppm/ºC
200 ppm/ºC
8000V
10000V
12000V
14000V
6000V
8000V
UHV4020
100 ppm/ºC
200 ppm/ºC
10000V
12000V
14000V
16000V
6000V
8000V
10000V
UHV5020
100 ppm/ºC
200 ppm/ºC
12000V
14000V
16000V
20000V
Due to the high resistance values offered, the power rating for a given size and resistance value should be calculated by V
2
/R.
Because of the high voltage ratings, these resistors should be potted to ensure terminal isolation.
Ohmic Range (Ω) and Tolerance
1%, 2%, 5%, 10%, 20%
100M - 158M
162M - 357M
365M - 10G
121M - 249M
255M - 442M
453M - 698M
715M - 10G
100M - 196M
200M - 324M
332M - 523M
536M - 732M
750M - 976M
1G - 10G
150M - 249M
255M - 392M
402M - 562M
576M - 768M
787M - 976M
1G - 10G
100M - 158M
162M - 249M
255M - 357M
365M - 487M
499M - 634M
649M - 976M
1G - 10G
Rev Date: 01/23/2019
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
marketing@seielect.com
UHV Series
Ultra-High Voltage Chip Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions

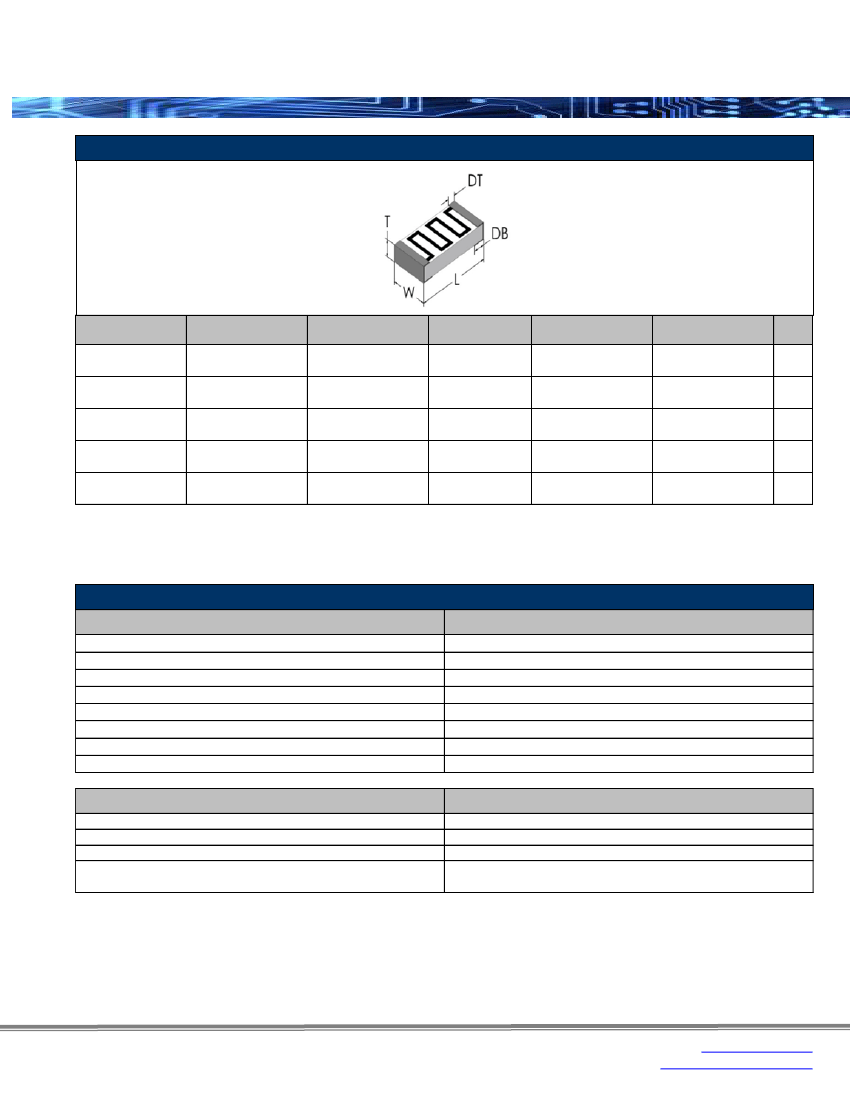

Mechanical Specifications
Type / Code
UHV2010
UHV2512
UHV3512
UHV4020
UHV5020
L
Body Length
0.200 ± 0.010
5.08 ± 0.25
0.250 ± 0.010
6.35 ± 0.25
0.350
8.89
0.400
10.16
±
±
±
±
0.010
0.25
0.010
0.25
W
Body Width
0.100 ± 0.005
2.54 ± 0.13
0.125 ± 0.005
3.18 ± 0.13
0.125
3.18
0.200
5.08
±
±
±
±
0.005
0.13
0.005
0.13
Thickness
(Max.)
0.030
0.76
0.030
0.76
0.030
0.76
0.030
0.76
0.030
0.76
DT
Top Termination
0.018 ± 0.010
0.46 ± 0.25
0.020 ± 0.010
0.51 ± 0.25
0.020
0.51
0.025
0.64
±
±
±
±
0.010
0.25
0.010
0.25
DB
Bottom Termination
0.020 ± 0.010
0.51 ± 0.25
0.024 ± 0.010
0.61 ± 0.25
0.024
0.61
0.030
0.76
±
±
±
±
0.010
0.25
0.010
0.25
Unit
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
0.500 ± 0.010
12.70 ± 0.25
0.200 ± 0.005
5.08 ± 0.13
0.030 ± 0.010
0.76 ± 0.25
0.030 ± 0.010
0.76 ± 0.25
Performance Characteristics
Test
Short Time Overload
Load Life
Temperature Cycle
Moisture Resistance
Shock
Vibration
Dielectric Withstanding Voltage
Resistance to Soldering Heat
Parameter
Operating Temperature
TCR
Pulse Capability
Resistance Value
Typical Performance
0.5%
0.5%
0.5%
0.5%
0.25%
0.25%
0.25%
0.25%
Typical
-55°C to 150°C
Measured from 25°C to 75°C
Consult factory for pulse applications
Measured at 100V
Consult factory for custom test voltages
Rev Date: 01/23/2019
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
2
www.seielect.com
marketing@seielect.com
UHV Series
Ultra-High Voltage Chip Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions

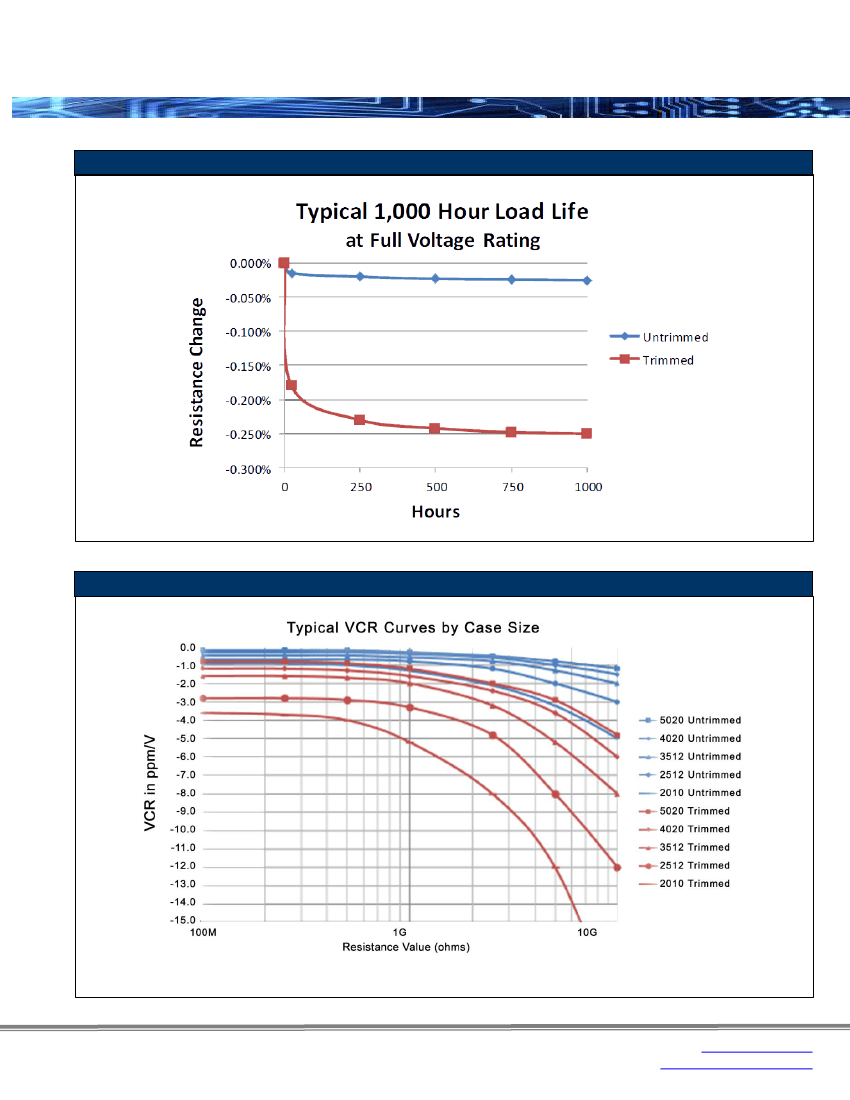

Load Life
VCR Curves
Rev Date: 01/23/2019
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
3
www.seielect.com
marketing@seielect.com
UHV Series
Ultra-High Voltage Chip Resistor
RoHS Compliance
Stackpole Electronics, Inc.
Resistive Product Solutions
Stackpole Electronics has joined the worldwide effort to reduce the amount of lead in electronic components and to meet the various
regulatory requirements now prevalent, such as the European Union’s directive regarding “Restrictions on Hazardous Substances”
(RoHS 3). As part of this ongoing program, we periodically update this document with the status regarding the availability of our
compliant components. All our standard part numbers are compliant to EU Directive 2011/65/EU of the European Parliament as
amended by Directive (EU) 2015/863/EU as regards the list of restricted substances.
RoHS Compliance Status
Standard
Product
Series
Description
Package /
Termination
Type
Standard
Series
RoHS
Compliant
Lead-Free Termination
Composition
Lead-Free
Mfg. Effective Date
(Std Product Series)
Lead-Free
Effective Date
Code
(YY/WW)
UHV
Ultra-High Voltage Chip Resistor
SMD
YES(1)
100% Matte Sn over Ni
Always
Always
Note (1): RoHS compliant by means of exemption 7c-I.
“Conflict Metals” Commitment
We at Stackpole Electronics, Inc. are joined with our industry in opposing the use of metals mined in the “conflict region” of the eastern
Democratic Republic of the Congo (DRC) in our products. Recognizing that the supply chain for metals used in the electronics industry
is very complex, we work closely with our own suppliers to verify to the extent possible that the materials and products we supply do
not contain metals sourced from this conflict region. As such, we are in compliance with the requirements of Dodd-Frank Act regarding
Conflict Minerals.
Compliance to “REACH”
We certify that all passive components supplied by Stackpole Electronics, Inc. are SVHC (Substances of Very High Concern) free and
compliant with the requirements of EU Directive 1907/2006/EC, “The Registration, Evaluation, Authorization and Restriction of
Chemicals”, otherwise referred to as REACH. Contact us for complete list of REACH Substance Candidate List.
Environmental Policy
It is the policy of Stackpole Electronics, Inc. (SEI) to protect the environment in all localities in which we operate. We continually strive
to improve our effect on the environment. We observe all applicable laws and regulations regarding the protection of our environment
and all requests related to the environment to which we have agreed. We are committed to the prevention of all forms of pollution.
How to Order
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
U
H
V
B
3
5
1
2
F
K
D
5
0
0
M
UHVB
UHVS
Product Series
Solderable wraparound
(matte tin Sn99.9
on nickel barrier)
RoHS Compliant
Solderable wraparound
(Sn63Pb37 solder over
nickel barrier)
Not RoHS Compliant
Size
2010
2512
3512
4020
5020
Tolerance
Code Tol
F
1%
G
2%
J
5%
K
10%
M
20%
Code
T
K
D
C
Packaging
Description
Size
Tape and Reel
2010
Plastic Tape
2512
Tape and Reel
All Sizes
Plastic Tape
Tape and Reel
All Sizes
Plastic Tape
Tape and Reel
All Sizes
Plastic Tape
Quantity
4000
2000
1000
500
250
TCR
Code ppm
D
100
L
200
Resistance Value
Four characters with the
multiplier used as the
decimal holder.
90 Mohm = 90M0
250 Mohm = 250M
1 Gohm = 1G00
Rev Date: 01/23/2019
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
4
www.seielect.com
marketing@seielect.com
