B061-0611-128-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> B061-0611-128-Z

B061-0611-128-Z: DescriptionBoard Connector, 6 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size202KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B061-0611-128-Z Overview

Board Connector, 6 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug

B061-0611-128-Z Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.098 inch
subject depth	0.28 inch
body length	0.6 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	B061
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6

Preview

Download Datasheet

View All

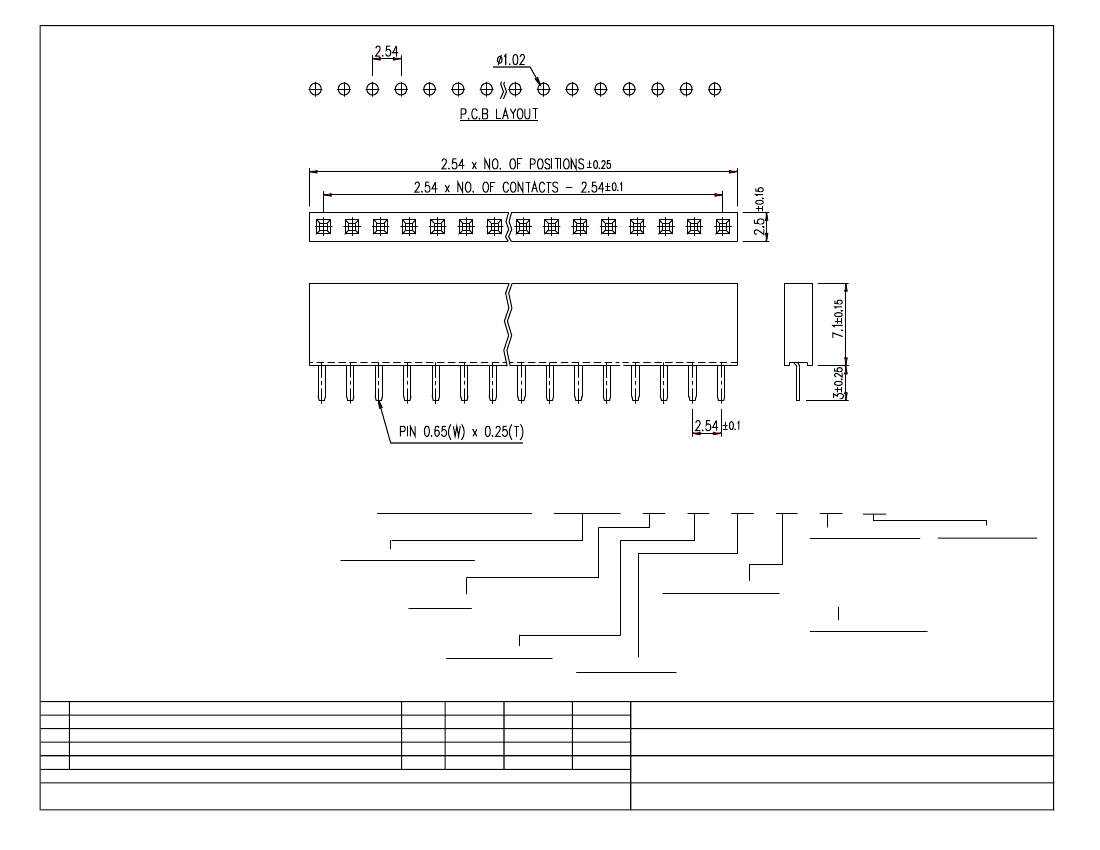

HOW TO ORDER:

RoHS COMPLIANT

ELECTRICAL:

CURRENT: 3A

CONTACT RESISTANCE: 20mΩ Max.

INSULATOR RESISTANCE: 5000MΩ Min.

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN.

OPERATING TEMPERATURE: -40° C TO +105° C

NUMBER OF CONTACTS:

02 thru 40

DEFINITION:

1 - STRAIGHT

NUMBER OF ROWS:

1 - ONE

Drawn Checked

S.M.

A.M.

B.S.

S.M.

HOUSING DIMESIONS:

Height - 7.10mm

Width - 2.5mm

Contact Tail - 3.00mm

CONTACT STYLE:

1 - CANTILEVER BEAM

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

MATERIAL:

INSULATOR: GLASS FILLED POLYESTER (UL94V-0)

CONTACT: COPPER ALLOY

Rev

Issued

Revised for RoHS Compliance

SCALE:n/a

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/- 0.15

SELECTIVE PLATING:

6 - Au CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

Date

Appproved

S.M.

08/25/03

12/15/06

S.M.

SMP TECHNOLOGY, INC.

Receptacle Assembly, 2.54mm Pitch, Top Entry, Single Row, Straight

Cantilever Beam Contact, 7.1mm Height, 2.5mm Width, Thru Hole

ANGLE +/- 5°

UNIT: mm

SERIES: B061

Pg: 1
