1340-5-44-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1340-5-44-2

1340-5-44-2: DescriptionBoard Connector, 44 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size181KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

1340-5-44-2 Overview

Board Connector, 44 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Plug

1340-5-44-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.118 inch
subject depth	0.126 inch
body length	1.265 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	IDC
Dielectric withstand voltage	250VAC V
Insulation resistance	1000000000 Ω
Manufacturer's serial number	1340
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.075 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	44

Preview

Download Datasheet

View All

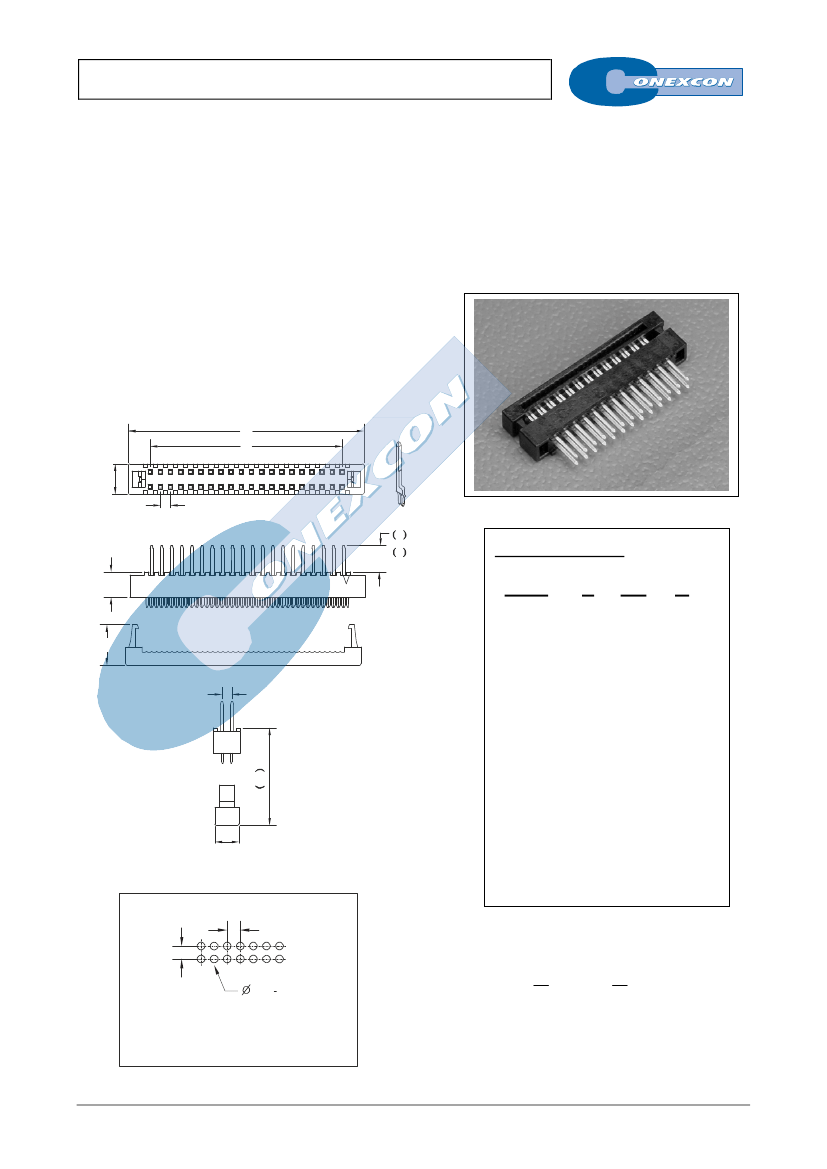

FLAT CABLE IDC DIP PLUG

1340 SERIES.

1.27 x 1.27 mm. (0.050 x 0.050”) pitch.

General Features

Electrical Features



Available in 6, 8, 10, 12, 14, 16, 20, 22, 26, 30, 34, 36, 40,

44, 50, 60, 68 and 80 circuits

Allows to solder the flat cable to the PCB

Use flat cable 0.635 mm pitch 9063 series



Voltage rating: < 250V

Current rating: < 1 A

Contact resistance: < 30 mΩ

Dielectric withstanding Voltage: 250 V AC/minute

Insulation resistance: >1000 MΩ

Materials



Insulator: High temperature plastic UL 94V-0

Terminal: Phosphor bronze

Operating temperature. -40ºC to +105ºC

RoHS compliant

Dimension Information

3.0

1.27

D 3.1

D 1.9

3.2

Ordering Information:

1340 -

T-

XX-

4.7

1. Connector Series

2. (T) Contact Plating

1.27



Assembly

T =

Tin plated

T =

Gold flash over nickel

Recommended Finish

T =

15µ” gold over nickel

T =

30µ” gold over nickel

5.1



3. (XX) Number of circuits

Available in 6 through 80 circuits

3.0

4. (C) Connector Options



1.27

C=1. Dimension

= 3.10 mm.

C=2. Dimension

= 1.90 mm.

Dimensions:

(In mm.)

1.27





















4.20

1.27









1.27

0.7

+0.05

(XX) = Number of circuits

RECOMMENDED HOLE PATTERN

A-XX

FULL LINE CATALOGUE

Recommended Resources
