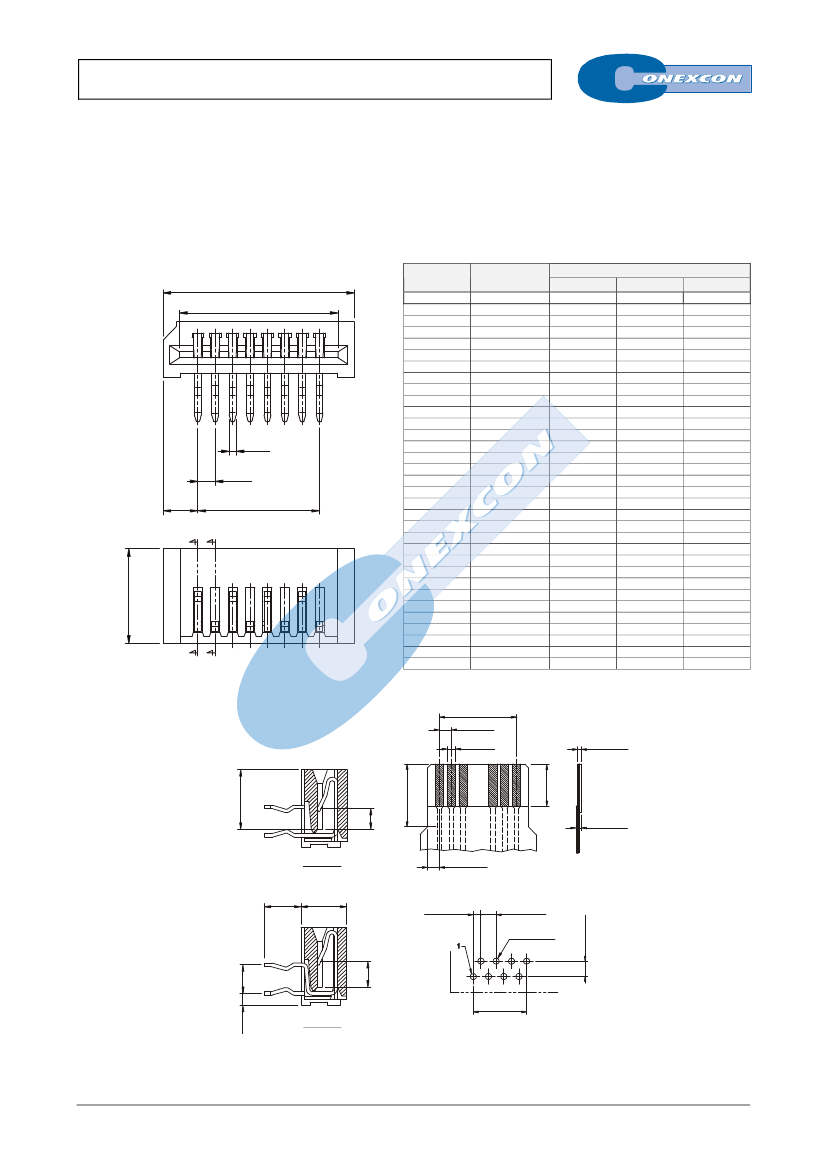

1.25mm HORIZONTAL DIP ZIF CONNECTOR
2139 SERIES.
Features
1.25 mm. (0.049”). For PCB Solder.
Contacts Tin plated
Terminal designed to secure stability during soldering process
For plates of 0.3 mm thickness
Ordering and Dimensional Information
Available in 4 to 36 circuits
Insulator Material: Poliester with fibre glass; UL 94V-0
Low insertion force
Dimensional Information
B
C
CIRCUITS
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
Part Number
2139-2041
2139-2051
2139-2061
2139-2071
2139-2081
2139-2091
2139-2101
2139-2111
2139-2121
2139-2131
2139-2141
2139-2151
2139-2161
2139-2171
2139-2181
2139-2191
2139-2201
2139-2211
2139-2221
2139-2231
2139-2241
2139-2251
2139-2261
2139-2271
2139-2281
2139-2291
2139-2301
2139-2311
2139-2321
2139-2331
2139-2341
2139-2351
2139-2361
DIMENSIONS
A
3,75(0,148)
5,00(0,197)
6,25(0,246)
7,50(0,295)
8,75(0,344)
10,00(0,394)
11,25(0,443)
12,50(0,492)
13,75(0,541)
15,00(0,591)
16,25(0,640)
17,50(0,689)
18,75(0,738)
20,00(0,787)
21,25(0,837)
22,50(0,886)
23,75(0,935)
25,00(0,984)
26,25(1,033)
27,50(1,083)
28,75(1,132)
30,00(1,181)
31,25(1,230)
32,50(1,280)
33,75(1,329)
35,00(1,378)
36,25(1,427)
37,50(1,476)
38,75(1,526)
40,00(1,575)
41,25(1,624)
42,50(1,673)
43,75(1,722)
B
8,55(0,337)
9,80(0,386)
11,05(0,435)
12,30(0,484)
13,55(0,533)
14,80(0,583)
16,05(0,632)
17,30(0,681)
18,55(0,730)
19,80(0,780)
21,05(0,829)
22,30(0,878)
23,55(0,927)
24,80(0,976)
26,05(1,026)
27,30(1,075)
28,55(1,124)
29,80(1,173)
31,05(1,222)
32,30(1,272)
33,55(1,321)
34,80(1,370)
36,05(1,419)
37,30(1,469)
38,55(1,518)
39,80(1,567)
41,05(1,616)
42,30(1,665)
43,55(1,715)
44,80(1,764)
46,05(1,813)
47,30(1,862)
48,55(1,911)
C
6,41(0,252)
7,66(0,302)
8,91(0,351)
10,16(0,400)
11,41(0,449)
12,66(0,498)
13,91(0,548)
15,16(0,597)
16,41(0,646)
17,66(0,695)
18,91(0,744)
20,16(0,794)
21,41(0,843)
22,66(0,892)
23,91(0,941)
25,16(0,991)
26,41(1,040)
27,66(1,089)
28,91(1,138)
30,16(1,187)
31,41(1,237)
32,66(1,286)
33,91(1,335)
35,16(1,384)
36,41(1,433)
37,66(1,483)
38,91(1,532)
40,16(1,581)
41,41(1,630)
42,66(1,680)
43,91(1,729)
45,16(1,778)
46,41(1,827)
2.5
.098
A
B
0.5
.020
1.25
.049
A
.268
6.8
A
B
A+0.15
1.25±0.10
.049±.004
0.8±0.03
.031±.001
4.0 Min.
0.30±0.05
.012±.002
.157
.071
1.8
6.0 Min.
.236
.205
5.2
0.45 Max.
.018
B-B SEC.
1.25±0.10
.049±.004
ø0.9±0.05
.035±.002
.098
.087
2.5
2.2
A±0.15
1.05
.041
A-A SEC.
RECOMMENDED HOLE PATTERN
P-24
2.5±0.05
.098±.002
3.2
.126
4.0
.157
1.25±0.10
.049±.004
2.5±0.05
.098±.002
FULL LINE CATALOGUE
