6866-4669: DescriptionTelecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Wire Terminal, Plug; CategoryThe connector The connector; File Size394KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

6866-4669 Overview

Telecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Wire Terminal, Plug

6866-4669 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.412 inch
subject depth	0.528 inch
body length	0.3 inch
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	300VAC V
Durability	1000 Cycles
maximum insertion force	19.5712 N
Insulation resistance	1000000000 Ω
insulator material	POLYCARBONATE
Manufacturer's serial number	6866
Installation method	RIGHT ANGLE
Installation type	CABLE
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Plating thickness	10u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Termination type	WIRE
Total number of contacts	6
Evacuation force-minimum value	19.5712 N

Preview

Download Datasheet

View All

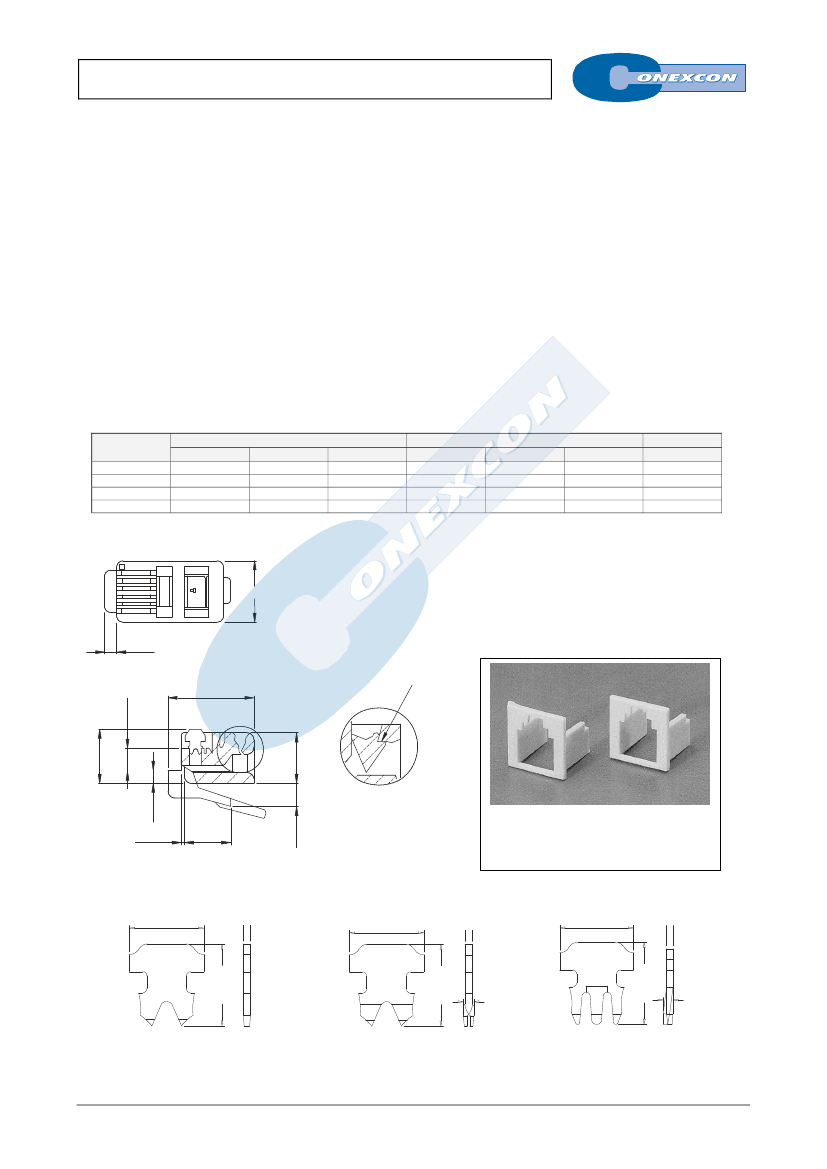

TELEPHONE PLUGS FCC-68

6866 SERIES.

6 and 8 contacts modular plugs.

General Features

Electrical Features



Available in 6/2, 6/4, 6/6 and 8/8 circuits

Standard telephone plug 6 circuits FCC-68

Use cable 9102 series

Insulation piercing termination

3 types of contacts: 2 prongs for stranded wire, 2 prongs

for solid wire and 3 prongs for solid wire



Voltage rating: < 125V

Current rating: < 1.50 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 300 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features



Insulator: Polycarbonate UL 94V-2

Contact: Phosphor Bronze

Operating temperature: -25ºC to +85ºC

RoHS compliant



Cable to plug tensile strength: > 6.20 Kgf

Insertion force to jack: < 2.00 Kgf

Withdrawal force from jack bar depressed: < 2.00 Kgf

Durability: 1000 cycles

Dimension Information

Circuits

6/2

6/4

6/6

8/8

Without Shielded

Type A

6866 –

T621

6866 –

T641

6866 –

T661

6866 –

T881

Type B

6866 –

T625

6866 –

T645

6866 –

T665

6866 –

T885

Type C

-

6866 –

T640

6866 –

T660

-

Type A

6866 –

T623

6866 –

T643

6866 –

T663

6866 –

T883

With Shielded

Type B

6866 –

T627

6866 –

T647

6866 –

T667

6866 –

T887

Type C

-

6866 –

T649

6866 –

T669

-

DIMENSIONS

A

9.65 (0.300)

11.68 (0.460)

T = Plating Options



T =

4.

10µ” gold over nickel

T =

5.

15µ” gold over nickel

T =

6.

30µ” gold over nickel

T =

7.

50µ” gold over nickel

1.00

.039

Fixing Detail

2.49

.098

13.4

.528

"A"

6.60

.260

7.70

.303

A

1.93

.076

Detail "A"

2.77

5.89

.232

.109

1.02

.040

Adaptor Frame 6 to 4 circuits

P/ Number:

6866 – 6844

Adaptor Frame 8 to 6 circuits

P/ Number:

6888 - 6866

*Contact detaill

3.50

±0.10

0.35

±0.02

3.50

±0.10

0.35

±0.02

3.50

±0.10

0.30

±0.02

3.85

±0.05

3.85

±0.05

3.85

±0.05

0.50

±0.03

0.50

±0.03

Type A

2 Prongs For Stranded Wire

Type B

2 Prongs For solid Wire

Type C

3 Prongs For solid Wire

E-XX

FULL LINE CATALOGUE
