8007-6251 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 8007-6251

Preview

8007-6251: DescriptionD Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size236KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

8007-6251 Overview

D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle

8007-6251 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.492 inch
body length	2.091 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact style	RND PIN-SKT
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	8007
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	SCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.126 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	25

Preview

Download Datasheet

View All

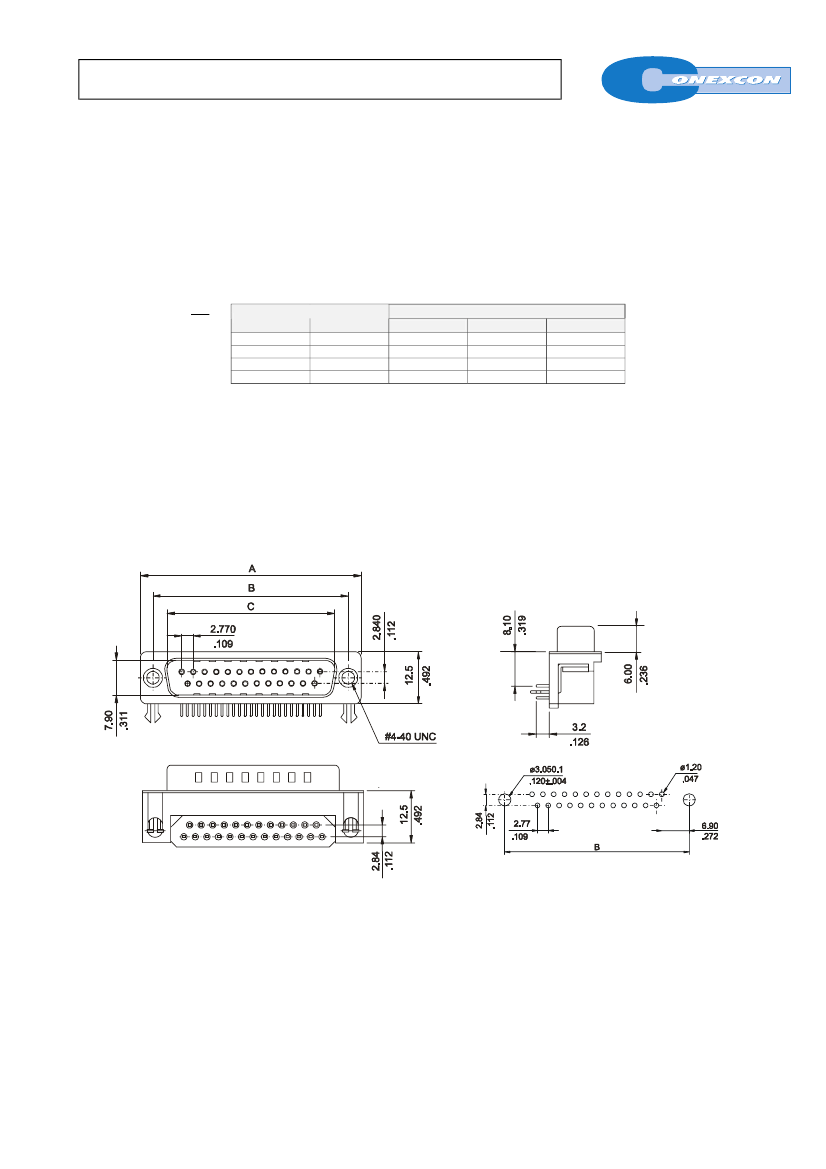

8.10mm FOOTPRINT EMI D-SUB RECEPTACLE

SERIES.

8007 SERIES

With

Ferrite.

For PCB Solder. Right Angle D-Sub Receptacle

Features

!

Available in 9, 15, 25 and 37 circuits

Insulator Material: Glass filled polyester UL 94V-0

Contact Material: Copper alloy with different plating

Ideal for applications of high frequency (100-300 Mhz.)

and high speed transmission of digital signals

!

#

!

Shell: Steel, tin plated as standard

Standard connector C = 1 (Riveted ground hooks with

#4-40 UNC open

Impedance: 30

Ω

for 25 MHz. and 60

Ω

for 100 MHz.

For other options consult the Sales Office

Ordering and Dimensional Information

Dimensions

Dimensional Information

mm.

Inch.

Unit:

Circuit Size

9

15

25

37

Part Number

8007 –

T09C

8007 –

T15C

8007 –

T25C

8007 –

T37C

A

25.00 (0.984)

33.30 (1.311)

47.10 (1.854)

63.50 (2.500)

B

30.80 (1.213)

39.20 (1.543)

53.10 (2.091)

69.40 (2.732)

C

16.33 (0.643)

24.66 (0.971)

38.38 (1.511)

54.84 (2.159)

T = Contact Plating

C = Hardware Options

!

T =

3.

Gold flash over 50µ” nickel

T =

4.

10µ” gold over 50µ” nickel

T =

5.

15µ” gold over 50µ” nickel

T =

6.

30µ” gold over 50µ” nickel

!

C =

1.

Riveted ground hooks pre-loaded #4.40

#

UNC Hexagonal screws (standard)

!

C =

0.

Riveted ground hooks with #4.40 UNC open

RECOMMENDED HOLE PATTERN

CONEXCON

Products specifications are subjet to be changed without notice. Please contact Sales Office for further confirmation

8007-6251 Related Products

	8007-6251	8007-3091	8007-5091	8007-5251	8007-4251
Description	D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle	D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle	D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle	D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle	D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
body width	0.492 inch	0.492 inch	0.492 inch	0.492 inch	0.492 inch
body length	2.091 inch	1.213 inch	1.213 inch	2.091 inch	2.091 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Manufacturer's serial number	8007	8007	8007	8007	8007
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch
Installation option 1	#4-40	#4-40	#4-40	#4-40	#4-40
Installation option 2	SCREW	SCREW	SCREW	SCREW	SCREW
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	2	2	2
Number of rows loaded	2	2	2	2	2
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm
Plating thickness	30u inch	FLASH inch	15u inch	15u inch	10u inch
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL
Terminal length	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch
Terminal pitch	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	25	9	9	25	25
