9108-10-220-01 datasheet, PDF - EEWORLD Datasheet

9108-10-220-01: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size190KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

9108-10-220-01 Overview

Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	MILITARY POLARIZATION HEADER
body width	0.32 inch
subject depth	0.365 inch
body length	2.31 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	9100
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	MIL TYP & CENTER
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	40
Evacuation force-minimum value	.556 N

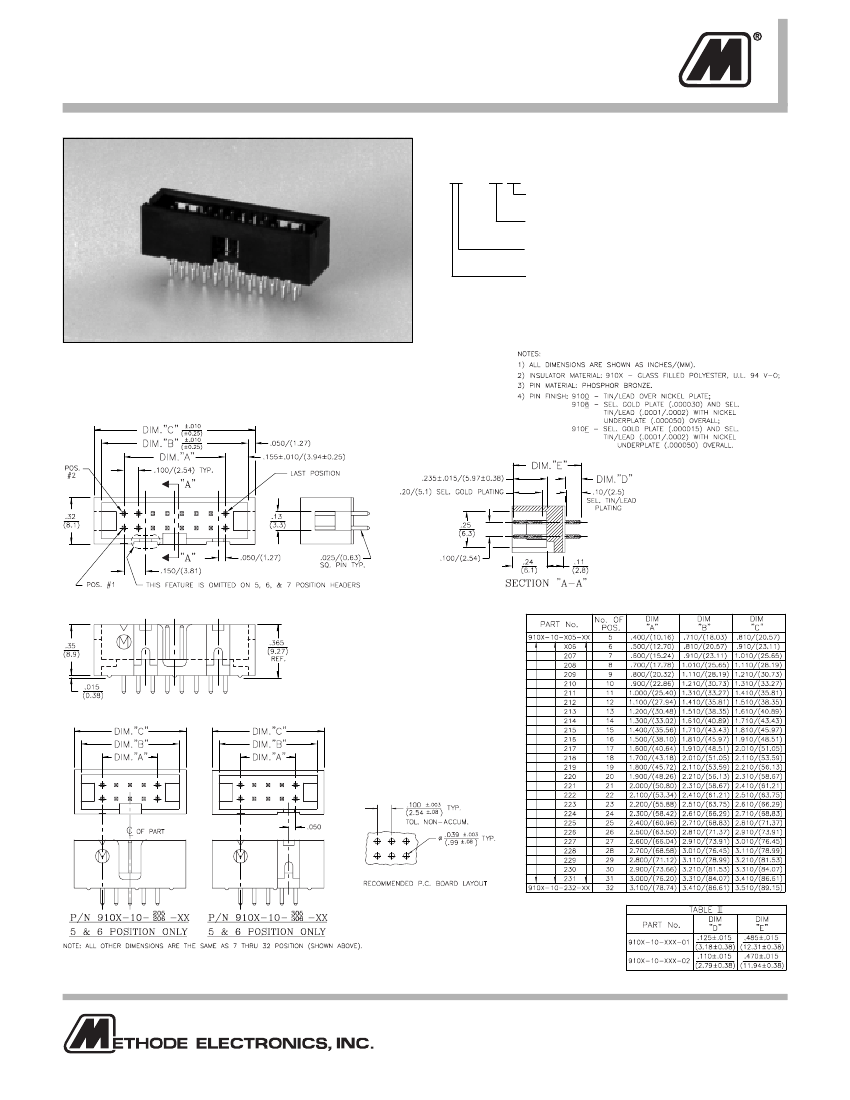

.100” (2.54mm) Dual Row, Through Hole,

Vertical, Shrouded, Military Polarization Header

9100 SERIES

(“POST/BOXE”)

PART NUMBER LEGEND

910X-10-2XX-XX

PIN NUMBER

(SEE TABLE II)

NUMBER OF POSITIONS

(SEE TABLE I)

PIN PLATING

(SEE NOTE 4)

INSULATOR MATERIAL

(SEE NOTE 2)

TABLE I

Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

Telephone: 847.392.3500 • Fax: 847.392.9404

email: mcpsales@methode.com • Web Page: www.methode.com
