BB10-SO-038-G-8.00-PP-T/R datasheet, PDF

Datasheet> All Categories > The connector> The connector> BB10-SO-038-G-8.00-PP-T/R

BB10-SO-038-G-8.00-PP-T/R: DescriptionBoard Connector, 38 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking; CategoryThe connector The connector; File Size173KB，1 Pages; ManufacturerAdam Tech

Download Datasheet Parametric View All

BB10-SO-038-G-8.00-PP-T/R Overview

Board Connector, 38 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking

BB10-SO-038-G-8.00-PP-T/R Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.283 inch
subject depth	0.315 inch
body length	0.895 inch
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact style	CENTRONIC
Manufacturer's serial number	BBA
Plug contact pitch	0.039 inch
Match contact row spacing	0.039 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.6068 mm
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	38

Preview

Download Datasheet

View All

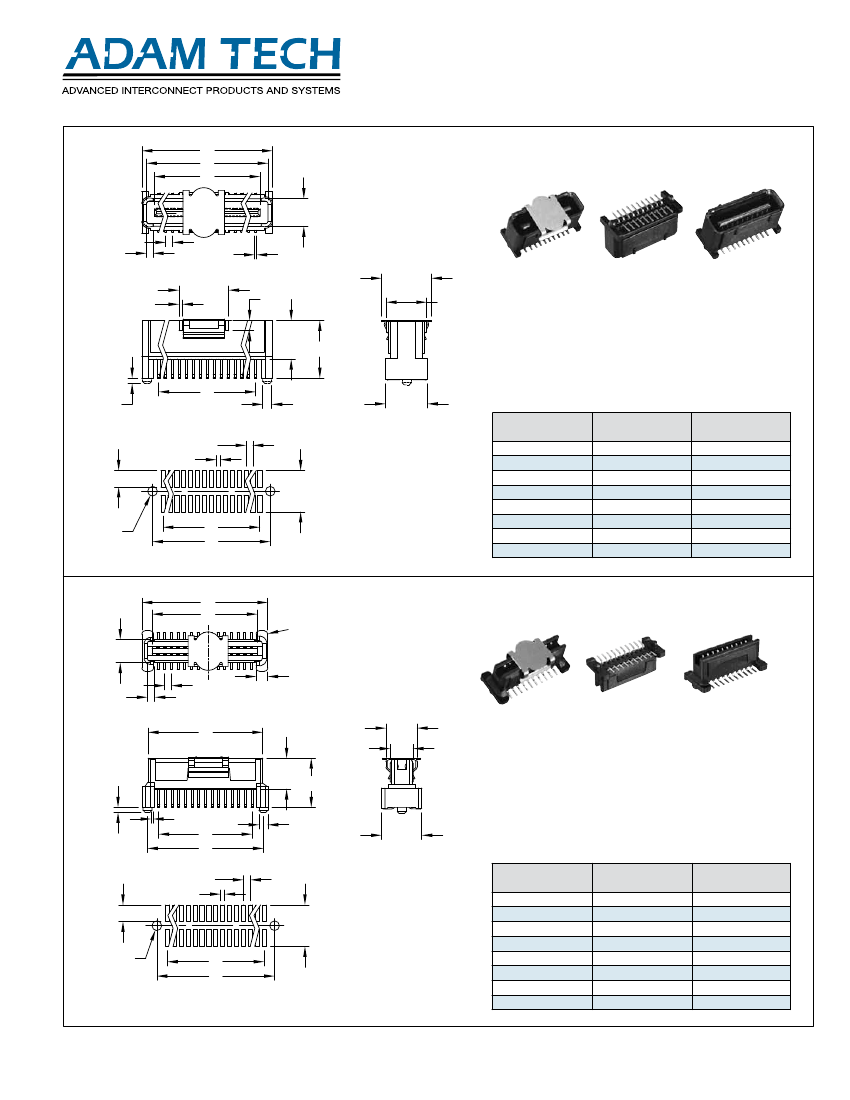

BOARD-to-BOARD CONNECTORS

BBA SERIES

.157

[4.00]

.039

[1.00]

.039 [1.00]

.012 [0.30]

.283

[7.20]

.283

[7.20]

.059

[1.50]

.221

[5.61]

.230

[5.85]

1.00mm MALE & FEMALE SET

bb10-po-XXX-g-X.XX-pp-t/r

1.00mm MAlE

BB10-pO-020-g-x.xx-pp-T/R

Replace (XX) in Part No. with No. of Positions

Replace (X.XX) in Part No. with stacking height

Options: (–PP) pick/place pad, (–TR) tape and reel packaging

Positions: 10 thru 100

A = .039 [1.00] x (No. of Positions per row) + .154 [3.90]

B = .039 [1.00] x (No. of Positions per row) - .039 [1.00]

C = .039 [1.00] x (No. of Positions per row) + .012 [0.30]

D = .039 [1.00] x (No. of Positions per row) + .102 [2.58]

E = .039 [1.00] x (No. of Positions per row) + .094 [2.40]

PLUG

HEIGHT

SOCKET

HEIGHT

.211 [5.37]

.290 [7.37]

.330 [8.37]

.408 [10.37]

.211 [5.37]

.330 [8.37]

.408 [10.37]

STACKING

HEIGHT

.315 [8.00]

.394 [10.00]

.433 [11.00]

.512 [13.00]

.354 [9.00]

.472 [12.00]

.551 [14.00]

.591 [15.00]

.020

[0.50]

.030

[0.76]

.052 [1.33]

.238

[6.05]

.039 [1.00]

.024 [0.60]

.094 [2.40]

.236

[6.00]

.250 [6.35]

.289 [7.35]

.329 [8.35]

Ø.055

[1.40]

.136

[3.45]

.039 [1.00]

.044 [1.11]

bb10-so-XXX-g-X.XX-pp-t/r

Ø.039

[1.00]

1.00mm FEMAlE

.069 [1.75]

.182

[4.63]

BB10-SO-020-g-x.xx-pp-T/R

.136

[3.45]

Replace (XX) in Part No. with No. of Positions

Replace (X.XX) in Part No. with stacking height

Options: (–PP) pick/place pad, (–TR) tape and reel packaging

Positions: 10 thru 100

A = .039 [1.00] x (No. of Positions per row) + .154 [3.90]

B = .039 [1.00] x (No. of Positions per row) - .039 [1.00]

C = .039 [1.00] x (No. of Positions per row) + .031 [0.80]

D = .039 [1.00] x (No. of Positions per row) + .087 [2.22]

E = .039 [1.00] x (No. of Positions per row) + .094 [2.40]

PLUG

HEIGHT

.250 [6.35]

.289 [7.35]

.250 [6.35]

.289 [7.35]

.250 [6.35]

.289 [7.35]

.329 [8.35]

SOCKET

HEIGHT

.211 [5.37]

.290 [7.37]

.330 [8.37]

.408 [10.37]

STACKING

HEIGHT

.315 [8.00]

.354 [9.00]

.394 [10.00]

.433 [11.00]

.472 [12.00]

.512 [13.00]

.551 [14.00]

.591 [15.00]

.031

[0.78]

.182

[4.63]

.012 [0.30]

.039 [1.00]

.024 [0.60]

.094 [2.40]

.052 [1.33]

.238

[6.05]

.236

[6.00]

Ø.055

[1.40]

Replace (XX) in Part No. with No. of Positions

Positions:

www.adam-tech.com

20, 30, 40, 50

Replace (X.XX) in Part No. with stacking height

A = .025 [0.635] x (No. of Contacts per row - 1)

B = .025 [0.635] x (No. of Contacts per row - 1) + .335 [8.50]

C = .025 [0.635] x (No. of Contacts per row - 1) + .130 [3.31]

PLUG

HEIGHT

.157 [4.00]

SOCKET

HEIGHT

.157 [4.00]

STACKING

HEIGHT

.197 [5.00]

223
