TGL34-6.8(A)(C)(CA)--TGL34-200(A)(C)(CA)
Surface Mount Unidirectional and Bidirectional TVS
特徵
FEATURES
.
塑膠封裝。Plastic
MINI MELF package.
.
玻鈍晶片。Glass
passivated chip junction.
.
峰值脈沖功率½力是
150
瓦，當脈沖方½波寬度是
10/1000
µs，重復率(占空系數)是 0.01%。
150W peak pulse power capability with a 10/1000µs
waveform ,repetition rate(duty cycle): 0.01%
.
.
極½的鉗½½力。
Excellent clamping capability.
.
快速響應時間。
Very fast response time.
DO-213AA/MINI MELF
.
逐漸½下的浪涌阻抗。
Low incremental surge resistance.
.
反向漏電典型值½于
1mA,高于 10V
的額定鉗½電壓
Typical ID less than 1
mA above 10V rating
.
高溫焊接保証
High temperature soldering guaranteed:
250
℃/10
seconds of terminal
尺寸單½：inch(mm)
機械資料
MECHANICAL DATA
.
封
.
端
裝:
DO-213AA(GL34) Case:DO-213AA(GL34)
子: 不光滑的鍍錫引線，可焊性按照
MIL-STD-202
標准，方法
208(E3)
Terminals: Matte tin plated leads,solderable per
MIL-STD-202 method 208 E3 suffix for commercial grade.
.
極
性: 單極性類型的色環端表示陰極。
Polarity: For unidirectional types the band denotes
Dimension in inches (millimeters)
the cathode which is positive with respect to the anode under normal TVS operation.
雙極性類型尾標中綴“C＂或者“CA＂，電子特性應用于雙向。
For bidirectional types (add suffix “C”or ”CA”),electrical characteristics apply in both directions.
極限值和溫度特性
TA=25℃
除非另有規定。
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25℃ Ambient temp. Unless otherwise specified.
參數
Parameter
峰值脈沖功率消耗
(Fig.1)
Peak pulse power dissipation(10/1000
µs waveform
)
最大瞬間正向電壓
IF = 10A
(Fig.3)
Maximum Instantaneous Forward Voltage
典型熱阻(接面環繞)
(Fig.2)
Typical Thermal Resistance Junction-to-Ambient
典型熱阻(接面引線)
Typical Thermal Resistance Junction-to-lead
峰值正向浪湧電流
8.3ms
單一正弦半波
(Fig.3)
Peak forward surge current 8.3 ms single half sine-wave
工½結溫和存儲溫度
Operating Junction And Storage Temperature Range
Notes:1.Non-repetitive pulse curve Ippm=f(t)
2.Mounted on P.C board with 25 mm
2
copper pads at each terminal
3.Unidirectional diodes ony
符號
SYMBOL
數值
Value
單½
UNITS
W
V
℃/W
℃/W
A
℃
Pppm
VF
RθJ
A
RθJ
L
I
FSM
Tj, TSTG
150
< 3.5
75
15
20
-55+150
TGL34-6.8(A)(C)(CA)--TGL34-200(A)(C)(CA)
Surface Mount Unidirectional and Bidirectional TVS
型號
Type
½折電壓
Breakdown Voltage
測試電流
Test Curren
t
反向峰值
電壓
Stand-off
voltage
最大反向
漏电流
Maximum
Reverse
Leakage
最大鉗½電壓
Maximum
Clamping
Voltage
最大峰值
脈衝電流
Maximum
Peak
Pulse Current
V
BR
(V)
TGL34-43(C)
TGL34-43A(CA)
TGL34-47(C)
TGL34-47A(CA)
TGL34-51(C)
TGL34-51A(CA)
TGL34-56(C)
TGL34-56A(CA)
TGL34- 62(C)
TGL34-62A(CA)
TGL34- 68(C)
TGL34-68A(CA)
TGL34- 75(C)
TGL34-75A(CA)
TGL34- 82(C)
TGL34-82A(CA)
TGL34- 91(C)
TGL34-91A(CA)
TGL34- 100(C)
TGL34-100A(CA)
TGL34- 110(C)
TGL34-110A(CA)
TGL34-120C)
TGL34-120A(CA)
TGL34- 130(C)
TGL34-130A(CA)
TGL34- 150(C)
TGL34-150A(CA)
TGL34- 160(C)
TGL34-160A(CA)
TGL34- 170(C)
TGL34-170A(CA)
TGL34- 180(C)
TGL34-180A(CA)
TGL34- 200(C)
TGL34-200A(CA)
43±10%
43±5%
47±10%
47±5%
51±10%
51±5%
56±10%
56±5%
62±10%
62±5%
68±10%
68±5%
75±10%
75±5%
82±10%
82±5%
91±10%
91±5%
100±10%
100±5%
110±10%
110±5%
120±10%
120±5%
130±10%
130±5%
150±10%
150±5%
160±10%
160±5%
170±10%
170±5%
180±10%
180±5%
200±10%
200±5%
38.7…47.3
40.9…45.2
42.3…51.7
44.7…49.4
45.9…56.1
48.5…53.6
50.4…61.6
53.2…58.8
55.8…68.8
58.9…65.1
61.2…74.8
64.6…71.4
67.5…82.5
71.3…78.8
73.8…90.2
77.9…86.1
81.9…100
86.5…95.5
90.0…110
95.0…105
99.0…121
105…116
108…132
114…126
117…143
124…137
135…165
143…158
144…176
152…168
153…187
162…179
162…198
171…189
180…220
190…210
I
T
(mA)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
V
WM
(V)
34.8
36.8
38.1
40.2
41.3
43.6
45.4
47.8
50.2
53.0
55.1
58.1
60.7
64.1
66.4
70.1
73.7
77.8
81.0
85.5
89.2
94.0
97.2
102
105
111
121
128
130
136
138
145
146
154
162
171
I
D
(µA)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
V
C
(V)
61.9
59.3
67.8
64.8
73.5
70.1
81
77
89
85
98
92
108
103
118
113
131
125
144
137
158
152
173
165
187
179
215
207
230
219
244
234
258
246
287
274
I
PPM
(A)
2.4
2.5
2.2
2.3
2.0
2.1
1.9
1.9
1.7
1.8
1.5
1.6
1.4
1.5
1.3
1.3
1.1
1.2
1.0
1.1
0.9
1.0
0.9
0.9
0.8
0.8
0.7
0.7
0.7
0.7
0.6
0.6
0.6
0.6
0.5
0.5
雙極性類型尾標中綴“C“或者“CA＂，電子特性應用于雙向。
For bidirectional types (add suffix “C”or ”CA”),electrical characteristics apply in both directions.
TGL34-6.8(A)(C)(CA)--TGL34-200(A)(C)(CA)
Surface Mount Unidirectional and Bidirectional TVS

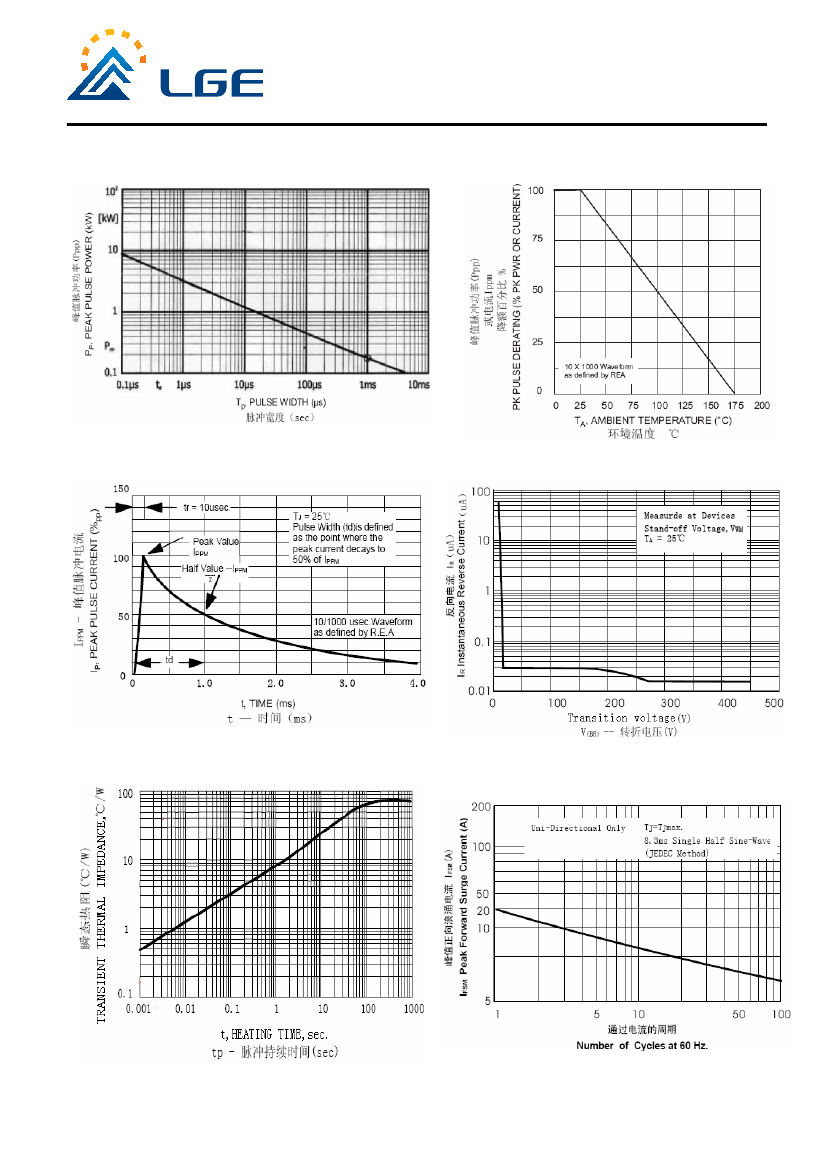

FIG. 1–峰值脈沖功率定額曲線
FIG. 1 – NON-REPETITIVE PULSE RATING CURVE
FIG. 2 –脈沖降額曲線
FIG. 2 – PULSE CURVE DERATING
FIG. 3 –脈沖波½
FIG. 3 – PULSE WAVEFORM
FIG. 4 –反向特性曲線(典型值)
FIG. 4 – TYPICAL REVERSE CHARACTERISTICS
FIG. 5 –
典型瞬態熱阻
FIG. 5 –TYPICAL TRANSIENT THERMAL IMPEDANCE
FIG. 6 –浪涌特性曲線（最大值）
FIG. 6 –MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
