DRM15PNJ-H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DRM15PNJ-H

DRM15PNJ-H: DescriptionD Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size143KB，1 Pages; ManufacturerAUK Contractors Co., Ltd.

Download Datasheet Parametric Compare View All

DRM15PNJ-H Overview

D Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle

DRM15PNJ-H Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.494 inch
subject depth	0.579 inch
body length	1.539 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DRM
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	JACKSCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	15

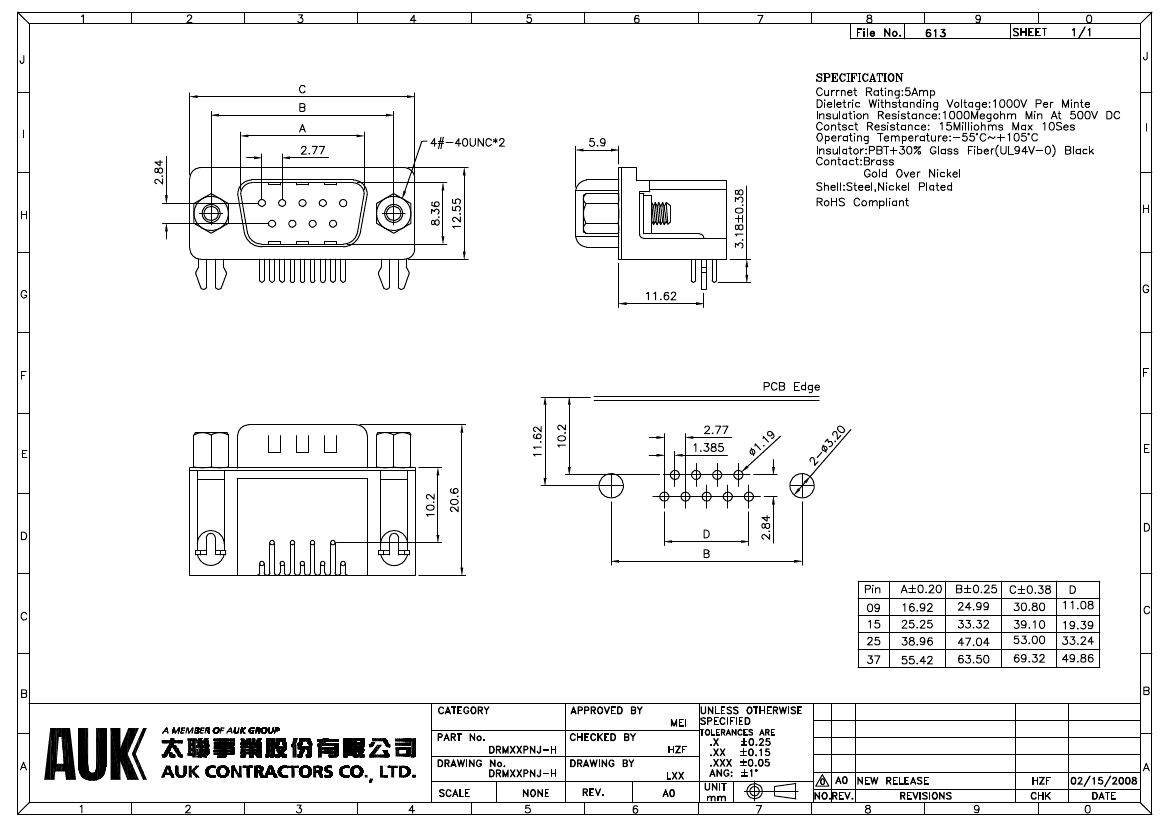

Preview

Download Datasheet

View All

DRM15PNJ-H Related Products

	DRM15PNJ-H	DRM09PNJ-H	DRM37PNJ-H
Description	D Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle	D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle	D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle
Reach Compliance Code	unknown	unknown	unknown
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.494 inch	0.494 inch	0.494 inch
subject depth	0.579 inch	0.579 inch	0.579 inch
body length	1.539 inch	1.213 inch	2.729 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS
contact mode	STAGGERED	STAGGERED	STAGGERED
Contact resistance	15 mΩ	15 mΩ	15 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DRM	DRM	DRM
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch
Installation option 1	#4-40	#4-40	#4-40
Installation option 2	JACKSCREW	JACKSCREW	JACKSCREW
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
PCB row number	2	2	2
Number of rows loaded	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.8448 mm	2.8448 mm	2.8448 mm
Rated current (signal)	5 A	5 A	5 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL	NICKEL
Shell material	STEEL	STEEL	STEEL
Terminal length	0.125 inch	0.125 inch	0.125 inch
Terminal pitch	2.7686 mm	2.7686 mm	2.7686 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	15	9	37
ECCN code	EAR99	-	EAR99
