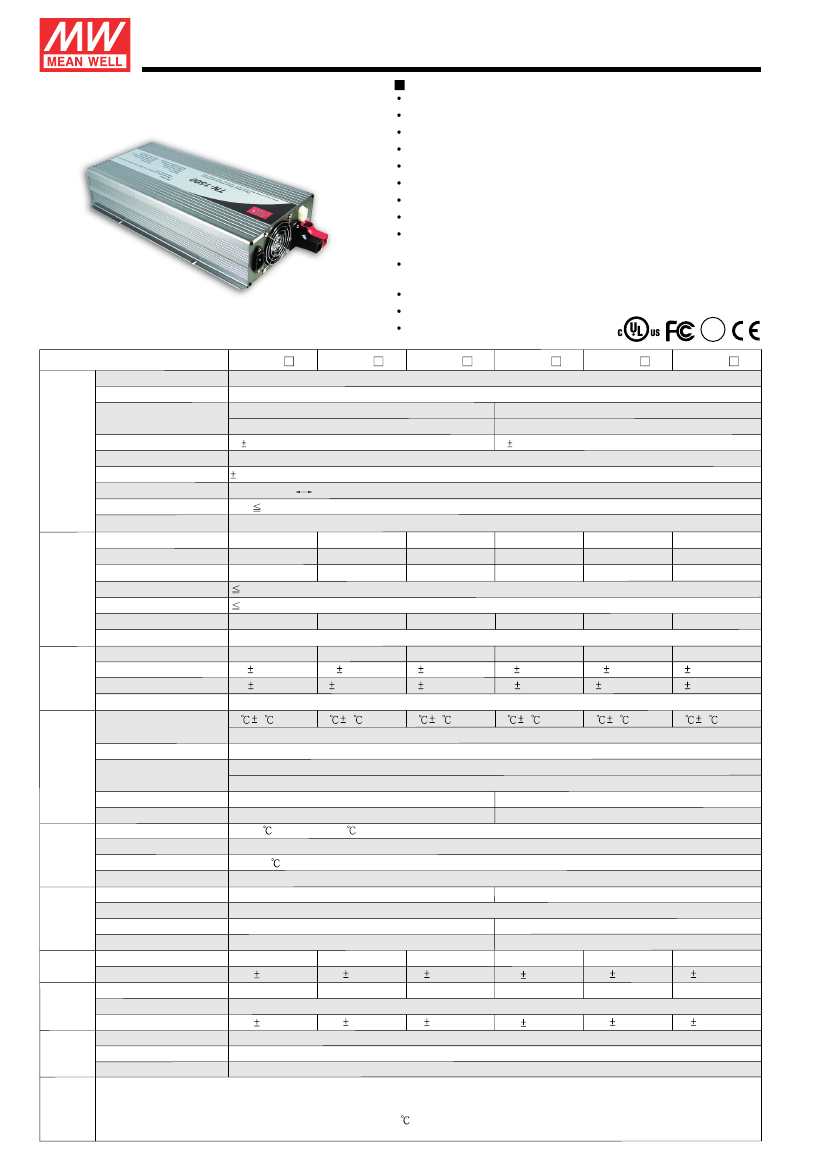

1500W True Sine Wave DC-AC Inverter with Solar Charger
Features :
TN-1500
series
True sine wave output (THD<3%)
SPECIFICATION
MODEL
RATED POWER (Typ.)
MAXIMUM OUTPUT POWER
AC VOLTAGE
FREQUENCY
OUTPUT
WAVEFORM
AC REGULATION (Typ.)
TRANSFER TIME
SAVING MODE (Typ.)
FRONT PANEL INDICATOR
BAT. VOLTAGE
DC CURRENT (Typ.)
INPUT
NO LOAD DISSIPATION
OFF MODE CURRENT DRAW
EFFICIENCY (Typ.)
BATTERY TYPES
FUSE
BATTERY BAT. LOW ALARM
INPUT
PROTECTION
BAT. LOW SHUTDOWN
REVERSE POLARITY
TN-1500-112
1500W
TN-1500-124
High surge power up to 3000W
U.P.S. mode and energy saving mode (selectable)
High efficiency up to 91%
Power ON-OFF switch
Standby saving mode can be selectable
Front panel indicator for operation status
Thermostatically controlled cooling fan
Protections: Bat. low alarm / Bat. low shutdown / Over voltage / Over temp.
/ Output short / Input polarity reverse / Overload / AC circuit breaker
Application : Home appliance, power tools, office and portable
equipment, vehicle and yacht ...etc.
Built-in solar / AC charger
Optional monitoring software
2 years warranty
E
13
TN-1500-148
TN-1500-212
TN-1500-224
TN-1500-248
1725W for 180 sec. / 2250W for 10 sec. / surge power 3000W for 30 cycles
Factory setting set at 110VAC
100 / 110 / 115 / 120VAC selectable by setting button S.W
Factory setting set at 230VAC
200 / 220 / 230 / 240VAC selectable by setting button S.W
60 0.1Hz
3.0%
50/60Hz selectable by setting button S.W
50 0.1%Hz
50/60Hz selectable by setting button S.W
True sine wave (THD<3%) at rated input voltage
t<10ms inverter
by pass
Load 5W will be changed to standby mode
Battery voltage level, output load level, saving mode, fault and operation status
12V
Note.5
150A
24V
48V
42 ~ 60VDC
37.5A
12V
10.5 ~ 15VDC
150A
24V
21 ~ 30VDC
75A
48V
42 ~ 60VDC
37.5A
VOLTAGE RANGE (Typ.)
Note.1
10.5 ~ 15VDC
21 ~ 30VDC
75A
18W @ standby saving mode
1mA
89%
Open & sealed Lead Acid
30A*3
22.5 4%
21 4%
82
5
90%
30A*2
45 4%
42 4%
96
5
88%
40A*5
11.3 4%
10.5 4%
68
5
90%
30A*3
22.5 4%
21 4%
68
5
91%
30A*2
45 4%
42 4%
68
5
Note.2
87%
40A*5
11.3 4%
10.5 4%
By internal fuse open
82
5
OVER TEMPERATURE
OUTPUT SHORT
OUTPUT
PROTECTION OVER LOAD (Typ.)
CIRCUIT BREAKER
GFCI PROCTECTION
WORKING TEMP.
ENVIRONMENT
WORKING HUMIDITY
Protection type : Shut down o/p voltage, re-power on to recover ; by internal RTH3 detect on heatsink of power transistor
Protection type : Shut down o/p voltage, re-power on to recover
105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec.
Protection type : Shut down o/p voltage, re-power on to recover
20A
Optional (Only type F)
Note.3
0 ~ +40 @ 100% load ; 60 @ 50% load
20% ~ 90% RH non-condensing
-30 ~ +70
/ -22 ~ +158 F, 10 ~ 95% RH
o
10A
None
STORAGE TEMP., HUMIDITY
VIBRATION
SAFETY &
EMC
10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes
EN60950-1
UL458 (only for "GFCI" receptacles-Type F )
SAFETY STANDARDS
Bat I/P - AC I/P:3.0KVAC Bat I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
WITHSTAND VOLTAGE
Compliance to EN55022 class B, 72/ 245/ CEE, 95/ 54/ CE, E-Mark
EMI CONDUCTION&RADIATION
Compliance to FCC class A
-----
Compliance to EN61000-4-2,3,4,5,6,8,11 ENV50204
EMS IMMUNITY
AC
CHARGER
SOLAR
CHARGER
CHARGE CURRENT (Typ.)
CHARGE VOLTAGE
CHARGE CURRENT (max.)
CHARGE VOLTAGE
CONTROL WIRING

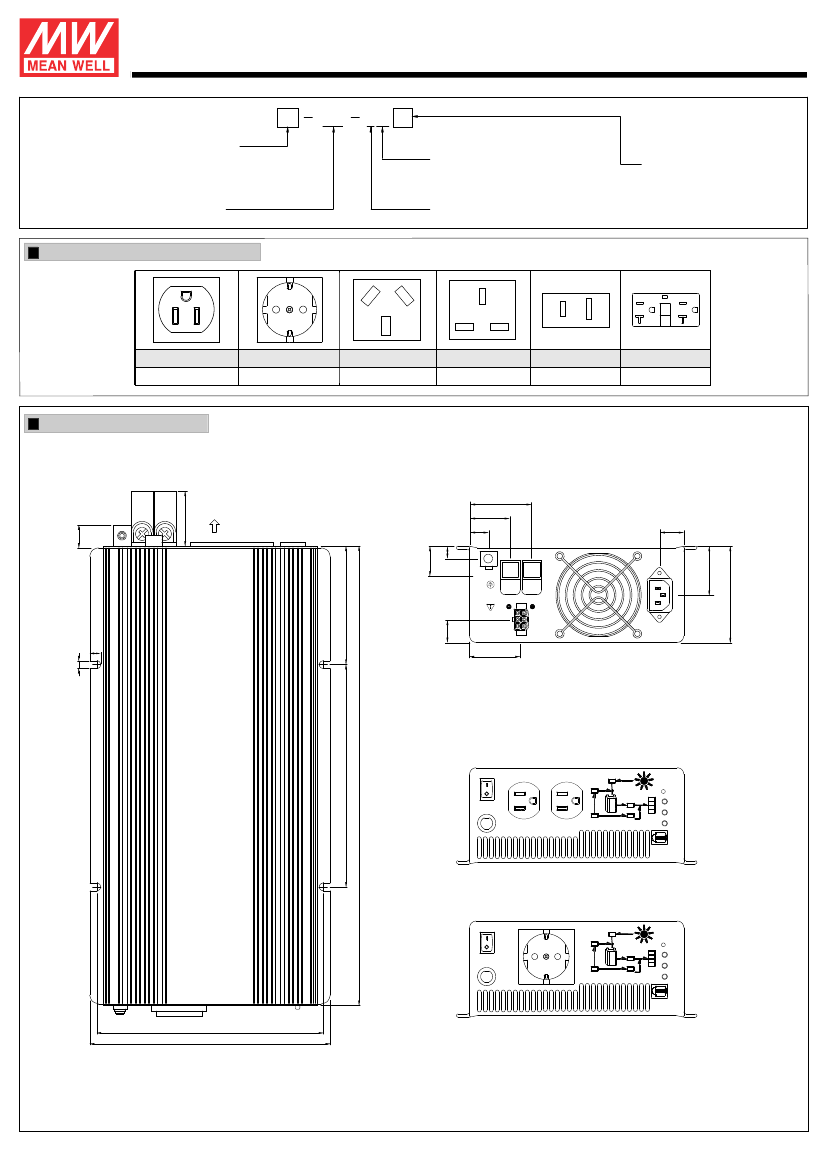

DIMENSION
PACKING
5.5A
14.3V 4%
30A
2.7A
28.5V 4%
45V
1.35A
57V 4%
75V
57V 4%
5.5A
14.3V 4%
25V
14.3V 4%
2.7A
28.5V 4%
45V
28.5V 4%
1.35A
57V 4%
75V
57V 4%
MAX OPEN CIRCUIT VOLTAGE
25V
28.5V 4%
14.3V 4%
RJ11 -RS232 (Option)
420*220*88mm (L*W*H)
6.85Kg; 2pcs/14.7Kg/1.61CUFT
OTHERS
NOTE
1.Output derating capacity referenced by curve 1.
2.Efficiency is tested by 1000W, linear load at 13V, 26V, 52V input voltage.
3.Output derating capacity referenced by curve 2.
4.All parameters not specified above are measured at rated load, 25 of ambient temperature.
5.DC current is tested by 1500W, linear load at 13V, 26V, 52V input voltage.
File Name:TN-1500-SPEC 2008-07-29
1500W True Sine Wave DC-AC Inverter with Solar Charger
TN-1500
series

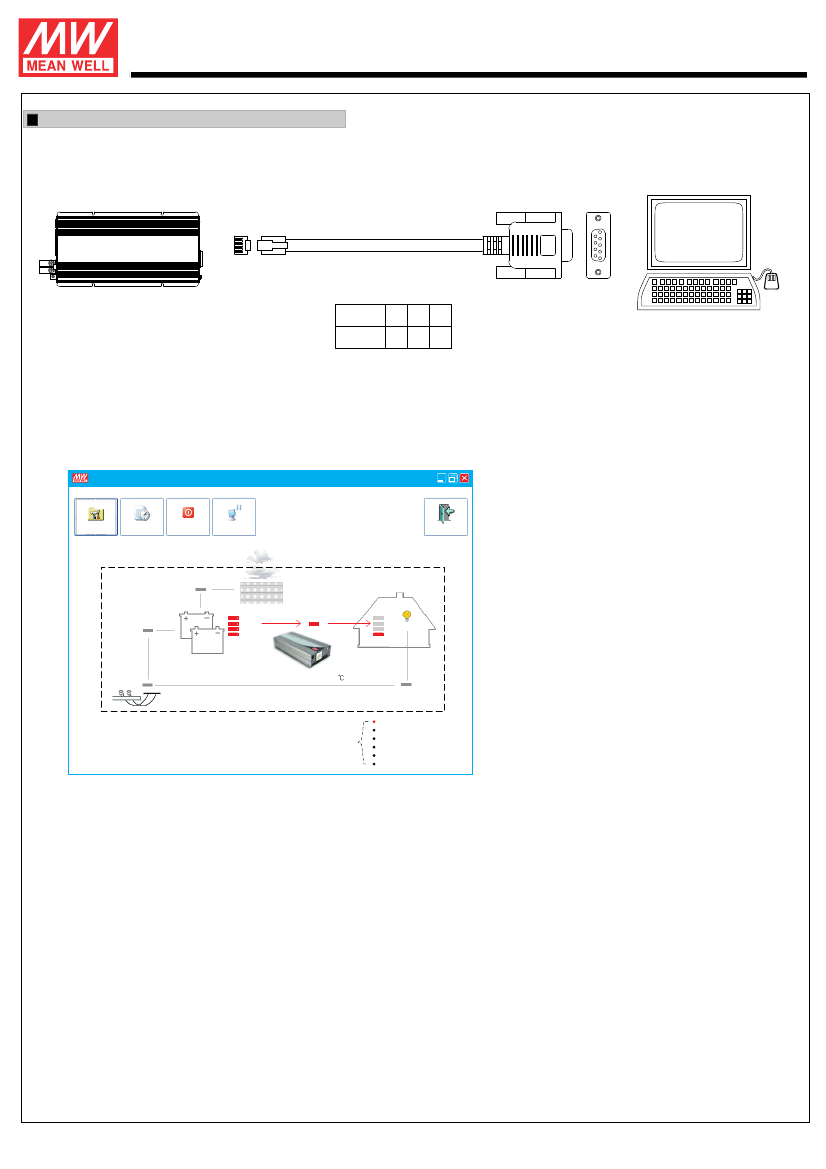

Instructions for TN-1500 monitoring software
1. Installation of TN-1500 unit and PC
1
6
Phone Jack
RJ11
DB9 FEMALE
RJ11
PIN NO.
DB9
PIN NO.
2
3
3
5
4
2
9
8
7
6
5
4
3
2
1
Figure 1
2. Explanation of Monitoring Manu
2.1 Main Page
Inverter TN V.1.1
Setting
Statistics
R.C. Power off
Pause
Exit
1
2
3
4
Solar Charge
AC Charge
100
0
Battery
Battery Voltage
54.1
V
INVERTER
100
0
Loading
O/P Voltage
110
V
O/P Frequency
60.0
Hz
5
Internal Temperature
10.0
AC In
Utility Voltage
0.0
V
TN-1500-143
By pass
Start Date
2007/12/07 03:13:33 PM
Reset Date
2007/12/21 01:40:56 PM
6
Power on
Remote off
Battery low
Battery used up
Stand by saving mode
Abnormal Shutdown
Figure 2
1. Setting: Adjustment for output voltage, charging related voltage, frequency, and operation mode. Please refer to Figure 3 for details.
2. Statistics: Calculate for the percentage of operating period for each operation mode. Please refer to Figure 4 for details.
3. R.C. Power off: Power can be turned ON or OFF at the remote location.
4. Pause: Stop refreshing the page of monitoring software.
5. Status of unit: Indicating current operating status of TN-1500.
6. Signals that display current condition of the unit.
File Name:TN-1500-SPEC 2008-07-29
1500W True Sine Wave DC-AC Inverter with Solar Charger
TN-1500
series
2.2 Setting Page
Inverter Setting
File Name
D:\TN_110RR\20071205\REV\TN_110RR\TNF\TN_1K5_512.TNF
Model name TN-1500-212
Manufacture MeanWell
Revision REV:1.10
I/O Type
Voltage
Frequency
Stand-by saving mode
UPS mode
Energy saving mode
212
230
50
On
On
On
1
Lead
Hz
Off
V
Series Number
Date Of Manu.
Equalization Volt.
Floating Volt.
Alarm Volt.
Shutdown Volt.
LOC-1234567890
06/23/2007
14.3
13.3
11.3
10.5
V
V
V
V
13.5 ~ 15.0V
13.0 ~ 13.5V
1
11.0 ~ 11.5V
10.0 ~ 11.0V
Comm Ports
Read
Write
Bauds Rate
9600
Exit
Read OK!!
2
3
4
Figure 3
1. User can adjust the settings based on the characteristics of batteries been used: Equalization Voltage, Floating Voltage, Alarm Voltage,
and Shut-down Voltage. UPS Mode / Energy Saving Mode selection and AC output voltage and frequency can also be set in this page.
2. Read: Read current settings of the unit.
3. Write: Write the revised setting into the unit.
4. Load: Load in factory default settings.
2.3 Statistic Page
Inverter Setting
Start Date
2007/12/07 03:13:33 PM
Inverter time rate
91.2
%
Bypass time rate
0.0
%
Shut Down rate
8.8
%
Solar time rate
0.0
%
Loading average
24.7
%
Start Date
2007/12/21 01:40:56 PM
Inverter time rate
31.9
%
Bypass time rate
0.0
%
Shut Down rate
68.1
%
Solar time rate
0.0
%
Loading average
63.7
%
RESET
Exit
Figure 4
1. Start Date: Date that installing the monitoring software.
2. Reset Date: Date that resetting the statistics. The Start Date will not be influenced by resetting the statistics or turning off the unit.
3 .Inverter time rate: Operating period of "Inverter Mode" represents how many percent of the whole operating period.
4. Bypass time rate: Operating period of "Bypass Mode" (energy provides directly by the utility) represents how many percent of the whole
operating period.
5. Shut down rate: Percentage of time period that the unit is under the condition of shut down.
* Inverter time rate + Bypass time rate + Shut down rate = 100%
6. Solar time rate: Percentage of time period that the solar charger is functioning after turning on the TN-1500 unit.
7. Loading average: Average loading after turning on the TN-1500 unit.
File Name:TN-1500-SPEC 2008-07-29
