RFPT700
-------
SMD Low Acceleration Sensitivity TCXO / TCVCXO.
-------
-------
A series of surface mountable Temperature Compensated Voltage Controlled Crystal
Oscillators (TCVCXOs) for applications where phase noise performance under vibration
is critical.
-------
Product description
-------
The RFPT700 TCVCXO uses Rakon's proprietary ASIC 'Pluto™', a single chip oscillator with
analogue compensation circuit, and a patented crystal resonator design, resulting in high
stability over a wide temperature range paired with typically 0.2ppb/g acceleration sensitivity.
-------
Applications
• Communications
• Avionics
• Guidance
• Military
-------
Features
-------
Specifications
-----
1.0
Line
1.1
1.2
1.3
1.4
-----
SPECIFICATION REFERENCES
Parameter
Description
Rakon part number
RoHS compliant
Package size
Yes (non-RoHS version available upon request)
14.7 x 9.2 x 4.35 mm (max)
Description
RFPT700
2.0
Line
2.1
2.2
2.3
2.4
2.5
2.6
2.7
FREQUENCY CHARACTERISTICS
Parameter
Frequency range
Frequency calibration
Reflow shift
Frequency stability
over temperature
Temperature range
Slope
Supply voltage
stability, HCMOS
output
Supply voltage
stability, clipped
sinewave output
Load sensitivity,
HCMOS output
Load sensitivity,
Clipped Sinewave
Output
Long term stability
Long term stability
Long term stability
Long term stability
Acceleration
sensitivity
At 25°C±2°C, at time of shipment, reference to nominal frequency
After 1 hour recovery at 25°C
Reference to (Fmax + Fmin)/2 (note 1)
Operating temperature range over which temperature stability is
measured (note 2)
Temperature ramp 1°C/minute
±5%
variation, reference to frequency at nominal supply voltage,
typically less than...
±5%
variation, reference to frequency at nominal supply voltage,
typical less than...
±5pF
variation, reference to frequency at 15pF load, typically less
than...
±10%
variation, reference to frequency at 10k//10pF, typically
less than...
first year,
≤
26MHz
first year, > 26MHz
10 years,
≤
26MHz
10 years, > 26MHz
Gamma Vector over operating temperature range (typically
0.2ppb/g)
Test Condition
Value
10 to 30
±1 max
±1 max
±0.2 to 5
-55 to 105
20 to 200
±0.2
Unit
MHz
ppm
ppm
ppm
°C
ppb/°C
ppm
2.8
±0.1
ppm
2.9
2.10
±0.2
±0.1
ppm
ppm
2.11
2.12
2.13
2.14
2.15
±1 max
±2 max
±3 max
±5 max
0.5 max
ppm
ppm
ppm
ppm
ppb/g
-----
Page 1
3.0
Line
3.1
3.2
3.3
POWER SUPPLY
Parameter
Supply voltage
Current HCMOS
Current Clipped
Sinewave
Test Condition
Standard supply voltages: 3.3 and 5.0V (±5%), other values
available upon request.
typically: 1+frequency(MHz)*supply(V)*{load(pF)+15}*10⁻³mA
e.g 20MHz, 5V, 15pF = 4mA
typically: 1+frequency(MHz)*1.2*{load(pF) +30}*10⁻³mA
Value
2.5 to 5.7
Unit
V
mA
mA
-----
4.0
Line
4.1
4.2
4.3
4.4
4.5
4.6
4.7
-----
OSCILLATOR OUTPUT HCMOS (optional) - note 3
Parameter
Output waveform
Output voltage level
low
Output voltage level
high
Rise and fall times
Rise and fall times
Duty cycle
Load
Measured with Vcc = 3.3V
Measured with Vcc = 5.0V
Measured at 50% level
Test Condition
HCMOS
0.1 max
0.9 min
8 max
7 max
45 to 55
15
Vs
Vs
ns
ns
%
pF
Value
Unit
5.0
Line
5.1
5.2
5.3
5.4
OSCILLATOR OUTPUT CLIPPED SINEWAVE (optional) - note 3
Parameter
Output waveform
Output voltage level
Output load
resistance
Output load
capacitance
Test Condition
Clipped sinewave, DC-coupled
Peak to peak voltage
0.8 min
10
10
V
kΩ
pF
Value
Unit
-----
6.0
Line
6.1
6.2
6.3
FREQUENCY ADJUSTMENT (optional)
Parameter
Control Voltage Range
Frequency
Adjustment Range
Frequency
Adjustment Range
Test Condition
Vc
frequency
≤
26MHz
frequency > 26MHz
Value
0.5 to 2.5
±5 min
±7 min
Unit
V
ppm
ppm
-----
Page 2
7.0
Line
7.1
PHASE NOISE
Parameter
SSB phase noise
power density at 1Hz
offset
SSB phase noise
power density at
10Hz offset
SSB phase noise
power density at
100Hz offset
SSB phase noise
power density at 1kHz
offset
SSB phase noise
power density at
10kHz offset
SSB phase noise
power density at
100kHz offset
SSB phase noise
power density at
1MHz offset
Note
Test Condition
Typical value for a 20MHz Clipped sine wave oscillator at 25°C
Value
-63
Unit
dBc/Hz
7.2
Typical value for a 20MHz Clipped sine wave oscillator at 25°C
-93
dBc/Hz
7.3
Typical value for a 20MHz Clipped sine wave oscillator at 25°C
-104
dBc/Hz
7.4
Typical value for a 20MHz Clipped sine wave oscillator at 25°C
-128
dBc/Hz
7.5
Typical value for a 20MHz Clipped sine wave oscillator at 25°C
-136
dBc/Hz
7.6
Typical value for a 20MHz Clipped sine wave oscillator at 25°C
-140
dBc/Hz
7.7
Typical value for a 20MHz Clipped sine wave oscillator at 25°C
-143
dBc/Hz
7.8
Low phase noise option available with HCMOS output - consult
sales office
-----
8.0
Line
8.1
8.2
8.3
8.4
8.5
ENVIRONMENTAL INFORMATION
Parameter
Storage temperature
Acceleration Steady
State
Vibration
Mechanical Shock
RoHS
Description
-55°C to 125°C
IEC 60068-2-7 test Ga, 5000g, 10s (at peak acceleration), Y-axis only
IEC 60068-2-6, test Fc: 10-60Hz 0.75mm displacement, 60-500Hz 200m/s^2 (20gn)
acceleration, 1.5 hours in each of three mutually perpendicular axes at 1 octave per minute.
IEC 60068-2-27, test Ea; 1000 m/s^2 (100gn) acceleration for 6ms, half sine pulse, 3 shocks
in each direction along three mutually perpendicular axes (18 shocks total)
Parts are fully compliant with the European Union directive 2002/95/EC on the restriction of
the use of certain hazardous substances in electrical and electronic equipment. Note parts are
suitable for assembly using both Lead-free solders and Tin/Lead solders. Non-RoHS version
available on request.
Laser Marked
8.6
-----
Marking
9.0
Line
9.1
9.2
-----
MANUFACTURING INFORMATION
Parameter
Reflow Soldering
Packaging description
Description
See reflow profile diagram. Solderability: MIL-STD-202, method 208, category 3
Quantities
≥
100 pieces will be supplied on tape & reel
10.0
Line
10.1
10.2
10.3
-----
SPECIFICATION NOTES
Parameter
Note 1
Note 2
Note 3
Description
Availability of stability depends on temperature range - not all combinations may be possible -
please check with our sales office.
Availability of temperature range -55 to 105°C depends on nominal frequency - please check
with our sales office.
ACMOS / pure sine wave output available upon request
Page 3
11.0
Line
11.1
11.2
11.3
11.4
11.5
11.6
-----
PIN CONNECTIONS
Parameter
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Description
Control Voltage (Vc) OR Do not connect (depending on option selected)
Not connected
GND
Output
Not connected
Supply Voltage (Vs)
12.0
Line
12.1
12.2
12.3
12.4
12.5
12.6
-----
MARKING
Parameter
Marking
Description
includes
rakon
Part Number (Exxxx)
Frequency (MHz)
Pad 1 identifier (indent)
Device date / location code
13.0
Line
13.1
DISCLAIMER
Parameter
Disclaimer
Description
“Samples
supplied according to this specification are supplied from our development or pre-
production programme and as such are not qualification approved products. No condition,
warranty or representation regarding quality, suitability, performance, life or continuation of
supply is given or implied and Guarantee in clause 6.1 of our standard Conditions of Sale is
not applicable. The right is reserved to change the design or specification or cease supply
without notice.” RAKON UK Limited
-------
Page 4

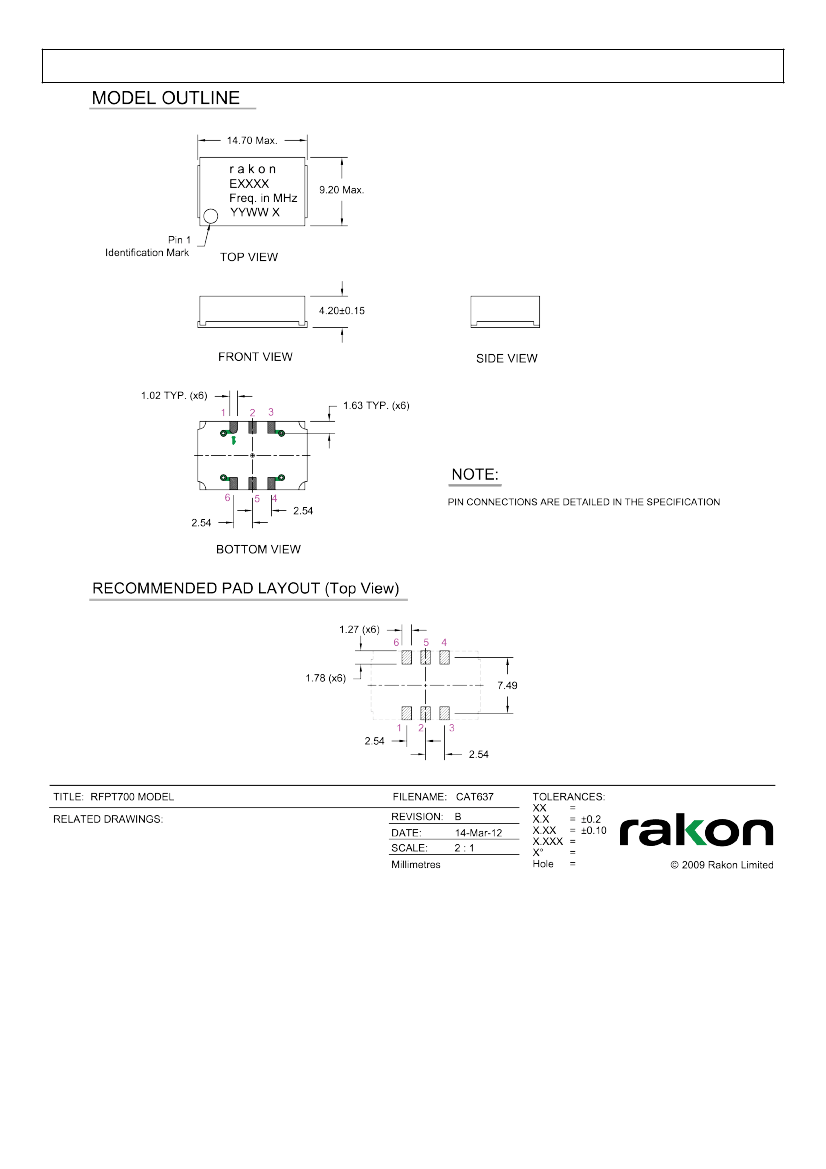

Drawing Name: RFPT700 Model Drawing
Page 5
