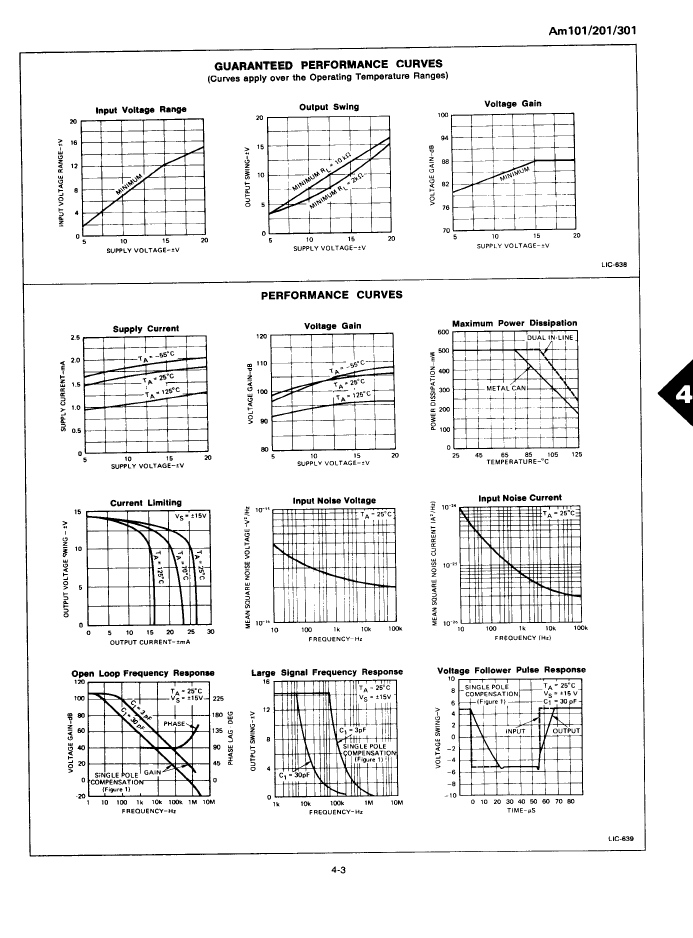

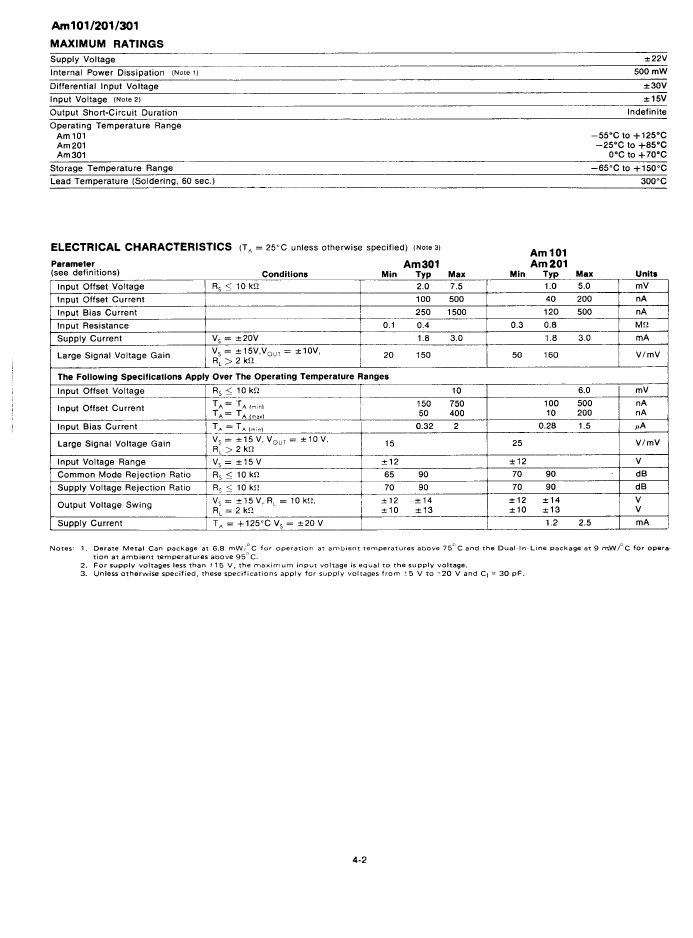

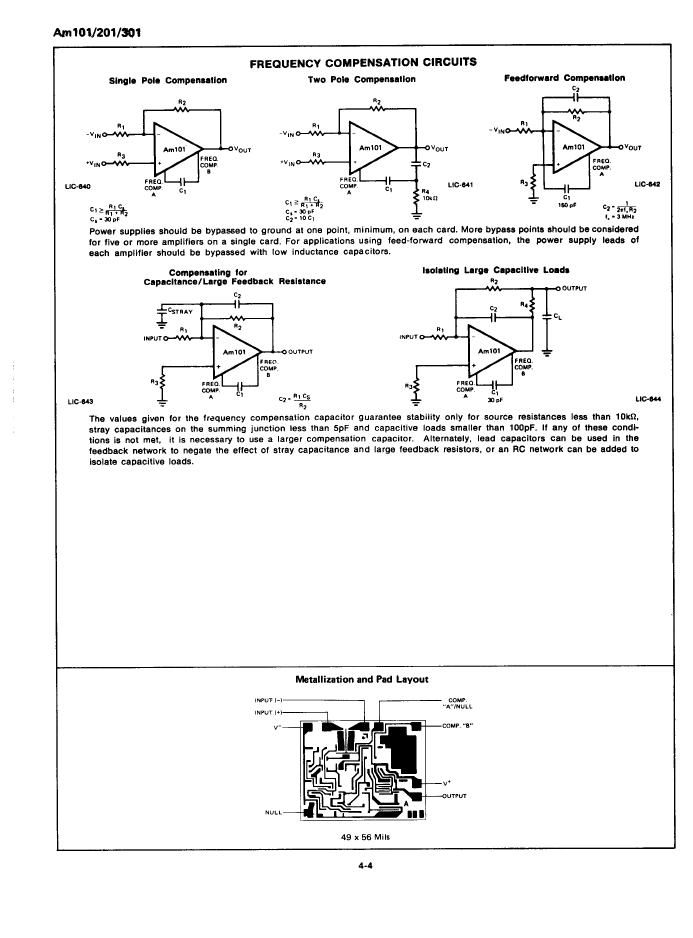

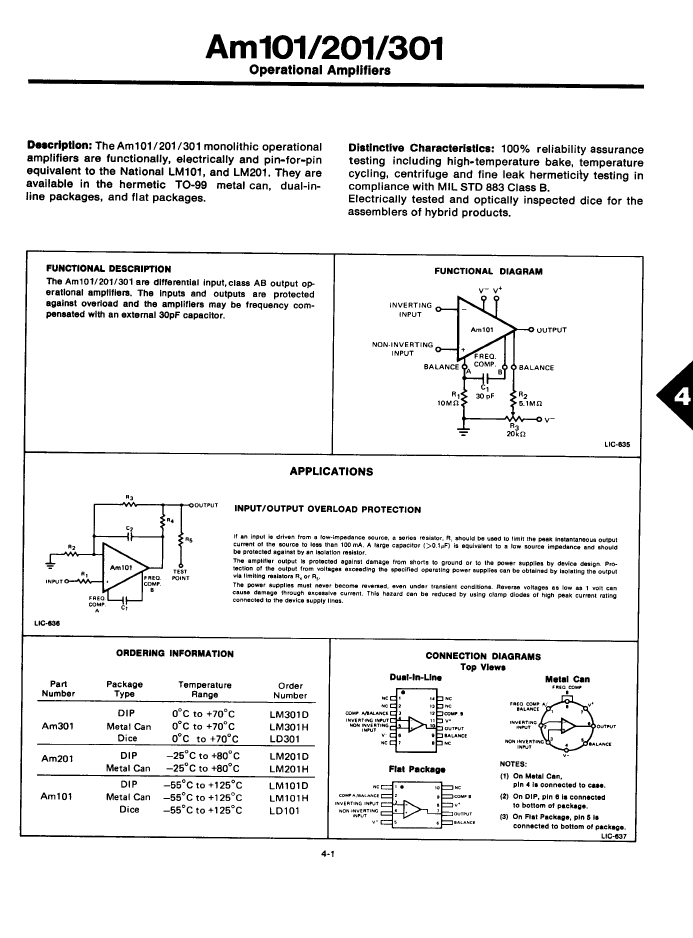

Operational Amplifier, 1 Func, 6000uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Parts packaging code | DIP |
| package instruction | DIP, DIP14,.3 |
| Contacts | 14 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 1.5 µA |
| Maximum bias current (IIB) at 25C | 0.5 µA |
| Nominal Common Mode Rejection Ratio | 90 dB |
| frequency compensation | NO |
| Maximum input offset voltage | 6000 µV |
| JESD-30 code | R-CDIP-T14 |
| JESD-609 code | e0 |
| length | 19.431 mm |
| low-dissonance | NO |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 1 |
| Number of terminals | 14 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP14,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | +-5/+-20 V |
| Certification status | Not Qualified |
| Filter level | MIL-STD-883 Class C |
| Maximum seat height | 5.08 mm |
| Maximum slew rate | 3 mA |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| width | 7.62 mm |
| LM101D | LM301H | AD7484_17 | LM201H | LD301 | LD101 | LM201D | |
|---|---|---|---|---|---|---|---|
| Description | Operational Amplifier, 1 Func, 6000uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14 | Operational Amplifier, 1 Func, 10000uV Offset-Max, BIPolar, MBCY8, HERMETIC SEALED, METAL CAN, TO-99, 8 PIN | 3 MSPS, 14-Bit SAR ADC | Operational Amplifier, 1 Func, 6000uV Offset-Max, BIPolar, MBCY8, HERMETIC SEALED, METAL CAN, TO-99, 8 PIN | Operational Amplifier, 1 Func, 10000uV Offset-Max, BIPolar, 0.049 X 0.056 INCH, DIE-8 | Operational Amplifier, 1 Func, 6000uV Offset-Max, 0.049 X 0.056 INCH, DIE-8 | Operational Amplifier, 1 Func, 6000uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14 |
| Is it Rohs certified? | incompatible | incompatible | - | incompatible | - | - | incompatible |
| Parts packaging code | DIP | TO-99 | - | TO-99 | DIE | DIE | DIP |
| package instruction | DIP, DIP14,.3 | TO-99, CAN8,.2 | - | TO-99, CAN8,.2 | DIE, DIE OR CHIP | DIE, | DIP, DIP14,.3 |
| Contacts | 14 | 8 | - | 8 | 8 | 8 | 14 |
| Reach Compliance Code | unknown | unknown | - | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | - | EAR99 | EAR99 | EAR99 | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | - | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | - | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | - | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 1.5 µA | 2 µA | - | 1.5 µA | 2 µA | 1.5 µA | 1.5 µA |
| Maximum bias current (IIB) at 25C | 0.5 µA | 1.5 µA | - | 0.5 µA | 1.5 µA | - | 0.5 µA |
| Nominal Common Mode Rejection Ratio | 90 dB | 90 dB | - | 90 dB | 90 dB | 90 dB | 90 dB |
| frequency compensation | NO | NO | - | NO | NO | - | NO |
| Maximum input offset voltage | 6000 µV | 10000 µV | - | 6000 µV | 10000 µV | 6000 µV | 6000 µV |
| JESD-30 code | R-CDIP-T14 | O-MBCY-W8 | - | O-MBCY-W8 | R-XUUC-N8 | R-XUUC-N8 | R-CDIP-T14 |
| JESD-609 code | e0 | e0 | - | e0 | - | - | e0 |
| low-dissonance | NO | NO | - | NO | NO | - | NO |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | - | -15 V | -15 V | -15 V | -15 V |
| Number of functions | 1 | 1 | - | 1 | 1 | 1 | 1 |
| Number of terminals | 14 | 8 | - | 8 | 8 | 8 | 14 |
| Maximum operating temperature | 125 °C | 70 °C | - | 85 °C | 70 °C | 125 °C | 85 °C |
| Minimum operating temperature | -55 °C | - | - | -25 °C | - | -55 °C | -25 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED | METAL | - | METAL | UNSPECIFIED | UNSPECIFIED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP | TO-99 | - | TO-99 | DIE | DIE | DIP |
| Encapsulate equivalent code | DIP14,.3 | CAN8,.2 | - | CAN8,.2 | DIE OR CHIP | - | DIP14,.3 |
| Package shape | RECTANGULAR | ROUND | - | ROUND | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | CYLINDRICAL | - | CYLINDRICAL | UNCASED CHIP | UNCASED CHIP | IN-LINE |
| power supply | +-5/+-20 V | +-5/+-20 V | - | +-5/+-20 V | +-5/+-20 V | - | +-5/+-20 V |
| Certification status | Not Qualified | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum slew rate | 3 mA | 3 mA | - | 3 mA | 3 mA | 3 mA | 3 mA |
| Nominal supply voltage (Vsup) | 15 V | 15 V | - | 15 V | 15 V | 15 V | 15 V |
| surface mount | NO | NO | - | NO | YES | YES | NO |
| technology | BIPOLAR | BIPOLAR | - | BIPOLAR | BIPOLAR | - | BIPOLAR |
| Temperature level | MILITARY | COMMERCIAL | - | OTHER | COMMERCIAL | MILITARY | OTHER |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - | Tin/Lead (Sn/Pb) | - | - | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | WIRE | - | WIRE | NO LEAD | NO LEAD | THROUGH-HOLE |
| Terminal location | DUAL | BOTTOM | - | BOTTOM | UPPER | UPPER | DUAL |
| Maker | - | AMD | - | AMD | AMD | AMD | AMD |
