51966-10003200CALF datasheet, PDF

51966-10003200CALF: DescriptionBoard Connector, 32 Contact(s), 4 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking,; CategoryThe connector The connector; File Size326KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

51966-10003200CALF Overview

Board Connector, 32 Contact(s), 4 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking,

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.574 inch
subject depth	0.93 inch
body length	1.45 inch
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VDC V
Durability	200 Cycles
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	51966
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact row spacing	2.54 mm
reliability	COMMERCIAL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32
Evacuation force-minimum value	.17792 N

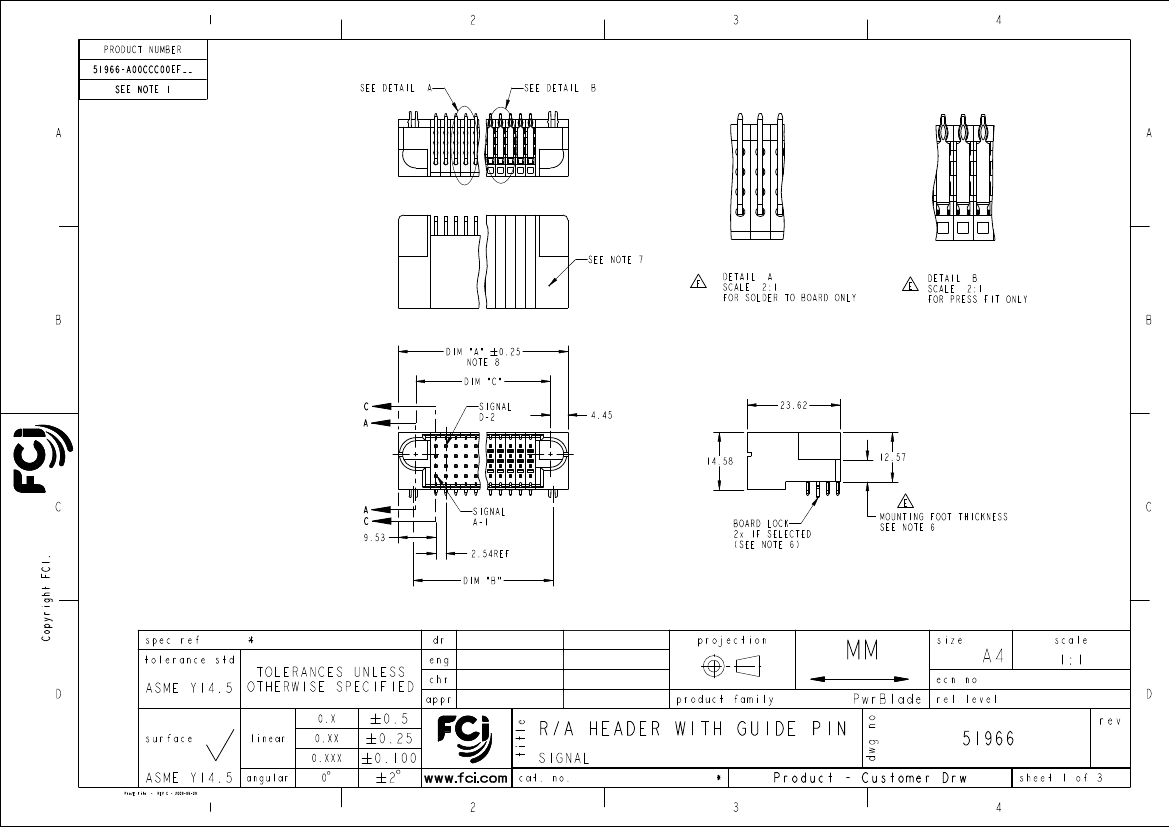

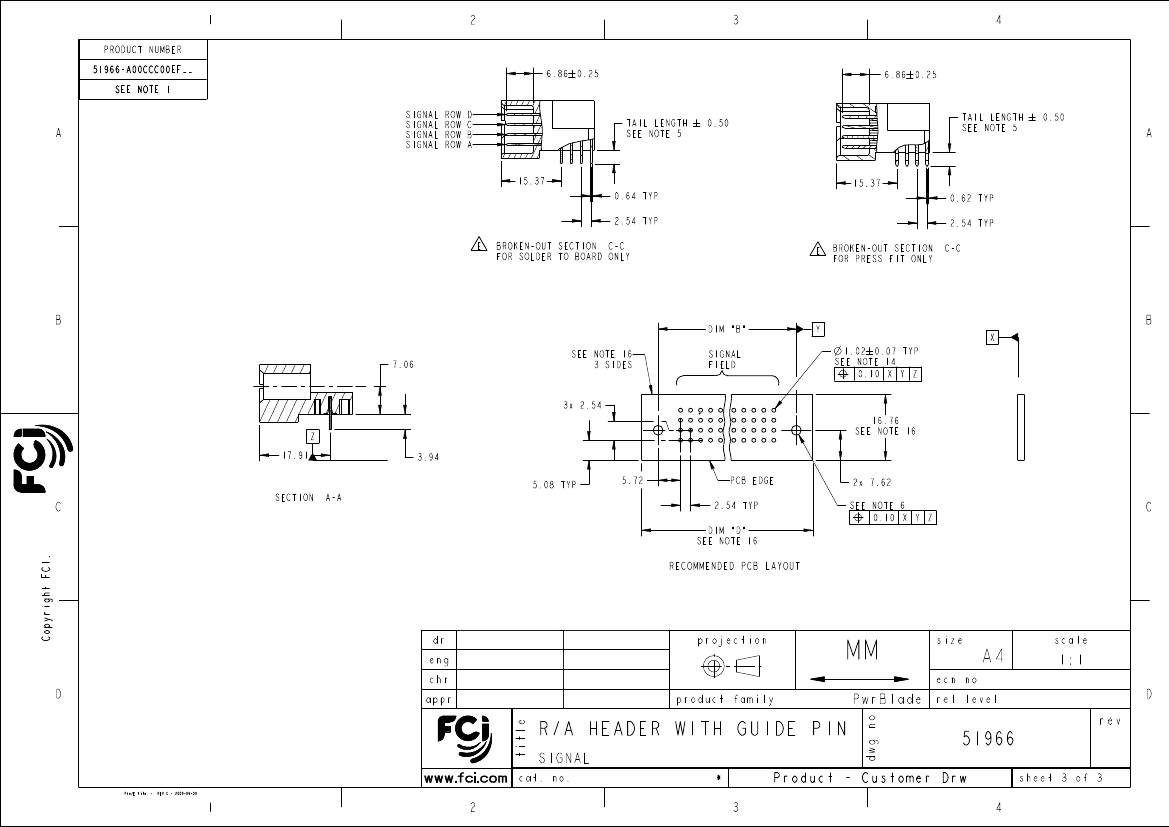

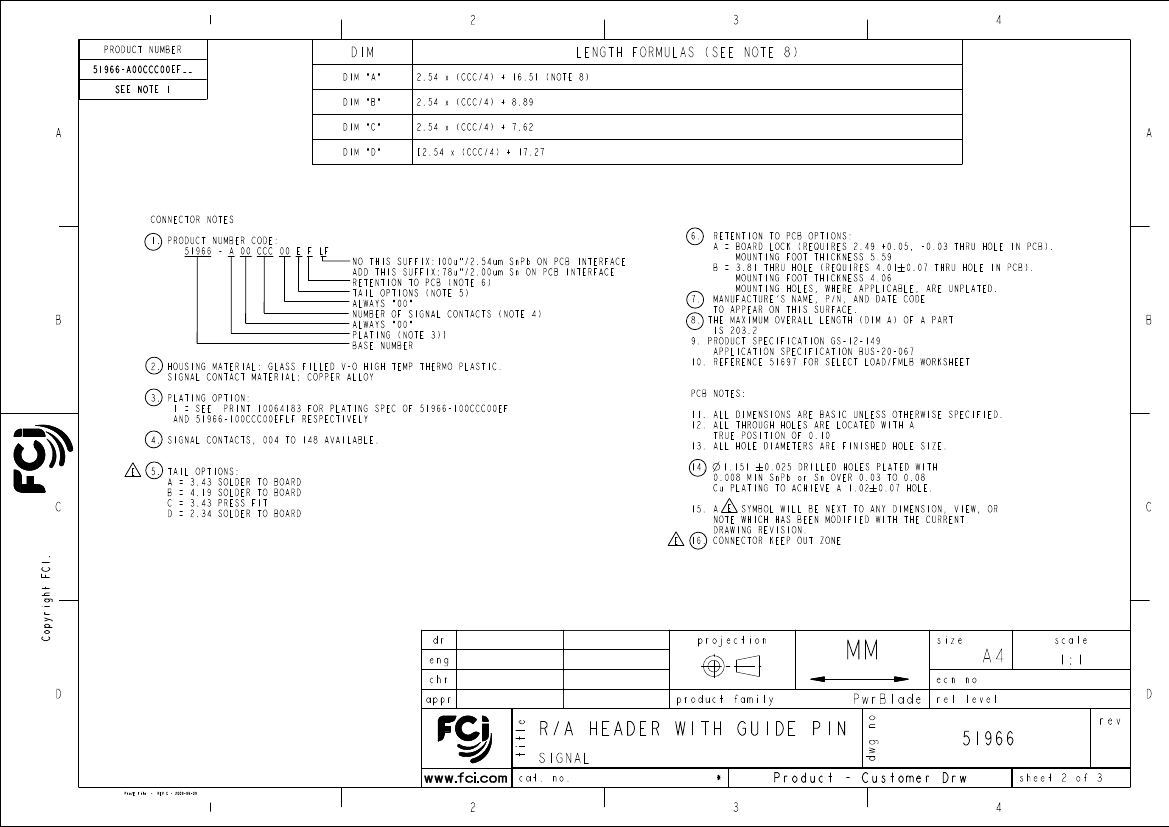

Jerome Chen

Ruan MT

Fancy Zhang

Pei-Ming Zheng

2008/09/12

2015/09/30

ELX-DG-21593-1

Released

PDS: Rev :E

STATUS:Released

Printed: Sep 30, 2015
