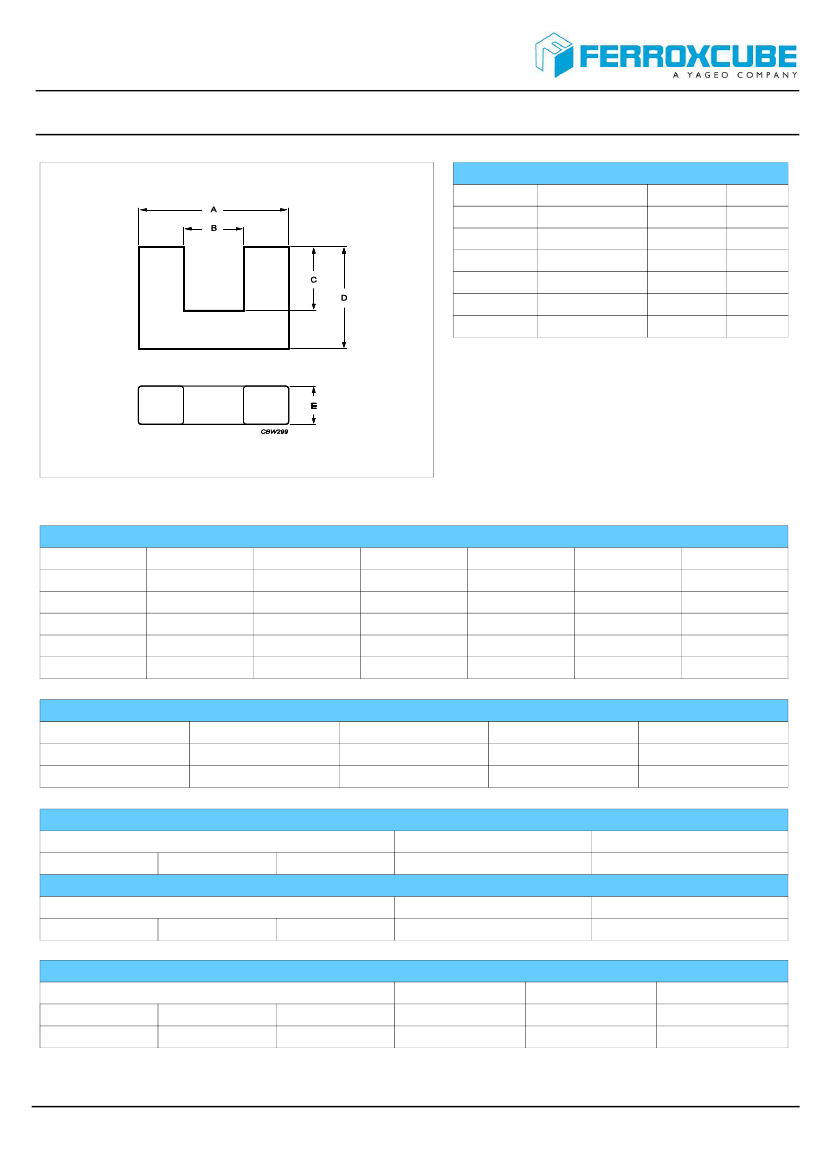

U30/25/16-3C94: DescriptionU, I cores and accessories; File Size63KB，1 Pages; ManufacturerFerroxcube; Websitehttp://www.ferroxcube.com/

Download Datasheet Compare View All

U30/25/16-3C94 Overview

U, I cores and accessories

Preview

Download Datasheet

View All

Product specifications

Core

U30/25/16

Effective parameters

Symbol

∑(I/A)

Ve

Le

Ae

Amin

m

Parameter

core factor (C1)

effective volume

effective length

effective area

minimum area

U30/25/16

≈ 43

Value

0.69

17900

111

161

Unit

mm⁻¹

mm³

mm

mm²

g/pcs

Dimensions for product: U30/25/16

Symbol

A

B

C

D

E

Nom

31.30

10.50

14.90

25.30

16.00

Tol +

0.70

0.50

0.40

0.20

0.50

Tol -

0.70

0.50

0.40

0.20

0.10

Max

32.00

11.00

15.30

25.50

16.50

Min

30.60

10.00

14.50

25.10

15.90

Unit

mm

Inductance factor

Material

3C90

3C94

Value

3700

Tol +

25%

Tol -

25%

Unit

nH/turns²

Power loss: 3C90

Measuring conditions

25 kHz

200 mT

100 ºC

Power loss: 3C94

Measuring conditions

100 kHz

200 mT

100 ºC

Max

8.900

Unit

W/set

Max

2.100

Unit

W/set

Bsat

Measuring conditions

25 kHz

250 A/m

100 ºC

Material

3C90

3C94

Min

320

Unit

mT

2016
