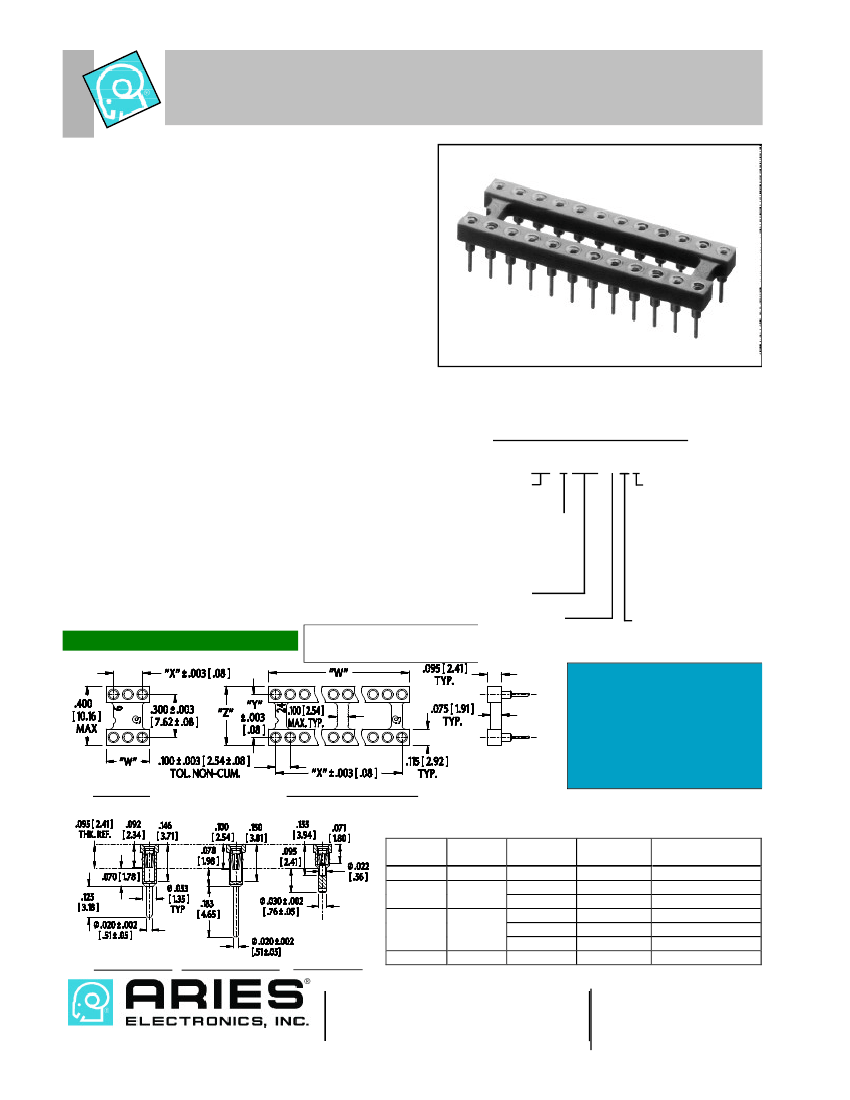

Series 518 Open Frame Collet
Sockets with Solder Tail Pins
FEATURES:
• Open frame allows for more efficient utilization of board space and
better cooling.
• Choose from several pin styles.
• Compatible with automatic insertion equipment.
• Side-to-side and end-to-end stackable.
SPECIFICATIONS:
• Body material is blue UL 94V-0 Glass-filled Polyester
Thermoplastic (PBT).
• Pin body is Brass Alloy 360 1/2 hard per UNS C36000
ASTM-B16-85.
• Pin body plating is either 10µ [.25µm] min. Gold per MIL-G-45204
or 200µ [5.08µm] min. 93/7 Tin/Lead per MIL-P-81728 over 100µ
[2.54µm] min. Nickel per QQ-N-290.
• 4-fingered collet contact is Beryllium Copper Alloy per UNS
C17200 ASTM-B194-92.
• Contact plating is either 150µ [3.81µm] min. 93/7 Tin/Lead per
MIL-P-81728 or 10µ [.25µm] Gold per MIL-G-45204 over 50µ min.
[1.27µm] Nickel per QQ-N-290. Heavy 30µ [.76µm] Gold plating
also available.
• Contact current rating=3 Amps.
• Operating temperature=221°F [105°C] Tin plating,
=257°F [125°C] Gold plating.
• Insertion Force=180 grams/pin; Withdrawal Force=90 grams/pin;
Normal Force=140 grams/pin;
Midget pin: Insertion Force=370 g/pin, Withdrawal Force=150
g/pin, Normal Force=240 g/pin; based on a .018 [.46] dia. test
lead.
• Accepts leads .015-.025 [.38-.64] in dia.; midget pin accepts up to
.022 [.56] dia.
• Accepts lead lengths from .100 [2.54] min; midget pin accepts lead
lengths from .080 [2.03].
MOUNTING CONSIDERATIONS:
• Suggested PCB hole size:
Solder tail & extra long pin=.030 ± .002 [.76 ± .05] dia.
Midget pin=.040 ± .002 [1.02 ± .05] dia.
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
ORDERING INFORMATION
XX-X518-1XX
No. of pins
(see table)
Row-to-row spacing:
3: “Y”=.300 [7.62]
4: “Y”=.400 [10.16]
6: “Y”=.600 [15.24]
9: “Y”=.900 [22.86]
Series
Solder tail pin
Optional suffix:
H=Heavy Gold
plating on collet
T=Tin plating on
collet
M=Midget solder tail
(available Gold
collet/Tin shell only)
E=Extra long solder
tail
Plating:
0=Gold collet/Tin shell
1=Gold collet/Gold shell
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
All tolerances ± .005 [.13]
unless otherwise specified
STYLE A
STYLE B,C (2,3 RIB)
Style D (4,5 rib) not shown
Frame
Style
A
B
Other collet pins are available.
Consult Data Sheet No. 12017
for wire wrap pins and 12018
for surface mount pins.
Open Frame Capacitor
Sockets
also available. Consult Data
Sheet Nos. 12026 and 12027.
“W”=(NO. OF PINS PER ROW) X .100 [2.54]
“X”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
No. of Ribs Centers “Y”
1
2
Dim. “Z”
Available Sizes
6
8,14,16,18,20,24
20,22
28
24
24,28,32,40,48
50,64
C
3
4,5
SOLDER TAIL EXTRA LONG “E”
MIDGET “M”
D
.300 [7.62]
.400 [10.16]
.300 [7.62]
.400 [10.16]
.400 [10.16] .500 [12.70]
.300 [7.62]
.400 [10.16]
.400 [10.16] .500 [12.70]
.600 [15.24] .700 [17.78]
.900 [22.86] 1.000 [25.40]
EUROPE
TEL: +44 870 240 0249
FAX: +44 871 919 6033 12016
europe@arieselec.com REV.C
