DS17485-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> DS17485-3

DS17485-3: DescriptionReal Time Clock, Volatile, 1 Timer(s), CMOS, PDIP24, DIP-24; CategoryThe embedded processor and controller Microcontrollers and processors; File Size940KB，32 Pages; ManufacturerDALLAS; Websitehttp://www.dalsemi.com

Download Datasheet Parametric Compare View All

DS17485-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DS17485-3	-	-	View	Buy Now

DS17485-3 Overview

Real Time Clock, Volatile, 1 Timer(s), CMOS, PDIP24, DIP-24

DS17485-3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	DALLAS
package instruction	DIP-24
Reach Compliance Code	unknow
maximum clock frequency	0.032 MHz
External data bus width	8
Information access methods	PARALLEL, MUXED BUS
interrupt capability	Y
JESD-30 code	R-PDIP-T24
JESD-609 code	e0
Number of terminals	24
Number of timers	1
On-chip data RAM width	8
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output clock frequency	0.032768 MHz
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	3 V
Certification status	Not Qualified
RAM (number of words)	4210
Maximum slew rate	30 mA
Maximum supply voltage	3.3 V
Minimum supply voltage	2.7 V
Nominal supply voltage	3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
shortest time	SECONDS
Volatile	YES
uPs/uCs/peripheral integrated circuit type	TIMER, REAL TIME CLOCK
Base Number Matches	1

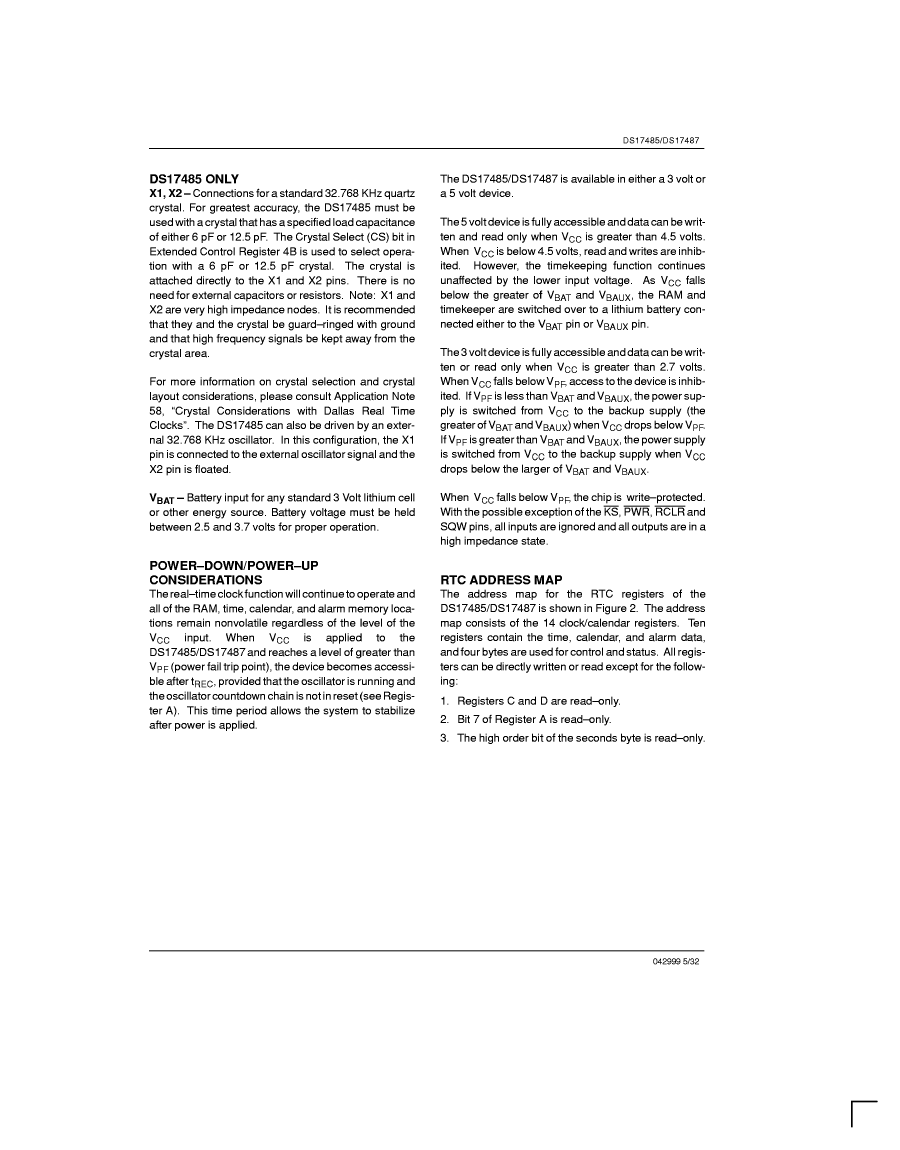

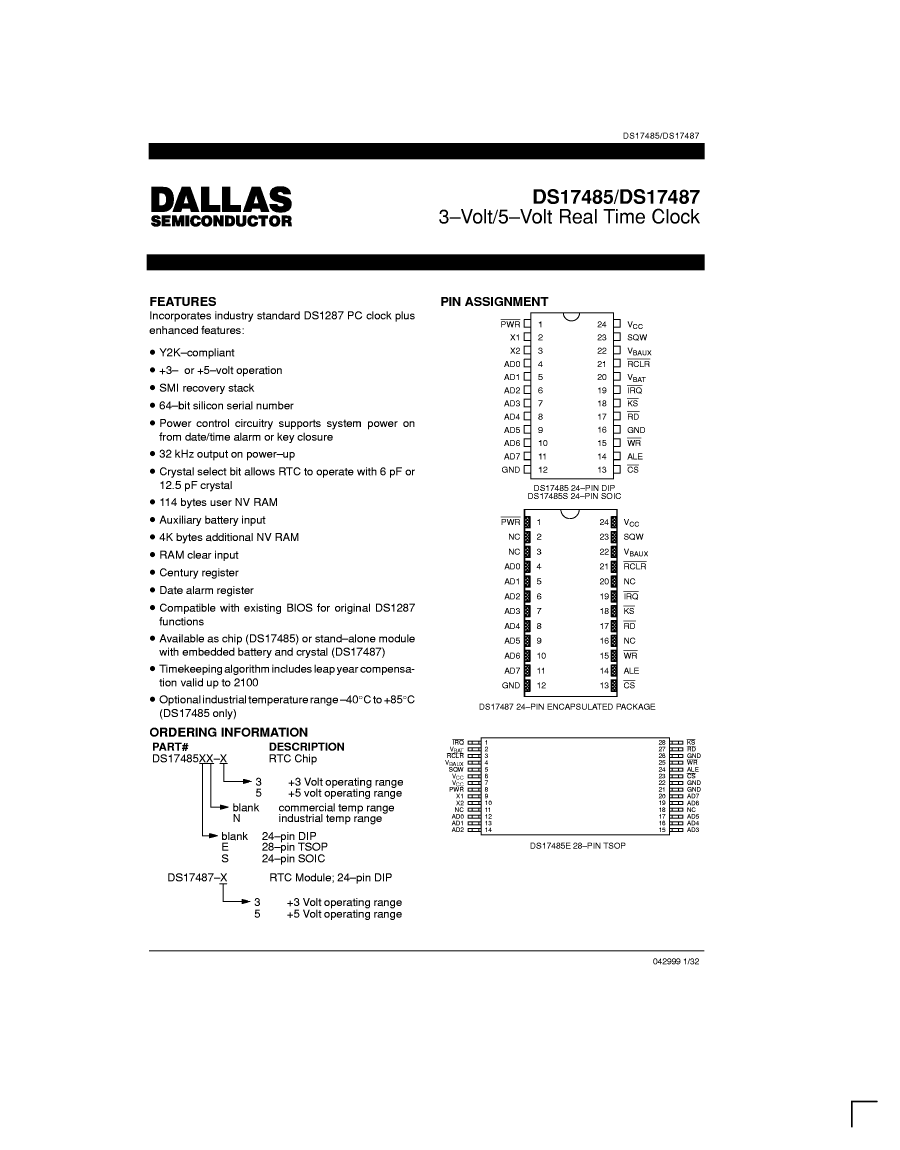

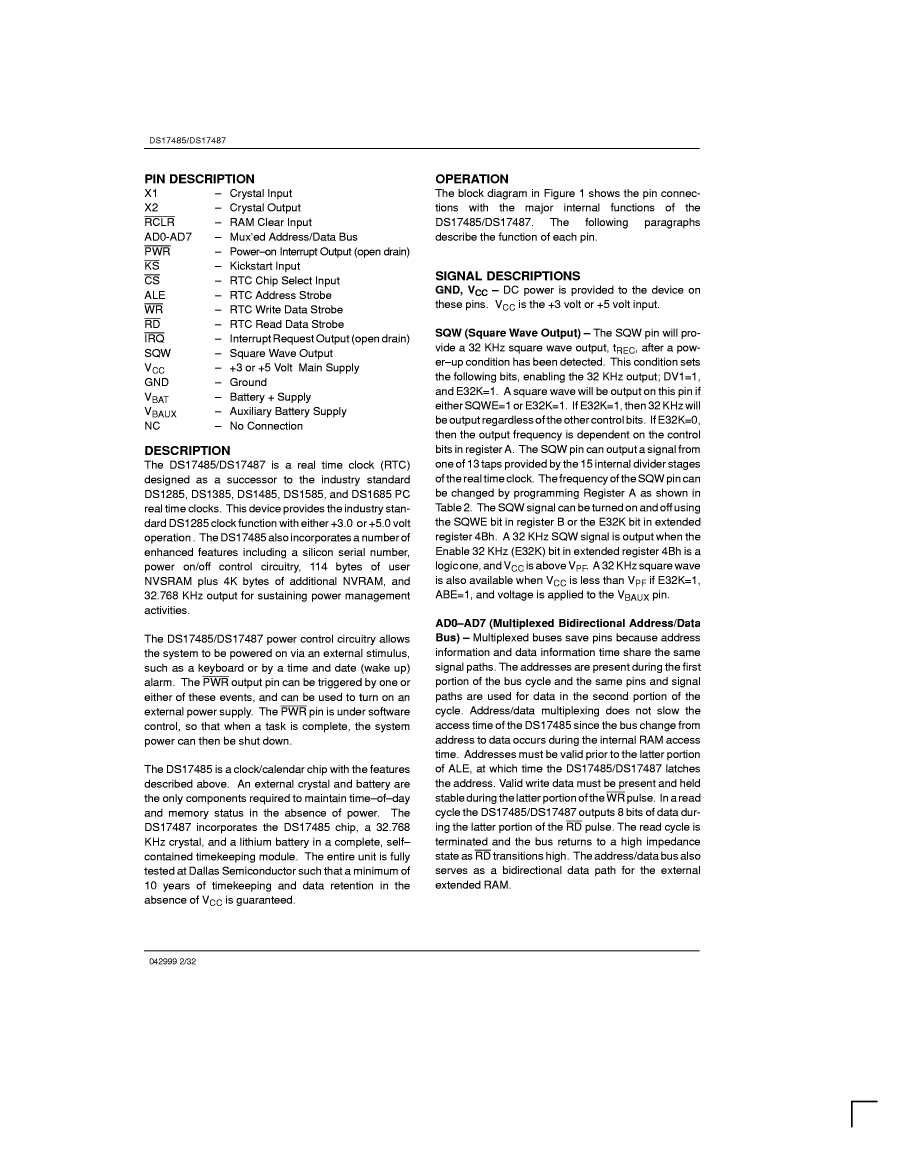

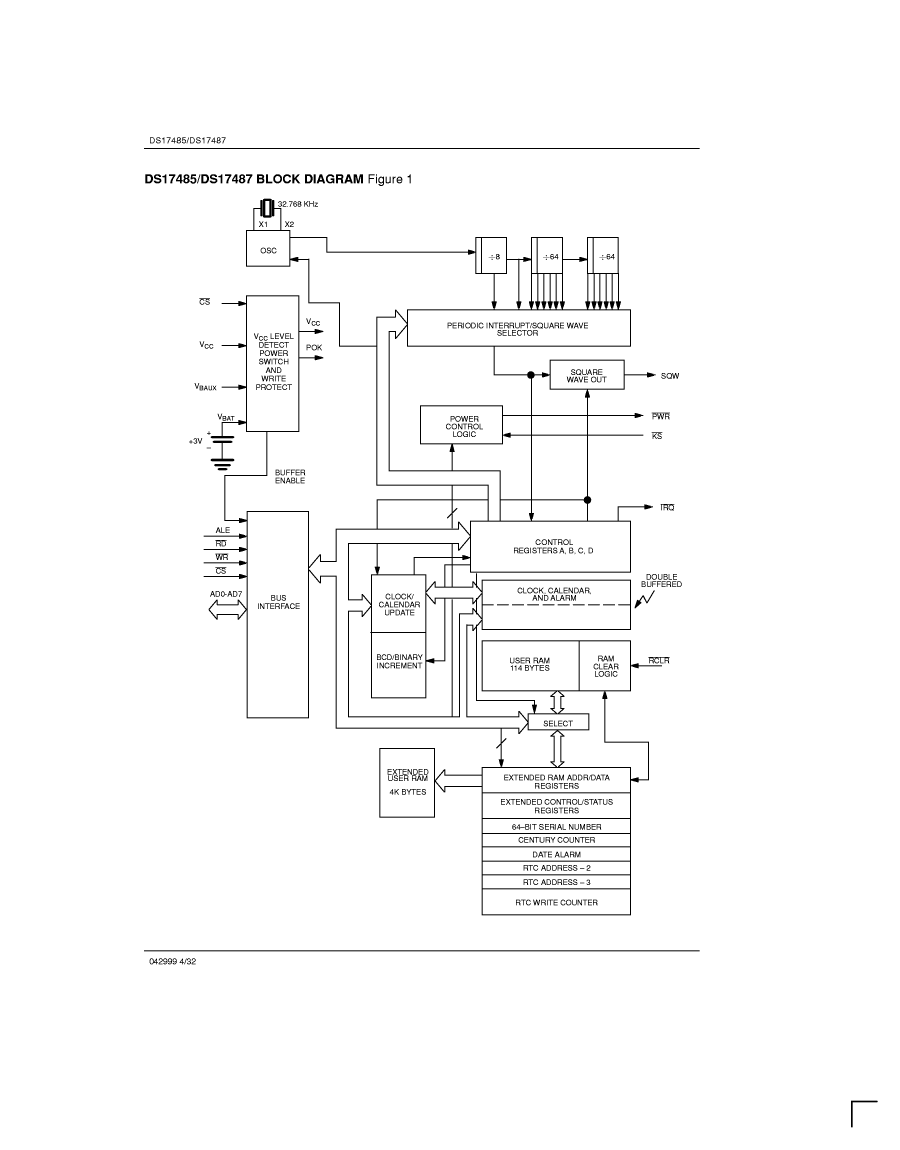

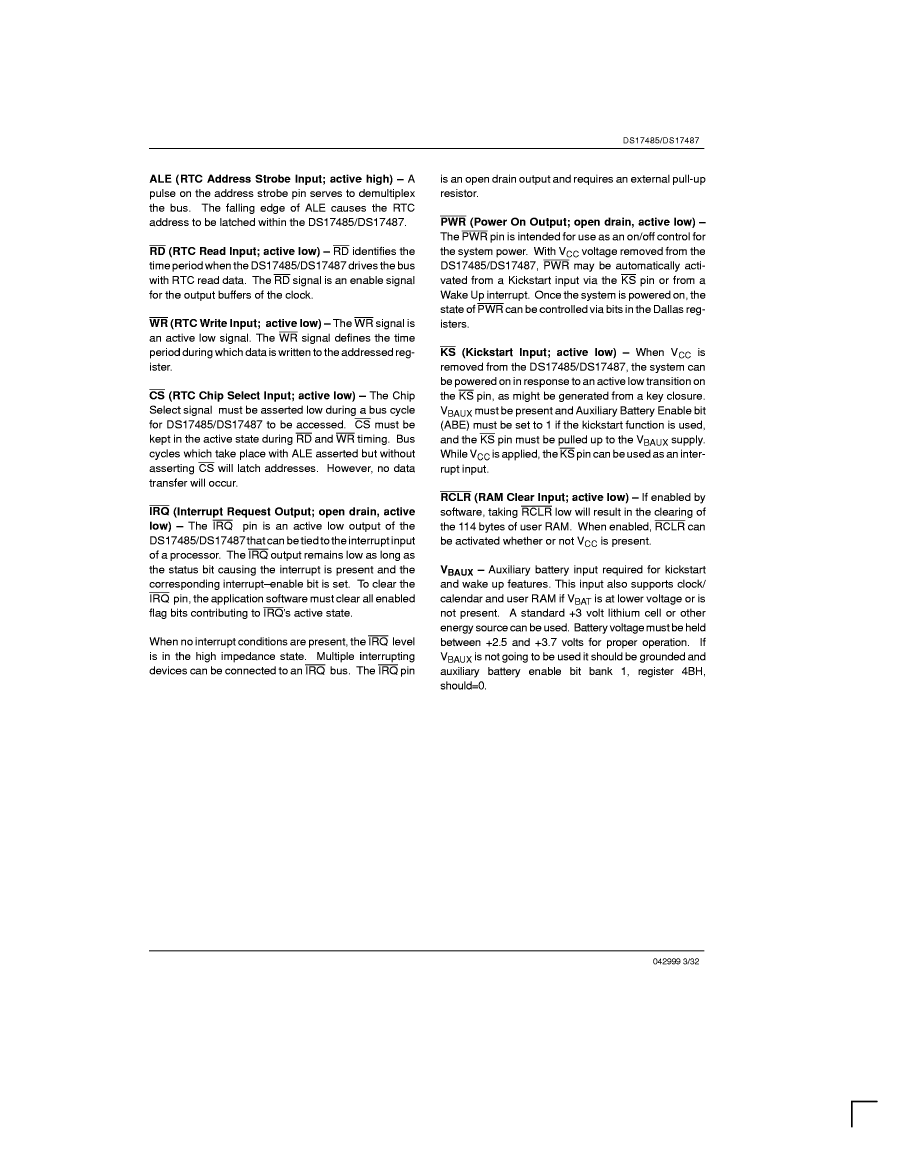

Preview

Download Datasheet

View All

DS17485-3 Related Products

	DS17485-3	DS17485N-3	DS17485N-5
Description	Real Time Clock, Volatile, 1 Timer(s), CMOS, PDIP24, DIP-24	Real Time Clock, Volatile, 1 Timer(s), CMOS, PDIP24, DIP-24	Real Time Clock, Volatile, 1 Timer(s), CMOS, PDIP24, DIP-24
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	DALLAS	DALLAS	DALLAS
package instruction	DIP-24	DIP-24	DIP-24
Reach Compliance Code	unknow	unknow	unknow
maximum clock frequency	0.032 MHz	0.032 MHz	0.032 MHz
External data bus width	8	8	8
Information access methods	PARALLEL, MUXED BUS	PARALLEL, MUXED BUS	PARALLEL, MUXED BUS
interrupt capability	Y	Y	Y
JESD-30 code	R-PDIP-T24	R-PDIP-T24	R-PDIP-T24
JESD-609 code	e0	e0	e0
Number of terminals	24	24	24
Number of timers	1	1	1
Maximum operating temperature	70 °C	85 °C	85 °C
Minimum operating temperature	-	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP24,.6	DIP24,.6	DIP24,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
power supply	3 V	3 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	3.3 V	3.3 V	5.5 V
Minimum supply voltage	2.7 V	2.7 V	4.5 V
Nominal supply voltage	3 V	3 V	5 V
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
shortest time	SECONDS	SECONDS	SECONDS
Volatile	YES	YES	YES
uPs/uCs/peripheral integrated circuit type	TIMER, REAL TIME CLOCK	TIMER, REAL TIME CLOCK	TIMER, REAL TIME CLOCK
Base Number Matches	1	1	1
