PL375S-30 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> PL375S-30

PL375S-30: DescriptionTriaxial Connector,; CategoryThe connector The connector; File Size470KB，1 Pages; ManufacturerVertiv

Download Datasheet Parametric View All

PL375S-30 Overview

Triaxial Connector,

PL375S-30 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	TRIAXIAL CONNECTOR
Manufacturer's serial number	PL375

Preview

Download Datasheet

View All

DWG NO.

CUSTOMER

CUSTOMER P/N

CUST. REV

315-0011

DASH

-7

-8

-9

-A9

-10

-11

-12

-13

-13A

-14

-23

-24

-24A

-25

-25A

-26

-27

-29

-30

-32

-33

-42

-43

-45

-46

-47

-49

-54

-55

-56

-57

-58

-59

-60

-64

CABLES

ACCOMMODATED

DIM

TRC-50-2

1.165

TRC-75-2

8227, BELDEN

1.740

TWC-78-2

TWC-124-2

BL782, TIMES

1.165

BL982, TIMES

BL1242, TIMES

RG-22

754E, AT

760A, AT

16PEVL, ATT

1.740

V1-AL, GENERAL

TRF-59, TIMES

8232, BELDEN

8233, BELDEN

250-3884, MICRODOT

202-3934, MICRODOT

9530A5117, RAYCHEM

T-43M, GENERAL

5021H5331, RAYCHEM

7028A5518, RAYCHEM

T19TPSJ2619EN, WOVEN

202-3927, MICRODOT

202-3942, MICRODOT

TWC-78-1/TWC-124-1A

1.165

761A, AT

8441, BELDEN

TRC-50-1

TRC-75-1

21-204, ESSEX

4463, CONSOLIDATED

250-4044/250-4045

293-3930, MICRODOT

M27500-22TE2T14

1100-66F, STANDARD

9860, BELDEN

1.740

M17/176-00002

1.165

TWAC-78-1F2

89207, BELDEN

1.740

89272, BELDEN

GC875GCI, GRUMMAN

GC875GB1, GRUMMAN

GC875TM24H, GRUMMAN

1.165

GC875LN1, GRUMMAN

M17/177, THERMATICS

380-10045, BOEING

7528A5314, RAYCHEM

DIM

.096

.130

.096

TABLE 1

FLATS FLATS

.438

.625

.438

TWINAX

.455

.347

.130

.625

.688

.750

.485

.362

.352

.490

.183

.191

.200

.285

.191

.145

.096

.438

.500

.191

.235

.191

.217

.300

.200

.183

.130

.096

.130

.625

.438

.625

.688

.438

.688

.750

.500

.750

.475

.164

.132

.323

.250

.191

.096

.438

.500

.198

.217

.183

TAI-102

TAI-103

TAI-102

TAI-103

TAI-102

TAI-189

TRIAX

TAI-102 QUADRAX

TAI-189

TRIAX

TWINAX

TAI-189

TRIAX

TAI-102 TWINAX

TAI-128

TAI-129

TAI-165

TRIAX

TAI-129

TAI-189

TAI-102 TWINAX

TAI-189 TRIAX

TAI-102 TWINAX

TAI-189

TRIAX

TAI-103

.500

.285

TAI-102

.438

.688

DIA

.500

.750

CABLE ASSEMBLE CABLE

ENTRY DIA PER

TYPE

.274

.345

TAI-189

TAI-103

TRIAX

REVISIONS

DESCRIPTIONS

DATE

6/18/10

APPROVED

CSM

DATA CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO EMERSON CONNECTIVITY SOLUTIONS AND SHALL NOT

REV

BE DISCLOSED, COPIED OR USED FOR PROCUMENT OR

MANUFACTURE WITHOUT EXPRESS WRITTEN PERMISSION

52460

AD ECO

2.00 MAXIMUM

PL375S-9 SHOWN

A .030

"C" HEX SIZE

.029 .002

3 PLACES

EQUALLY SPACED

SAFTEY WIRE

OPTION

"E" BODY DIAMETER

"D" WRENCH FLATS

PL375-9BR SHOWN

CABLE ENTRY

"B"

.650 MAXIMUM

OVER KNURL

2.00 MAXIMUM

A .030

IF SAFETY WIRE TYPE BEND RELIEF SPRING REQD

ADD SUFFIX "SBR" TO MODEL NO

(NOT AVAILABLE WITH CABLE GROUPS

-8, -10, -11, -12, -13,-13A, -14, -46,

& -54)

IF BEND RELIEF SPRING REQD (SEE FIG 2) ADD

SUFFIX "BR" TO MODEL NO (NOT AVAILABLE WITH CABLE

GROUPS -8, -10, -11, -12, -13, -13A, -14, & -54)

-46,

IF SAFETY WIRE TYPE REQD ADD SUFFIX "S"

TO MODEL NO (PL375S)

CLAMP NUT OMITTED

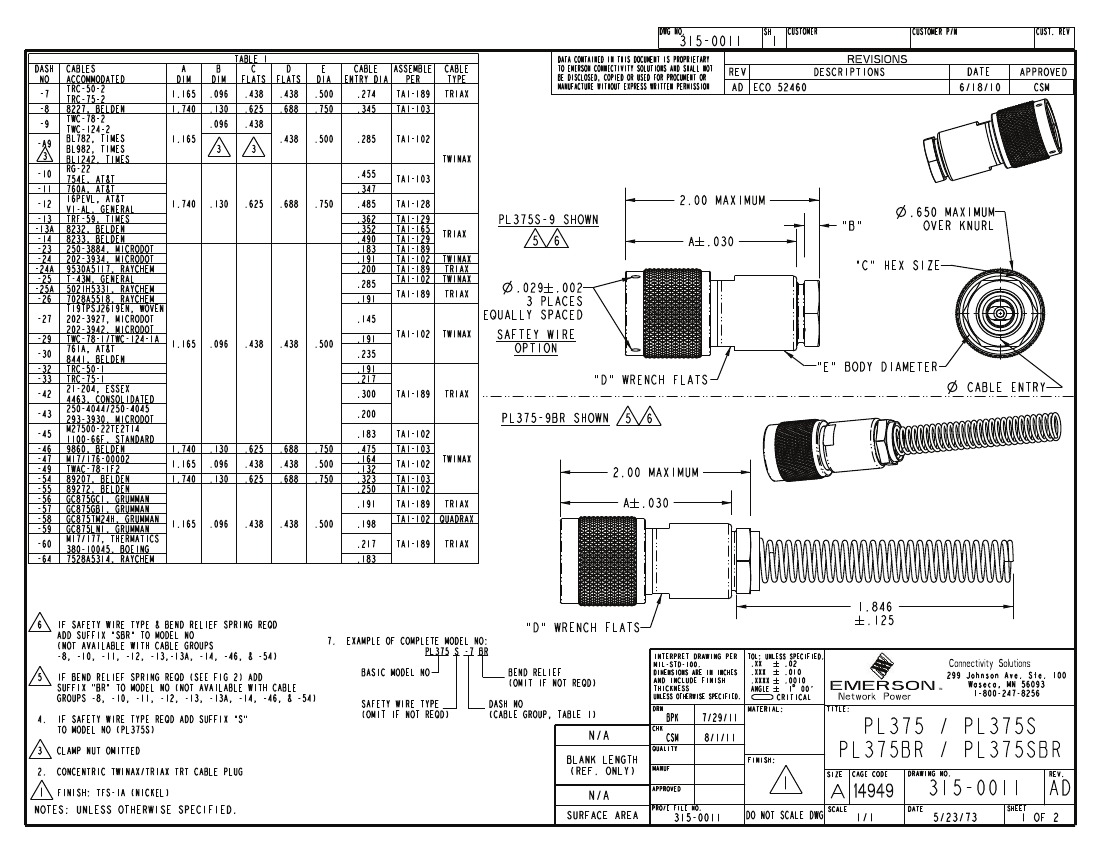

CONCENTRIC TWINAX/TRIAX TRT CABLE PLUG

FINISH: TFS-1A (NICKEL)

"D" WRENCH FLATS

EXAMPLE OF COMPLETE MODEL NO:

PL375 S -7 BR

BASIC MODEL NO

BEND RELIEF

(OMIT IF NOT REQD)

DASH NO

(CABLE GROUP, TABLE 1)

INTERPRET DRAWING PER

TOL: UNLESS SPECIFIED.

.XX

.02

MIL-STD-100.

.010

DIMENSIONS ARE IN INCHES

.XXX

AND INCLUDE FINISH

.XXXX

.0010

THICKNESS

ANGLE

1 00'

UNLESS OTHERWISE SPECIFIED.

CRITICAL

DRN

1.846

.125

Connectivity Solutions

EMERSON

Network Power

299 Johnson Ave. Ste. 100

Waseca, MN 56093

1-800-247-8256

SAFETY WIRE TYPE

(OMIT IF NOT REQD)

MATERIAL:

TITLE:

BPK

CHK

7/29/11

8/1/11

FINISH:

N/A

BLANK LENGTH

(REF. ONLY)

CSM

QUALITY

MANUF

PL375 / PL375S

PL375BR / PL375SBR

SIZE

CAGE CODE

DRAWING NO.

REV.

N/A

SURFACE AREA

APPROVED

PRO/E FILE NO.

A 14949

315-0011

SCALE

DATE

SHEET

1 OF 2

NOTES: UNLESS OTHERWISE SPECIFIED.

315-0011

DO NOT SCALE DWG

1/1

5/23/73
