D Subminiature
The ITT Cannon
D Subminiature family of
connectors has grown to
include a wide variety of styles,
options and accessories and is
often the most economical
solution to any interconnect
problem. Ideally suited for
both commercial/industrial
applications and military/
aerospace applications,
ITT Cannon D Subminiature
connectors have found
worldwide acceptance in a
multitude of applications
ranging from office equipment
to satellites.
Contents
Contents
Page
General Application D Subminiature Connectors
Straight PCB Selection Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
D*NG Pressfit Termination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
D*M Solder Termination (Machined) — Standard PC Tails . . . . . . . . . . . . . . . . . . . . . . . 6
ZD* Solder Termination (Stamped). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
D* Solder Termination (Machined) — European PC Tails . . . . . . . . . . . . . . . . . . . . . . . 10
D* Wrap Post Termination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
90° PCB Selection Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
inch . . . 16
D*M Solder Termination (Machined) — Standard Footprint .318 or .283
ZED* Solder Termination (Stamped) — Standard Footprint .318 inch . . . . . . . . . . . . . . 18
D* Solder Termination (Machined) — European Footprint 10,2 or 9,4
mm. . . . . . 20
ZD* Solder Termination (Stamped) — European Footprint 10,2 mm . . . . . . . . . . . . . . . 28
Cable Selection Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
D Solder Cup Solder Termination (Machined) with Tin Shells . . . . . . . . . . . . . . . . . . . . 32
ZD* Solder Cup Solder Termination (Stamped) with Tin Shells . . . . . . . . . . . . . . . . . . . 34
D*A Crimp Connectors without Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
D*W Discrete Wire IDC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Special Application D Subminiature Connectors
Combo D
Selection Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Combo D
PCB Connectors with 75 Ohm Coaxial Contacts (50 Ohm Option) . . . . . . . . 44
Combo D
PCB Connectors with High Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Combo D
PCB Connectors with (Size 20) Signal Contacts Only. . . . . . . . . . . . . . . . . . 74
Combo D
Cable Solder Cup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Combo D
Cable Crimp Connectors and Shield Cans . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Loose Contacts and Tooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Commercial Micro D Selection Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
MDSM Connectors and Tooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Filter D Selection Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Product Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
D*JK PCB Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
D*JT Solder Cup and Combo High Power Connectors. . . . . . . . . . . . . . . . . . . . . . . . . 122
High Reliability D Subminiature Connectors
Military/High Reliability Selection Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
PCB 90°, Straight, Wrap Post, and Cable Solder Cup . . . . . . . . . . . . . . . . . . . . . . . . . 132
MIL-C-24308 Cross References and Test Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Military/High Reliability Combo D
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Space/High Reliability Selection Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
PCB Straight, 90° and Cable Solder Cup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Cable Crimp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
High Density Cable Crimp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Space/High Reliability Combo D
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Space Accessories and Loose (Size 8) Contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
NASA/GSFC & ESA-SCC Cross References. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Accessories Selection Guide
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Backshells . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Locking Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Miscellaneous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Reader’s Resource Selection Index
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Dimensional Reference Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Lease Tooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
Glossary of Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276
Obsolete Products/Available Products Not Previously Listed . . . . . . . . . . . . . . . . . . . . 282
Part Number Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283
Product Safety and Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 297
On the Cover
Filter D, Combo D
,
Commercial Micro D
(MDSM), Pressfit D,
and Standard D
Combo D
is a registered trademark of ITT Cannon in the United States.
Connector footprint measured from the front shell.
Connector footprint measured from the rear shell.
Dimensions are shown in mm (inch)
Dimensions subject to change
1
D Subminiature

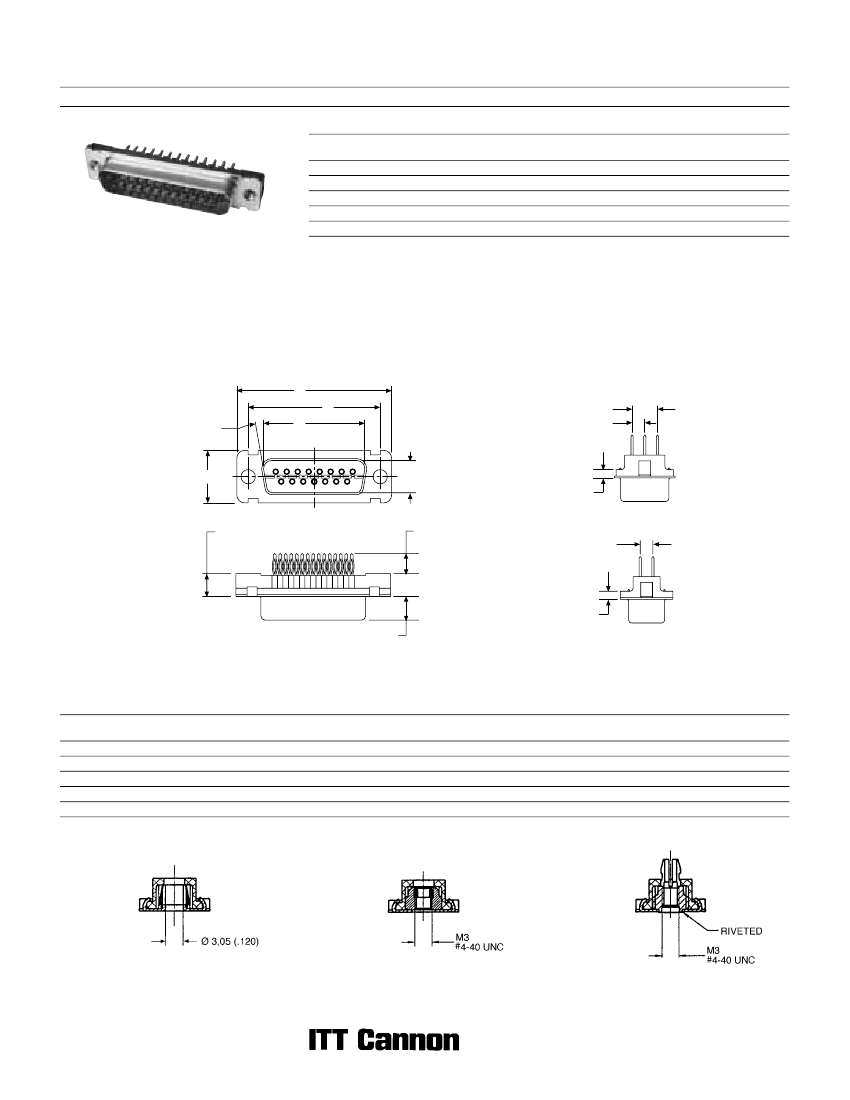

D*NG - Straight Pressfit Termination
Straight PCB Selection Guide
See pages 4-5.

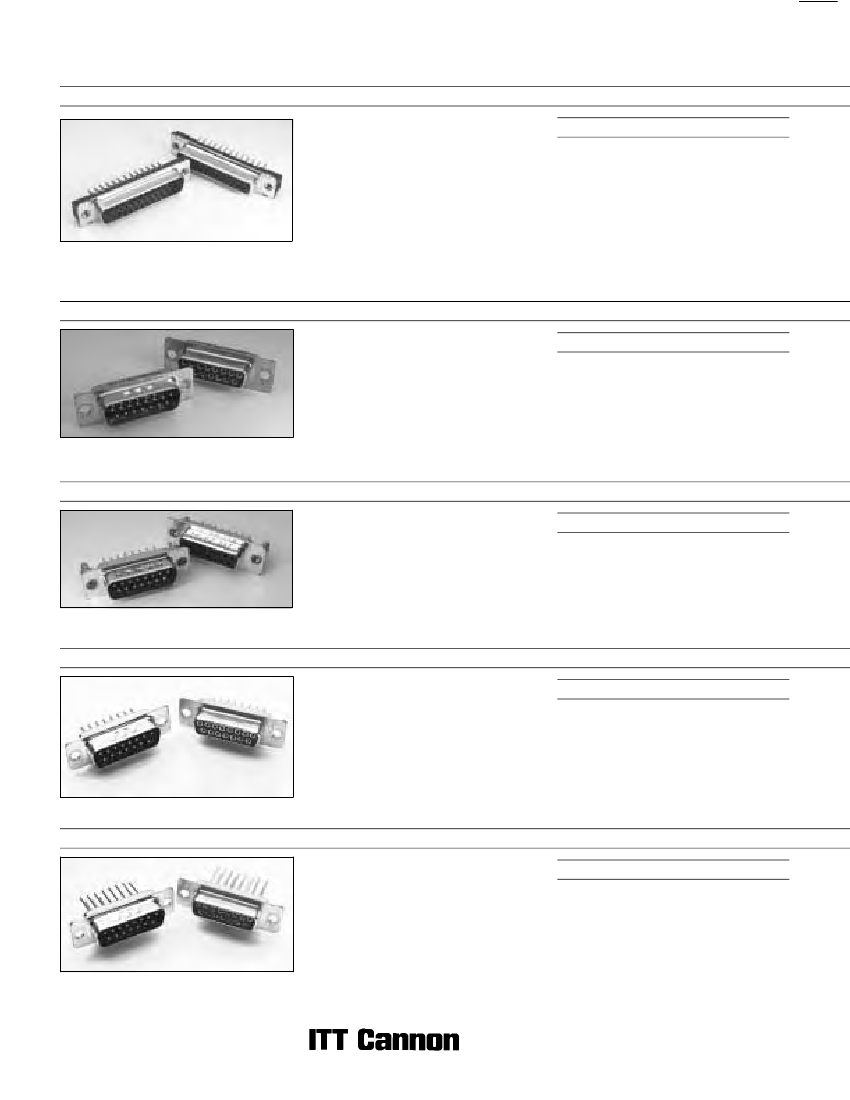

The D*NG is based upon the specification
CECC75-301-802. These connectors provide a
low-cost alternative to traditional through hole
solder contacts. Utilizing stamped ‘‘Eye of the
Needle’’ compliant contact tails per IEC-352-5, the
parts are quickly and easily mounted onto PCBs
without soldering, crimping or specialized tooling.
The socket contact engaging area utilizes a
‘‘spoon’’ shape with four points of
interconnection. Hardware options provide
flexibility and ensure that the final product fits the
electrical requirements of any application.
Product Features
Quick and easy press-in installation without
specialized tooling
‘‘Spoon’’ socket contact provides improved
interface compared to ‘‘Tuning Fork’’
Closed-entry socket for secure blind mating
Front-shell only design based on
CECC 75-301-802
‘‘Eye of the Needle’’ compliant contact tails
Press-in bolt for ground continuity
#4-40 UNC and M3 hardware options
D*M Straight Solder Termination (Machined) — Standard PC Tails
D*M straight PCB connectors, equivalent to
MIL-C-24308 qualified versions (except for
finishes) for printed circuit boards and backplanes
in demanding applications. Additional contact
lengths, hardware and finish options available;
consult factory for details.
See pages 6-7.
Product Features
7.5 A current capacity
Machined contacts
2 contact finishes
Optional vertical standoffs, screw locks, and
boardlocks (4 prongs)
UL file number E8572
Dimensionally compatible with Combo D
ZD* - Straight Solder Termination (Stamped)
ZD* straight connectors are available for
applications where price is the primary driver. They
are available with or without boardlocks and screw
locks.
Product Features
Stamped contacts with 5 A current capacity
Economical
Optional vertical standoffs with optional
harpoon style boardlocks or screw locks
See pages 8-9.
D* - Straight Solder Termination (Machined) — European PC Tails
D* straight connectors are available for high
performance uses according to DIN 41652.
Available with European length OL contacts.
Select contact finish from 2 performance classes.
Product Features
High performance commercial connectors
Two contact finish performance classes
Optional vertical standoffs, threaded inserts
and pushfits/boardlocks
OL2 contact length, other lengths available
Tin plated contact PC tails (pin & socket)
Machined contacts
See pages 10-11.
D* - Wrap Post Termination
D* straight connectors are available for high
performance uses according to DIN 41652.
Contacts available in two popular lengths.
Product Features
High performance commercial class
connectors
Two contact lengths for 2 or 3 wraps
Machined contacts
See pages 12-13.
