(2/9)
E M C
C o m p o n e n t s
REMINDERS FOR USING THESE PRODUCTS
Before using these products, be sure to request the delivery specifications.
The storage period is less than 12 months. Be sure to follow the storage conditions (Temperature: 5 to 40°C, Humidity: 10 to 75% RH
or less).
If the storage period elapses, the soldering of the terminal electrodes may deteriorate.
Do not use or store in locations where there are conditions such as gas corrosion (salt, acid, alkali, etc.).

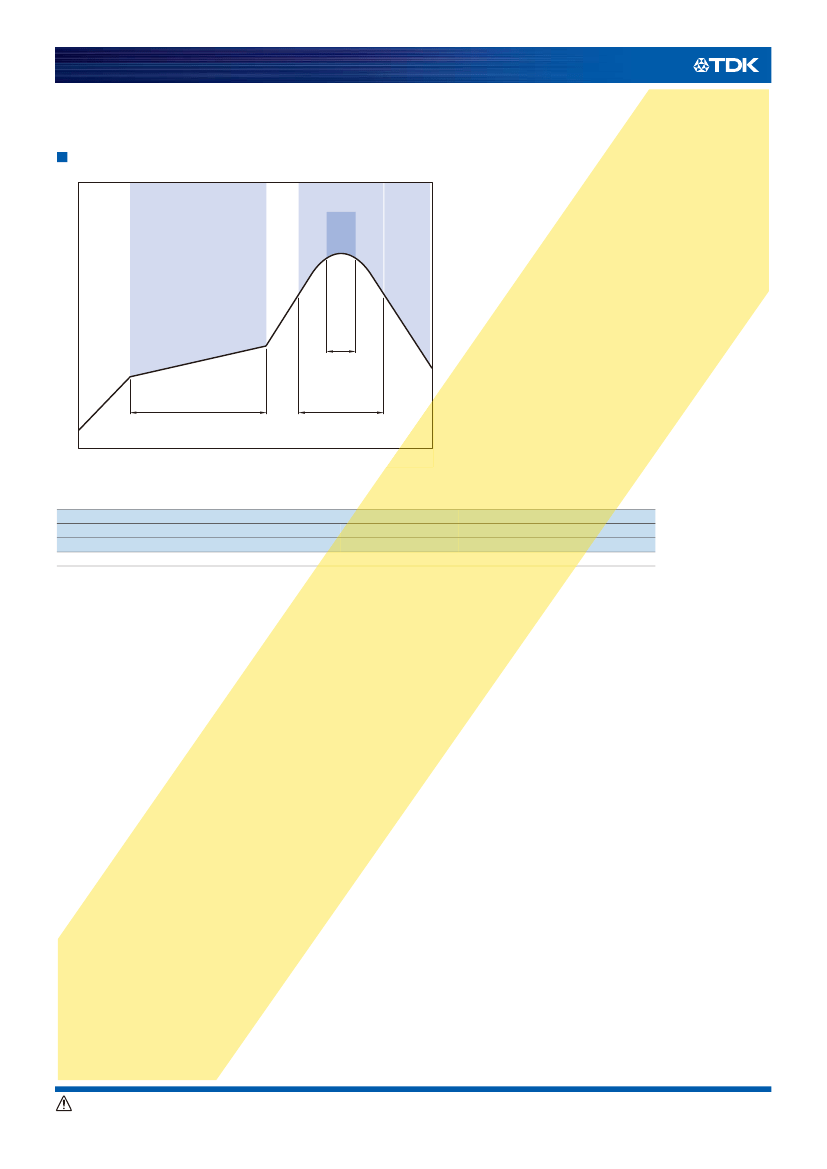

Before soldering, be sure to preheat components.
The preheating temperature should be set so that the temperature difference between the solder temperature and chip temperature
does not exceed 150°C.
Soldering corrections after mounting should be within the range of the conditions determined in the specifications.
If overheated, a short circuit, performance deterioration, or lifespan shortening may occur.
When embedding a printed circuit board where a chip is mounted to a set, be sure that residual stress is not given to the chip due to
the overall distortion of the printed circuit board and partial distortion such as at screw tightening portions.
Self heating (temperature increase) occurs when the power is turned ON, so the tolerance should be sufficient for the set thermal
design.
Carefully lay out the coil for the circuit board design of the non-magnetic shield type.
A malfunction may occur due to magnetic interference.
Use a wrist band to discharge static electricity in your body through the grounding wire.
Do not expose the products to magnets or magnetic fields.
Do not use for a purpose outside of the contents regulated in the delivery specifications.
The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications
equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement
equipment, industrial robots) under a normal operation and use condition.
The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or
quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to
society, person or property.
If you intend to use the products in the applications listed below or if you have special requirements exceeding the range or conditions
set forth in the each catalog, please contact us.
(1) Aerospace/Aviation equipment
(2) Transportation equipment (cars, electric trains, ships, etc.)
(3) Medical equipment
(4) Power-generation control equipment
(5) Atomic energy-related equipment
(6) Seabed equipment
(7) Transportation control equipment
(8) Public information-processing equipment
(9) Military equipment
(10) Electric heating apparatus, burning equipment
(11) Disaster prevention/crime prevention equipment
(12) Safety equipment
(13) Other applications that are not considered general-purpose
applications
When designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing
protection circuit/device or providing backup circuits in your equipment.
Th
e
pr
od
uc
st ts
op w
pe il
d lb
pr e
od or
uc ha
tio ve
n
be
en
Please pay sufficient attention to the warnings for safe designing when using these products.
SAFETY REMINDERS
REMINDERS
20151221 / cmf_commercial_signal_zjys51r5_en.fm
(3/9)
E M C
C o m p o n e n t s
Product compatible with RoHS directive

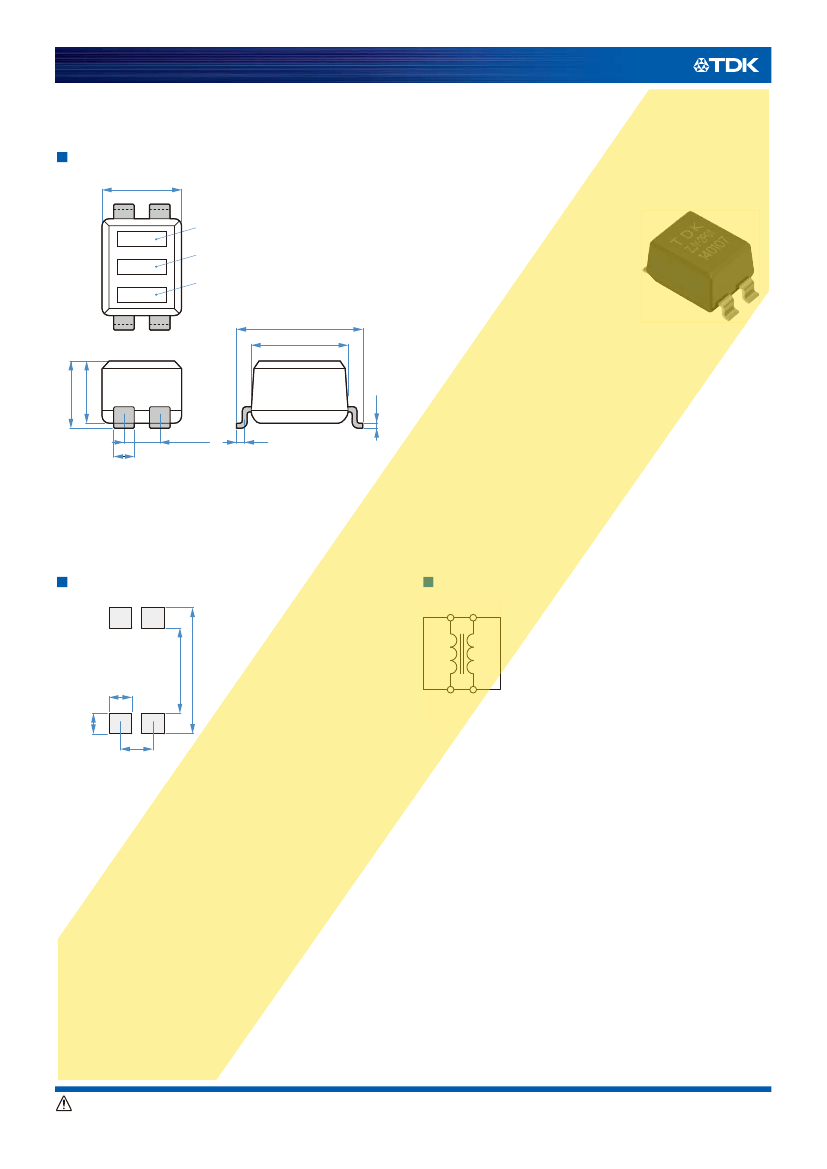

Common Mode Filters
For signal line
FEATURES
Optimal common mode filter for removing noise without straining the transmission signal and for transmitting high-quality signals.
Optimal countermeasure for common mode noise induced during data transmission for digital signal processing such as in PCs and
telephones.
SMD type structure makes it optimal for surface mounting.
Up to 2A current is allowable, so it can be used as a noise countermeasure for power supply lines.
APPLICATION
PCs, telephones, LANs, ISDNs, digital PBXs, game machines, CTVs, CD-ROMs, 8mm video cassette recorders, etc.
PART NUMBER CONSTRUCTION
ZJYS51R5
Series
•
Type name
OPERATING TEMPERATURE RANGE, PACKAGE QUANTITY, PRODUCT WEIGHT
Temperature range
Operating
Storage
Type
temperature
temperature
（°C）
（°C）
ZJYS51R5-2PT-01
–25 to +85
–25 to +85
ZJYS51R5-2PBT-01
–25 to +85
–25 to +85
ZJYS51R5-2PLT-01
–25 to +85
–25 to +85
ZJYS51R5-4PT-01
–25 to +85
–25 to +85
ZJYS51R5-M4PAT-01
–25 to +85
–25 to +85
The Storage temperature range is for after the circuit board is mounted.
Package quantity
Individual weight
RoHS Directive Compliant Product: See the following for more details related to RoHS Directive compliant products. http://product.tdk.com/en/environment/rohs/
Halogen-free: Indicates that Cl content is less than 900ppm, Br content is less than 900ppm, and that the total Cl and Br content is less than 1500ppm.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
Th
e
pr
od
uc
st ts
op w
pe il
d lb
pr e
od or
uc ha
tio ve
n
be
en
-
2P
T
-
01
01
Product internal
code
2P
2PB
2PL
4P
M4PA
Packaging style
Internal code
T
ø330mm reel
(pieces/reel)
1,500
1,500
1,500
1,000
1,000
（g）
0.4
0.4
0.4
0.8
0.8
Overview of ZJYS51R5 Type
20151221 / cmf_commercial_signal_zjys51r5_en.fm
