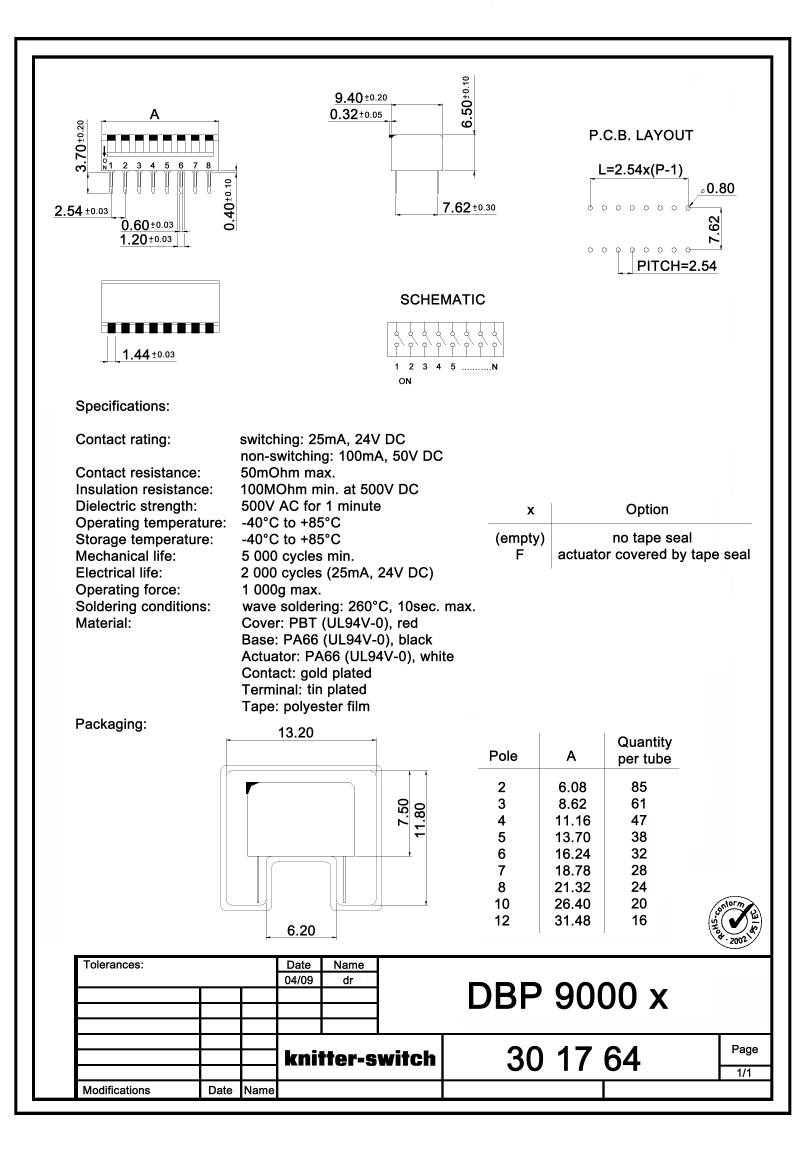

Piano Dip Switch, 3 Switches, SPST, Vertical, 0.025A, 24VDC, 6 PCB Hole Cnt, Solder Terminal, Through Hole-straight
| Parameter Name | Attribute value |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Actuator color | WHITE |
| Actuator length | 0.013 inch |
| Actuator material | POLYAMIDE |
| Actuator type | PIANO |
| body width | 9.398 mm |
| Body color | BLACK |
| body height | 6.9088 mm |
| Body length or diameter | 8.6106 mm |
| Center contact plating | GOLD |
| Maximum contact current (DC) | 0.025 A |
| Contact (DC) maximum rated R load | 0.025A@24VDC |
| Contact resistance | 0.05 mΩ |
| Maximum contact voltage (DC) | 24 V |
| Dielectric withstand voltage | 500VAC V |
| Electrical life | 2000 Cycle(s) |
| End contact plating | GOLD |
| Insulation resistance | 100000000 Ω |
| insulator material | POLYAMIDE |
| Manufacturer's serial number | DBP |
| Installation features | THROUGH HOLE-STRAIGHT |
| Number of switching segments | 3 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| PCB hole count | 6 |
| Solderability | WAVE |
| surface mount | NO |
| Switch action | VERTICAL |
| switch function | SPST |
| Switch type | PIANO DIP SWITCH |
| Terminal length | 0.146 inch |
| Termination type | SOLDER |
| DBP9003F | DBP9003 | DBP9002F | |
|---|---|---|---|
| Description | Piano Dip Switch, 3 Switches, SPST, Vertical, 0.025A, 24VDC, 6 PCB Hole Cnt, Solder Terminal, Through Hole-straight | Piano Dip Switch, 3 Switches, SPST, Vertical, 0.025A, 24VDC, 6 PCB Hole Cnt, Solder Terminal, Through Hole-straight | Piano Dip Switch, 2 Switches, SPST, Vertical, 0.025A, 24VDC, 4 PCB Hole Cnt, Solder Terminal, Through Hole-straight |
| Reach Compliance Code | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 |
| Actuator color | WHITE | WHITE | WHITE |
| Actuator length | 0.013 inch | 0.013 inch | 0.013 inch |
| Actuator material | POLYAMIDE | POLYAMIDE | POLYAMIDE |
| Actuator type | PIANO | PIANO | PIANO |
| body width | 9.398 mm | 9.398 mm | 9.398 mm |
| Body color | BLACK | BLACK | BLACK |
| body height | 6.9088 mm | 6.9088 mm | 6.9088 mm |
| Body length or diameter | 8.6106 mm | 8.6106 mm | 6.0706 mm |
| Center contact plating | GOLD | GOLD | GOLD |
| Maximum contact current (DC) | 0.025 A | 0.025 A | 0.025 A |
| Contact (DC) maximum rated R load | 0.025A@24VDC | 0.025A@24VDC | 0.025A@24VDC |
| Contact resistance | 0.05 mΩ | 0.05 mΩ | 0.05 mΩ |
| Maximum contact voltage (DC) | 24 V | 24 V | 24 V |
| Dielectric withstand voltage | 500VAC V | 500VAC V | 500VAC V |
| Electrical life | 2000 Cycle(s) | 2000 Cycle(s) | 2000 Cycle(s) |
| End contact plating | GOLD | GOLD | GOLD |
| Insulation resistance | 100000000 Ω | 100000000 Ω | 100000000 Ω |
| insulator material | POLYAMIDE | POLYAMIDE | POLYAMIDE |
| Manufacturer's serial number | DBP | DBP | DBP |
| Installation features | THROUGH HOLE-STRAIGHT | THROUGH HOLE-STRAIGHT | THROUGH HOLE-STRAIGHT |
| Number of switching segments | 3 | 3 | 2 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C |
| PCB hole count | 6 | 6 | 4 |
| Solderability | WAVE | WAVE | WAVE |
| surface mount | NO | NO | NO |
| Switch action | VERTICAL | VERTICAL | VERTICAL |
| switch function | SPST | SPST | SPST |
| Switch type | PIANO DIP SWITCH | PIANO DIP SWITCH | PIANO DIP SWITCH |
| Terminal length | 0.146 inch | 0.146 inch | 0.146 inch |
| Termination type | SOLDER | SOLDER | SOLDER |
