DBS2010 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> DBS2010

DBS2010: DescriptionSlide Switch, 10 Positions, SPST, Off-on, Horizontal, 0.025A, 24VDC, 8 PCB Hole Cnt, Solder Terminal, Through Hole-straight; CategoryMechanical and electronic products switch; File Size37KB，1 Pages; ManufacturerKnitter-switch; Websitehttp://www.knitter-switch.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DBS2010 Overview

Slide Switch, 10 Positions, SPST, Off-on, Horizontal, 0.025A, 24VDC, 8 PCB Hole Cnt, Solder Terminal, Through Hole-straight

DBS2010 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator color	WHITE
Actuator type	SLIDE
body width	9.906 mm
Body color	BLACK
body height	5.8928 mm
Body length or diameter	26.7716 mm
center contact material	PHOSPHOR BRONZE
Center contact plating	GOLD
Maximum contact current (DC)	0.025 A
Contact (DC) maximum rated R load	0.025A@24VDC
Contact function	OFF-ON
Contact resistance	0.05 mΩ
Maximum contact voltage (DC)	24 V
Dielectric withstand voltage	500VAC V
Electrical life	2000 Cycle(s)
End contact material	PHOSPHOR BRONZE
End contact plating	GOLD
Insulation resistance	100000000 Ω
Manufacturer's serial number	DBS
Installation features	THROUGH HOLE-STRAIGHT
Number of positions	10
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
PCB hole count	8
surface mount	NO
Switch action	HORIZONTAL
switch function	SPST
Terminal length	0.126 inch
Terminal material	PHOSPHOR BRONZE
Termination type	SOLDER

Preview

Download Datasheet

View All

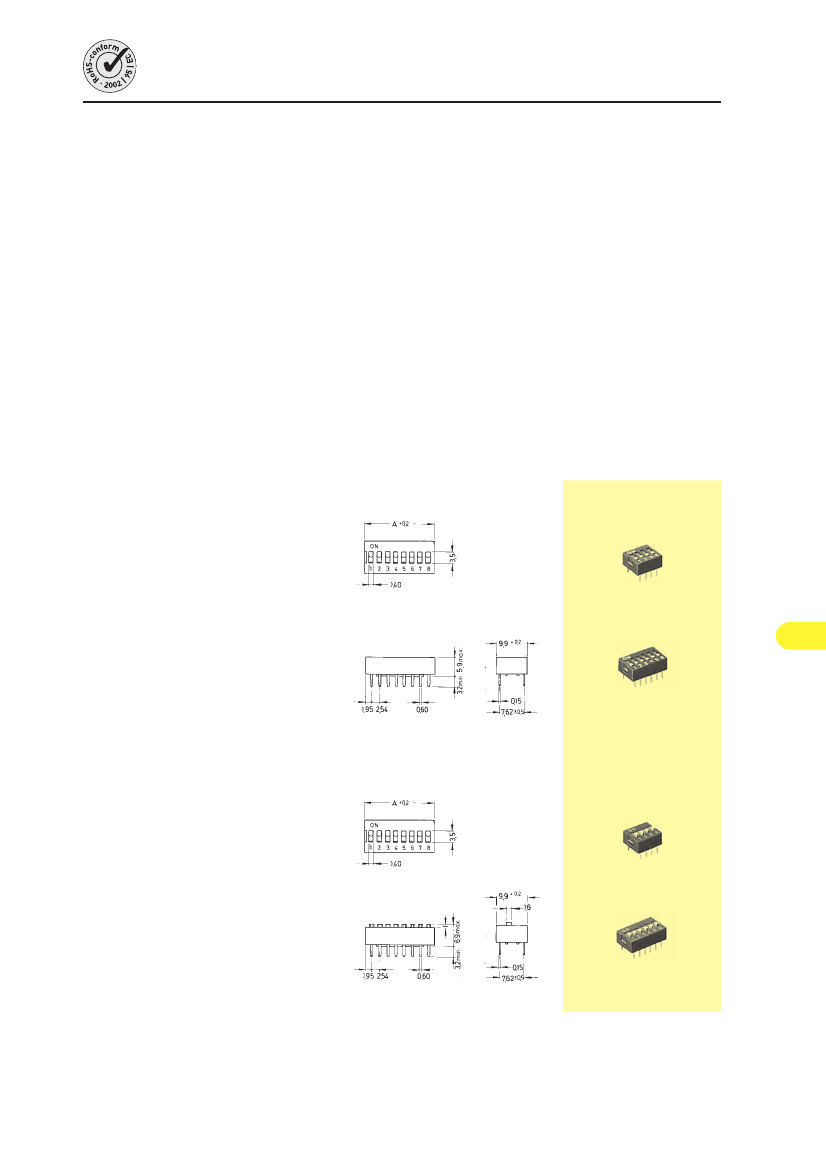

Dual-in-line Switches

Specifications:

Contact rating:

Contact resistance:

Insulation resistance:

Dielectric strength:

Operating temperature:

Mechanical life:

Material:

Contacts:

Construction:

Mounting:

Slide position:

Soldering conditions:

24 V DC, 25 mA / 6 V DC, 100 mA

< 50 mΩ

> 100 MΩ at 500 V DC

500 V, 50 Hz for the duration of 1 minute

– 20° to + 70° C

minimum 2000 operations per pole

PBT meets UL 94 V–0

gold-plated over nickel

case sealed

series DBS 2000 slide recessed, sealed with protective tape

on pc-board

OFF

auto-soldering – max.: 5 sec, 260º C

Models:

Series DBS 2000

Type

DBS 2002

DBS 2003

DBS 2004

DBS 2005

DBS 2006

DBS 2007

DBS 2008

DBS 2009

DBS 2010

DBS 2012

Poles

Length (A)

6,44 mm

8,98 mm

11,52 mm

14,06 mm

16,60 mm

19,14 mm

21,68 mm

24,22 mm

26,76 mm

31,84 mm

Series DBS 2100

Type

DBS 2102

DBS 2103

DBS 2104

DBS 2105

DBS 2106

DBS 2107

DBS 2108

DBS 2109

DBS 2110

DBS 2112

Poles

Length (A)

6,44 mm

8,98 mm

11,52 mm

14,06 mm

16,60 mm

19,14 mm

21,68 mm

24,22 mm

26,76 mm

31,84 mm

137

DBS2010 Related Products

	DBS2010	DBS2110	DBS2004	DBS2107	DBS2006	DBS2005
Description	Slide Switch, 10 Positions, SPST, Off-on, Horizontal, 0.025A, 24VDC, 8 PCB Hole Cnt, Solder Terminal, Through Hole-straight	Slide Switch, 10 Positions, SPST, Off-on, Horizontal, 0.025A, 24VDC, 20 PCB Hole Cnt, Solder Terminal, Through Hole-straight	Slide Switch, 4 Positions, SPST, Off-on, Horizontal, 0.025A, 24VDC, 8 PCB Hole Cnt, Solder Terminal, Through Hole-straight	Slide Switch, 7 Positions, SPST, Off-on, Horizontal, 0.025A, 24VDC, 14 PCB Hole Cnt, Solder Terminal, Through Hole-straight	Slide Switch, 6 Positions, SPST, Off-on, Horizontal, 0.025A, 24VDC, 8 PCB Hole Cnt, Solder Terminal, Through Hole-straight	Slide Switch, 5 Positions, SPST, Off-on, Horizontal, 0.025A, 24VDC, 8 PCB Hole Cnt, Solder Terminal, Through Hole-straight
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator color	WHITE	WHITE	WHITE	WHITE	WHITE	WHITE
Actuator type	SLIDE	SLIDE	SLIDE	SLIDE	SLIDE	SLIDE
body width	9.906 mm	9.906 mm	9.906 mm	9.906 mm	9.906 mm	9.906 mm
body height	5.8928 mm	5.9944 mm	5.8928 mm	5.9944 mm	5.8928 mm	5.8928 mm
Body length or diameter	26.7716 mm	26.7462 mm	11.5316 mm	19.1262 mm	16.6116 mm	14.0716 mm
center contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Center contact plating	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Maximum contact current (DC)	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A
Contact (DC) maximum rated R load	0.025A@24VDC	0.025A@24VDC	0.025A@24VDC	0.025A@24VDC	0.025A@24VDC	0.025A@24VDC
Contact function	OFF-ON	OFF-ON	OFF-ON	OFF-ON	OFF-ON	OFF-ON
Contact resistance	0.05 mΩ	0.05 mΩ	0.05 mΩ	0.05 mΩ	0.05 mΩ	0.05 mΩ
Maximum contact voltage (DC)	24 V	24 V	24 V	24 V	24 V	24 V
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Manufacturer's serial number	DBS	DBS	DBS	DBS	DBS	DBS
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Number of positions	10	10	4	7	6	5
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
PCB hole count	8	20	8	14	8	8
surface mount	NO	NO	NO	NO	NO	NO
Switch action	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL
switch function	SPST	SPST	SPST	SPST	SPST	SPST
Terminal length	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch
Terminal material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	-
Body color	BLACK	-	BLACK	-	BLACK	BLACK
Electrical life	2000 Cycle(s)	-	2000 Cycle(s)	-	2000 Cycle(s)	2000 Cycle(s)
End contact material	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE
End contact plating	GOLD	-	GOLD	-	GOLD	GOLD
