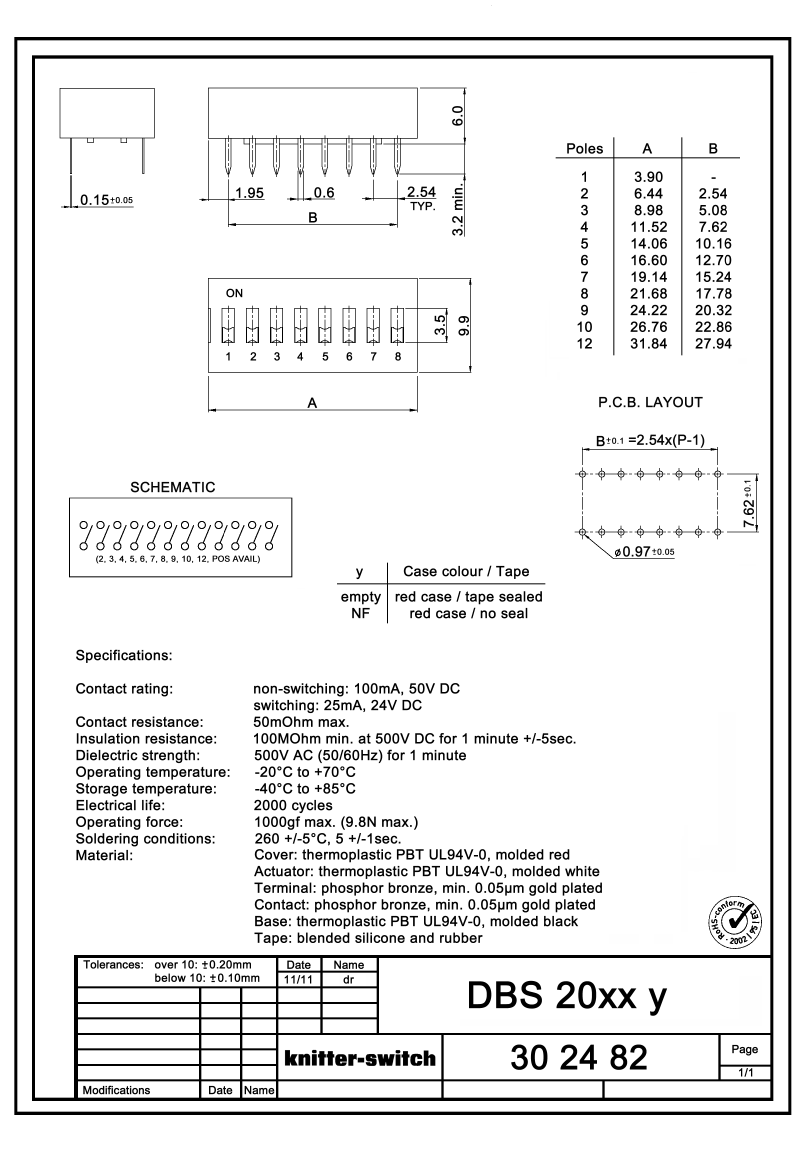

DBS2010NF: DescriptionSlide Switch, 10 Positions, SPST, Off-on, Horizontal, 0.025A, 24VDC, 8 PCB Hole Cnt, Solder Terminal, Through Hole-straight; CategoryMechanical and electronic products switch; File Size181KB，1 Pages; ManufacturerKnitter-switch; Websitehttp://www.knitter-switch.com/

Download Datasheet Parametric Compare View All

DBS2010NF Overview

Slide Switch, 10 Positions, SPST, Off-on, Horizontal, 0.025A, 24VDC, 8 PCB Hole Cnt, Solder Terminal, Through Hole-straight

DBS2010NF Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator color	WHITE
Actuator type	SLIDE
body width	9.906 mm
Body color	BLACK
body height	5.8928 mm
Body length or diameter	26.7716 mm
center contact material	PHOSPHOR BRONZE
Center contact plating	GOLD
Maximum contact current (DC)	0.025 A
Contact (DC) maximum rated R load	0.025A@24VDC
Contact function	OFF-ON
Contact resistance	0.05 mΩ
Maximum contact voltage (DC)	24 V
Dielectric withstand voltage	500VAC V
Electrical life	2000 Cycle(s)
End contact material	PHOSPHOR BRONZE
End contact plating	GOLD
Insulation resistance	100000000 Ω
Manufacturer's serial number	DBS
Installation features	THROUGH HOLE-STRAIGHT
Number of positions	10
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
PCB hole count	8
surface mount	NO
Switch action	HORIZONTAL
switch function	SPST
Terminal length	0.126 inch
Terminal material	PHOSPHOR BRONZE
Termination type	SOLDER

Preview

Download Datasheet

View All

DBS2010NF Related Products

	DBS2010NF	DBS2004NF	DBS2007NF
Description	Slide Switch, 10 Positions, SPST, Off-on, Horizontal, 0.025A, 24VDC, 8 PCB Hole Cnt, Solder Terminal, Through Hole-straight	Slide Switch, 4 Positions, SPST, Off-on, Horizontal, 0.025A, 24VDC, 8 PCB Hole Cnt, Solder Terminal, Through Hole-straight	Slide Switch, 7 Positions, SPST, Off-on, Horizontal, 0.025A, 24VDC, 8 PCB Hole Cnt, Solder Terminal, Through Hole-straight
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Actuator color	WHITE	WHITE	WHITE
Actuator type	SLIDE	SLIDE	SLIDE
body width	9.906 mm	9.906 mm	9.906 mm
Body color	BLACK	BLACK	BLACK
body height	5.8928 mm	5.8928 mm	5.8928 mm
Body length or diameter	26.7716 mm	11.5316 mm	19.1516 mm
center contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Center contact plating	GOLD	GOLD	GOLD
Maximum contact current (DC)	0.025 A	0.025 A	0.025 A
Contact (DC) maximum rated R load	0.025A@24VDC	0.025A@24VDC	0.025A@24VDC
Contact function	OFF-ON	OFF-ON	OFF-ON
Contact resistance	0.05 mΩ	0.05 mΩ	0.05 mΩ
Maximum contact voltage (DC)	24 V	24 V	24 V
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V
Electrical life	2000 Cycle(s)	2000 Cycle(s)	2000 Cycle(s)
End contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
End contact plating	GOLD	GOLD	GOLD
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω
Manufacturer's serial number	DBS	DBS	DBS
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Number of positions	10	4	7
Maximum operating temperature	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C
PCB hole count	8	8	8
surface mount	NO	NO	NO
Switch action	HORIZONTAL	HORIZONTAL	HORIZONTAL
switch function	SPST	SPST	SPST
Terminal length	0.126 inch	0.126 inch	0.126 inch
Terminal material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Termination type	SOLDER	SOLDER	SOLDER
