Part Number

Search

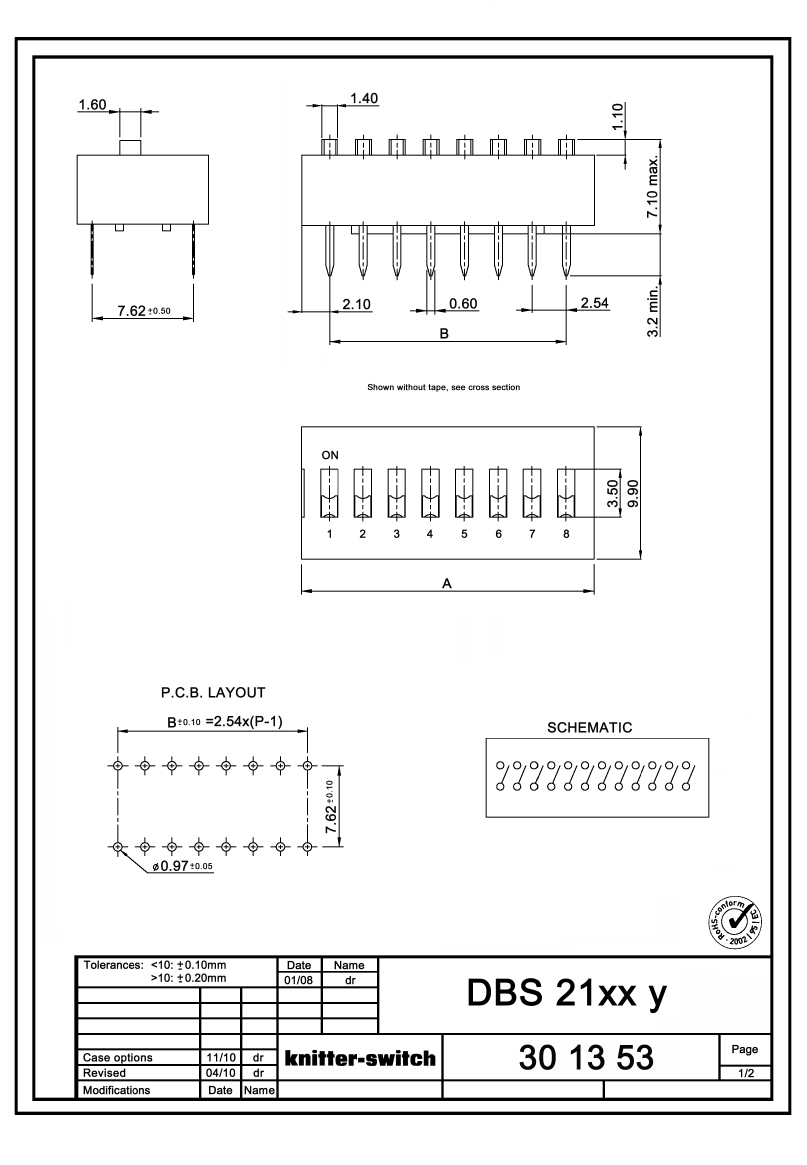

DBS2101

Description
Slide Switch, 1 Positions, SPST, Off-on, Horizontal, 0.025A, 24VDC, 2 PCB Hole Cnt, Solder Terminal, Through Hole-straight
CategoryMechanical and electronic products    switch
File Size273KB,2 Pages
ManufacturerKnitter-switch
Websitehttp://www.knitter-switch.com/
Download Datasheet Parametric View All

DBS2101 Overview

Slide Switch, 1 Positions, SPST, Off-on, Horizontal, 0.025A, 24VDC, 2 PCB Hole Cnt, Solder Terminal, Through Hole-straight

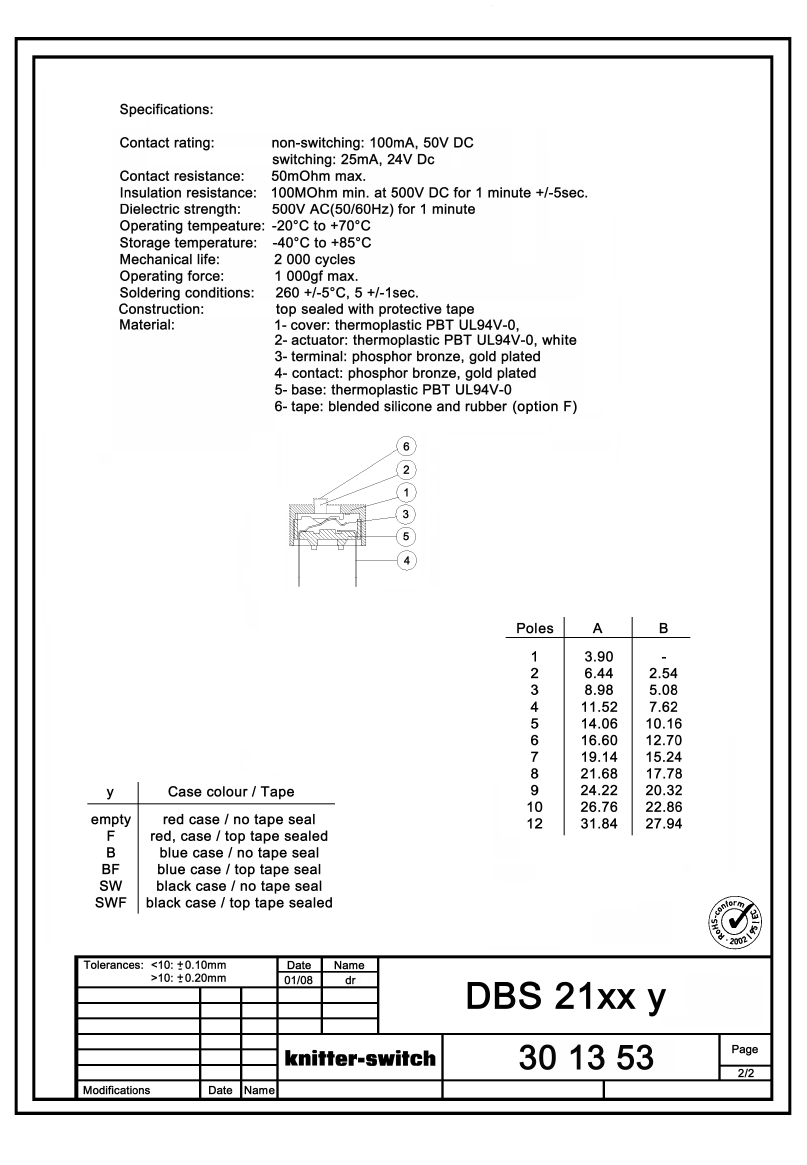

DBS2101 Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
ECCN codeEAR99
Actuator angle
Actuator colorWHITE
Actuator length0.043 inch
Actuator materialTHERMOPLASTIC
Actuator typeSLIDE
body width9.906 mm
body height5.9944 mm
Body length or diameter3.8862 mm
center contact materialPHOSPHOR BRONZE
Center contact platingGOLD
Maximum contact current (DC)0.025 A
Contact (DC) maximum rated R load0.025A@24VDC
Contact functionOFF-ON
Contact resistance0.05 mΩ
Maximum contact voltage (DC)24 V
Dielectric withstand voltage500VAC V
Shell materialTHERMOPLASTIC
Insulation resistance100000000 Ω
insulator materialTHERMOPLASTIC
Manufacturer's serial numberDBS
Installation featuresTHROUGH HOLE-STRAIGHT
Number of positions1
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
PCB hole count2
surface mountNO
Switch actionHORIZONTAL
switch functionSPST
Terminal length0.126 inch
Terminal materialPHOSPHOR BRONZE
Termination typeSOLDER
