DSS110: DescriptionSlide Switch, 10 Positions, SPST, Off-on, Horizontal, 0.1A, 50VDC, 20 PCB Hole Cnt, Solder Terminal, Through Hole-straight; CategoryMechanical and electronic products switch; File Size39KB，1 Pages; ManufacturerKnitter-switch; Websitehttp://www.knitter-switch.com/

Download Datasheet Parametric Compare View All

DSS110 Overview

Slide Switch, 10 Positions, SPST, Off-on, Horizontal, 0.1A, 50VDC, 20 PCB Hole Cnt, Solder Terminal, Through Hole-straight

DSS110 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator length	0.031 inch
Actuator material	POLYACETAL
Actuator type	SLIDE
body width	9.6012 mm
Body color	BLACK
body height	4.4958 mm
Body length or diameter	26.8986 mm
center contact material	BERYLLIUM COPPER
Center contact plating	GOLD OVER NICKEL
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	0.1A@50VDC
Contact function	OFF-ON
Contact resistance	0.05 mΩ
Maximum contact voltage (DC)	50 V
Dielectric withstand voltage	500VAC V
Electrical life	10000 Cycle(s)
End contact plating	GOLD OVER NICKEL
Shell material	POLYBUTYLENE TEREPHTHALATE
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DSS
Installation features	THROUGH HOLE-STRAIGHT
Number of positions	10
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
PCB hole count	20
surface mount	NO
Switch action	HORIZONTAL
switch function	SPST
Terminal length	0.181 inch
Termination type	SOLDER

Preview

Download Datasheet

View All

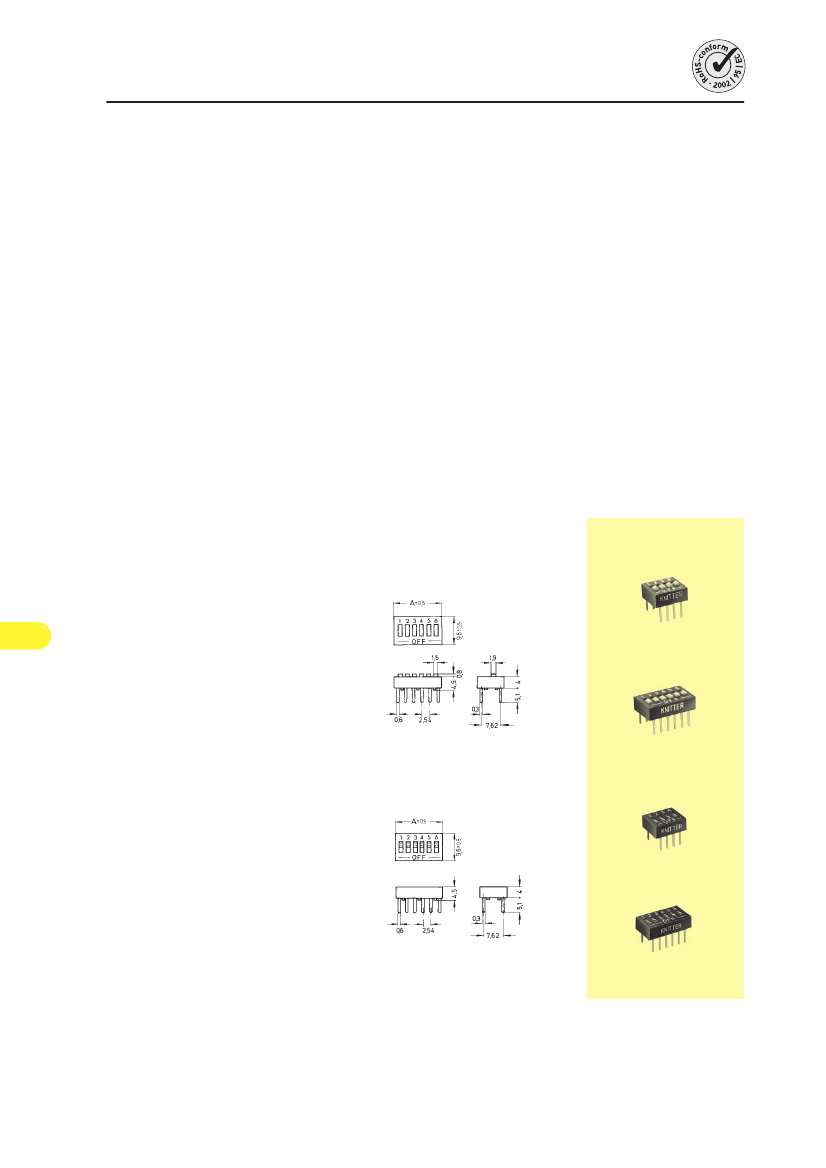

Dual-in-line Switches

Specifications:

Contact rating:

Contact resistance:

Insulation resistance:

Capacity:

Dielectric strength:

Operating temperature:

Mechanical life:

Shock resistance:

Vibration:

Contact/ Terminals:

Material:

Construction:

Slide position:

Mounting:

Soldering conditions:

50 V DC, 100 mA

< 50 mΩ

> 1000 MΩ at 100 V DC

< 5 pF between 2 poles

500 V, 50 Hz for the duration of 1 minute

– 20° to + 80° C

minimum 25 000 operations per pole

contact interruption < 10 µsec with triple shock in all 6 directions

shock conditions: 20 G, 11 msec duration (sine half wave)

contact interruption < 10 µsec at vibration test in accordance with

MIL-STD-202 D, method 204, condition C

PC terminals, phosphor bronze, 2 µm gold-plated over 1 µm nickel

case: PBTP, slide: PA

case sealed

series 300: slide recessed, sealed with protective tape

OFF

on pc-board

auto-soldering – max.: 3 sec, 270º C

Models:

Series DSS 100

Type

DSS 101

DSS 102

DSS 103

DSS 104

DSS 105

DSS 106

DSS 107

DSS 108

DSS 110

Poles

Length (A)

4,0 mm

6,6 mm

9,2 mm

11,7 mm

14,3 mm

16,8 mm

19,3 mm

21,8 mm

26,9 mm

Series DSS 300

Type

DSS 302

DSS 303

DSS 304

DSS 305

DSS 306

DSS 307

DSS 308

DSS 310

Accessories:

Acrylic caps

Poles

Length (A)

6,6 mm

9,2 mm

11,7 mm

14,3 mm

16,8 mm

19,3 mm

21,8 mm

26,9 mm

D 102 H to D 110 H (2–10 poles)

120

DSS110 Related Products

	DSS110	DSS104	DSS107	DSS307
Description	Slide Switch, 10 Positions, SPST, Off-on, Horizontal, 0.1A, 50VDC, 20 PCB Hole Cnt, Solder Terminal, Through Hole-straight	Slide Switch, 4 Positions, SPST, Off-on, Horizontal, 0.1A, 50VDC, 8 PCB Hole Cnt, Solder Terminal, Through Hole-straight	Slide Switch, 7 Positions, SPST, Off-on, Horizontal, 0.1A, 50VDC, 14 PCB Hole Cnt, Solder Terminal, Through Hole-straight	Switch, SPST, Horizontal, 0.1A, 50VDC, Through Hole-straight
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Actuator material	POLYACETAL	POLYACETAL	POLYACETAL	POLYAMIDE
Actuator type	SLIDE	SLIDE	SLIDE	SLIDE
body width	9.6012 mm	9.6012 mm	9.6012 mm	9.6012 mm
Body color	BLACK	BLACK	BLACK	BLACK
body height	4.4958 mm	4.4958 mm	4.4958 mm	4.4958 mm
Body length or diameter	26.8986 mm	11.7094 mm	19.304 mm	19.304 mm
center contact material	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	PHOSPHOR BRONZE
Center contact plating	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Maximum contact current (DC)	0.1 A	0.1 A	0.1 A	0.1 A
Contact (DC) maximum rated R load	0.1A@50VDC	0.1A@50VDC	0.1A@50VDC	0.1A@50VDC
Contact function	OFF-ON	OFF-ON	OFF-ON	OFF-ON
Contact resistance	0.05 mΩ	0.05 mΩ	0.05 mΩ	0.05 mΩ
Maximum contact voltage (DC)	50 V	50 V	50 V	50 V
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V
Electrical life	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	25000 Cycle(s)
End contact plating	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Shell material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DSS	DSS	DSS	DSS
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Number of positions	10	4	7	7
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C
PCB hole count	20	8	14	14
surface mount	NO	NO	NO	NO
Switch action	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL
switch function	SPST	SPST	SPST	SPST
Terminal length	0.181 inch	0.181 inch	0.181 inch	0.181 inch
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Actuator length	0.031 inch	0.031 inch	0.031 inch	-
