Slide Switch, 10 Positions, SPST, Off-on, Horizontal, 0.1A, 50VDC, 20 PCB Hole Cnt, Solder Terminal, Through Hole-straight

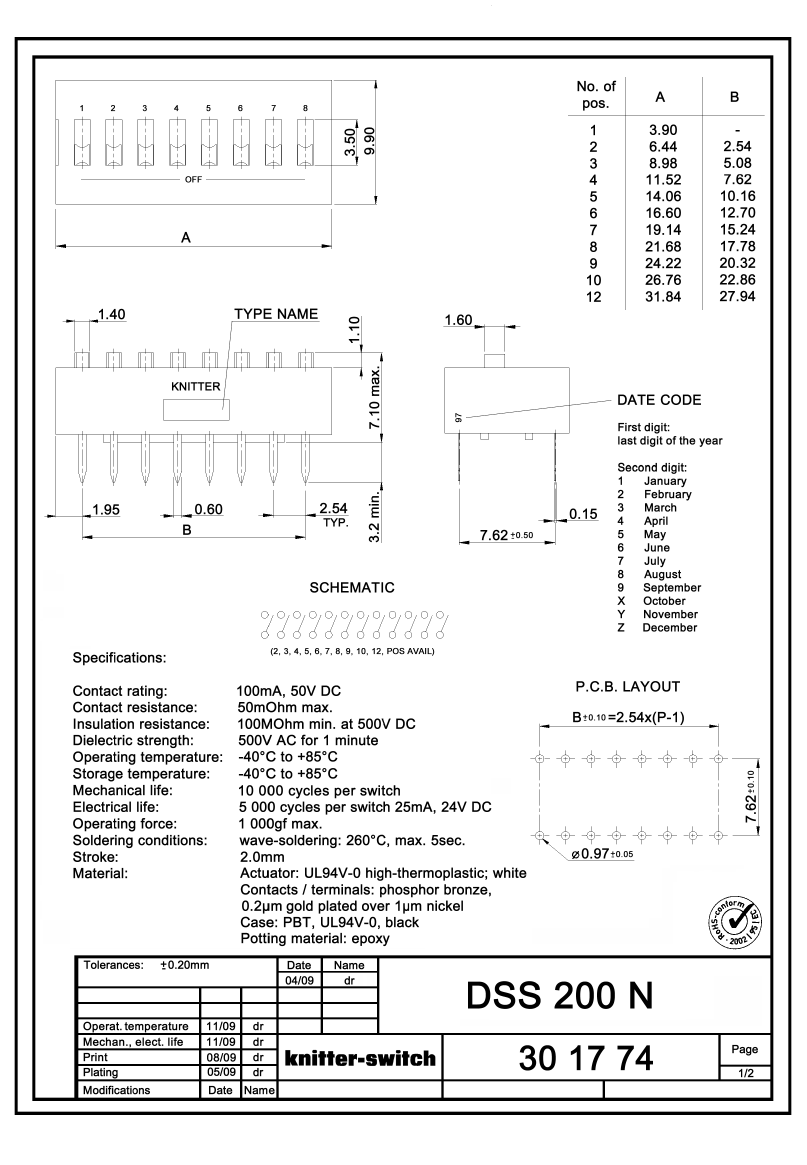

| Parameter Name | Attribute value |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Actuator color | WHITE |
| Actuator length | 0.043 inch |
| Actuator material | THERMOPLASTIC |
| Actuator type | SLIDE |
| body width | 9.906 mm |
| Body color | BLACK |
| body height | 5.9944 mm |
| Body length or diameter | 26.7716 mm |
| center contact material | PHOSPHOR BRONZE |
| Center contact plating | GOLD OVER NICKEL |
| Maximum contact current (DC) | 0.1 A |
| Contact (DC) maximum rated R load | 0.1A@50VDC |
| Contact function | OFF-ON |
| Contact resistance | 0.05 mΩ |
| Maximum contact voltage (DC) | 50 V |
| Dielectric withstand voltage | 500VAC V |
| Electrical life | 5000 Cycle(s) |
| End contact material | PHOSPHOR BRONZE |
| End contact plating | GOLD OVER NICKEL |
| Insulation resistance | 100000000 Ω |
| insulator material | POLYBUTYLENE TEREPHTHALATE |
| Manufacturer's serial number | DSS |
| Installation features | THROUGH HOLE-STRAIGHT |
| Number of positions | 10 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| PCB hole count | 20 |
| seal | EPOXY |
| Solderability | WAVE |
| surface mount | NO |
| Switch action | HORIZONTAL |
| switch function | SPST |
| Terminal length | 0.126 inch |
| Terminal material | PHOSPHOR BRONZE |
| Termination type | SOLDER |
| DSS210N | DSS201N | DSS204N | DSS205N | DSS206N | |
|---|---|---|---|---|---|
| Description | Slide Switch, 10 Positions, SPST, Off-on, Horizontal, 0.1A, 50VDC, 20 PCB Hole Cnt, Solder Terminal, Through Hole-straight | Slide Switch, 1 Positions, SPST, Off-on, Horizontal, 0.1A, 50VDC, 2 PCB Hole Cnt, Solder Terminal, Through Hole-straight | Slide Switch, 4 Positions, SPST, Off-on, Horizontal, 0.1A, 50VDC, 8 PCB Hole Cnt, Solder Terminal, Through Hole-straight | Slide Switch, 5 Positions, SPST, Off-on, Horizontal, 0.1A, 50VDC, 10 PCB Hole Cnt, Solder Terminal, Through Hole-straight | Slide Switch, 6 Positions, SPST, Off-on, Horizontal, 0.1A, 50VDC, 12 PCB Hole Cnt, Solder Terminal, Through Hole-straight |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Actuator color | WHITE | WHITE | WHITE | WHITE | WHITE |
| Actuator length | 0.043 inch | 0.043 inch | 0.043 inch | 0.043 inch | 0.043 inch |
| Actuator material | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC |
| Actuator type | SLIDE | SLIDE | SLIDE | SLIDE | SLIDE |
| body width | 9.906 mm | 9.906 mm | 9.906 mm | 9.906 mm | 9.906 mm |
| Body color | BLACK | BLACK | BLACK | BLACK | BLACK |
| body height | 5.9944 mm | 5.9944 mm | 5.9944 mm | 5.9944 mm | 5.9944 mm |
| Body length or diameter | 26.7716 mm | 3.9116 mm | 11.5316 mm | 14.0716 mm | 16.6116 mm |
| center contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| Center contact plating | GOLD OVER NICKEL | GOLD OVER NICKEL | GOLD OVER NICKEL | GOLD OVER NICKEL | GOLD OVER NICKEL |
| Maximum contact current (DC) | 0.1 A | 0.1 A | 0.1 A | 0.1 A | 0.1 A |
| Contact (DC) maximum rated R load | 0.1A@50VDC | 0.1A@50VDC | 0.1A@50VDC | 0.1A@50VDC | 0.1A@50VDC |
| Contact function | OFF-ON | OFF-ON | OFF-ON | OFF-ON | OFF-ON |
| Contact resistance | 0.05 mΩ | 0.05 mΩ | 0.05 mΩ | 0.05 mΩ | 0.05 mΩ |
| Maximum contact voltage (DC) | 50 V | 50 V | 50 V | 50 V | 50 V |
| Dielectric withstand voltage | 500VAC V | 500VAC V | 500VAC V | 500VAC V | 500VAC V |
| Electrical life | 5000 Cycle(s) | 5000 Cycle(s) | 5000 Cycle(s) | 5000 Cycle(s) | 5000 Cycle(s) |
| End contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| End contact plating | GOLD OVER NICKEL | GOLD OVER NICKEL | GOLD OVER NICKEL | GOLD OVER NICKEL | GOLD OVER NICKEL |
| Insulation resistance | 100000000 Ω | 100000000 Ω | 100000000 Ω | 100000000 Ω | 100000000 Ω |
| insulator material | POLYBUTYLENE TEREPHTHALATE | POLYBUTYLENE TEREPHTHALATE | POLYBUTYLENE TEREPHTHALATE | POLYBUTYLENE TEREPHTHALATE | POLYBUTYLENE TEREPHTHALATE |
| Manufacturer's serial number | DSS | DSS | DSS | DSS | DSS |
| Installation features | THROUGH HOLE-STRAIGHT | THROUGH HOLE-STRAIGHT | THROUGH HOLE-STRAIGHT | THROUGH HOLE-STRAIGHT | THROUGH HOLE-STRAIGHT |
| Number of positions | 10 | 1 | 4 | 5 | 6 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| PCB hole count | 20 | 2 | 8 | 10 | 12 |
| seal | EPOXY | EPOXY | EPOXY | EPOXY | EPOXY |
| Solderability | WAVE | WAVE | WAVE | WAVE | WAVE |
| surface mount | NO | NO | NO | NO | NO |
| Switch action | HORIZONTAL | HORIZONTAL | HORIZONTAL | HORIZONTAL | HORIZONTAL |
| switch function | SPST | SPST | SPST | SPST | SPST |
| Terminal length | 0.126 inch | 0.126 inch | 0.126 inch | 0.126 inch | 0.126 inch |
| Terminal material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Is it Rohs certified? | - | conform to | conform to | conform to | conform to |
