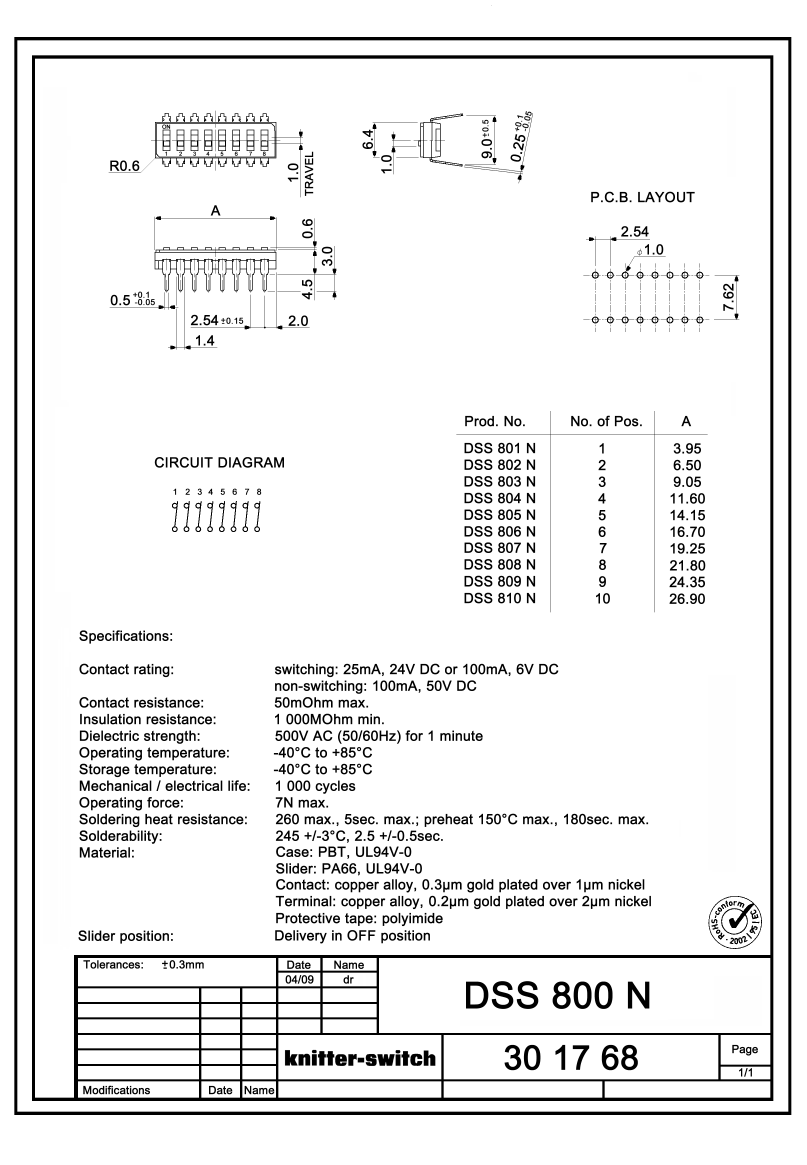

DSS804N: DescriptionSlide Switch, 4 Positions, SPST, Off-on, Horizontal, 0.025A, 24VDC, 8 PCB Hole Cnt, Solder Terminal, Through Hole-straight; CategoryMechanical and electronic products switch; File Size185KB，1 Pages; ManufacturerKnitter-switch; Websitehttp://www.knitter-switch.com/

Download Datasheet Parametric Compare View All

DSS804N Overview

Slide Switch, 4 Positions, SPST, Off-on, Horizontal, 0.025A, 24VDC, 8 PCB Hole Cnt, Solder Terminal, Through Hole-straight

DSS804N Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator length	0.024 inch
Actuator material	POLYAMIDE
Actuator type	SLIDE
body width	6.4008 mm
body height	4.4958 mm
Body length or diameter	11.5824 mm
center contact material	COPPER ALLOY
Center contact plating	GOLD OVER NICKEL
Maximum contact current (DC)	0.025 A
Contact (DC) maximum rated R load	0.025A@24VDC
Contact function	OFF-ON
Contact resistance	0.05 mΩ
Maximum contact voltage (DC)	24 V
Dielectric withstand voltage	500VAC V
Electrical life	1000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	GOLD OVER NICKEL
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DSS
Installation features	THROUGH HOLE-STRAIGHT
Number of positions	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB hole count	8
surface mount	NO
Switch action	HORIZONTAL
switch function	SPST
Terminal length	0.118 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER

Preview

Download Datasheet

View All

DSS804N Related Products

	DSS804N	DSS810N	DSS809N	DSS807N	DSS808N	DSS801N	DSS805N	DSS806N
Description	Slide Switch, 4 Positions, SPST, Off-on, Horizontal, 0.025A, 24VDC, 8 PCB Hole Cnt, Solder Terminal, Through Hole-straight	Slide Switch, 10 Positions, SPST, Off-on, Horizontal, 0.025A, 24VDC, 20 PCB Hole Cnt, Solder Terminal, Through Hole-straight	Slide Switch, 9 Positions, SPST, Off-on, Horizontal, 0.025A, 24VDC, 18 PCB Hole Cnt, Solder Terminal, Through Hole-straight	Slide Switch, 7 Positions, SPST, Off-on, Horizontal, 0.025A, 24VDC, 14 PCB Hole Cnt, Solder Terminal, Through Hole-straight	Slide Switch, 8 Positions, SPST, Off-on, Horizontal, 0.025A, 24VDC, 16 PCB Hole Cnt, Solder Terminal, Through Hole-straight	Slide Switch, 1 Positions, SPST, Off-on, Horizontal, 0.025A, 24VDC, 2 PCB Hole Cnt, Solder Terminal, Through Hole-straight	Slide Switch, 5 Positions, SPST, Off-on, Horizontal, 0.025A, 24VDC, 10 PCB Hole Cnt, Solder Terminal, Through Hole-straight	Slide Switch, 6 Positions, SPST, Off-on, Horizontal, 0.025A, 24VDC, 12 PCB Hole Cnt, Solder Terminal, Through Hole-straight
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Actuator length	0.024 inch	0.024 inch	0.024 inch	0.024 inch	0.024 inch	0.024 inch	0.024 inch	0.024 inch
Actuator material	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
Actuator type	SLIDE	SLIDE	SLIDE	SLIDE	SLIDE	SLIDE	SLIDE	SLIDE
body width	6.4008 mm	6.4008 mm	6.4008 mm	6.4008 mm	6.4008 mm	6.4008 mm	6.4008 mm	6.4008 mm
body height	4.4958 mm	4.4958 mm	4.4958 mm	4.4958 mm	4.4958 mm	4.4958 mm	4.4958 mm	4.4958 mm
Body length or diameter	11.5824 mm	26.8986 mm	24.3332 mm	19.2278 mm	21.7932 mm	3.937 mm	14.1478 mm	16.6624 mm
center contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Center contact plating	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Maximum contact current (DC)	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A
Contact (DC) maximum rated R load	0.025A@24VDC	0.025A@24VDC	0.025A@24VDC	0.025A@24VDC	0.025A@24VDC	0.025A@24VDC	0.025A@24VDC	0.025A@24VDC
Contact function	OFF-ON	OFF-ON	OFF-ON	OFF-ON	OFF-ON	OFF-ON	OFF-ON	OFF-ON
Contact resistance	0.05 mΩ	0.05 mΩ	0.05 mΩ	0.05 mΩ	0.05 mΩ	0.05 mΩ	0.05 mΩ	0.05 mΩ
Maximum contact voltage (DC)	24 V	24 V	24 V	24 V	24 V	24 V	24 V	24 V
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Electrical life	1000 Cycle(s)	1000 Cycle(s)	1000 Cycle(s)	1000 Cycle(s)	1000 Cycle(s)	1000 Cycle(s)	1000 Cycle(s)	1000 Cycle(s)
End contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
End contact plating	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DSS	DSS	DSS	DSS	DSS	DSS	DSS	DSS
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Number of positions	4	10	9	7	8	1	5	6
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB hole count	8	20	18	14	16	2	10	12
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Switch action	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL
switch function	SPST	SPST	SPST	SPST	SPST	SPST	SPST	SPST
Terminal length	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch
Terminal material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
