POWER DIVIDERS
THREE WAY, 1 TO 18 GHz
•
Designed to Meet MIL-E-5400 Class 3
•
SMA Female Connectors per MIL-PRF-39012
•
High Isolation Wilkinson Circuit Design
4003 SERIES
SPECIFICATIONS
VSWR
Insertion
Frequency
max
Loss max
Range
(dB) @ f (GHz) Input/Output
GHz
1-2
0.3
1.30/1.50
1.090
0.5
1.30/1.30
2-4
0.5
1.50/1.50
NOTES:
1.
2.
3.
Isolation
min
(dB)
19
20
19
Amplitude
Unbalance
max
(dB)
0.5
0.5
0.5
Phase
Unbalance
max
(Degrees)
3
2
2
4
2
Average
Power
1
(W) @ 1 GHz
20
5
20
Model
4123
4123A
4133
Input power with 1.5 max output system VSWR.
To equalize the phase at all three ports, add an additional external line length to J3 equivalent to a 0.9 cm air line.
Input power with 1.5 max output load VSWR. Power handling is reduced when used as a combiner. Consult factory.

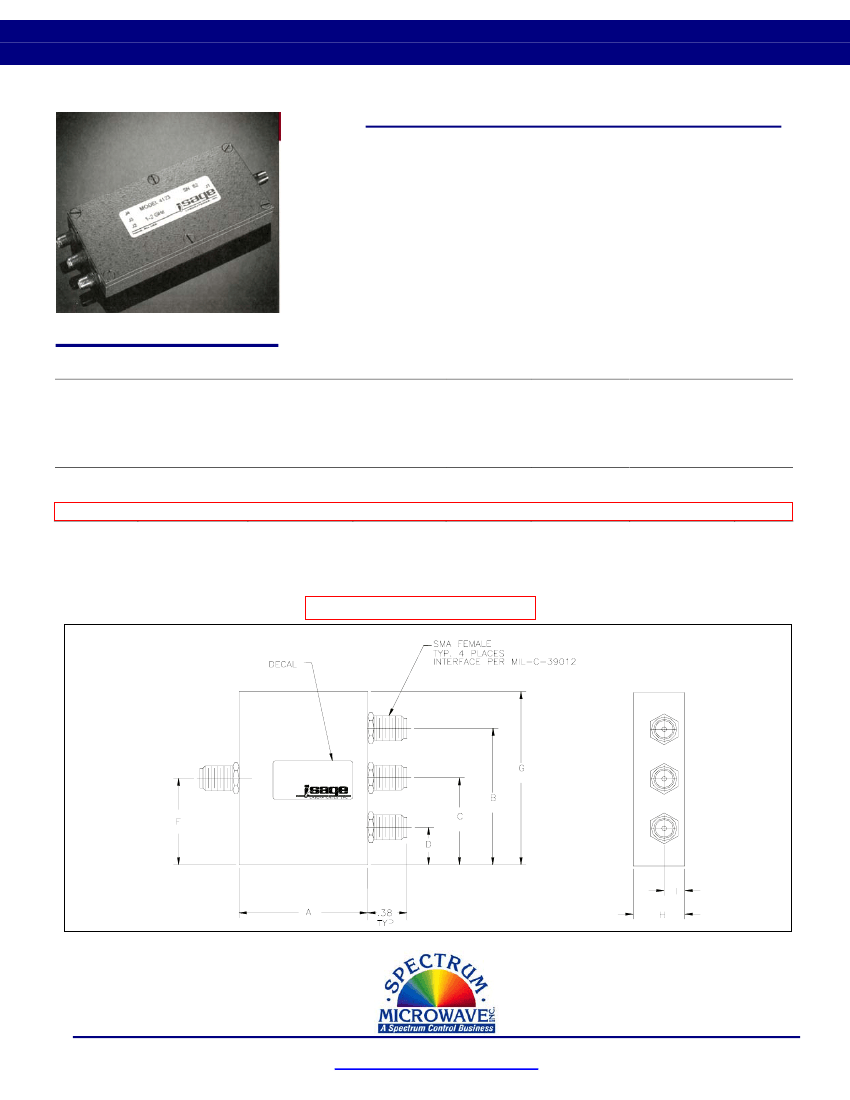

OUTLINE DRAWING
MODELS 4123, 4123A AND 4133
Spectrum Microwave
8 Executive Drive Hudson, NH 03051 Phone: 603-459-1600
www.SpectrumMicrowave.com
Fax: 603.459.1605
PRODUCT
SPECIFICATION
POWER DIVIDERS
THREE WAY, 1 TO 18 GHz
Model
4123
4123A
4133
A”
3.72
2.50
2.32
B”
1.38
1.99
1.38
C”
.88
1.24
.88
D”
.38
.50
.38
E”
.38
.40
.38
F”
.88
1.24
.88
G”
1.75
2.50
1.75
H”
.50
.50
.50
I”
.20
.20
.20
Model
4123
4123A
4133
A (cm)
(9,45)
(6,35)
(5,89)
B (cm)
(3,51)
(5,05)
(3,51)
C (cm)
(2,24)
(3,15)
(2,24)
D (cm)
(0,97)
(1,27)
(0,97)
E (cm)
(0,97)
(1,02)
(0,97)
F (cm)
(2,24)
(3,15)
(2,24)
G (cm)
(4,45)
(6,35)
(4,45)
H (cm)
(1,27)
(1,27)
(1,27)
I (cm)
(0,51)
(0,51)
(0,51)
MISCELLANEOUS:
1.
2.
3.
4.
Spectrum Microwave “Standard Warranty and Order Terms and Conditions” apply to all orders.
All specifications subject to change without notice.
Check “Ordering and Availability Listing” for delivery and ordering information.
Contact our local Manufacturers Representative for pricing.
Specification Revision - 072710
Spectrum Microwave
8 Executive Drive Hudson, NH 03051 Phone: 603-459-1600
www.SpectrumMicrowave.com
Fax: 603.459.1605
