2CL15KV/100mA Product Data
High voltage rectifier diodes 2CL15KV/100mA Series adopts high reliable mesa structure and diffusion craftwork,
epoxy resin molded in a compact structure.
■
Maximum Ratings
■
Feature
Avalanche characteristic
More sizes to choose
Epoxy resin molded in vacuum, have
anticorrosion in the surface
Operating Junction Temperature Tj: -
40℃—+150℃
■
Application
High voltage rectifier used in electrostatic
cleaning
High voltage generator
High voltage testing equipment
General purpose high voltage rectifier, voltage
multiplier assembly
Item
Repetitive Peak Reverse Voltage
Average Forward Current
Surge Forward Current
Operating
Junction
Temperature
Operating Ambient Temperature
Storage Temperature
■
Electrical Characteristics
Rated Value
Forward Peak Voltage Max
(Reference Value)
Reverse Recovery Time Max
Peak Reverse Current
(Reference Value)
Symbol
V
RRM
I
O
I
FSM
Tj
Tc
Tstg
Ta=25℃
Conditions
I
R
=2μA
2CL
15KV/100mA
15
100
Unit
kV
mA
A
℃
℃
℃
（50Hz
Half-sine Wave , Resistance load
@T
break
=50℃）
Halfsine wave peak voltage
20
-40—+150
100
-40—120
Sign
V
F
Trr
I
R1
I
R2
Condition
I
F
=100mA 40
40℃
2CL
15KV/100mA
24
100
Unit
V
nS
μA
μA
V
R
=V
RRM
，25℃
V
R
=V
RRM
，100℃
2.0
5.0
ANSHAN SULY ELECTRONICS CO., LTD.
Tel: +86-412-8220288
Website:
www.hvdiode.com
Fax: +86-412-8223397
Anshan Suly Electronics Co., Ltd.
■
Dimension
Type
A
Φ1
Φ2
2CL15KV/100mA
15
4.5
1.2*24
■

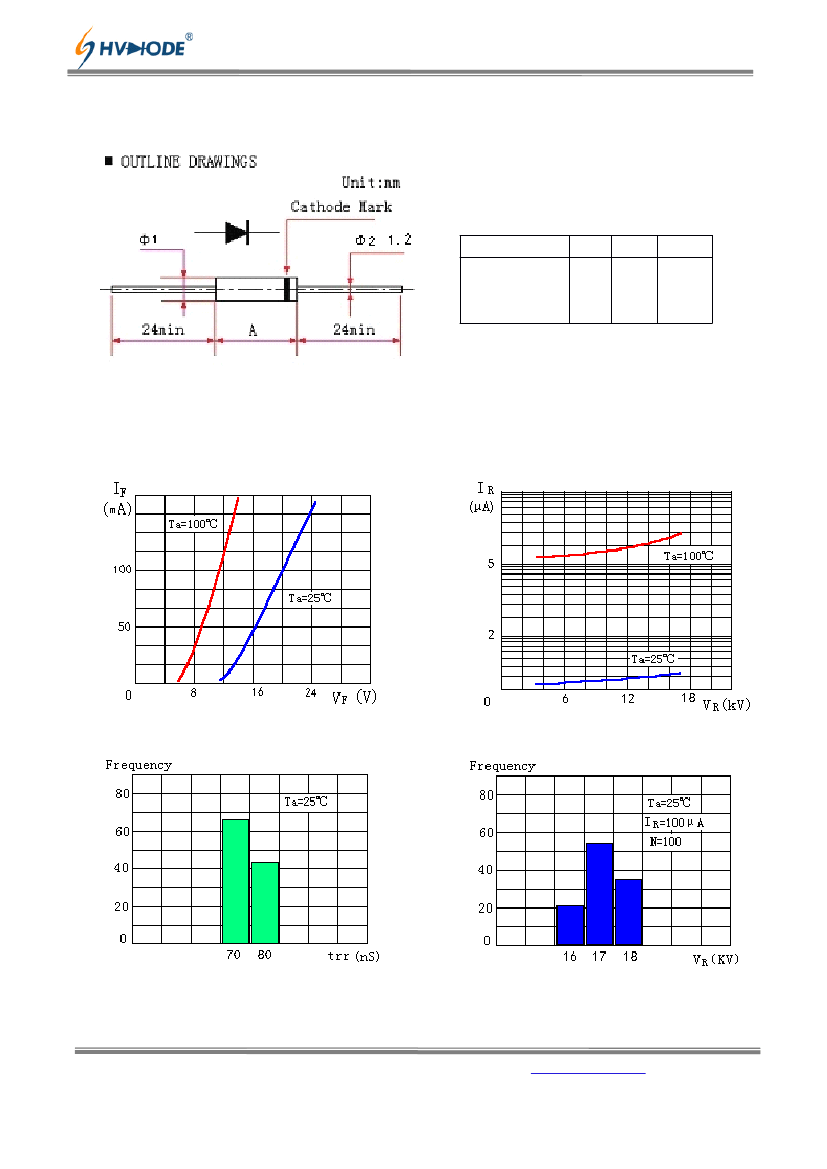

Characteristic Curve
反向特性曲线
Reverse Characteristics (2CL71A)
Forward Characteristics
Reverse Characteristics
Reverse Recovery Time Distribution
Avalanche Breakdown Voltage Distribution
