(including temperature rise in applying electrical current)
• Contact resistance: Initial value/10m
Ω
max.
After environmental testing/20m
Ω
max.
• Insulation resistance:
Initial/1,000M
Ω
min.
• Withstanding voltage: 800V AC/minute
• Applicable wire: AWG #28 to #22
• Applicable PC board thickness: 1.6mm
PA
Shorouded header
(Side entry type)
PA
Shorouded header
(Top entry type)

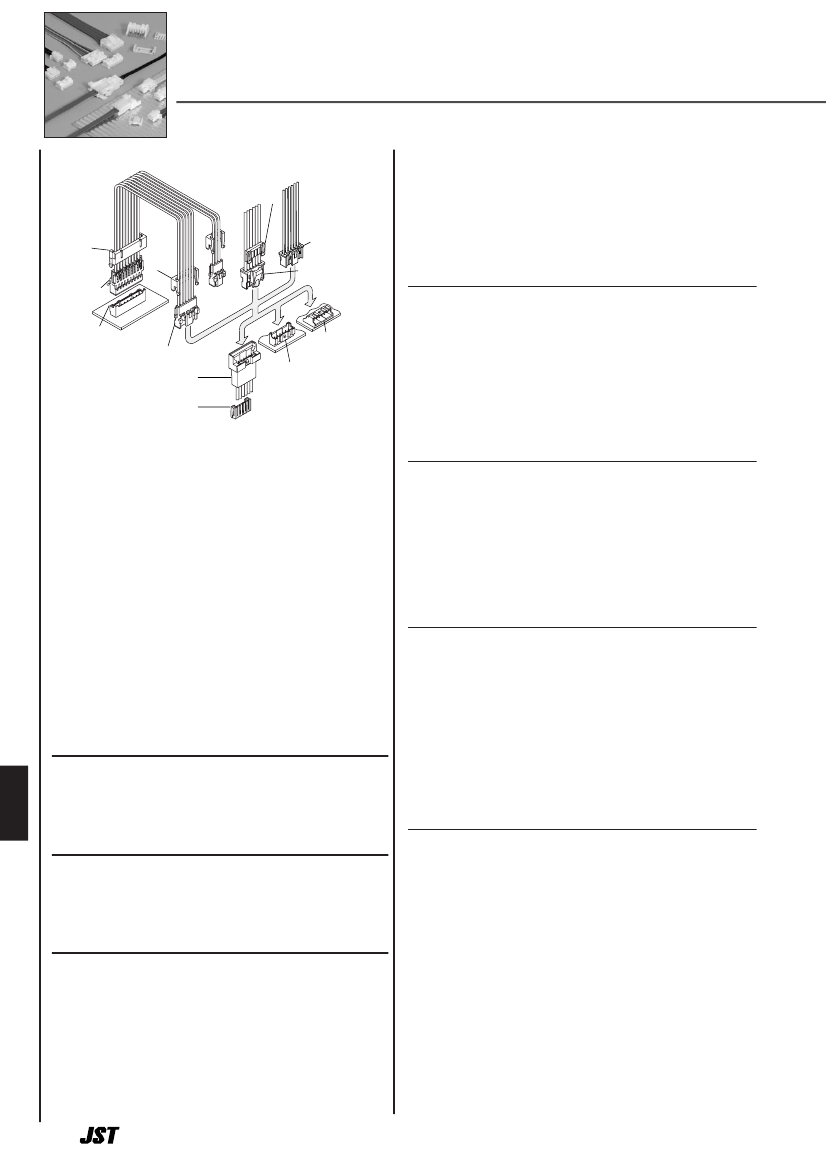

Based upon wire-to-board crimp style PA
connectors, the PA series family of
connector have been expanded to meet the
requirement of complex wire harness of
2.0mm pitch connectors with secure
locking mechanism thanks to the
additional line up of wire-to-board IDC style
PAF connectors and wire-to-wire crimp
style PAL connectors.
• Secure locking device
• Interchangeable between crimp and
IDC socket
• Secondary retainers
• Harness variation
PA connector
(Standard type, Retainer mountable type)
• Highly reliable contact
• Insertion guide mechanism
• Flanged press pin
PAF connector
• The industry’s first secure lock ID connectors
• Metallic strain relief
• Retainer with four locking points
PAL connector
• The industry’s first wire to wire 2.0mm pitch
retainer mountable type connector.
• Either with or without panel lock can be
selected according to application.
PA Connector (Retainer mountable type)
• Current rating: 3A AC, DC (AWG #22)
• Voltage rating: 100V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying electrical current)
• Contact resistance: Initial value/15m
Ω
max.
After environmental testing/25m
Ω
max.
• Insulation resistance:
Initial/1,000M
Ω
min.
• Withstanding voltage: 800V AC/minute
• Applicable wire: AWG #28 to #22
PAF Connector
• Current rating: 1.0A AC, DC (AWG #26)
• Voltage rating: 100V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying electrical current)
• Contact resistance: Initial value/15m
Ω
max.
After environmental testing/25m
Ω
max.
• Insulation resistance:
Initial/1,000M
Ω
min.
• Withstanding voltage: 800V AC/minute
• Applicable wire: UL1061(Contact JST for details regarding other UL wires.)
AWG #26
Conductor/7 strands, tin-coated annealed copper
Insulation O.D./0.9 to 1.0mm
PAL Connector
• Current rating: 3A AC, DC (AWG #22)
• Voltage rating: 100V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying electrical current)
• Contact resistance: Initial value/15m
Ω
max.
After environmental testing/25m
Ω
max.
• Insulation resistance:
Initial/1,000M
Ω
min.
• Withstanding voltage: 800V AC/minute
• Applicable wire: AWG #28 to #22
• Applicable panel thickness : 0.5 to 2.0mm
* RoHS compliant products are published.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
406
PA
List of combinations
Crimp style
Standard type
Contact
SPHD-001T-P0.5
SPHD-002T-P0.5
Housing
PAP-( )V-S
FAMILY SERIES /PA•PAF•PAL CONNECTOR

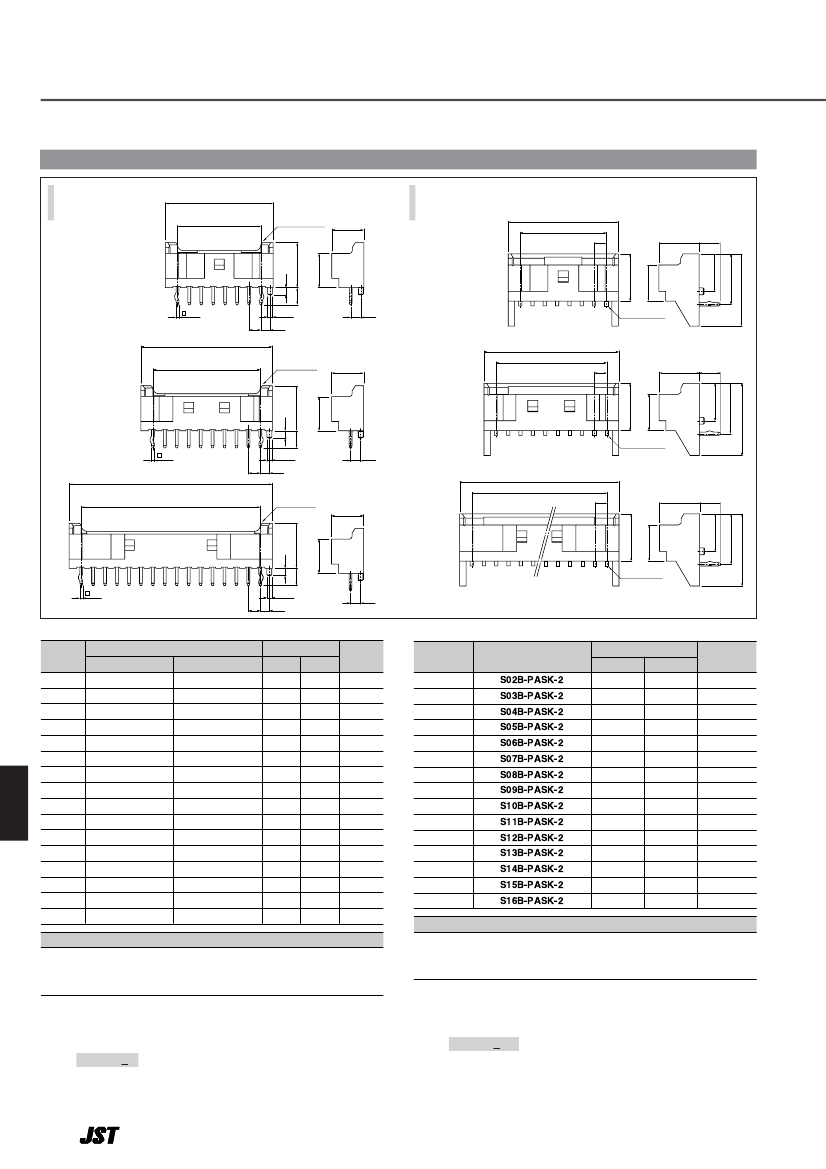

Shrouded header
B( )B-PASK
B( )B-PASK-1
S( )B-PASK-2
Top entry type
Side entry type
Shrouded header
BH( )B-PASK
BH( )B-PASK-1
High box type
Crimp style
Retainer mountable type
Contact
SPA-001T-P0.5
Housing
PARP-( )V
Retainer
PMS-( )V-S
Shrouded header
BM( )B-PASS
BM( )B-PASS-1
SM( )B-PASS
SM( )B-PASS-1
SMT type
Top entry type
Side entry type
Insulation displacement type
Receptacle
( )PAF-6S
Retainer
PAFS-( )V-S
Contact
SPAL-001T-P0.5
SPAL-002T-P0.5
Receptacle housing
PALR-( )V(F)
Retainer
PMS-( )V-S

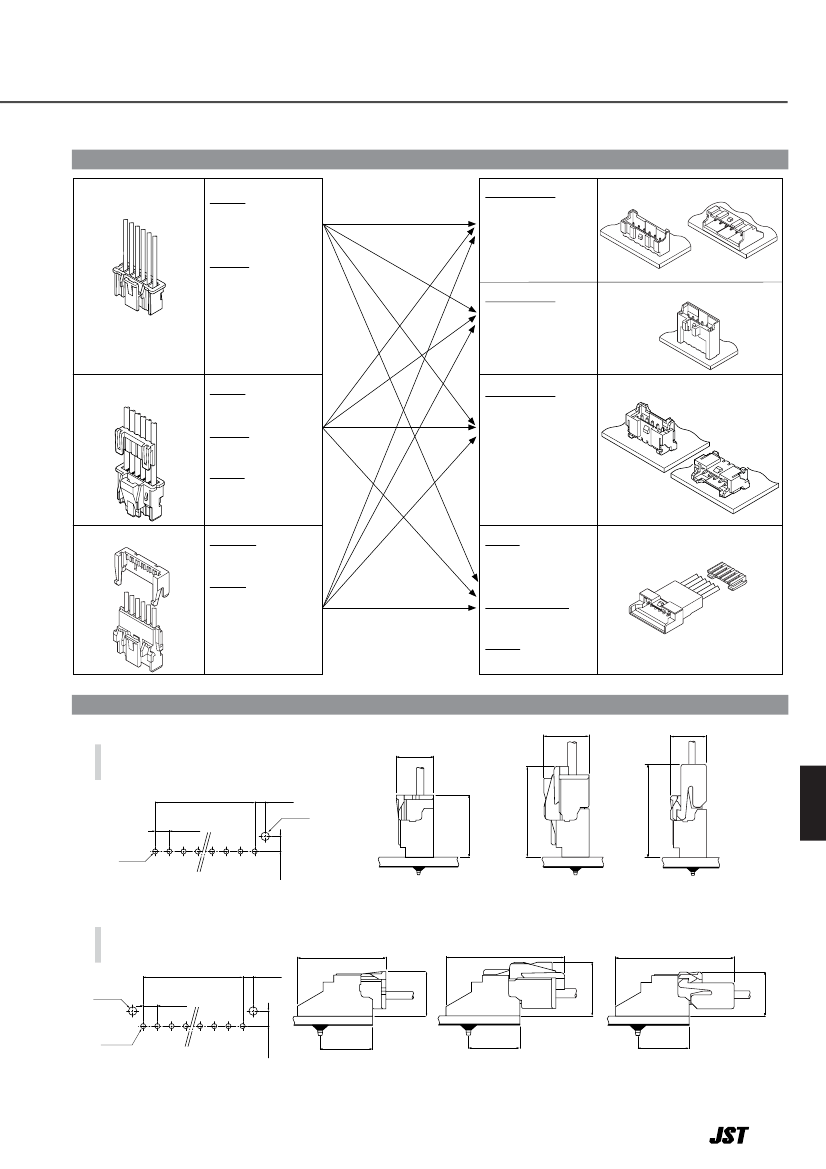

Wire to wire Connectors

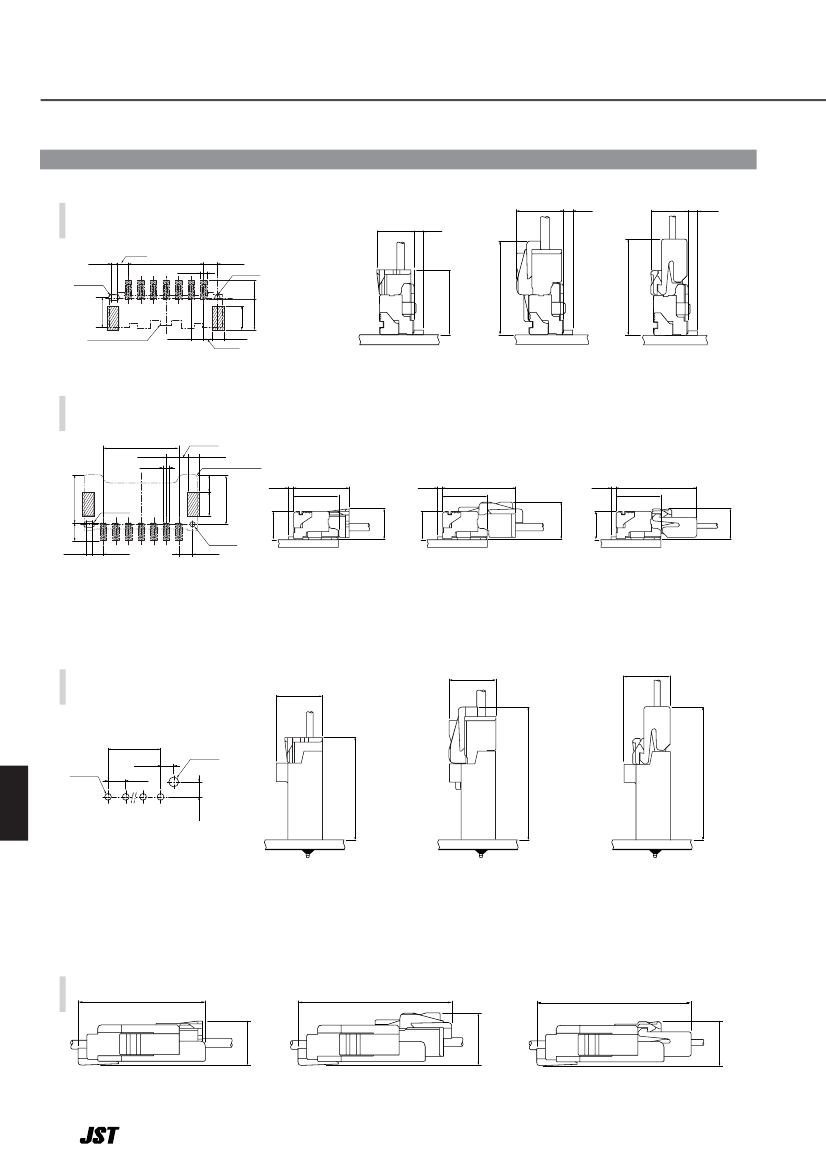

PC board layout (viewed from component side) and Assembly layout
Through-hole type
Top entry type
7.2
5.8
（14.7）
retainer included
（5.8）
φ1.1
＋0.1
0
2.0
±0.05
9.8
1.7
±0.05
φ0.7
＋0.1
0
PA Receptacle + PA Header
(Standard type)
PA Receptacle + PA Header
(Retainer mountable type)
PAF Receptacle + PA Header
Side entry type
13.8
A
±0.05
φ1.1
＋0.1
0
1.5
±0.05
7.0
（18.8）
retainer included
（18.9）
（8.4）
（14.9）
A
±0.05
1.5
±0.05
2.0
±0.05
φ0.7
＋0.1
0
2.1
±0.05
8.2
8.2
8.2
PA Receptacle
+ PA side entry type header
(Standard type)
PA Receptacle
+ PA side entry type header
(Retainer mountable type)
PAF Receptacle +
PA side entry type header
Note: 1. Tolerances are non-cumulative:
±
0.05mm for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method. The dimensions above should serve as a guideline. Contact JST for details.
407
（7.0）
PA
FAMILY SERIES /PA•PAF•PAL CONNECTOR
PC board layout (viewed from component side) and Assembly layout
SMT type
Top entry type
（6.2）
1.7
±0.1
（1.4）
（16.0）
retainer included
（7.6）
（1.4）
（6.2）
（1.4）
1.0
±0.1
＋0.1
R0.4
0
A
±0.1
MIN
5.0
±0.1
2.9
4.9
±0.1
Connector outline
2.0
±0.05
1.8
±0.1
1.45
±0.1
3.6
±0.1
PA Receptacle + PA Header
(Standard type)
11.1
PA Receptacle + PA Header
(Retainer mountable type)
PAF Receptacle + PA Header
Side entry type
A
±0.1
2.0
±0.05
MIN
1.0
1.45
±0.1
1.8
±0.1
Connector outline
3.8
±0.1
2.8
7.95
±0.1
（1.1）
11.1
8.9
（6.2）
（1.1） （16）
retainer included
8.9
（7.6）
（1.1）
（16.2）
8.9
（6.2）
7.8
±0.1
＋0.1
R0.4
0
5.7
5.7
2.7
MIN
1.0
±0.1
1.7
±0.1
φ0.8
＋0.1
0
2.2
±0.05
PA Receptacle +
PA side entry type header (SMT)
(Standard type)
PA Receptacle +
PA side entry type header (SMT)
(Retainer mountable type)
5.7
PAF Receptacle +
PA side entry type header (SMT)
Note: 1. Tolerances are non-cumulative:
±
0.05mm for all centers.
2. The dimensions above should serve as a guideline. Contact JST for details.
（16.2）
1.0
2.2
±0.05
φ0.8
＋0.1
0
MIN
High box type
7.1
7.2
7.1
A
±0.05
1.5
±0.05
φ0.7
＋0.1
0
2.0
±0.05
1.7
±0.05
φ1.1
＋0.1
0
（20.7）
retainer included
15.9
PA Receptacle +
PA high box type header
(Standard type)
PA Receptacle +
PA high box type header
(Retainer mountable type)
PAF Receptacle +
PA high box type header
Note: 1. Tolerances are non-cumulative:
±
0.05mm for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method. The dimensions above should serve as a guideline. Contact JST for details.
Wire-to-wire
（21.5）
retainer included
retainer included
（25.8）
retainer included
retainer included
（26）
retainer included
retainer included
（8.4）
（8.9）
20.9
PA Receptacle + PAL Receptacle
(Standard type)
PA Receptacle + PAL Receptacle
(Retainer mountable type)
PAF Receptacle + PAL Receptacle
408
（7.6）
PA
Contact
FAMILY SERIES /PA CONNECTOR (Crimp style Standard type)
Model No.
SPHD-001T-P0.5
SPHD-002T-P0.5
1.5
Applicable wire
mm
2
0.13∼0.33
0.08∼0.21
AWG #
26∼22
28∼24
Insulation O.D.
(mm)
1.0∼1.5
0.9∼1.5
Q'ty /
reel
8,000
8,000
Material and Finish
Phosphor bronze, tin-plated (reflow treatment)
6.5
2.85
1.3
RoHS compliance
Contact
SPHD-002T-P0.5
Crimping
machine Crimp applicator
*MKS-SC-10
Applicator
Dies
SC/SPHD-002-05
Crimp applicator with dies
APLMK SPHD002-05
APLSC SPHD002-05
APLMK SPHD001-05
APLSC SPHD001-05
MKS-LS-10 MKS-L-10 MK/SPHD-002-05
・
AP-K2N
SPHD-001T-P0.5
Note *Strip-crimp
applicator
：
MKS-LS-10 MKS-L-10 MK/SPHD-001-05
・
*MKS-SC-10
SC/SPHD-001-05
Housing
(2 to 9 circuits)
B
A
（2.0）
2.0
5.8
4.6
Circuits
2
3
4
5
7.3
8.0
6
7
Circuit No.1
8
9
10
B
A
（2.0）
2.0
5.8
4.6
11
12
13
14
7.3
8.0
15
16
Circuit No.1
Model No.
PAP-02V-S
PAP-03V-S
PAP-04V-S
PAP-05V-S
PAP-06V-S
PAP-07V-S
PAP-08V-S
PAP-09V-S
PAP-10V-S
PAP-11V-S
PAP-12V-S
PAP-13V-S
PAP-14V-S
PAP-15V-S
PAP-16V-S
Material
Dimensions (mm)
A
2.0
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
B
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
32.0
34.0
Q'ty /
bag
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
(10 to 15 circuits)
(16 circuits)
B
A
（2.0）
2.0
5.8
4.6
PA 66, UL94V-0, natural (white)
RoHS compliance
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
