SMD INDUCTOR DR354-4 SERIES
Features
SMD Chip Inductor, Low Profile
Suitable for High Frequency Application
Inductance Range from 10nH to 4.7µH
Operating Temp. -40°C to +125°C
Tinned Leads with Leaded Solder is Available
(note 6)
ELECTRICAL SPECIFICATIONS AT 25ºC
PART NO.
DR354-4-103-T
DR354-4-123-T
DR354-4-153-T
DR354-4-183-T
DR354-4-223-T
DR354-4-273-T
DR354-4-333-T
DR354-4-393-T
DR354-4-473-T
DR354-4-563-T
DR354-4-683-T
DR354-4-823-T
DR354-4-104-T
DR354-4-124-T
DR354-4-154-T
DR354-4-184-T
DR354-4-224-T
DR354-4-274-T
DR354-4-334-T
DR354-4-394-T
DR354-4-474-T
DR354-4-564-T
DR354-4-624-T
DR354-4-684-T
DR354-4-754-T
DR354-4-824-T
DR354-4-914-T
DR354-4-105-T
DR354-4-125-T
DR354-4-155-T
DR354-4-185-T
DR354-4-225-T
DR354-4-275-T
DR354-4-335-T
DR354-4-395-T
DR354-4-475-T
PERCENT
TOLERANCE, T
20, 10, 5
20, 10, 5
20, 10
20, 10, 5
20, 10, 5
20, 10, 5
10, 5, 2
10, 5, 2
10, 5, 2
10, 5, 2
10, 5, 2
10, 5, 2
10, 5, 2
10, 5, 2
10, 5, 2
10, 5, 2
10, 5, 2
10, 5, 2
10, 5, 2
10, 5, 2
10, 5, 2
10, 5, 2
10, 5, 2
10, 5, 2
10, 5, 2
10, 5, 2
10, 5, 2
10, 5, 2
20, 10, 5
20, 10, 5
20, 10, 5
20, 10, 5
20, 10, 5
20, 10, 5
20, 10, 5
20, 10, 5
INDUCTANCE
(nH)
10
@50MHz
12
@50MHz
15
@50MHz
18
@50MHz
22
@50MHz
27
@50MHz
33
@50MHz
39
@50MHz
47
@50MHz
56
@50MHz
68
@50MHz
82
@50MHz
100
@25MHz
120
@25MHz
150
@25MHz
180
@25MHz
220
@25MHz
270
@25MHz
330
@25MHz
390
@25MHz
470
@25MHz
560
@25MHz
620
@25MHz
680
@25MHz
750
@25MHz
820
@25MHz
910
@25MHz
1000
@25MHz
1200
@7.9MHz
1500
@7.9MHz
1800
@7.9MHz
2200
@7.9MHz
2700
@7.9MHz
3300
@7.9MHz
3900
@7.9MHz
4700
@7.9MHz
DCR ()
MAX.
0.08
0.09
0.10
0.11
0.12
0.13
0.14
0.15
0.16
0.18
0.20
0.22
0.24
0.26
0.29
0.31
0.35
0.42
0.49
0.54
0.60
1.00
1.08
1.15
1.20
1.93
2.02
2.16
2.38
2.64
2.76
2.98
3.30
3.66
4.00
4.30
MAX. RATED CURRENT
(A)
1.000
1.000
1.000
1.000
1.000
1.000
1.000
1.000
1.000
1.000
1.000
1.000
0.980
0.920
0.870
0.830
0.790
0.730
0.680
0.640
0.610
0.460
0.430
0.420
0.410
0.350
0.340
0.330
0.310
0.300
0.290
0.280
0.260
0.250
0.240
0.230
INDUCTANCE TOLERANCE: WHEN ORDERING, PLEASE SPECIFY THE TOLERANCE.
-T (M=±20%, K=±10%, J=±5%, G=±2%)
DATATRONIC
:
28151 Highway 74, Romoland, CA 92585
Tel: 951-928-7700 Fax: 951-928-7701 Email: ddisales@datatronics.com
499 King’s Road, Hong KongTel: (852) 2562 3858, (852) 2564 8477 Fax: (852) 2565 7214, (852) 2563 1290
All specifications are subject to change without notice Page 1 of 2
October 28, 2011

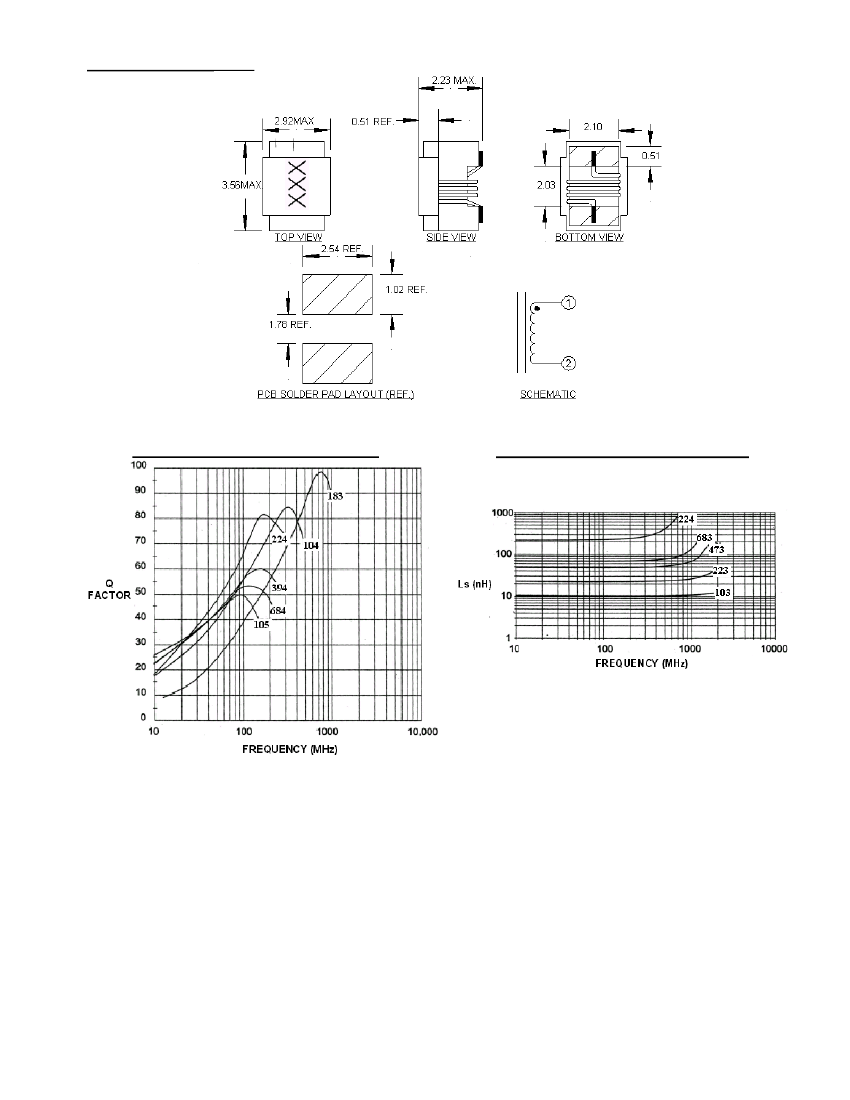

MECHANICAL OUTLINES
Q VS FREQUENCY RESPONSE
Ls VS FREQUENCY RESPONSE
Notes:
1. All dimensions are shown in millimeter “mm”
2. General tolerance
0.1mm,
unless other specified
3. Tape and reel quantity, 4000 pcs/reel
4. Terminal finish is compliant to RoHS requirements and is gold plated
5. Solder in accordance with J-STD-002 Rev. D
6. Non-RoHS series parts 42-354-4-XXX are finished with leaded solder Sn60Pb40 or equivalent
