September 23, 2009

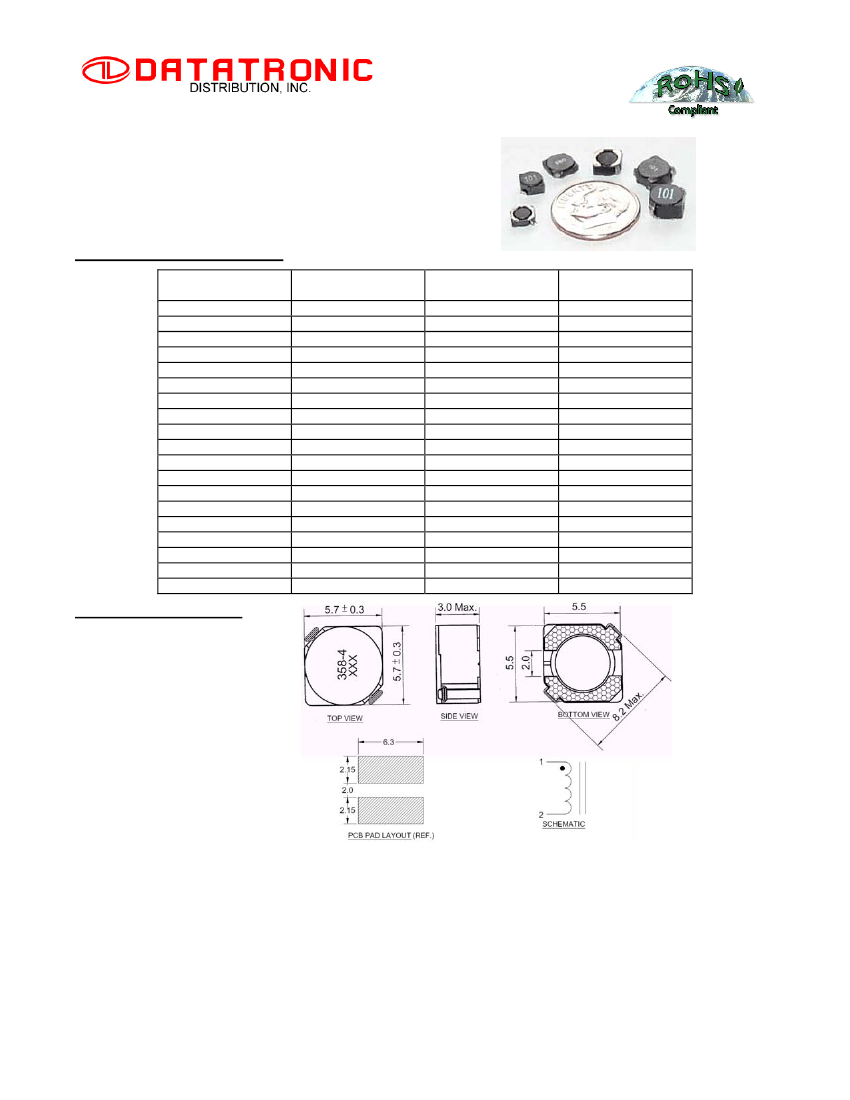

SHIELDED SMD INDUCTOR DR358-4 SERIES
Features
Low Profile Surface Mount Design
Flat Top for Pick and Place
Inductance Range from 2.6µH to 100.0µH
Operating Temp. -20°C to +80°C
Tinned Leads with Leaded Solder is Available
(note 7)
ELECTRICAL SPECIFICATIONS AT 25ºC
Part No.
DR358-4-262
DR358-4-302
DR358-4-422
DR358-4-532
DR358-4-622
DR358-4-822
DR358-4-103
DR358-4-123
DR358-4-153
DR358-4-183
DR358-4-223
DR358-4-273
DR358-4-333
DR358-4-393
DR358-4-473
DR358-4-563
DR358-4-683
DR358-4-823
DR358-4-104
Inductance
(H)
30%
2.6
3.0
4.2
5.3
6.2
8.2
10.0
12.0
15.0
18.0
22.0
27.0
33.0
39.0
47.0
56.0
68.0
82.0
100.0
DCR
() Max.
0.018
0.024
0.031
0.038
0.045
0.053
0.065
0.076
0.103
0.110
0.122
0.175
0.189
0.212
0.260
0.305
0.355
0.463
0.520
I rated
(A) Max.
2.60
2.40
2.20
1.90
1.80
1.60
1.30
1.20
1.10
1.00
0.90
0.85
0.75
0.70
0.62
0.58
0.52
0.46
0.42
MECHANICAL OUTLINES
Notes:
1. All dimensions are shown in millimeter “mm”
2. General tolerance
0.2mm,
unless other specified
3. Inductance Test: 100kHz, 0.1Vrms
4. I
rated
for an approximate 40C temperature rise
5. I
rated
for an approximate 35% drop maximum of the initial value
6. Tape and reel quantity, 2000 pcs/reel
7. For non-RoHS parts replace DR prefix with 42- (e.g. DR358-4 becomes 42-358-4)
8. Terminal finish is compliant to RoHS requirements. Solder in accordance with J-STD-020D
DATATRONIC:
28151 Highway 74, Romoland, CA 92585 Tel: 951-928-7700 Fax: 951-928-7701 Email: ddisales@datatronics.com
499 King’s Road, Hong Kong Tel: (852) 2562 3858, (852) 2564 8477 Fax: (852) 2565 7214, (852) 2563 1290
All specifications are subject to change without notice.
