DR358-5-153: DescriptionSMD SHIELDED INDUCTOR DR358-5 SERIES; File Size91KB，1 Pages; ManufacturerDATATRONICS; Websitehttp://www.datatronics.com/

Download Datasheet View All

DR358-5-153 Overview

SMD SHIELDED INDUCTOR DR358-5 SERIES

Preview

Download Datasheet

View All

September 23, 2009

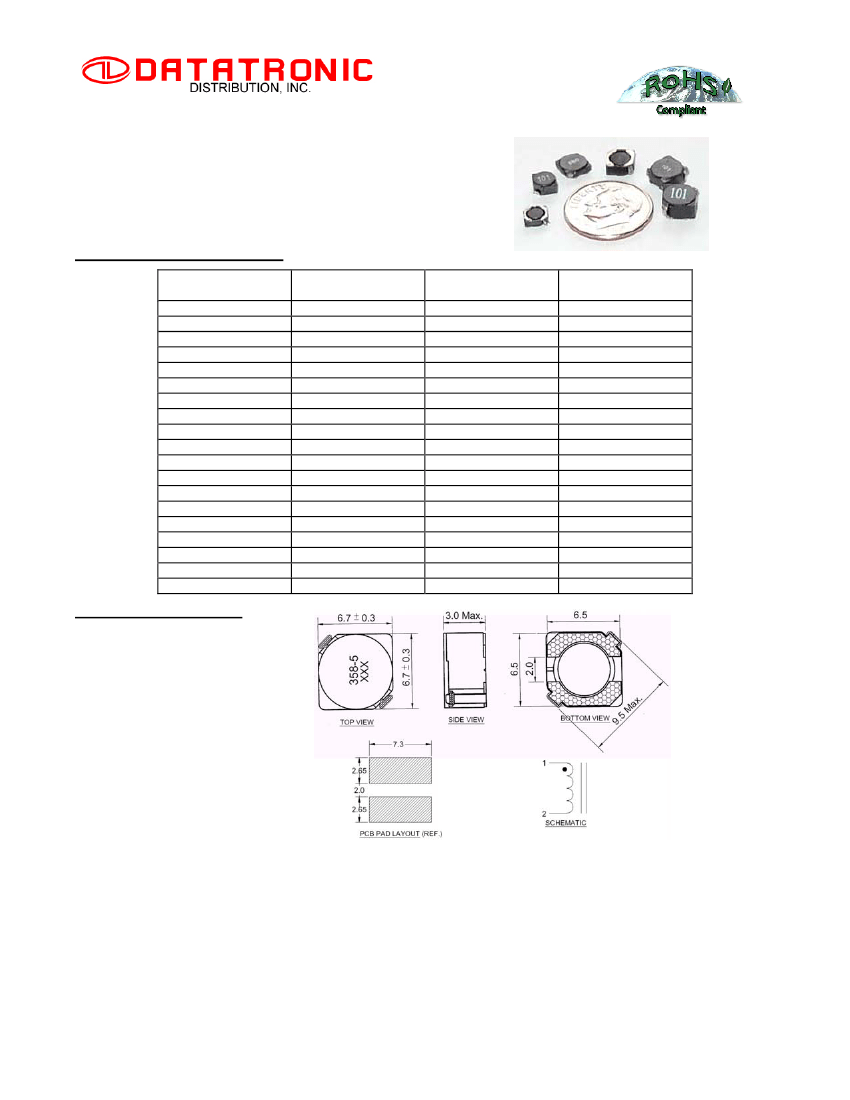

SMD SHIELDED INDUCTOR DR358-5 SERIES

Features



Low Profile Surface Mount Design

Flat Top for Pick and Place

Inductance Range from 3.0µH to 100.0µH

Operating Temp. -20°C to +80°C

Tinned Leads with Leaded Solder is Available

(note 7)

ELECTRICAL SPECIFICATIONS AT 25ºC

Part No.

DR358-5-302

DR358-5-392

DR358-5-502

DR358-5-602

DR358-5-732

DR358-5-862

DR358-5-103

DR358-5-123

DR358-5-153

DR358-5-183

DR358-5-223

DR358-5-273

DR358-5-333

DR358-5-393

DR358-5-473

DR358-5-563

DR358-5-683

DR358-5-823

DR358-5-104

Inductance

(H)



30%

3.0

3.9

5.0

6.0

7.3

8.6

10.0

12.0

15.0

18.0

22.0

27.0

33.0

39.0

47.0

56.0

68.0

82.0

100.0

DCR

() Max.

0.024

0.027

0.031

0.035

0.054

0.058

0.065

0.070

0.084

0.095

0.128

0.142

0.165

0.210

0.238

0.277

0.304

0.390

0.535

I rated

(A) Max.

3.00

2.60

2.40

2.25

2.10

1.85

1.70

1.55

1.40

1.32

1.20

1.05

0.97

0.86

0.80

0.73

0.65

0.60

0.54

MECHANICAL OUTLINES

Notes:

1. All dimensions are shown in millimeter “mm”

2. General tolerance

0.2mm,

unless other specified

3. Inductance Test: 10kHz, 0.1Vrms

4. I

rated

for an approximate 40C temperature rise

5. I

rated

for an approximate 35% drop maximum of the initial value

6. Tape and reel quantity, 1500 pcs/ 13” reel

7. For non-RoHS parts replace DR prefix with 42- (e.g. DR358-5 becomes 42-358-5)

8. Terminal finish is compliant to RoHS requirements. Solder in accordance with J-STD-020D

DATATRONIC:

28151 Highway 74, Romoland, CA 92585 Tel: 951-928-7700 Fax: 951-928-7701 Email: ddisales@datatronics.com

499 King’s Road, Hong Kong Tel: (852) 2562 3858, (852) 2564 8477 Fax: (852) 2565 7214, (852) 2563 1290

All specifications are subject to change without notice.
