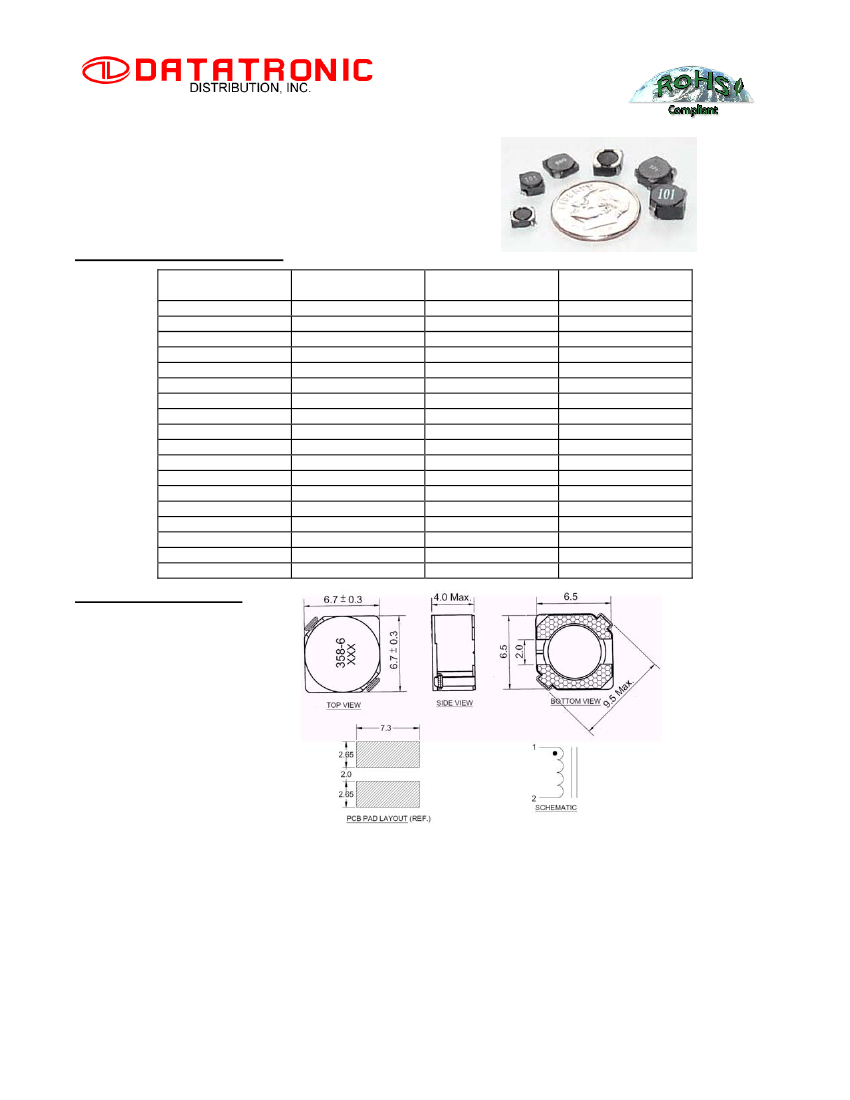

SHIELDED SMD INDUCTOR DR358-6 SERIES

Features



Low Profile Surface Mount Design

Flat Top for Pick and Place

Inductance Range from 3.3µH to 100.0µH

Operating Temp. -20°C to +80°C

Tinned Leads with Leaded Solder is Available

(note 7)

ELECTRICAL SPECIFICATIONS AT 25ºC

Part No.

DR358-6-332

DR358-6-502

DR358-6-622

DR358-6-742

DR358-6-872

DR358-6-103

DR358-6-123

DR358-6-153

DR358-6-183

DR358-6-223

DR358-6-273

DR358-6-333

DR358-6-393

DR358-6-473

DR358-6-563

DR358-6-683

DR358-6-823

DR358-6-104

Inductance

(H)



30%

3.3

5.0

6.2

7.4

8.7

10.0

12.0

15.0

18.0

22.0

27.0

33.0

39.0

47.0

56.0

68.0

82.0

100.0

DCR

() Max.

0.020

0.024

0.030

0.033

0.034

0.038

0.053

0.057

0.092

0.096

0.109

0.124

0.138

0.155

0.202

0.234

0.324

0.358

I rated

(A) Max.

3.50

2.90

2.40

2.30

2.20

2.00

1.70

1.60

1.50

1.30

1.20

1.10

1.00

0.95

0.85

0.75

0.70

0.65

MECHANICAL OUTLINES

Notes:

1. All dimensions are shown in millimeter “mm”

2. General tolerance

0.2mm,

unless other specified

3. Inductance Test: 100kHz, 0.1Vrms

4. I

rated

for an approximate 40C temperature rise

5. I

rated

for an approximate 35% drop maximum of the initial value

6. Tape and reel quantity, 1000 pcs/reel

7. For non-RoHS part replace DR prefix with 42- (e.g. DR358-6 becomes 42-358-6)

8. Terminal finish is compliant to RoHS requirements. Solder in accordance with J-STD-020D

DATATRONIC:

28151 Highway 74, Romoland, CA 92585 Tel: 951-928-7700 Fax: 951-928-7701 Email: ddisales@datatronics.com

499 King’s Road, Hong Kong Tel: (852) 2562 3858, (852) 2564 8477 Fax: (852) 2565 7214, (852) 2563 1290

All specifications are subject to change without notice.
