SE01 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> SE01

SE01: DescriptionCAPACITOR, CERAMIC, 50 V, X7R, 4.7 uF, THROUGH HOLE MOUNT; CategoryPassive components; File Size116KB，3 Pages; ManufacturerAVX

Download Datasheet Parametric Compare View All

SE01 Overview

CAPACITOR, CERAMIC, 50 V, X7R, 4.7 uF, THROUGH HOLE MOUNT

SE01 Parametric

Parameter Name	Attribute value
Maximum operating temperature	125 Cel
Minimum operating temperature	-55 Cel
negative deviation	10 %
positive deviation	10 %
Rated DC voltage urdc	50 V
Processing package description	RADIAL LEADED, ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	ACTIVE
terminal coating	MATTE TIN
Installation features	THROUGH HOLE MOUNT
Manufacturer Series	SE
capacitance	4.7 uF
packaging shape	RECTANGULAR PACKAGE
Capacitor type	CERAMIC
Terminal shape	WIRE
Temperature Coefficient	15%
Temperature characteristic code	X7R
multi-layer	Yes

Preview

Download Datasheet

View All

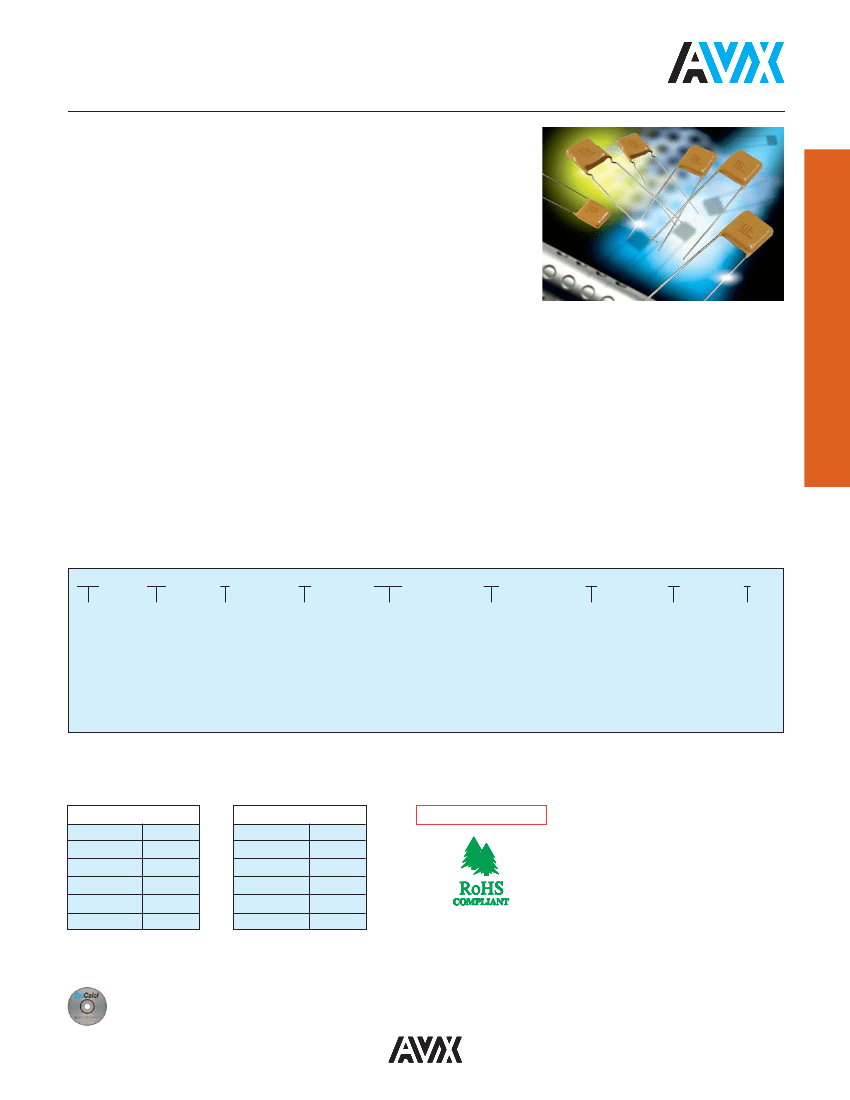

SMPS Capacitors (SE Style)

Extended Commercial Radial Range

PRODUCT OFFERING – X7R

AVX SE styles offer capacitance extension to popular SK ranges. The CV

product for SE-series, X7R capacitors (TCC: ±15% over -55 to +125°C)

compares favorably to high CV ranges offered by other suppliers in much

less stable Y5U dielectric (TCC: +22/-56% over -30 to +85°C). SE style

capacitors are conformally coated and are designed for input and output

filtering applications in switch mode power supplies.

ELECTRICAL SPECIFICATIONS

Temperature Coefficient

X7R: Temperature Coefficient ±15%, -55° to +125°C

Capacitance Test

(MIL-STD-202 Method 305)

X7R: 25°C, 1.0±0.2 Vrms (open circuit voltage) at 1KHz

Dissipation Factor 25°C

X7R: 2.5% Max @ 25°C, 1.0±0.2 Vrms (open circuit voltage) at 1KHz

Insulation Resistance 25°C

(MIL-STD-202 Method 302)

X7R: 100K MΩ or 1000 MΩ-μF, whichever is less.

Insulation Resistance 125°C

(MIL-STD-202 Method 302)

X7R: 10K MΩ or 100 MΩ-μF, whichever is less.

Dielectric Withstanding Voltage 25°C

(Flash Test)

X7R: 250% rated voltage for 5 seconds with 50 mA max

charging current.

Life Test

(1000 hrs)

X7R: 200% rated voltage at +125°C

Moisture Resistance

(MIL-STD-202 Method 106)

X7R: Ten cycles with no voltage applied.

Thermal Shock

(MIL-STD-202 Method 107, Condition A)

Immersion Cycling

(MIL-STD-202 Method 104, Condition B)

Resistance To Solder Heat

(MIL-STD-202, Method 210,

Condition B, for 20 seconds)

HOW TO ORDER

Style

Size

See chart

below

Voltage

25V = 3

50V = 5

100V = 1

Temperature

Coefficient

X7R = C

125

Capacitance

Code

(2 significant

digits + no.

of zeros)

22 nF = 223

220 nF = 224

1 μF = 105

100 μF = 107

Capacitance

Tolerance

X7R: K = ±10%

M = ±20%

Z = +80, -20%

Test

Level

A = Standard

B = Hi-Rel

Leads

Packaging

A = Tin/Lead (See Note 1)

R = RoHS

Compliant

Note 1:

No suffix signifies bulk packaging,

which is AVX standard packaging.

Parts available tape and reel per EIA-

468. Use suffix “TR1” if tape & reel is

required.

Note: Capacitors with X7R dielectrics are not intended for applications across

AC supply mains or AC line filtering with polarity reversal. Contact plant for

recommendations.

Hi-Rel screening consists of 100% Group A, Subgroup 1 per MIL-PRF-39014.

TAPE & REEL QUANTITY

Part

SE01

SE03/SE53

SE04/SE54

SE05/SE55

SE06/SE56

Pieces

2000

1000

500

Part

SE01

RoHS

Available

Yes

Not RoHS Compliant

SE03/SE53

SE04/SE54

SE05/SE55

SE06/SE56

For RoHS compliant products,

please select correct termination style.

Performance of SMPS capacitors can be simulated by downloading SpiCalci software program -

http://www.avx.com/SpiApps/default.asp#spicalci

Custom values, ratings and configurations are also available.
