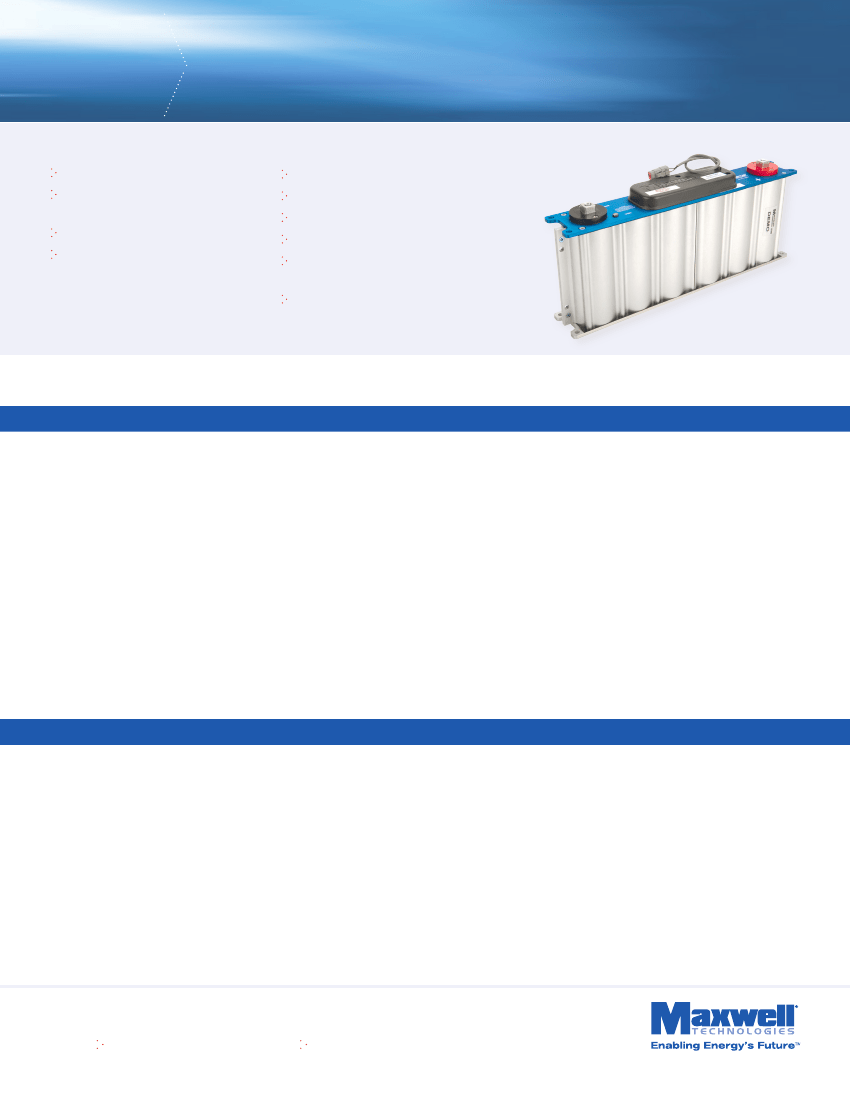

DATASHEET
16V MODULES
FEATURES AND BENEFITS
Ultra-low internal resistance
Highest power performance
available
Over 1,000,000 duty cycles
Compact, rugged, fully
enclosed splash proof design
TYPICAL APPLICATIONS
Automotive
Industrial
Telecommunications
Transportation
Uninterruptible Power
Supplies (UPS)
Wind turbines
PRODUCT SPECIFICATIONS
ELECTRICAL
Rated Capacitance
1
Minimum Capacitance, initial
1
Maximum ESR
DC,
initial
1
Rated Voltage
Absolute Maximum Voltage
14
Maximum Continuous Current (ΔT = 15
o
C)
2
Maximum Continuous Current (ΔT = 40
o
C)
2
Maximum Peak Current,
1 second (non repetitive)
3
Leakage Current, maximum
(B01 Suffix - VMS 2.0)
4
Leakage Current, maximum
(B02 Suffix - Passive Balancing)
4
Maximum Series Voltage
BMOD0500 B01
500 F
500 F
2.1 mΩ
16 V
17 V
100 A
RMS
160 A
RMS
2,000 A
5.2 mA
N/A
750 V
BMOD0500 B02
500 F
500F
2.1 mΩ
16 V
17 V
100 A
RMS
160 A
RMS
2,000 A
N/A
170 mA
750 V
TEMPERATURE
Operating Temperature
(Ambient temperature)
Minimum
Maximum
Storage Temperature
(Stored uncharged)
Minimum
Maximum
-40
o
C
70
o
C
-40
o
C
70
o
C
-40
o
C
65
o
C
-40
o
C
65
o
C
Page 1
Document number: 1009363.9
maxwell.com
DATASHEET
16V MODULES
PRODUCT SPECIFICATIONS (Cont’d)
PHYSICAL
Mass, typical
Power Terminals
Recommended Torque - Terminal
Vibration Specification
Shock Specification
Environmental Protection
Cooling
Internal Temperature Sensor
Temperature Interface
Cell Voltage Monitoring
Connector
Cell Voltage Management
BMOD0500 B01
5.51 kg
M8/M10
20/30 Nm
SAE J2380
SAE J2464
IP65
Natural Convection
NTC Thermistor
Analog
Overvoltage Alarm
Deutsch DTM
VMS 2.0
2,700 W/kg
5,500 W/kg
3.2 Wh/kg
17.8 Wh
BMOD0500 B02
5.51 kg
M8/M10
20/30 Nm
SAE J2380
SAE J2464
IP65
Natural Convection
NTC Thermistor
Analog
-
Deutsch DTM
Passive
2,700 W/kg
5,500 W/kg
3.2 Wh/kg
17.8 Wh
MONITORING / CELL VOLTAGE MANAGEMENT
POWER & ENERGY
Usable Specific Power, P
d5
Impedance Match Specific Power, P
max6
Specific Energy, E
max7
Stored Energy
8
LIFE
High Temperature
1
Capacitance Change
ESR Change
(at Rated Voltage & Maximum Operating Temperature)
(% decrease from minimum initial value)
(% increase from maximum initial value)
1,500 hours
20%
100%
10 years
20%
100%
1,000,000 cycles
1,500 hours
20%
100%
10 years
20%
100%
1,000,000 cycles
Room Temperature
1
(at Rated Voltage & 25
o
C)
Capacitance Change
ESR Change
(% decrease from minimum initial value)
(% increase from maximum initial value)
Cycle Life
1,9
Page 2
Document number: 1009363.9
maxwell.com
DATASHEET
16V MODULES
PRODUCT SPECIFICATIONS (Cont’d)
Capacitance Change
ESR Change
(% decrease from minimum initial value)
(% increase from maximum initial value)
BMOD0500 B01
20%
100%
100 A
2 years
BMOD0500 B02
20%
100%
100 A
2 years
Test Current
Shelf Life
1,10
(Stored uncharged up to a maximum storage temperature)
SAFETY
Short Circuit Current, typical
Factory High-Pot Test
13
Certifications
(Current possible with short circuit from rated voltage. Do not
use as an operating current.)
7,600 A
2,500 V DC
RoHS
UL810a (150 V)
7,600 A
2,500 V DC
RoHS
UL810a (150 V)
TYPICAL CHARACTERISTICS
THERMAL CHARACTERISTICS
Thermal Resistance
Thermal Resistance
Thermal Resistance
(R
cm,
One Cell Case to Module Case), typical
2
(R
ma,
Module Case to Ambient), typical
(R
ca,
All Cell Cases to Ambient), typical
1.0
o
C/W
0.45
o
C/W
0.70
o
C/W
4,280 J/
o
C
1.0
o
C/W
0.45
o
C/W
0.70
o
C/W
4,280 J/
o
C
Thermal Capacitance
(C
th
), typical
2

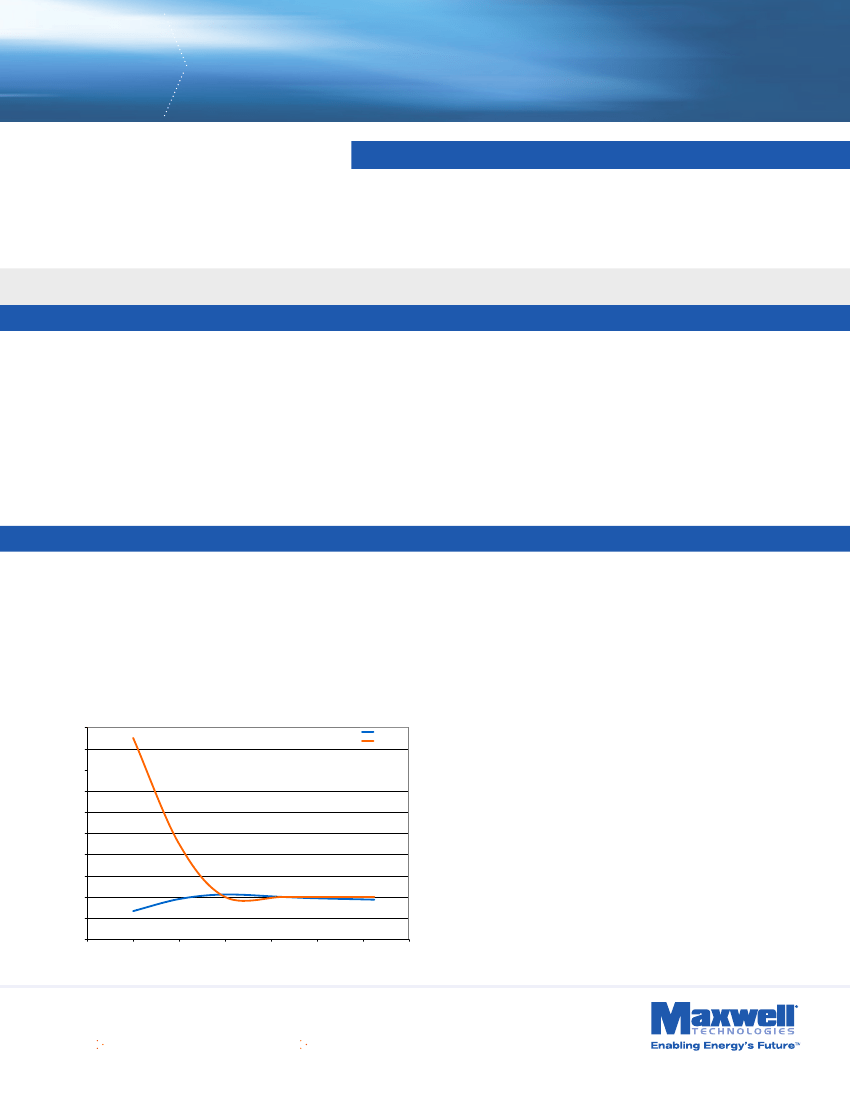

ESR AND CAPACITANCE VS TEMPERATURE
180%
170%
160%
150%
140%
130%
120%
110%
100%
90%
80%
-60
-40
-20
0
20
40
60
80
Temperature (°C)
Capacitance
DC ESR
Percentage change from value at 25°C
Page 3
Document number: 1009363.9
maxwell.com
DATASHEET
16V MODULES
NOTES
1. Capacitance and ESR
DC
measured at 25°C per
Document Number 1007239 available at
www.maxwell.com.
2. Per Maxwell Document 1007239 available at
www.maxwell.com.
½ CV
3. Maximum Peak current (1 sec) =
C x ESR
DC
+ 1
4. After 72 hours at 25°C and rated voltage. Initial
leakage current can be higher.
0.12V
2
5. Per IEC 62391-2, P
d
= ESR x mass
DC
2
V
6. P
max
=
4 x ESR
DC
x mass
½ CV
2
7. E
max
=
3,600 x mass
½ CV
2
8. E
stored
=
3,600
9. Cycle per Document Number 1007239 available at
www.maxwell.com.
10. No more than 10% decrease in capacitance from
minimum initial capacitance or 50% increase in ESR
from maximum initial ESR.
11. Tested at 1 kV DC.
12. For a given application, sufficient cooling must be
provided to keep cell case temperatures below 65°.
See R
th
.
13. Duration = 60 seconds. Not intended as an operating
parameter.
14. Absolute maximum voltage non repeated, not to
exceed 1 second.
MOUNTING RECOMMENDATIONS
Please refer to the user manual for installation
recommendations.
MARKINGS
Products are marked with the following information:
Rated capacitance, rated voltage, product number,
name of manufacturer, positive and negative terminal,
warning marking, serial number.
Page 4
Document number: 1009363.9
maxwell.com
DATASHEET
16V MODULES

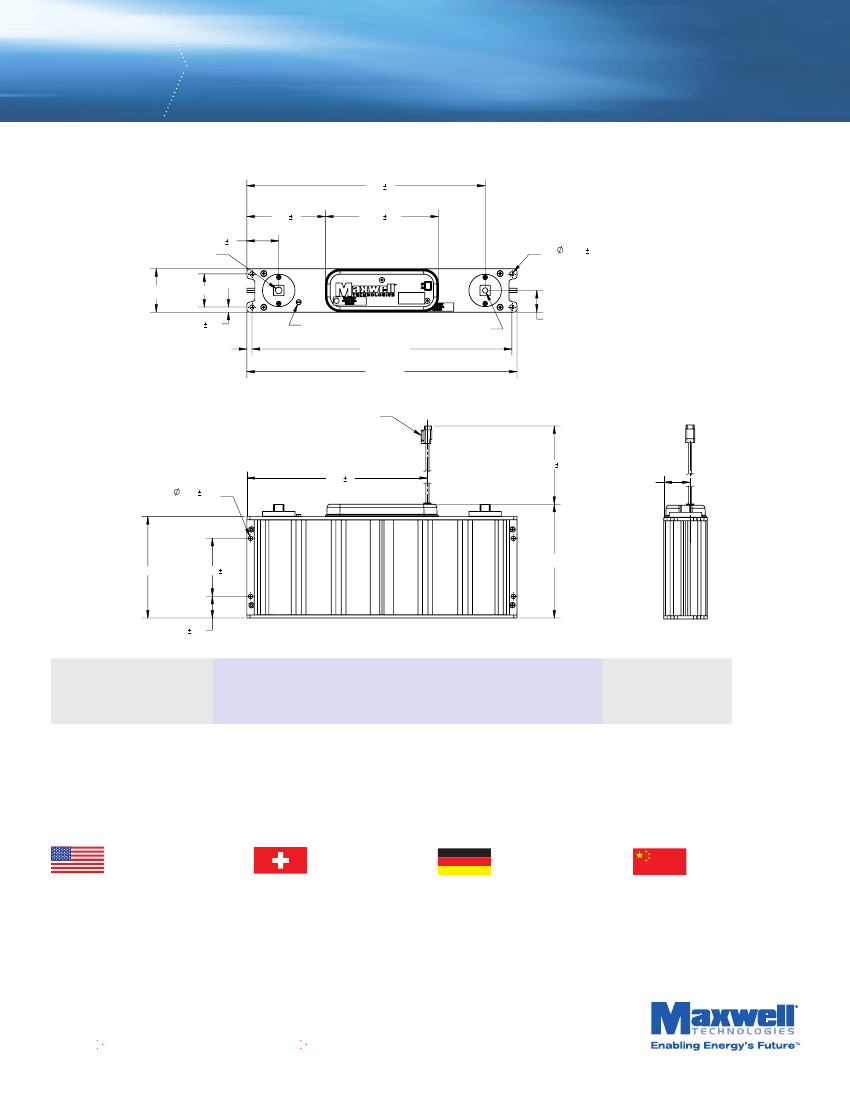

BMOD0500 P016 B0x
4
3
367 1
2
1
NOTICE:
THE INFORMATION CON
IN THIS DRAWING IS THE SOLE PROPERT
OF MAXWELL TECHNOLOGIES INC. AN
REPRODUCTION IN PART OR WHOLE
WITHOUT WRITTEN PERMISSION OF
MAXWELL TECHNOLOGIES IS PROHIBITE
D
M10 NEGATIVE
TERMINAL
49 1
121 2
174.2 1.0
8X
6.80 0.25
THRU
68
W
MAX
51.00±0.25
2X 33.5±1.0
4X 8.0 0.5
VENT
M8 POSITIVE TERMINAL
400.20±0.25
418
L
MAX
C
4X 8.0±0.5
MONITOR CABLE
360 25
B
278 5
6.80 0.25
THRU
41±5
157 MAX
4X 89.40 0.25
179
H
MAX
A
4X 33.4 0.7
B-PG1 REV A 7/01
Part Description
4
L (max)
418
Dimensions (mm)
3
W (max)
68
SCALE
B 68911
1:8
SIZE
CAGE CODE
PART NO.
107723, 107723B
REV
DOC. NO.
1013065
3
SHEET
2 OF 2
H (max)
179
2
Package Quantity
3
1
BMOD0500 P016 B01/B02
Product dimensions are for reference only unless otherwise identified. Product dimensions and specifications may change without notice.
Please contact Maxwell Technologies directly for any technical specifications critical to application. All products featured on this
datasheet are covered by the following U.S. patents and their respective foreign counterparts: 7511942, 7307830, 7203056, 7180726,
7027290, 7.352.558, 7.295.423, 7.090.946, 7.508.651, 7.492.571, 7.342.770, 6.643.119, 7.384.433, 7.147.674, 7.317.609, 7.495.349, 7.102.877.
Maxwell Technologies, Inc.
Global Headquarters
5271 Viewridge Court, Suite 100
San Diego, CA 92123
USA
Tel: +1 858 503 3300
Fax: +1 858 503 3301
Maxwell Technologies SA
CH-1728 Rossens
Switzerland
Tel: +41 (0)26 411 85 00
Fax: +41 (0)26 411 85 05
Maxwell Technologies, GmbH
Brucker Strasse 21
D-82205 Gilching
Germany
Tel: +49 (0)8105 24 16 16
Fax: +49 (0)8105 24 16 19
Maxwell Technologies, Inc.
Shanghai Representative Office
13E, CR Times Square
500 Zhangyang Road, Pudong
Shanghai 200122, P.R. China
Tel: +86 21 5836 8780
Fax: +86 21 5836 8790
Page 5
Document number: 1009363.9
maxwell.com
