30D306F100DH2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 30D306F100DH2

30D306F100DH2: DescriptionAluminum Capacitors Little-Lytic Electrolytics; CategoryPassive components capacitor; File Size75KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

30D306F100DH2 Overview

Aluminum Capacitors Little-Lytic Electrolytics

30D306F100DH2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Vishay
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	30 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	9.779 mm
dielectric materials	ALUMINUM (WET)
JESD-609 code	e0
leakage current	0.015 mA
length	39.014 mm
Manufacturer's serial number	TE
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	TUBULAR PACKAGE
Package form	Axial
polarity	POLARIZED
positive tolerance	50%
Rated (DC) voltage (URdc)	100 V
series	TE (LITTLE-LYTIC)
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

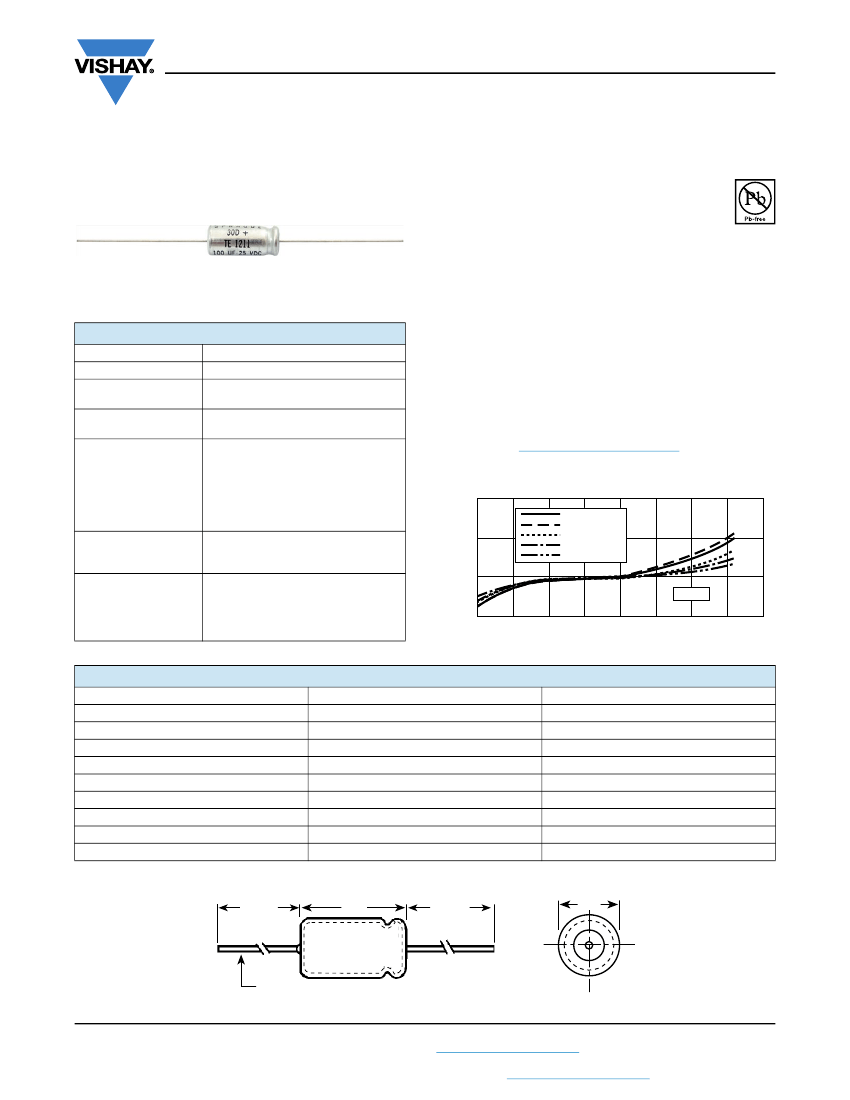

www.vishay.com

Vishay Sprague

Aluminum Capacitors

Little-Lytic Electrolytics

FEATURES

• Proven dependable performance in the industrial

and electronic equipment with either transistor or

modified electron-tube circuits

Available

• All terminal connections welded, eliminating

possibility of open or intermittent contacts occasionally

found in pressure joints of conventional capacitors

• Superior in size, performance characteristics, shelf life,

construction and reliability

• Metal-encased with clear plastic outer insulating sleeve

• Excellent circuit performance when used as coupling

capacitors

• Minimum drain and long battery life when used in battery

bypass applications

• Better performance under life test than most miniature

aluminum electrolytic capacitors

• Axial lead

• Material categorization: For definitions of compliance

please see

www.vishay.com/doc?99912

QUICK REFERENCE DATA

DESCRIPTION

Operating temperature

Tolerance on C

Ripple current

VALUE

- 40 °C to + 105 °C

G = + 75 %, - 10 % and

F = + 50 %, - 10 %



to 600



max. at 120 Hz,

depending upon capacitance

After test, capacitance value shall

not have changed by more than ± 20 %,

the equivalent series resistance in ohms

shall not have exceeded 150 % of initial

requirement and the leakage current

shall not have exceeded the

initial requirement.

Maximum DC leakage current at + 25 °C

for all capacitors is 15 μA, except units

in case code DD, which is 15.8 μA.

Capacitance Ratio at 120 Hz

Life validation test

2000 h at + 85 °C

CAPACITANCE VS. TEMPERATURE

1.2

800 µF - 3 V

300 µF - 16 V

200 µF - 25 V

100 µF - 50 V

25 µF - 100 V

1.1

DC leakage current

The capacitance and equivalent series

resistance shall meet the initial

Shelf test

requirements and the DC leakage

250 h at + 85 °C,

with no voltage applied current shall not exceed 300 % of the

initial requirement.

1.0

Typical

0.9

- 40

- 20

+ 20 + 40

+ 60

Temperature in °C

+ 80

+ 100 + 120

DIMENSIONS

in millimeters

CASE CODE

6.3 ± 0.7

8.0 ± 0.6

9.0 ± 0.7

13.0 ± 1.4

17.5 ± 1.7

20.5 ± 1.8

17.5 ± 1.7

20.5 ± 1.8

24.0 ± 1.5

32.0 ± 1.5

38.0 ± 1.8

DIMENSIONS AND AVAILABLE FORMS

1.500

[38.10]

min.

1.500

[38.10]

min.

0.032 [0.811] dia.

No. 20 AWG tinned copper leads

Revision: 06-Dec-13

Document Number: 42042

For technical questions, contact:

aluminumcaps4@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer

ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical

requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements

about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular

product with the properties described in the product specification is suitable for use in a particular application. Parameters

provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All

operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please

contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by

any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Material Category Policy

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the

definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council

of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

(EEE) - recast, unless otherwise specified as non-compliant.

Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that

all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as Halogen-Free follow Halogen-Free

requirements as per JEDEC JS709A standards. Please note that some Vishay documentation may still make reference

to the IEC 61249-2-21 definition. We confirm that all the products identified as being compliant to IEC 61249-2-21

conform to JEDEC JS709A standards.

Revision: 02-Oct-12

Document Number: 91000

30D306F100DH2 Related Products

	30D306F100DH2	30D156G025BB2
Description	Aluminum Capacitors Little-Lytic Electrolytics	Aluminum Capacitors Little-Lytic Electrolytics
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Maker	Vishay	Vishay
Reach Compliance Code	unknown	unknow
ECCN code	EAR99	EAR99
capacitance	30 µF	15 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	9.779 mm	6.604 mm
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)
JESD-609 code	e0	e0
leakage current	0.015 mA	0.015 mA
length	39.014 mm	18.364 mm
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	10%	10%
Number of terminals	2	2
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C
Package shape	TUBULAR PACKAGE	TUBULAR PACKAGE
Package form	Axial	Axial
polarity	POLARIZED	POLARIZED
positive tolerance	50%	75%
Rated (DC) voltage (URdc)	100 V	25 V
surface mount	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal shape	WIRE	WIRE
