MC 1,5/ 2-G-3,81
Order No.: 1803277

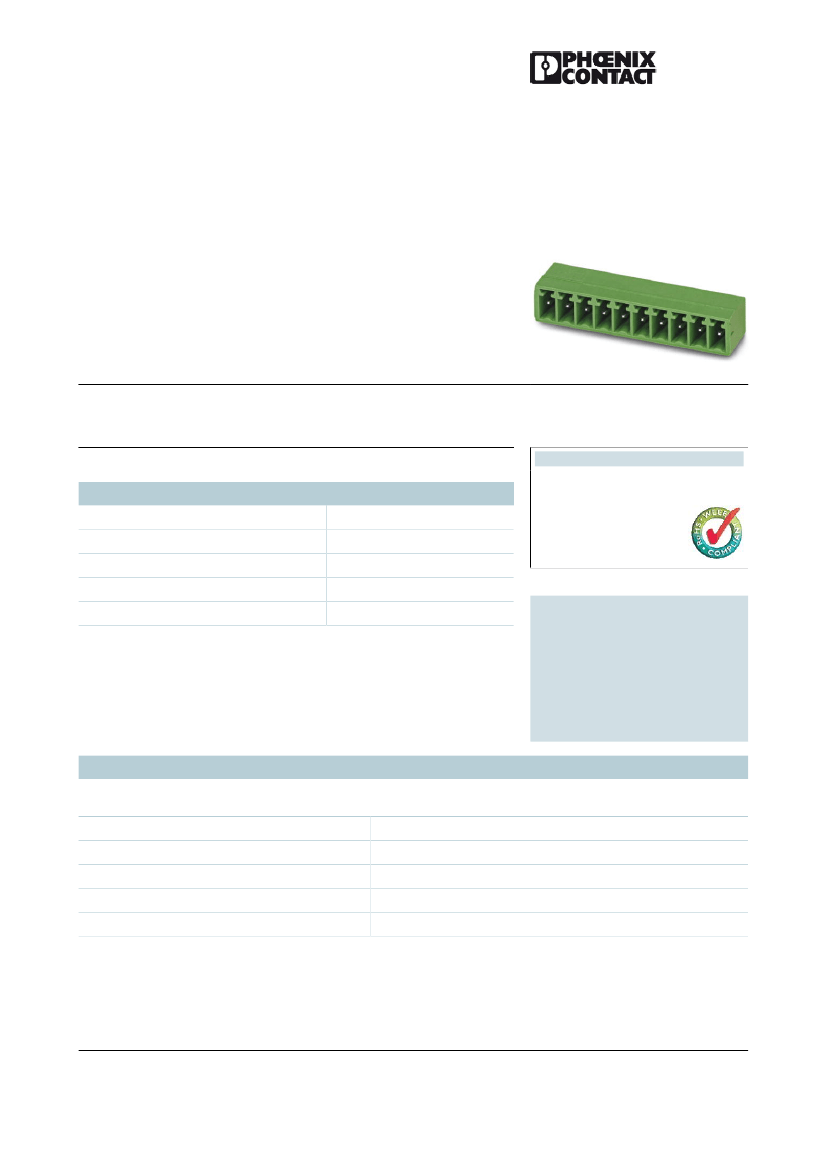

The figure shows a 10-position version of the product
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1803277
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm,
Number of positions: 2, Color: green, Assembly: Soldering
Product notes
Commercial data
EAN
Pack
Customs tariff
Weight/Piece
Catalog page information
4017918045586
50 pcs.
85366990
0.000784 KG
Page 174 (CC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
WEEE/RoHS-compliant since:
01/01/2003
Technical data
Dimensions / positions
Length
Pitch
Dimension a
Number of positions
Pin dimensions
9.2 mm
3.81 mm
3.81 mm
2
0,8 x 0,8 mm
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 5
Mar 10, 2010
MC 1,5/ 2-G-3,81
Order No.: 1803277
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1803277
Hole diameter
Technical data
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Maximum load current
Insulating material
Inflammability class acc. to UL 94
Certificates / Approvals
1.2 mm
IIIa
2.5 kV
2.5 kV
2.5 kV
160 V
250 V
EN-VDE
8A
160 V
8A
PBT
V0
Certification
CSA
Nominal voltage U
N
Nominal current I
N
CUL
Nominal voltage U
N
Nominal current I
N
UL
Nominal voltage U
N
Nominal current I
N
CB, CSA, CUL, GOST, UL, VDE-PZI
300 V
8A
300 V
8A
300 V
8A
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 5
Mar 10, 2010
MC 1,5/ 2-G-3,81
Order No.: 1803277
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1803277
Accessories
Item
General
1841174
1841190
1841213
MC 1,5/10-LWL 1,5-3,81
MC 1,5/10-LWL 2,3-3,81
MC 1,5/10-LWL 4-3,81
Fiber optics, Pitch: 3.81 mm, Number of positions: 10, Dimension
a: 1.5 mm, Color: transparent
Fiber optics, Pitch: 3.81 mm, Number of positions: 10, Dimension
a: 2.3 mm, Color: transparent
Fiber optics, Pitch: 3.81 mm, Number of positions: 10, Dimension
a: 4 mm, Color: transparent
Designation
Description
Marking
1051993
0804109
B-STIFT
SK 3,81/2,8:FORTL.ZAHLEN
Marker pen, for manual labeling of unprinted Zack strips, smear-
proof and waterproof, line thickness 0.5 mm
Marker card, printed horizontally, self-adhesive, 10-section marker
strip, 14 identical decades marked 1-10, 11-20 etc. up to 91-
(99)100, sufficient for 140 terminal blocks
Marker card, special printing, self-adhesive, labeled acc. to
customer requirements, 14 identical marker strips per card, max.
25-position labeling per strip, color: White
0805056
SK 3,81/2,8:SO
Plug/Adapter
1734634
CP-MSTB
Keying profile, is inserted into the slot on the plug or inverted
header, red insulating material
Additional products
Item
General
1851041
FK-MCP 1,5/ 2-ST-3,81
Plug component, Nominal current: 8 A, Nom. voltage: 160 V,
Pitch: 3.81 mm, Number of positions: 2, Connection type: Spring-
cage conn., Color: green
Plug component, Nominal current: 8 A, Nom. voltage: 160 V,
Pitch: 3.81 mm, Number of positions: 2, Connection type: Screw
connection, Color: green
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81
mm, Number of positions: 2, Color: green, Assembly: Soldering
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81
mm, Number of positions: 2, Color: green, Assembly: Soldering
Plug component, Nominal current: 8 A, Nom. voltage: 160 V,
Pitch: 3.81 mm, Number of positions: 2, Connection type: Screw
connection, Color: green
Designation
Description
1850660
FRONT-MC 1,5/ 2-ST-3,81
1862577
1875425
1803578
IMC 1,5/ 2-G-3,81
IMCV 1,5/ 2-G-3,81
MC 1,5/ 2-ST-3,81
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 3 / 5
Mar 10, 2010
MC 1,5/ 2-G-3,81
Order No.: 1803277
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1803277
1852176
MCC 1/ 2-STZ-3,81
Plug component, Nominal current: 8 A, Nom. voltage: 160 V,
Pitch: 3.81 mm, Number of positions: 2, Connection type: Crimp
connection, Color: green
Plug component, Nominal current: 8 A, Nom. voltage: 160 V,
Pitch: 3.81 mm, Number of positions: 2, Connection type: Screw
connection, Color: green
Plug component, Nominal current: 8 A, Nom. voltage: 160 V,
Pitch: 3.81 mm, Number of positions: 2, Connection type: Screw
connection, Color: green
Plug component, Nominal current: 6 A, Nom. voltage: 320
V, Pitch: 3.81 mm, Number of positions: 2, Connection type:
Insulation displacement connection QUICKON, Color: green
1827127
MCVR 1,5/ 2-ST-3,81
1826979
MCVW 1,5/ 2-ST-3,81
1897393
QC 0,5/ 2-ST-3,81

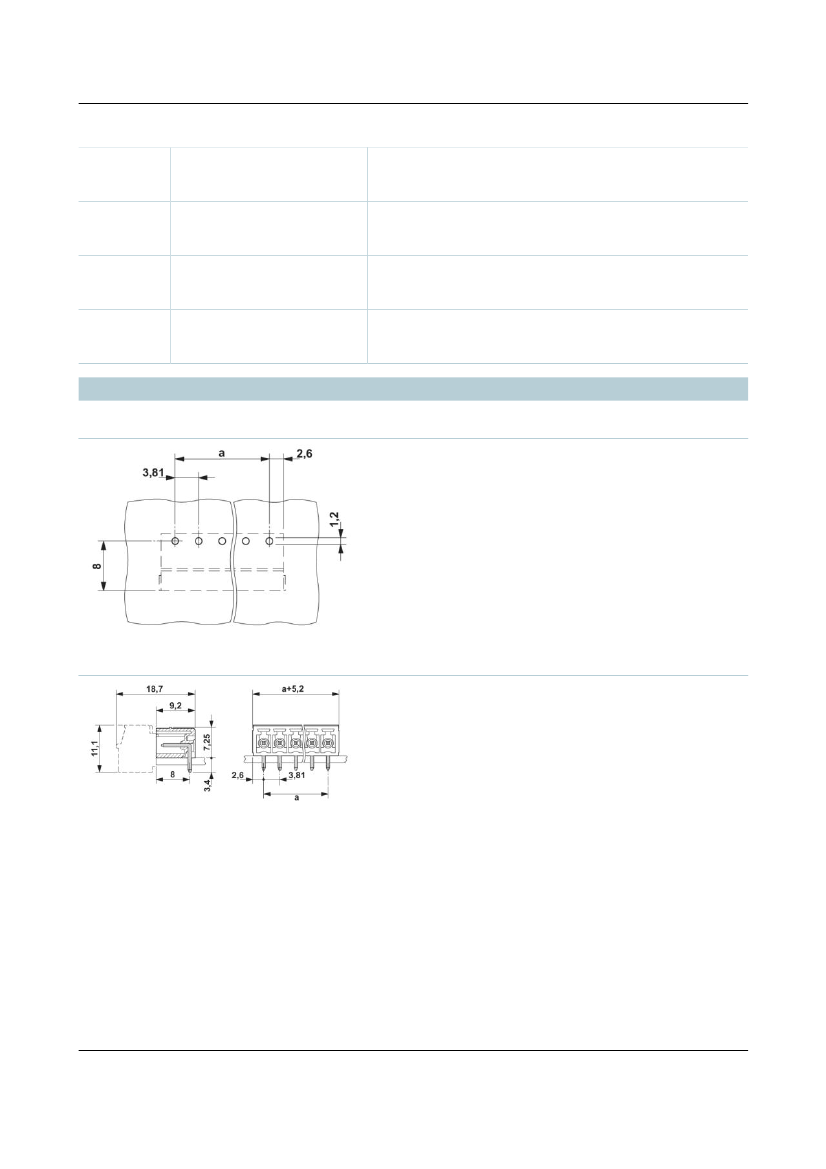

Diagrams/Drawings
Drilling plan/solder pad geometry
Dimensioned drawing
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 4 / 5
Mar 10, 2010
MC 1,5/ 2-G-3,81
Order No.: 1803277
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1803277
Address
PHOENIX CONTACT Inc., USA
586 Fulling Mill Road
Middletown, PA 17057,USA
Phone (800) 888-7388
Fax (717) 944-1625
http://www.phoenixcon.com
© 2010 Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 5 / 5
Mar 10, 2010
