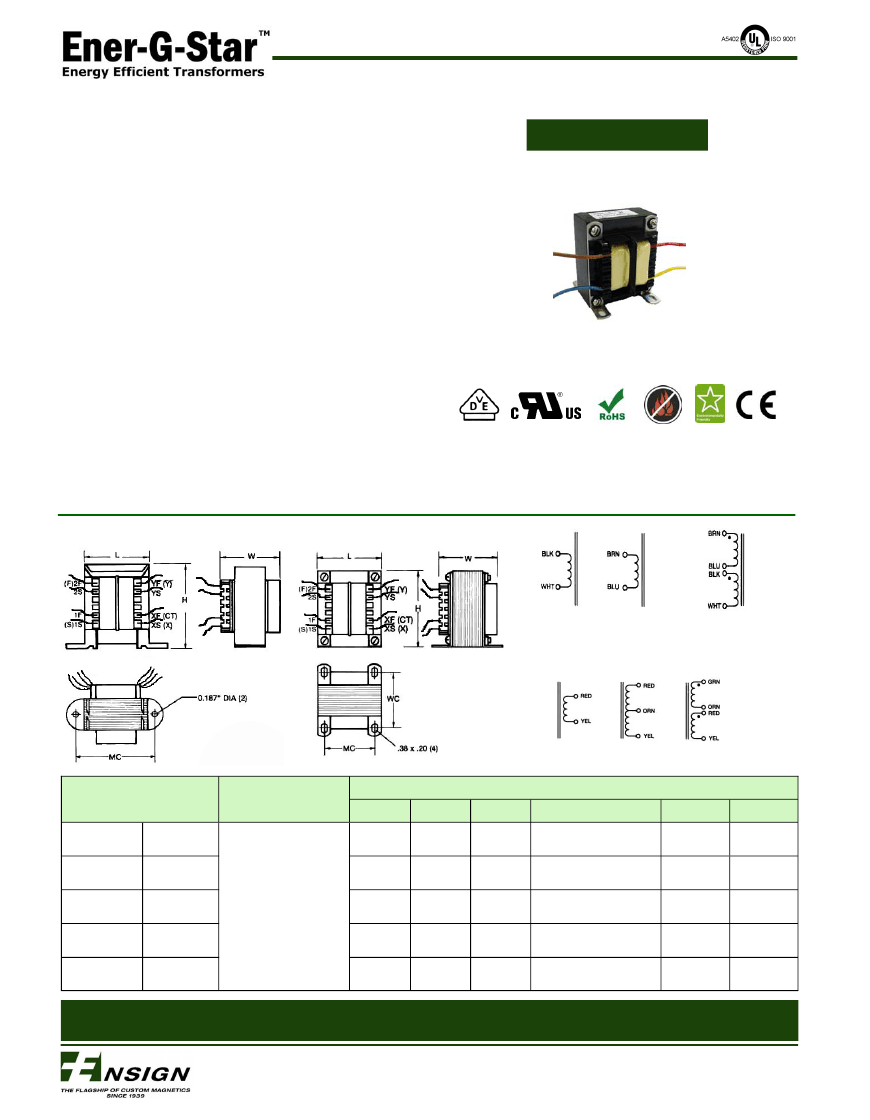

Admiral Class
—
Lead Wires
Flame Retardant, UL 94V0 Rating
High Efficiency
25VA to 175VA Power Rating
Single or Dual Primary, 115V, 115/230V or 230V
(Optional 120, 120/240, 240, 120 with taps, 240 with taps, or 120/240 with taps)
Flame Retardant Material
50/60Hz
(Economy 60Hz-only Models Available)
Dual Secondary
(Optional Single or Center-tapped)
Any Secondary Voltage from 5V to 240V in 1V Increments
Insulation Material 130
o
C Standard
(Optional 200
o
C)
Optional Internal Current or Thermal Protector
High Isolation, 4000 Vrms, 100% Tested
Color Coded Lead Wires
Agency Approvals:
UL/cUL 5085-2 Recognized (File E47299)
UL 60950 Recognized (File E144070)
VDE 0805 Licensed (File 19019-3336-9002/A1C)
UL 1446 Recognized Insulation system (File E95662)
Primary Schematics
Channel Mount
Bracket Mount
Single Input
(Specify 115V or
120V)
Single Input
(Specify 230V or
240V)
Series/Parallel Input
(Specify 115/230V or
120/240V)
Secondary Schematics
Single Output
Center-Tapped
Output
Series/Parallel
Output
VA Rating
IL025
IL043
IL080
IL130
IL175
25VA
43VA
80VA
130VA
175VA
Secondary
Voltage
Dimensions (Inches)
L
1.95
W
2.13
2.13
2.50
3.08
3.12
H
2.31
2.68
3.00
3.38
3.75
Mounting
Channel
Channel
Brackets
Brackets
Brackets
MC
2.38
2.81
2.00
2.25
2.50
WC
-
-
2.25
2.50
2.50
Parallel from
5V to 60V
2.26
2.50
Series, single &
center-tapped from
10V to 240V
2.81
3.12
Take advantage of these pre-designed models, or let us customize to your requirements. That’s our specialty.
Sales Office :
300 W Factory Rd., Addison, IL 60101
•
Ph: (630) 628-9999
•
Fax: (630) 628-9922
•
www.ensigncorp.com
34
Admiral Class
—
Lead Wires
Partial Selection Guide
(Standard Stock)
Part Number
115V
Primary
IL025-1-010X
IL043-1-010X
IL080-1-010X
IL130-1-010X
IL175-1-010X
IL025-1-012X
IL043-1-012X
IL080-1-012X
IL130-1-012X
IL175-1-012X
IL025-1-016X
IL043-1-016X
IL080-1-016X
IL130-1-016X
IL175-1-016X
IL025-1-020X
IL043-1-020X
IL080-1-020X
IL130-1-020X
IL175-1-020X
IL025-1-024X
IL043-1-024X
IL080-1-024X
IL130-1-024X
IL175-1-024X
IL025-1-028X
IL043-1-028X
IL080-1-028X
IL130-1-028X
IL175-1-028X
IL025-1-036X
IL043-1-036X
IL080-1-036X
IL130-1-036X
IL175-1-036X
115/230V
Primary
IL025-2-010X
IL043-2-010X
IL080-2-010X
IL130-2-010X
IL175-2-010X
IL025-2-012X
IL043-2-012X
IL080-2-012X
IL130-2-012X
IL175-2-012X
IL025-2-016X
IL043-2-016X
IL080-2-016X
IL130-2-016X
IL175-2-016X
IL025-2-020X
IL043-2-020X
IL080-2-020X
IL130-2-020X
IL175-2-020X
IL025-2-024X
IL043-2-024X
IL080-2-024X
IL130-2-024X
IL175-2-024X
IL025-2-028X
IL043-2-028X
IL080-2-028X
IL130-2-028X
IL175-2-028X
IL025-2-036X
IL043-2-036X
IL080-2-036X
IL130-2-036X
IL175-2-036X
230V
Primary
IL025-3-010X
IL043-3-010X
IL080-3-010X
IL130-3-010X
IL175-3-010X
IL025-3-012X
IL043-3-012X
IL080-3-012X
IL130-3-012X
IL175-3-012X
IL025-3-016X
IL043-3-016X
IL080-3-016X
IL130-3-016X
IL175-3-016X
IL025-3-020X
IL043-3-020X
IL080-3-020X
IL130-3-020X
IL175-3-020X
IL025-3-024X
IL043-3-024X
IL080-3-024X
IL130-3-024X
IL175-3-024X
IL025-3-028X
IL043-3-028X
IL080-3-028X
IL130-3-028X
IL175-3-028X
IL025-3-036X
IL043-3-036X
IL080-3-036X
IL130-3-036X
IL175-3-036X
VA
25
43
80
130
175
25
43
80
130
175
25
43
80
130
175
25
43
80
130
175
25
43
80
130
175
25
43
80
130
175
25
43
80
130
175
Series Secondary
10VCT @ 2.5A
10VCT @ 4.3A
10VCT @ 8.0A
10VCT @ 13.0A
10VCT @ 17.5A
12.6VCT @ 2.0A
12.6VCT @ 3.4A
12.6VCT @ 6.4A
12.6VCT @ 10.3A
12.6VCT @ 14.0A
16VCT @ 1.6A
16VCT @ 2.7A
16VCT @ 5.0A
16VCT @ 8.12A
16VCT @ 11.0A
20VCT @ 1.25A
20VCT @ 2.15A
20VCT @ 4.0A
20VCT @ 6.5A
20VCT @ 8.75A
24VCT @ 1.0A
24VCT @ 1.8A
24VCT @ 3.3A
24VCT @ 5.4A
24VCT @ 7.3A
28VCT @ 0.9A
28VCT @ 1.5A
28VCT @ 2.85A
28VCT @ 4.6A
28VCT @ 6.25A
36VCT @ 0.7A
36VCT @ 1.2A
36VCT @ 2.2A
36VCT @ 3.6A
36VCT @ 4.9A
Parallel Secondary
5V @ 5.0A
5V @ 8.6A
5V @ 16.0A
5V @ 26.0A
5V @ 35.0A
6.3V @ 4.0A
6.3V @ 6.8A
6.3V @ 12.8A
6.3V @ 20.6A
6.3V @ 28.0A
8V @ 3.2A
8V @ 5.4A
8V @ 10.0A
8V @ 16.2A
8V @ 22.0A
10V @ 2.5A
10V @ 4.30A
10V @ 8.0A
10V @ 13.0A
10V @ 17.5A
12V @ 2.0A
12V @ 3.6A
12V @ 6.6A
12V @ 10.8A
12V @ 14.6A
14V @ 1.8A
14V @ 3.0A
14V @ 5.7A
14V @ 9.2A
14V @ 12.5A
18V @ 1.4A
18V @ 2.4A
18V @ 4.4A
18V @ 7.2A
18V @ 9.8A
Over 365,000 additional Admiral Class (Lead Wires) model configurations available!
Refer to the Part Numbering Scheme on the next page to
configure your own part
with following options:
Primary: 120V, 120/240V, 240V,
Frequency: 50/60Hz, or economy 60Hz-only
100/110/120V, 200/220/240V,
With or without current or thermal protector(s)
120/220/240V, 100/120/200/220/240V
Temperature Class: 130C, or 200C
Secondary: 5V to 240V, in 1V increments
Take advantage of these pre-designed models, or let us customize to your requirements. That’s our specialty.
Sales Office :
300 W Factory Rd., Addison, IL 60101
•
Ph: (630) 628-9999
•
Fax: (630) 628-9922
•
www.ensigncorp.com
35
Admiral Class
—
Lead Wires
Examples:
IL056-2-824A
= 56VA, Dual 120/240V (series/parallel) Primary, 50/60Hz, with 130C thermal cutoff,
Single 24V secondary
IL056-2-824XA
= Same as above except Primary 115/230V
ILXXX
Chassis Mount with Lead Wires,
International
Rating:
IL002
= 2.5VA
IL005
= 5VA
IL010
= 10VA
IL020
= 20VA
IL025
= 25VA
IL030
= 30VA
Primary Voltages:
-1 = 120
-2 = 120/240 Dual (series / parallel)
-3 = 240
-4 = 100/110/120
-6 = 200/220/240
-7 = 120/220/240
-8 = 100/120/200/220/240
IL043
= 43VA
IL056
= 56VA
IL080
= 80VA
IL130
= 130VA
IL175
= 175VA
-X
XXX
X
-X
Secondary Voltages (10 through 240, in 1V Increments):
010 through 240 = Dual Secondary (series / parallel)
Number represents the voltage of the series connection.
Example: “024” = 12V (parallel) / 24V (series)
510 through 740 = Center-tapped Secondary
Number represents the total voltage plus 500.
Example: “524” = 24V with center-tap (12V on each side)
810 through 1040 = Single Secondary
Number represents the voltage plus 800.
Example: “824” = 24V
Indication of Adjustment in Primary Voltage:
Blank = 120V, 120/240V or 240V, as selected above
X = Primary 115V instead of 120 and/or 230V instead of 240V
Optional Internal Protector
Blank = No internal protector
A through Z = Over-current and/or over-temperature protection
(Contact for list of available protectors)
Take advantage of these pre-designed models, or let us customize to your requirements. That’s our specialty.
Sales Office :
300 W Factory Rd., Addison, IL 60101
•
Ph: (630) 628-9999
•
Fax: (630) 628-9922
•
www.ensigncorp.com
36
