3962S-09TW-L: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Locking, White Insulator, Receptacle; CategoryThe connector The connector; File Size1MB，1 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

3962S-09TW-L Overview

Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Locking, White Insulator, Receptacle

3962S-09TW-L Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.344 inch
subject depth	0.374 inch
body length	1.403 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	NYLON
Manufacturer's serial number	3962
Plug contact pitch	0.156 inch
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	7 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.146 inch
Terminal pitch	3.9624 mm
Termination type	SOLDER
Total number of contacts	9

Preview

Download Datasheet

View All

Ratioplast - Electronics

Homepage: www.ratioplast.de / E-Mail: info@ratioplast.de

Tel.:+49 (0) 5741 / 23661-0 / Fax: +49 (0) 5741 / 23661-20

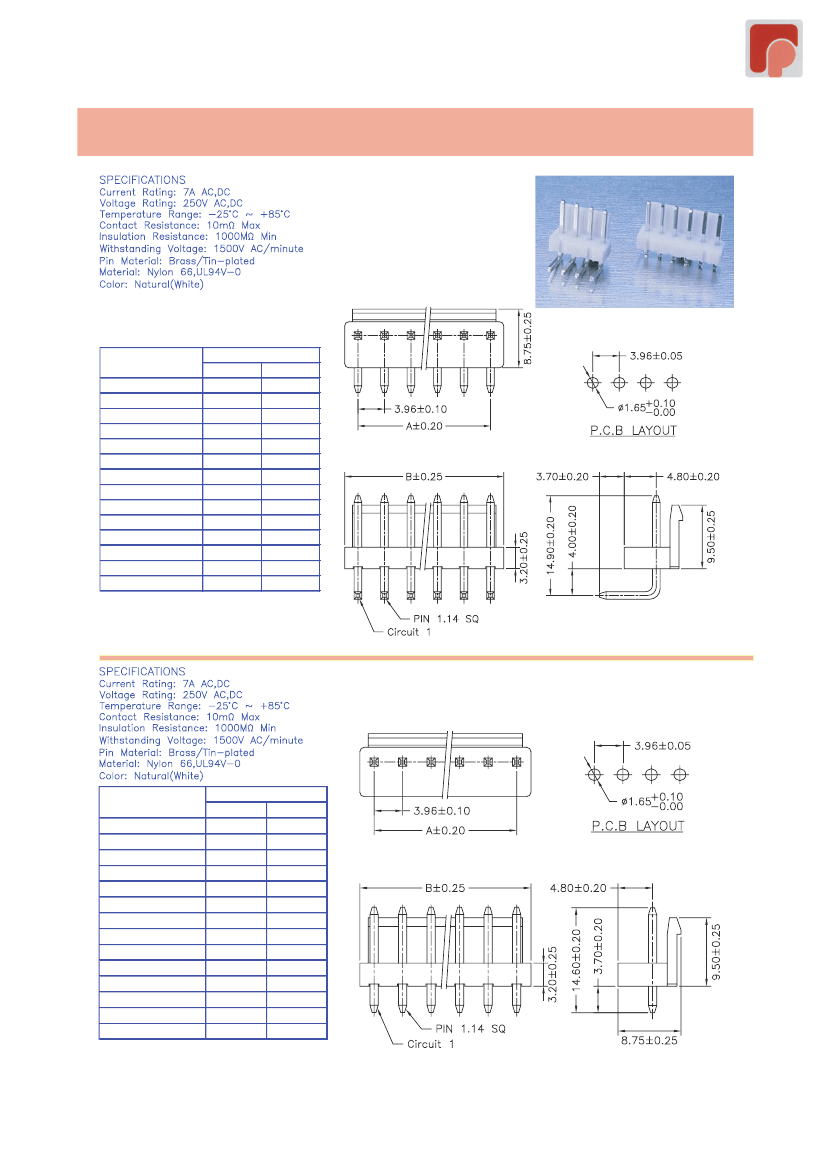

3.96mm WAFER RIGHT ANGLE / STRAIGHT TYPE

PART NO.

3962R-02TW-L

3962R-03TW-L

3962R-04TW-L

3962R-05TW-L

3962R-06TW-L

3962R-07TW-L

3962R-08TW-L

3962R-09TW-L

3962R-10TW-L

3962R-11TW-L

3962R-12TW-L

3962R-13TW-L

3962R-14TW-L

3962R-15TW-L

Dimensions

A

B

3.96

7.92

11.88

15.84

19.80

23.76

27.72

31.68

35.64

39.60

43.56

47.52

51.48

55.44

59.40

Part No.:3962R-XXTW-L

PART NO.

3962S-02TW-L

3962S-03TW-L

3962S-04TW-L

3962S-05TW-L

3962S-06TW-L

3962S-07TW-L

3962S-08TW-L

3962S-09TW-L

3962S-10TW-L

3962S-11TW-L

3962S-12TW-L

3962S-13TW-L

3962S-14TW-L

3962S-15TW-L

Dimensions

A

B

3.96

7.92

11.88

15.84

19.80

23.76

27.72

31.68

35.64

39.60

43.56

47.52

51.48

55.44

59.40

Part No.:3962S-XXTW-L
