HFA1120IB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> HFA1120IB

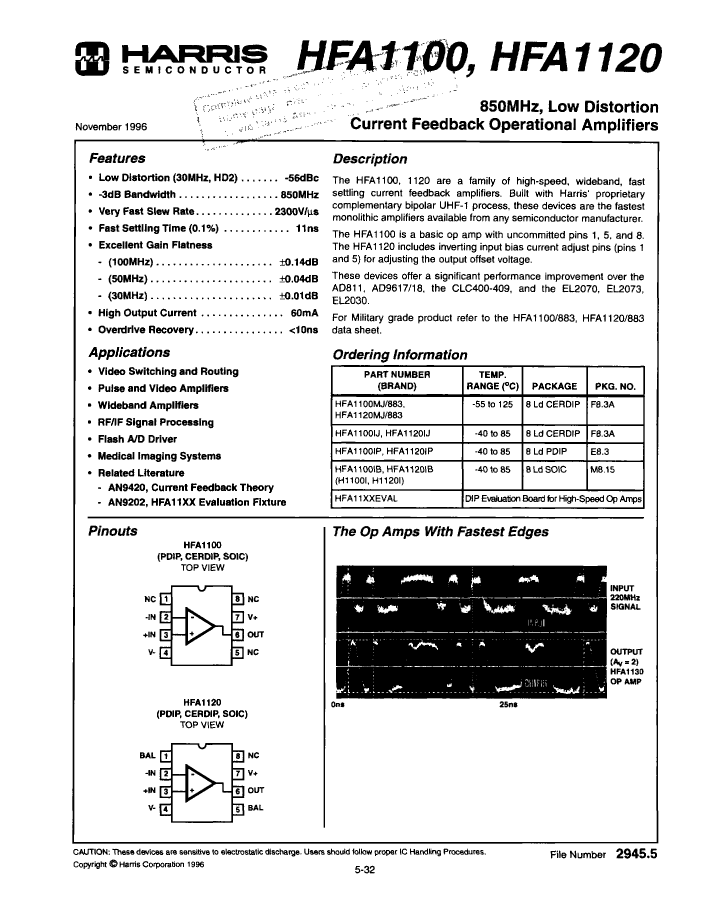

HFA1120IB: DescriptionVideo Amplifier, 1 Func, Bipolar, PDSO8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size41KB，1 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

HFA1120IB Overview

Video Amplifier, 1 Func, Bipolar, PDSO8

HFA1120IB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	SOP,
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
Number of functions	1
Number of terminals	8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
surface mount	YES
technology	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL

Preview

Download Datasheet

View All

HFA1120IB Related Products

	HFA1120IB	HFA1120MJ/883	HFA1100MJ/883	HFA1100IP	HFA1100IJ	HFA1120IP	HFA1120IJ
Description	Video Amplifier, 1 Func, Bipolar, PDSO8	Operational Amplifier, 1 Func, 10000uV Offset-Max, BIPolar, CDIP8	Operational Amplifier, 1 Func, 10000uV Offset-Max, BIPolar, CDIP8	Video Amplifier, 1 Func, Bipolar, PDIP8	Operational Amplifier, 1 Func, 10000uV Offset-Max, BIPolar, CDIP8	Operational Amplifier, 1 Func, 10000uV Offset-Max, BIPolar, PDIP8	Operational Amplifier, 1 Func, 10000uV Offset-Max, BIPolar, CDIP8
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
JESD-30 code	R-PDSO-G8	R-GDIP-T8	R-GDIP-T8	R-PDIP-T8	R-GDIP-T8	R-PDIP-T8	R-GDIP-T8
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Number of functions	1	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8	8
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
package instruction	SOP,	DIP, DIP8,.3	-	,	-	DIP, DIP8,.3	DIP, DIP8,.3
encapsulated code	SOP	DIP	DIP	-	DIP	DIP	DIP
Architecture	-	CURRENT-FEEDBACK	CURRENT-FEEDBACK	-	CURRENT-FEEDBACK	CURRENT-FEEDBACK	CURRENT-FEEDBACK
Maximum bias current (IIB) at 25C	-	40 µA	50 µA	-	50 µA	40 µA	40 µA
Nominal Common Mode Rejection Ratio	-	46 dB	46 dB	-	46 dB	46 dB	46 dB
frequency compensation	-	YES	YES	-	YES	YES	YES
Maximum input offset voltage	-	10000 µV	10000 µV	-	10000 µV	10000 µV	10000 µV
low-dissonance	-	NO	NO	-	NO	NO	NO
Nominal Negative Supply Voltage (Vsup)	-	-5 V	-5 V	-	-5 V	-5 V	-5 V
Maximum operating temperature	-	125 °C	125 °C	-	85 °C	85 °C	85 °C
Minimum operating temperature	-	-55 °C	-55 °C	-	-40 °C	-40 °C	-40 °C
Encapsulate equivalent code	-	DIP8,.3	DIP8,.3	-	DIP8,.3	DIP8,.3	DIP8,.3
power supply	-	+-5 V	+-5 V	-	+-5 V	+-5 V	+-5 V
minimum slew rate	-	1950 V/us	1850 V/us	-	1850 V/us	1950 V/us	1950 V/us
Maximum slew rate	-	33 mA	33 mA	-	33 mA	33 mA	33 mA
Supply voltage upper limit	-	6 V	6 V	-	6 V	6 V	6 V
Nominal supply voltage (Vsup)	-	5 V	5 V	-	5 V	5 V	5 V
Temperature level	-	MILITARY	MILITARY	-	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal pitch	-	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm
broadband	-	YES	YES	-	YES	YES	YES
Base Number Matches	-	1	1	1	1	-	-
Peak Reflow Temperature (Celsius)	-	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum time at peak reflow temperature	-	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
