IL080-3-012X: DescriptionPOWER TRANSFORMER ADMIRAL CLASS; File Size680KB，1 Pages; ManufacturerENSIGN; Websitehttp://www.ensigncorp.com

Download Datasheet View All

IL080-3-012X Overview

POWER TRANSFORMER ADMIRAL CLASS

Preview

Download Datasheet

View All

ADMIRAL CLASS

- INTERNATIONAL LEAD WIRES, POWER TRANSFORMER

Standard

6”

Lead Length

Electrical Specifications

A. Maximum Power: 80VA

B. Input Voltage and Frequency: 115V, 115/230V, 230V

50/60Hz

C. Voltage Regulation: __% TYP @ full load to no load

D. Temperature Rise: __C TYP

E. Insulation Resistance: ____

F. Hi-Pot: 4000Vrms 1 minute @ Pri to Sec

_____Vrms 1 minute @ Pri to Core

_____Vrms 1 minute @ Sec to Core

Marking: Ensign Corp, part number (see table), date code

Safety:

UL/cUL 5085-2 Recognized (File 47299)

UL 60950 Recognized (File E144070)

VDE 0805 Licensed (File 19019-3336-9002/A1C)

UL 1446 Recognized Insulation System (File 95662)

Part Number

115V

IL080-1-010X

IL080-1-012X

IL080-1-016X

IL080-1-020X

IL080-1-024X

IL080-1-028X

IL080-1-036X

115/230V

IL080-2-010X

IL080-2-012X

IL080-2-016X

IL080-2-020X

IL080-2-024X

IL080-2-028X

IL080-2-036X

230V

IL080-3-010X

IL080-3-012X

IL080-3-016X

IL080-3-020X

IL080-3-024X

IL080-3-028X

IL080-3-036X

Series Connection

10VCT @ 8.0A

12.6VCT @ 6.4A

16VCT @ 5.0A

20VCT @ 4.0A

24VCT @ 3.3A

28VCT @ 2.85A

36VCT @ 2.2A

Parallel Connection

5V @ 16.0A

6.3V @ 12.8A

8V @ 10.0A

10V @ 8.0A

12V @ 6.6A

14V @ 5.7A

18V @ 4.4A

IL080-1-XXXX

IL080-2-XXXX

IL080-3-XXXX

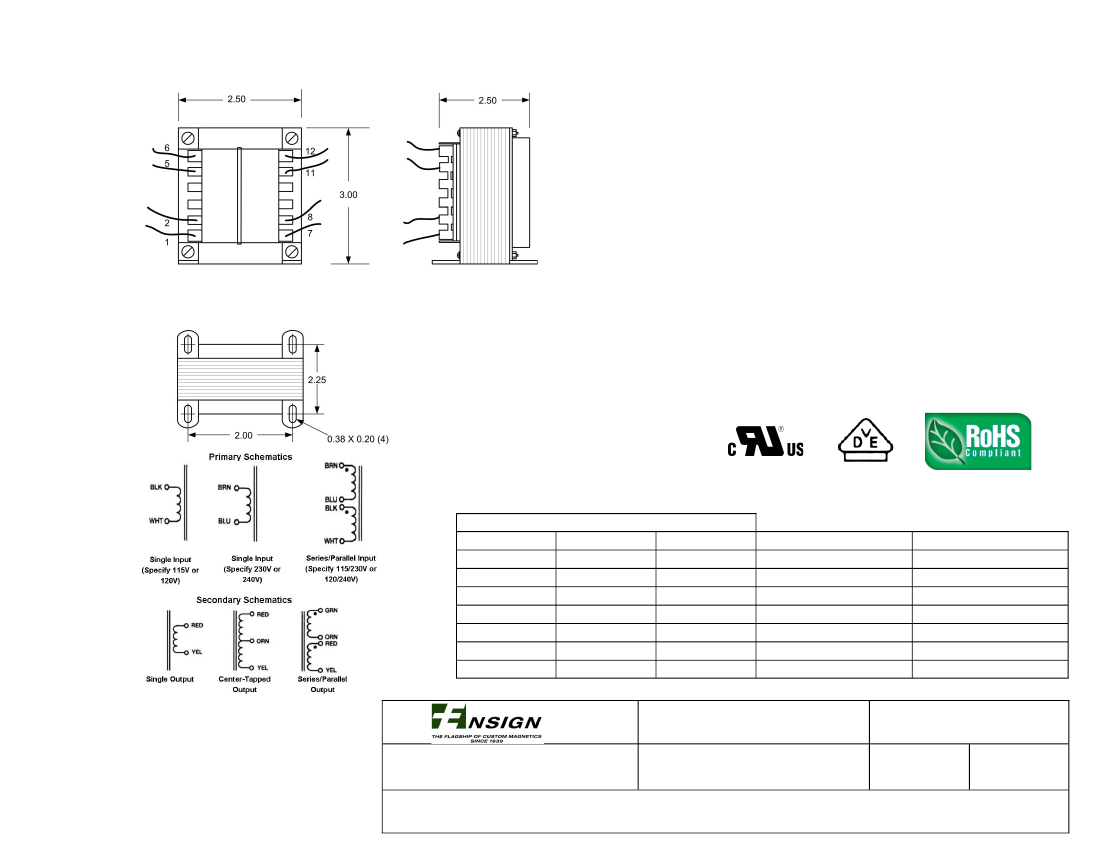

Dim: Inches

Sheet 1 of 1

POWER TRANSFORMER

ADMIRAL CLASS

CONTENTS OF THIS DRAWING ARE SUBJECT TO

CHANGE WITHOUT PRIOR NOTICE

Ensign Corporation

201 ENSIGN RD., BELLEVUE, IA 52031

PROPRIETARY NOTICE: THIS DRAWING PRINT OR DOCUMENT AND SUBJECT MATTER DISCLOSED HEREIN ARE PROPRIETARY ITEMS TO WHICH ENSIGN RETAINS

THE EXCLUSIVE RIGHT OF DISSEMINATION, MANUFACTURE AND SALE. THIS DRAWING, PRINT OR DOCUMENT IS SUBMITTED IN CONFIDENCE FOR CONSIDERATION

BY THE RECIPIENT ALONE UNLESS PERMISSION FOR FURTHER DISCLOSURE IS EXPRESSLY GRANTED IN WRITING
