IL175-2-036X

Description
POWER TRANSFORMER ADMIRAL CLASS
File Size680KB,1 Pages
ManufacturerENSIGN
Websitehttp://www.ensigncorp.com
Download Datasheet View All

IL175-2-036X Overview

POWER TRANSFORMER ADMIRAL CLASS

ADMIRAL CLASS
- INTERNATIONAL LEAD WIRES, POWER TRANSFORMER
1.
Standard
6”
Lead Length
2.
3.
Electrical Specifications
A. Maximum Power: 175VA
B. Input Voltage and Frequency: 115V, 115/230V, 230V
50/60Hz
C. Voltage Regulation: __% TYP @ full load to no load
D. Temperature Rise: __C TYP
E. Insulation Resistance: ____
F. Hi-Pot: 4000Vrms 1 minute @ Pri to Sec
_____Vrms 1 minute @ Pri to Core
_____Vrms 1 minute @ Sec to Core
Marking: Ensign Corp, part number (see table), date code
Safety:
UL/cUL 5085-2 Recognized (File 47299)
UL 60950 Recognized (File E144070)
VDE 0805 Licensed (File 19019-3336-9002/A1C)
UL 1446 Recognized Insulation System (File 95662)
Part Number
115V
IL175-1-010X
IL175-1-012X
IL175-1-016X
IL175-1-020X
IL175-1-024X
IL175-1-028X
IL175-1-036X
115/230V
IL175-2-010X
IL175-2-012X
IL175-2-016X
IL175-2-020X
IL175-2-024X
IL175-2-028X
IL175-2-036X
230V
IL175-3-010X
IL175-3-012X
IL175-3-016X
IL175-3-020X
IL175-3-024X
IL175-3-028X
IL175-3-036X
Series Connection
10VCT @ 17.5A
12.6VCT @ 14.0A
16VCT @ 11.0A
20VCT @ 8.75A
24VCT @ 7.3A
28VCT @ 6.25A
36VCT @ 4.9A
Parallel Connection
5V @ 35.0A
6.3V @ 28.0A
8V @ 22.0A
10V @ 17.5A
12V @ 14.6A
14V @ 12.5A
18V @ 9.8A
IL175-1-XXXX
IL175-2-XXXX
IL175-3-XXXX
Dim: Inches
Sheet 1 of 1

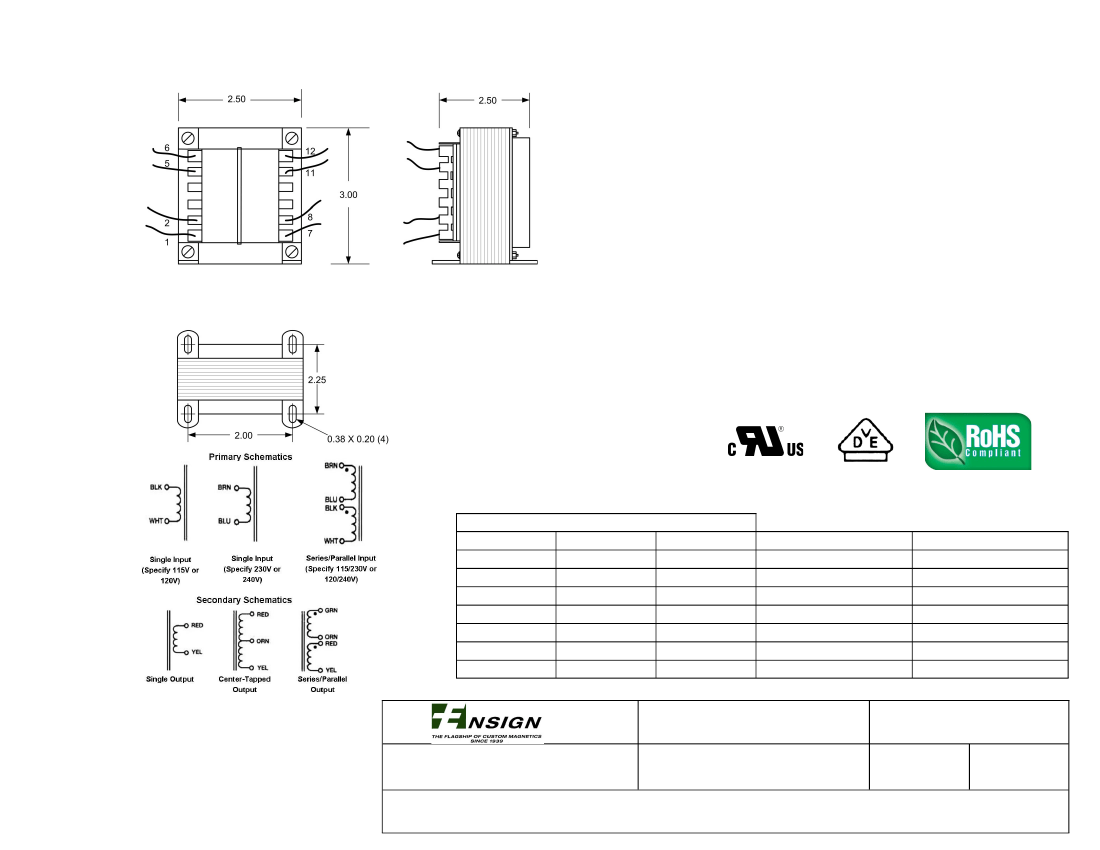

POWER TRANSFORMER
ADMIRAL CLASS
CONTENTS OF THIS DRAWING ARE SUBJECT TO
CHANGE WITHOUT PRIOR NOTICE
Ensign Corporation
201 ENSIGN RD., BELLEVUE, IA 52031
PROPRIETARY NOTICE: THIS DRAWING PRINT OR DOCUMENT AND SUBJECT MATTER DISCLOSED HEREIN ARE PROPRIETARY ITEMS TO WHICH ENSIGN RETAINS
THE EXCLUSIVE RIGHT OF DISSEMINATION, MANUFACTURE AND SALE. THIS DRAWING, PRINT OR DOCUMENT IS SUBMITTED IN CONFIDENCE FOR CONSIDERATION
BY THE RECIPIENT ALONE UNLESS PERMISSION FOR FURTHER DISCLOSURE IS EXPRESSLY GRANTED IN WRITING
