HV03-10: DescriptionHIGH VOLTAGE MICROWAVE OVEN RECTIFIER; File Size2MB，2 Pages; ManufacturerFRONTIER; Websitehttp://www.frontierusa.com/

Download Datasheet Compare View All

HV03-10 Overview

HIGH VOLTAGE MICROWAVE OVEN RECTIFIER

Preview

Download Datasheet

View All

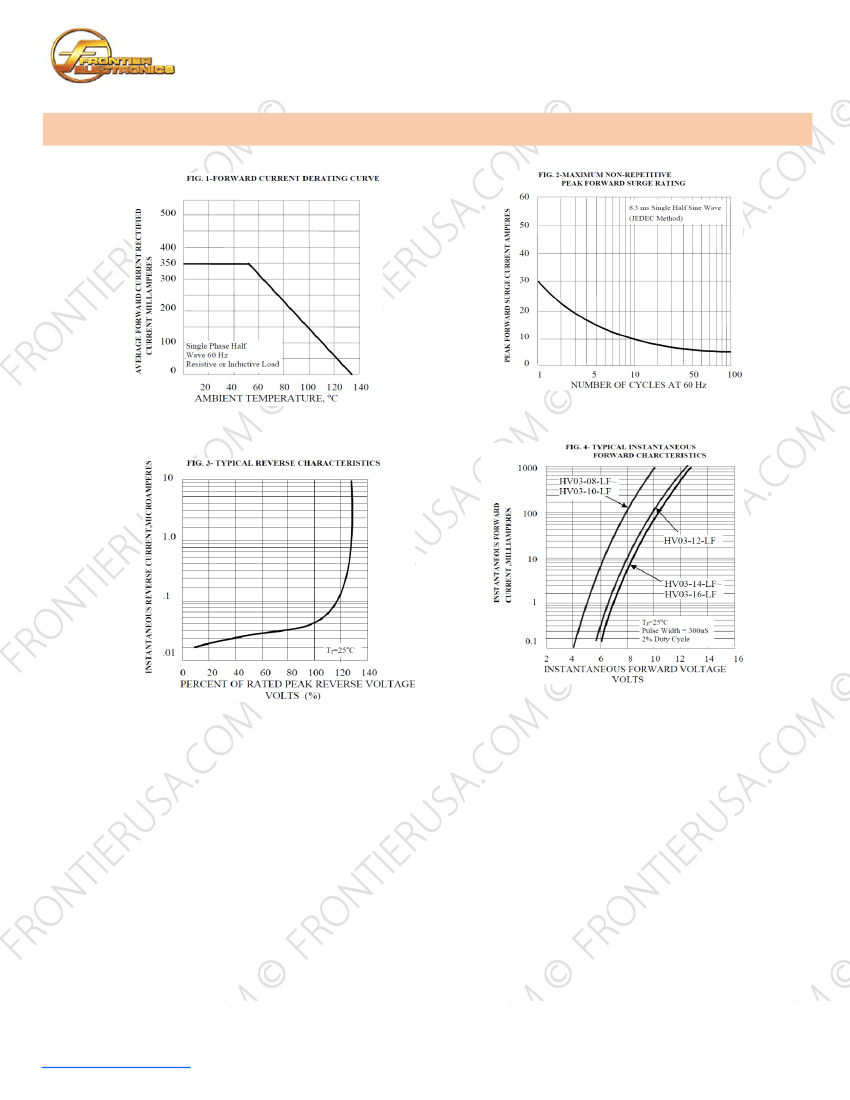

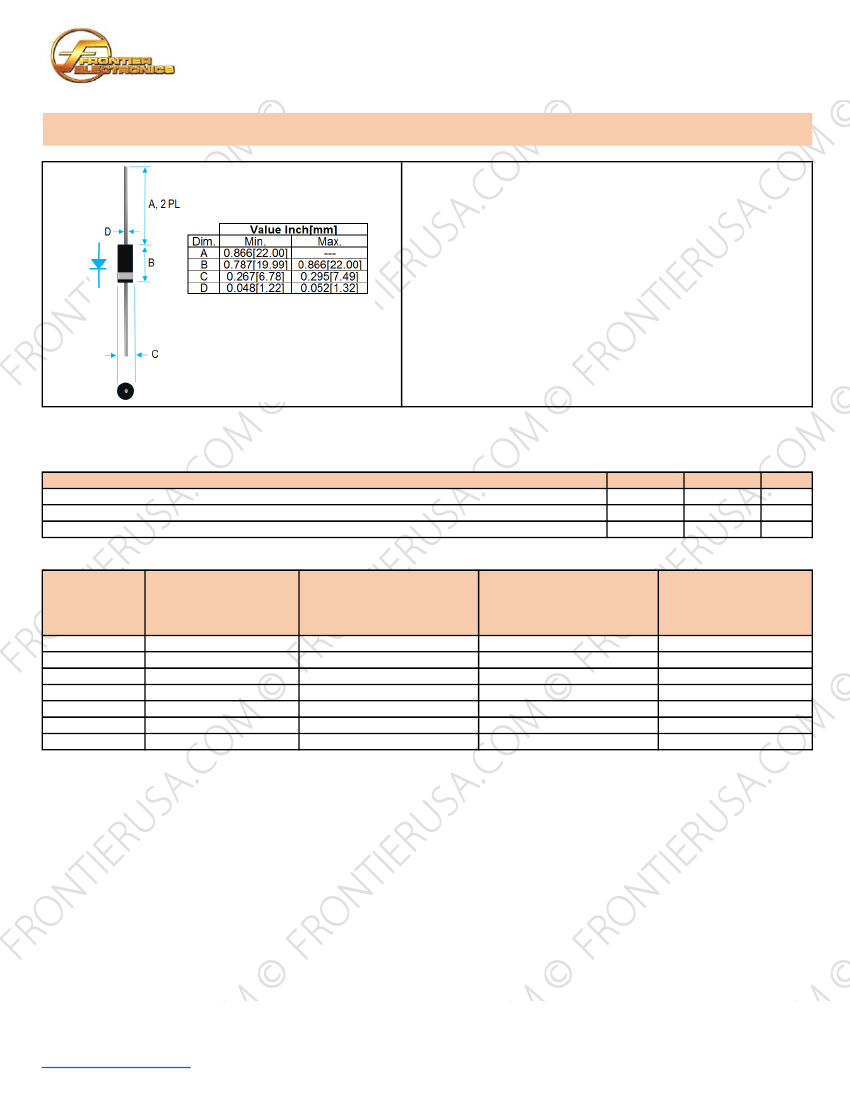

HV03-08 THRU HV03-16 SPECIFICATIONS

Rev. A

HIGH VOLTAGE MICROWAVE OVEN RECTIFIER

PRODUCT FEATURES

10.

11.

FLAMMABILITY CLASSIFICATION: 94V-0

TYPICAL I

LESS THAN 1uA

LOW FORWARD VOLTAGE DROP

HIGH SURGE CURRENT CAPABILITY

CASE: HV03 TRANSFER MOLDED

DIMENSIONS IN INCHES AND (MILLIMETERS)

POLARITY: INDICATED BY CATHODE BAND

WEIGHT: 2.8 GRAMS

LEADS: SOLDERABILITY PER MIL-STD-202 METHOD 208

PULLING TEST: 2.3 KG

RoHS

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS RATINGS AT 25°C AMBIENT TEMPERATURE UNLESS OTHERWISE

SPECIFIED STORAGE AND OPERATING TEMPERATURE RANGE -40°C TO +130°C. SINGLE PHASE, HALF WAVE, 60 HZ,

RESISTIVE OR INDUCTIVE LOAD. FOR CAPACITIVE LOAD, DERATE CURRENT BY 20%.

RATINGS

MAXIMUM AVERAGE FORWARD RECTIFIED CURRENT @ TL=55°C

PEAK FWD SURGE CURRENT, 8.3ms HALF SINE-WAVE SUPERIMPOSED ON RATED LOAD

MAXIMUM REVERSE CURRENT @ 25°C, VDC

1. MAXIMUM FORWARD VOLTAGE @ I

SYMBOL

FSM

VALUE

0.35

UNITS

PART NUMBER

HV03-08

HV03-09

HV03-10

HV03-12

HV03-14

HV03-15

HV03-16

MAX RECURRENT PK

MAX RMS VOLTAGE V

RMS

(V)

REV VOLTAGE V

RRM

(V)

8000

9000

10000

12000

14000

15000

16000

5600

6300

7000

8400

9800

10500

11200

MAX DC BLOCKING

VOLTAGE V

(V)

8000

9000

10000

12000

14000

15000

16000

MAX FWD VOLTAGE V

(V)

Frontier Electronics Corp.®

http://frontierusa.com/

667 E. Cochran St., Simi Valley, CA 93065

Phone: 1-805-522-9998, Fax: 1-805-522-9989
