LM107DE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LM107DE

LM107DE: DescriptionOperational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, CDIP8,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size126KB，2 Pages; ManufacturerRaytheon Company; Websitehttps://www.raytheon.com/

Download Datasheet Parametric Compare View All

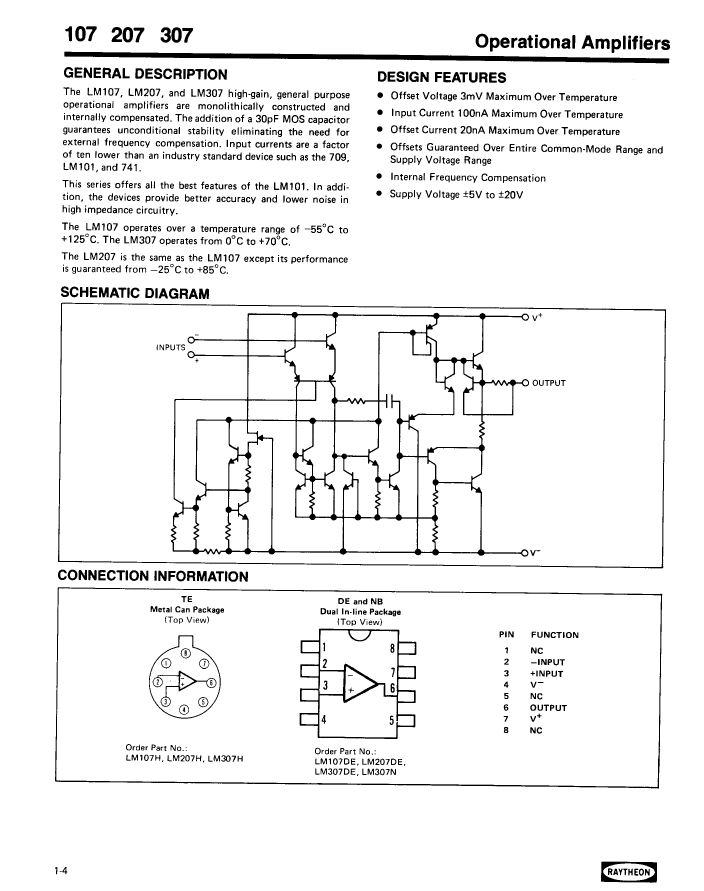

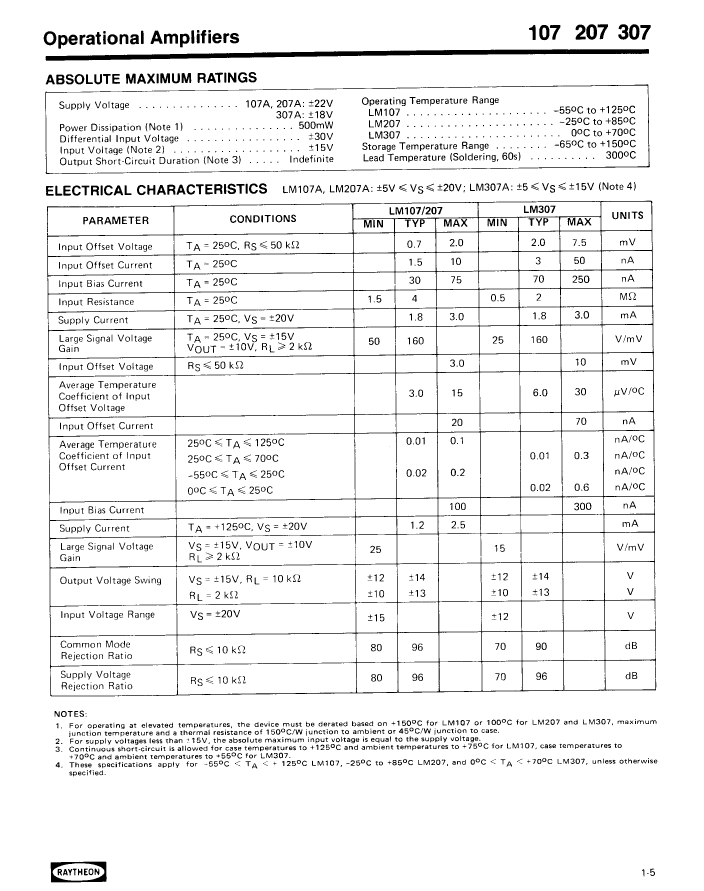

LM107DE Overview

Operational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, CDIP8,

LM107DE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP8,.3
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.075 µA
frequency compensation	YES
Maximum input offset voltage	3000 µV
JESD-30 code	R-XDIP-T8
JESD-609 code	e0
low-bias	NO
low-dissonance	NO
micropower	NO
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power	NO
power supply	+-5/+-20 V
Programmable power	NO
Certification status	Not Qualified
Maximum slew rate	3 mA
Supply voltage upper limit	22 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Minimum voltage gain	25000
broadband	NO

Preview

Download Datasheet

View All

LM107DE Related Products

	LM107DE	LM307DE	LM207DE	LM207H	LM307NB	LM307H	LM207N	LM207NB
Description	Operational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, CDIP8,	Operational Amplifier, 1 Func, 10000uV Offset-Max, BIPolar, CDIP8,	Operational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, CDIP8,	Operational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, MBCY8,	Operational Amplifier, 1 Func, 10000uV Offset-Max, BIPolar, PDIP8,	Operational Amplifier, 1 Func, 10000uV Offset-Max, BIPolar, MBCY8,	Operational Amplifier, 1 Func, BIPolar, PDIP8,	Operational Amplifier, 1 Func, BIPolar, PDIP8,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
frequency compensation	YES	YES	YES	YES	YES	YES	YES	YES
JESD-30 code	R-XDIP-T8	R-XDIP-T8	R-XDIP-T8	O-MBCY-W8	R-PDIP-T8	O-MBCY-W8	R-PDIP-T8	R-PDIP-T8
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
low-bias	NO	NO	NO	NO	NO	NO	NO	NO
low-dissonance	NO	NO	NO	NO	NO	NO	NO	NO
micropower	NO	NO	NO	NO	NO	NO	NO	NO
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8	8	8
Maximum operating temperature	125 °C	70 °C	85 °C	85 °C	70 °C	70 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-	-25 °C	-25 °C	-	-	-25 °C	-25 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	METAL	PLASTIC/EPOXY	METAL	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	DIP8,.3	DIP8,.3	DIP8,.3	CAN8,.2	DIP8,.3	CAN8,.2	DIP8,.3	DIP8,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	ROUND	RECTANGULAR	ROUND	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	CYLINDRICAL	IN-LINE	CYLINDRICAL	IN-LINE	IN-LINE
power	NO	NO	NO	NO	NO	NO	NO	NO
Programmable power	NO	NO	NO	NO	NO	NO	NO	NO
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	COMMERCIAL	OTHER	OTHER	COMMERCIAL	COMMERCIAL	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	WIRE	THROUGH-HOLE	WIRE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	BOTTOM	DUAL	BOTTOM	DUAL	DUAL
broadband	NO	NO	NO	NO	NO	NO	NO	NO
package instruction	DIP, DIP8,.3	-	DIP, DIP8,.3	-	DIP, DIP8,.3	, CAN8,.2	DIP, DIP8,.3	DIP, DIP8,.3
ECCN code	EAR99	-	EAR99	-	EAR99	-	EAR99	EAR99
Maximum bias current (IIB) at 25C	0.075 µA	0.25 µA	0.075 µA	0.075 µA	0.25 µA	0.25 µA	-	-
Maximum input offset voltage	3000 µV	10000 µV	3000 µV	3000 µV	10000 µV	10000 µV	-	-
encapsulated code	DIP	DIP	DIP	-	DIP	-	DIP	DIP
Maximum slew rate	3 mA	3 mA	3 mA	3 mA	3 mA	3 mA	-	-
Supply voltage upper limit	22 V	18 V	22 V	22 V	18 V	18 V	-	-
surface mount	NO	NO	NO	-	NO	-	NO	NO
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	-	2.54 mm	2.54 mm
Minimum voltage gain	25000	15000	25000	25000	15000	15000	-	-
