LM148F: DescriptionOperational Amplifier, 4 Func, 6000uV Offset-Max, BIPolar, CDFP14,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size560KB，16 Pages; ManufacturerRaytheon Company; Websitehttps://www.raytheon.com/

Download Datasheet Parametric Compare View All

LM148F Overview

Operational Amplifier, 4 Func, 6000uV Offset-Max, BIPolar, CDFP14,

LM148F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DFP, FL14,.3
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.1 µA
frequency compensation	YES
Maximum input offset voltage	6000 µV
JESD-30 code	R-XDFP-F14
JESD-609 code	e0
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	4
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	+-15 V
Certification status	Not Qualified
Maximum slew rate	7.2 mA
Supply voltage upper limit	22 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Minimum voltage gain	25000

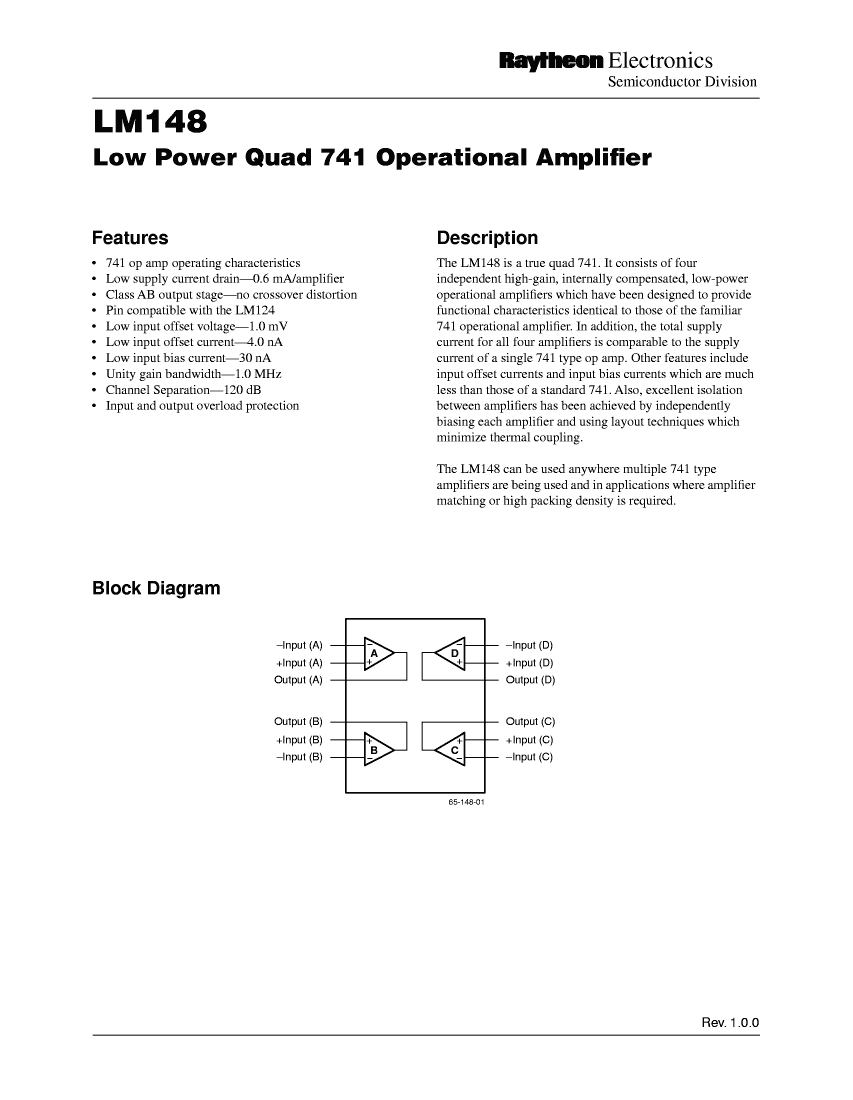

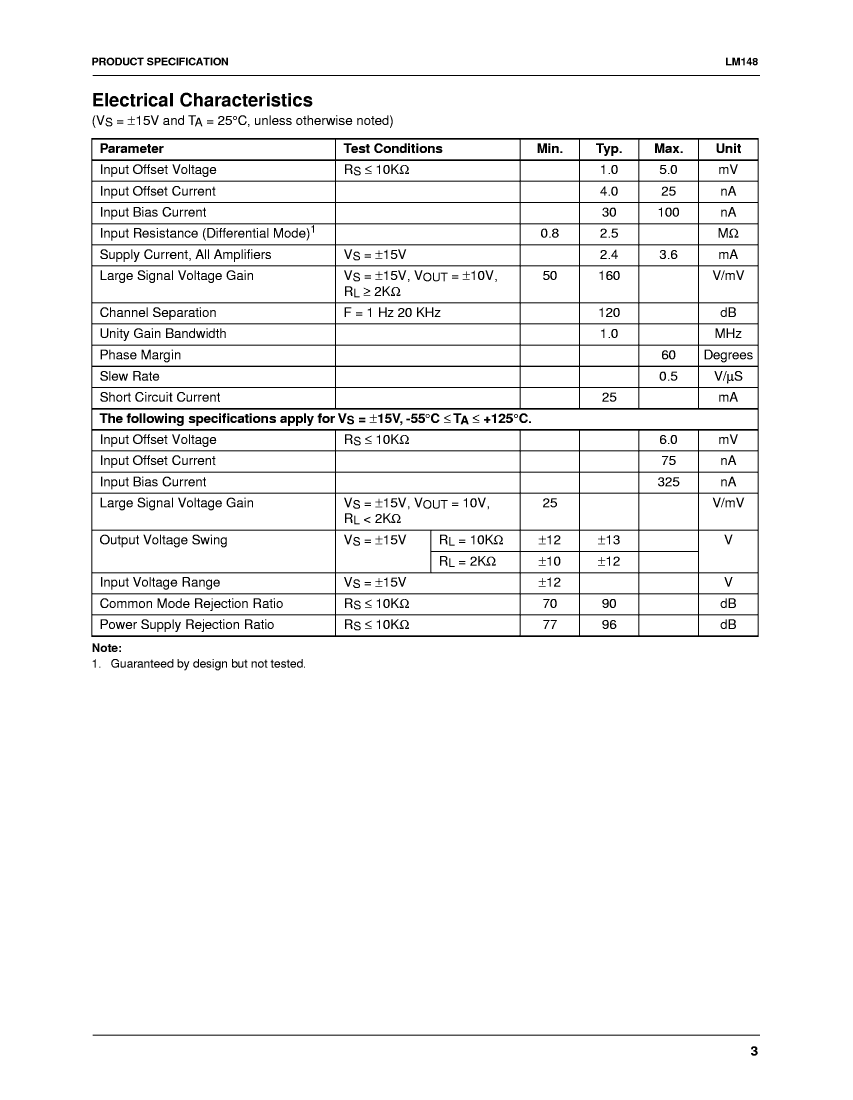

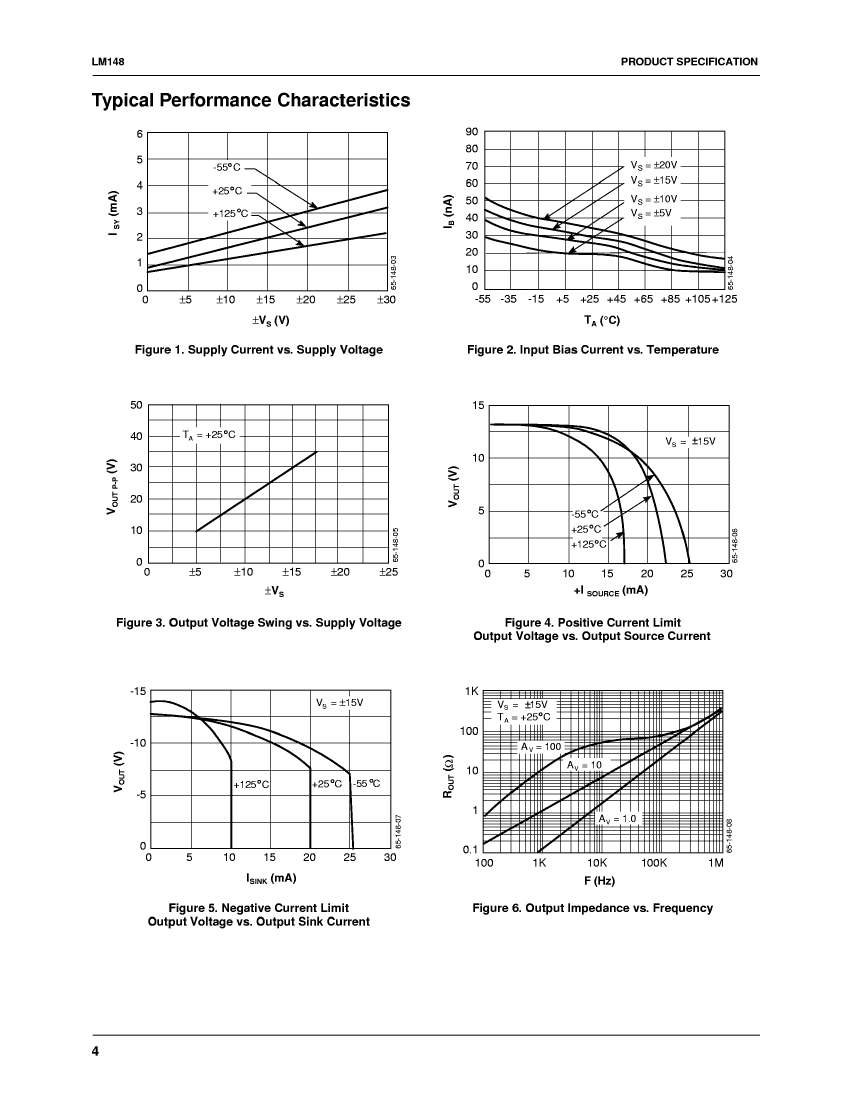

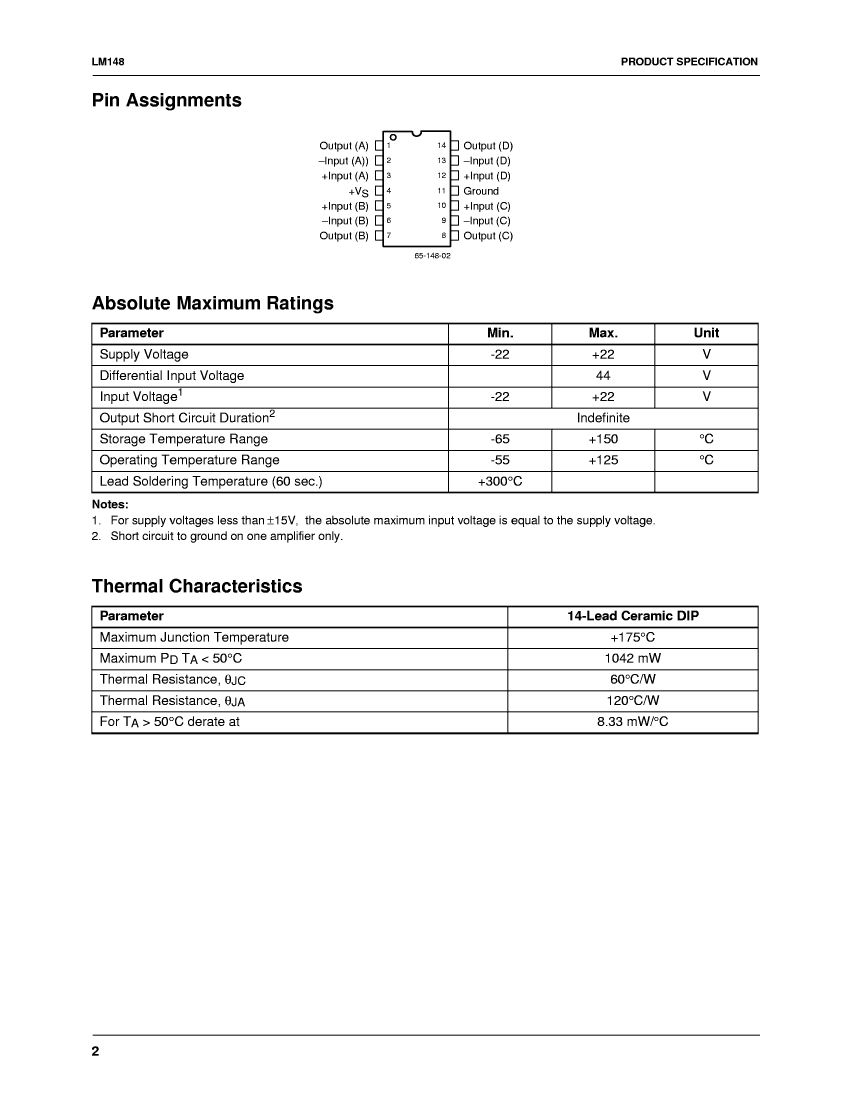

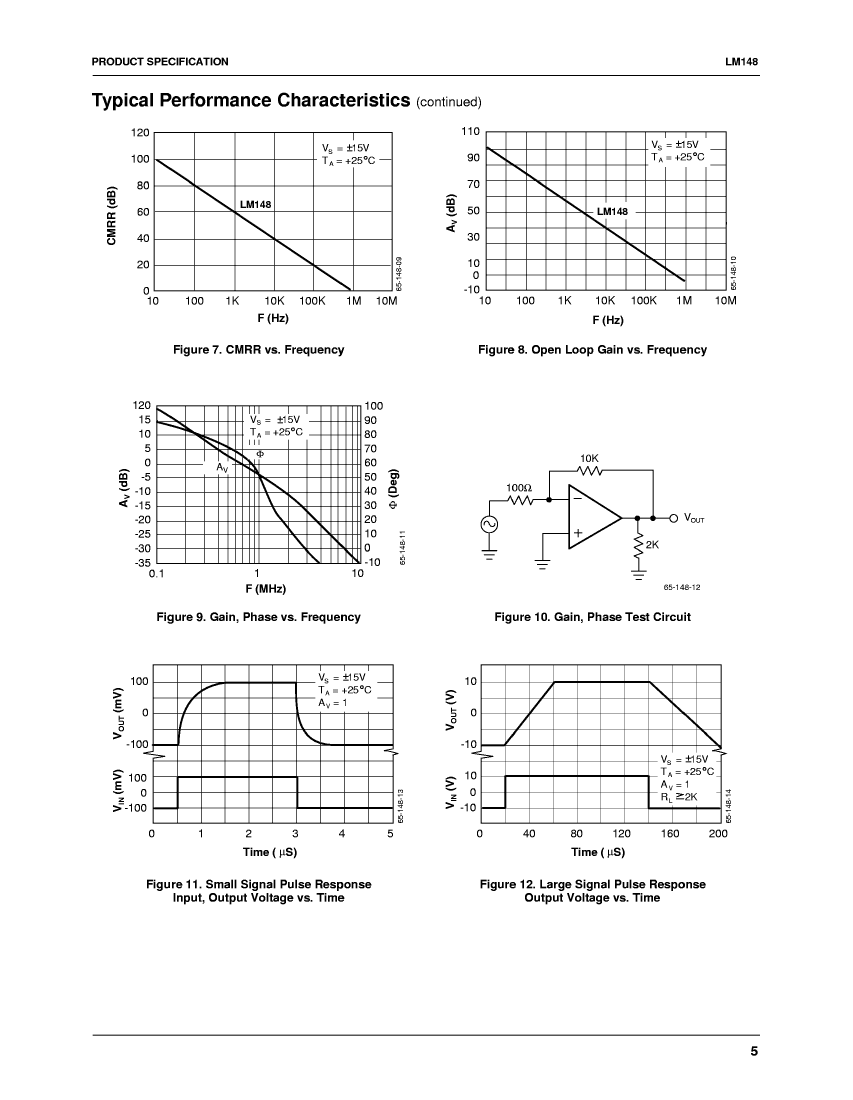

Preview

Download Datasheet

View All

LM148F Related Products

	LM148F	LM148D	LM148D/883B
Description	Operational Amplifier, 4 Func, 6000uV Offset-Max, BIPolar, CDFP14,	Operational Amplifier, 4 Func, 5000uV Offset-Max, BIPolar, CDIP14,	Operational Amplifier, 4 Func, 5000uV Offset-Max, BIPolar, CDIP14,
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	DFP, FL14,.3	DIP, DIP14,.3	DIP, DIP14,.3
Reach Compliance Code	unknown	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.1 µA	0.1 µA	0.1 µA
frequency compensation	YES	YES	YES
Maximum input offset voltage	6000 µV	5000 µV	5000 µV
JESD-30 code	R-XDFP-F14	R-GDIP-T14	R-GDIP-T14
JESD-609 code	e0	e0	e0
low-dissonance	NO	NO	NO
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V
Number of functions	4	4	4
Number of terminals	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DFP	DIP	DIP
Encapsulate equivalent code	FL14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	IN-LINE
power supply	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	7.2 mA	3.6 mA	3.6 mA
Supply voltage upper limit	22 V	22 V	22 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V
surface mount	YES	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Minimum voltage gain	25000	50000	50000
Maker	-	Raytheon Company	Raytheon Company
Maximum average bias current (IIB)	-	0.1 µA	0.1 µA
Minimum Common Mode Rejection Ratio	-	70 dB	70 dB
Nominal Common Mode Rejection Ratio	-	90 dB	90 dB
Negative supply voltage upper limit	-	-22 V	-22 V
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	-	1000 kHz	1000 kHz
