254201MS031G330ZO datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 254201MS031G330ZO

Preview

254201MS031G330ZO: DescriptionBoard Connector, 31 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size252KB，1 Pages; ManufacturerSUYIN-USA; Websitehttp://www.suyinusa.com

Download Datasheet Parametric View All

254201MS031G330ZO Overview

Board Connector, 31 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle

254201MS031G330ZO Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SLIM BOX WITHOUT CAP
body width	0.1 inch
subject depth	0.1 inch
body length	3.1 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	254201MS
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.128 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	31

Preview

Download Datasheet

View All

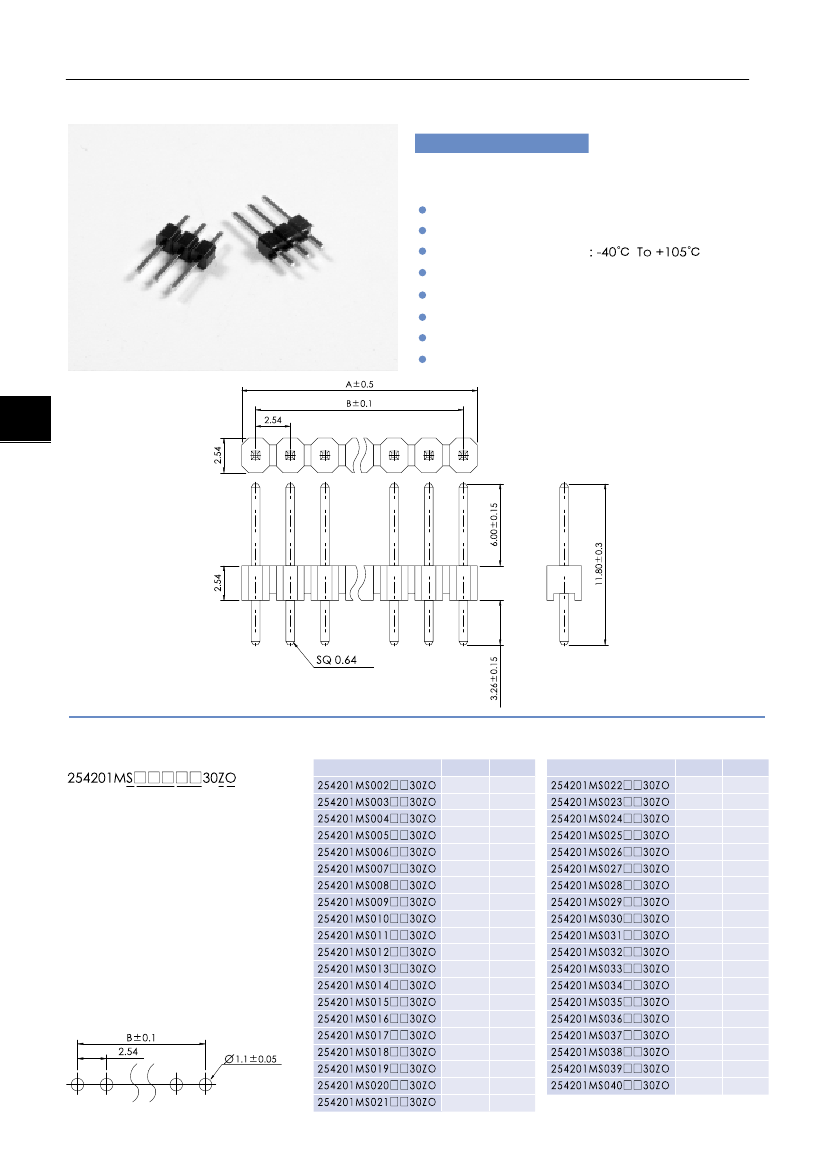

2.54mm PITCH CENTER SINGLE

PIN WAFER BREAKABLE S/T DIP TYPE

254201MS Series

Mates With SUYIN 254330,254250,254401 Series

Specifications:

2~40 Circuits

Insulator Material

Operating Type Range

Terminal Material

Platings

Max. Current Rating

Max. Voltage Rating

Dielectric Strength

: Brass

: P.B.T UL94V-0

: Gold Or Tin Plated

: 1.5A

: 250V AC

: 500V AC For 60 Seconds

2.54

mm

Order Information

1

2

3

45

Dimension Information

SUYIN P/NO.

DIM.A

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

DIM.B

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

SUYIN P/NO.

DIM.A

55.88

58.42

60.96

63.50

66.04

68.58

71.12

73.66

76.20

78.74

81.28

83.82

86.36

88.90

91.44

93.98

96.52

99.06

101.60

DIM.B

53.34

55.42

58.42

60.96

63.50

66.04

68.58

71.12

73.66

76.20

78.74

81.28

83.82

86.36

88.90

91.44

93.98

96.52

99.06

1. 'S'

:

Straight DIP Type

2. No. of Pins

3. Plating

4. Color 'Z'

:

Black

5. Package

'O'

:

Slim Box Without CAP

Reference Page 11

Recommended P.C.B. Layout
