BZT52C3V0S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> BZT52C3V0S

BZT52C3V0S: Description3 V, 0.2 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE; Categorysemiconductor Discrete semiconductor; File Size382KB，4 Pages; ManufacturerChenda; Websitehttp://www.szchenda.com

Download Datasheet View All

BZT52C3V0S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BZT52C3V0S	-	-	View	Buy Now

BZT52C3V0S Overview

3 V, 0.2 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE

Preview

Download Datasheet

View All

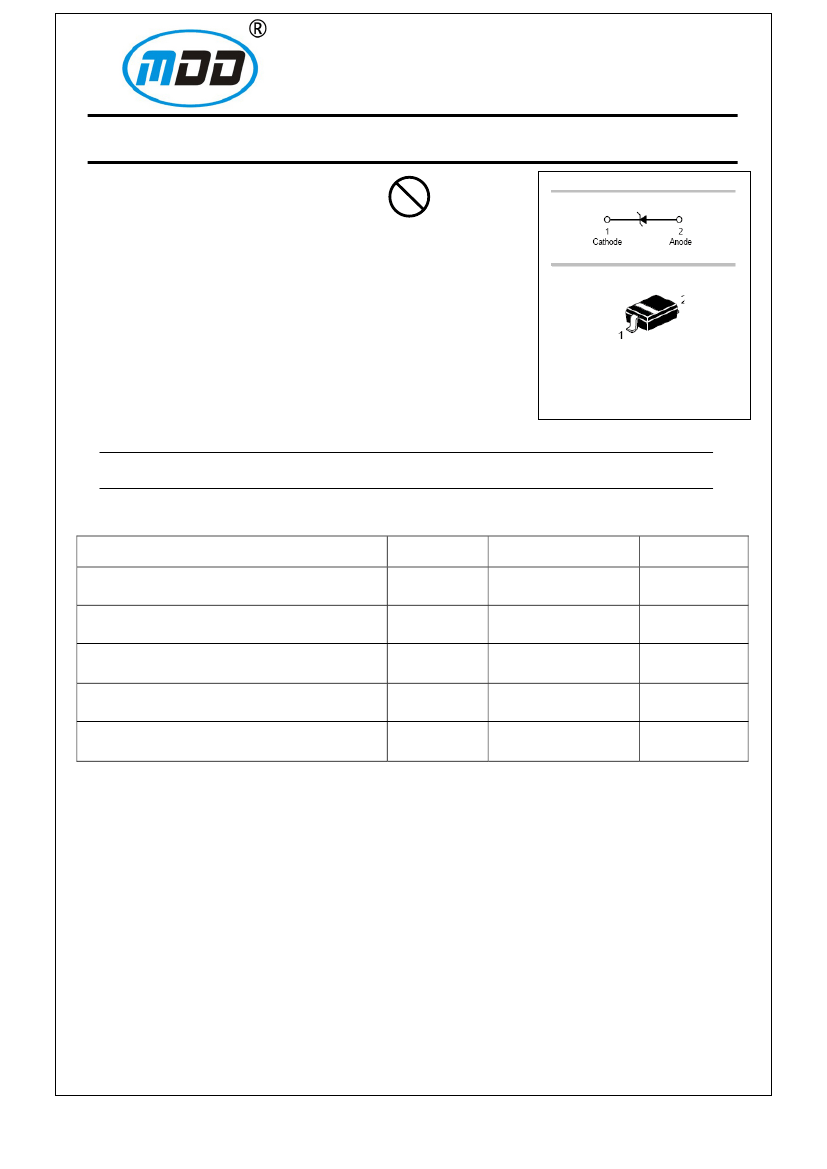

Surface mount zener diode

FEATURES

Planar die construction

General purpose, medium current

BZT52C2V0S-BZT52C51S

Lead-free

Ideally suited for automated assembly processes

APPLICATIONS

Zener diode

Ultra-small surface mount package

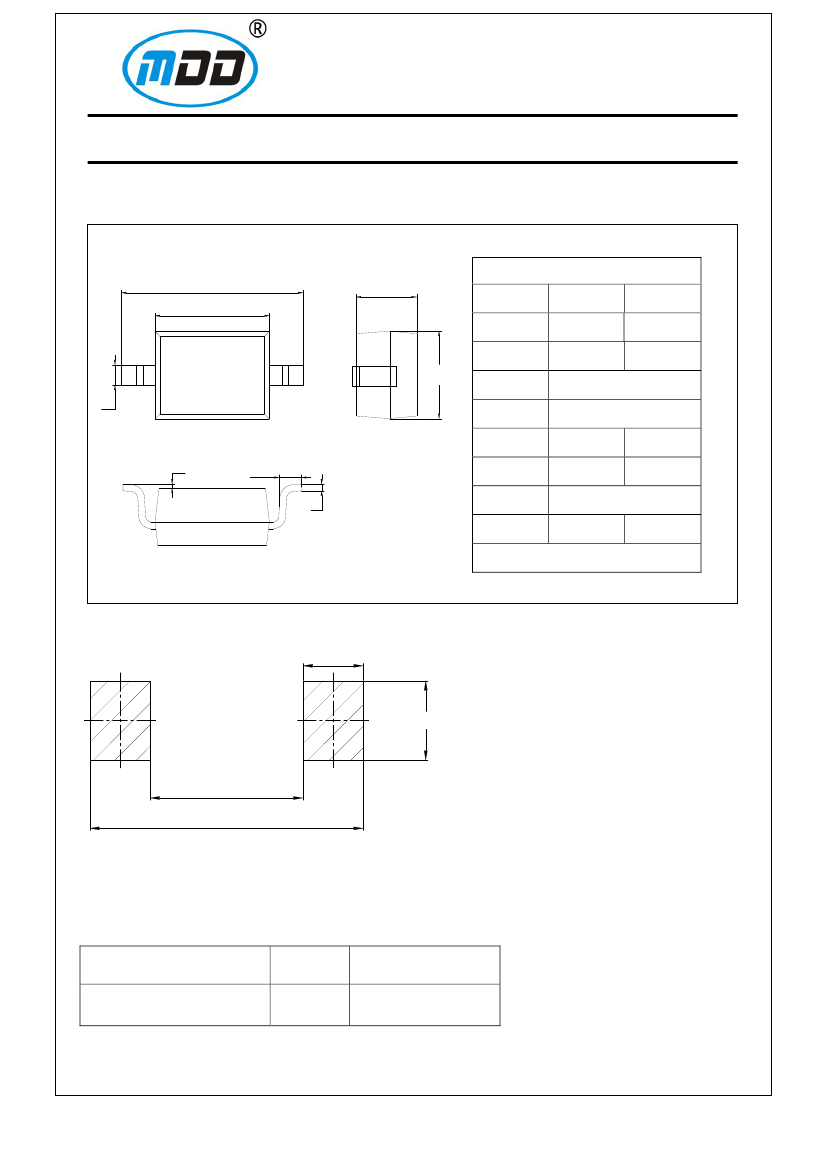

SOD-323

ORDERING INFORMATION

Type No.

BZT52C2V0S-BZT52C51S

Marking

See table 2

Package Code

SOD-323

MAXIMUM RATING

@ Ta=25℃ unless otherwise specified

Characteristic

Forward Voltage

Power Dissipation

Thermal resistance, junction to ambient air

Junction temperature

Storage temperature range

@ I

=10mA

Symbol

θjA

stg

Value

0.9

200

625

150

-65 to +150

Unit

℃/W

℃

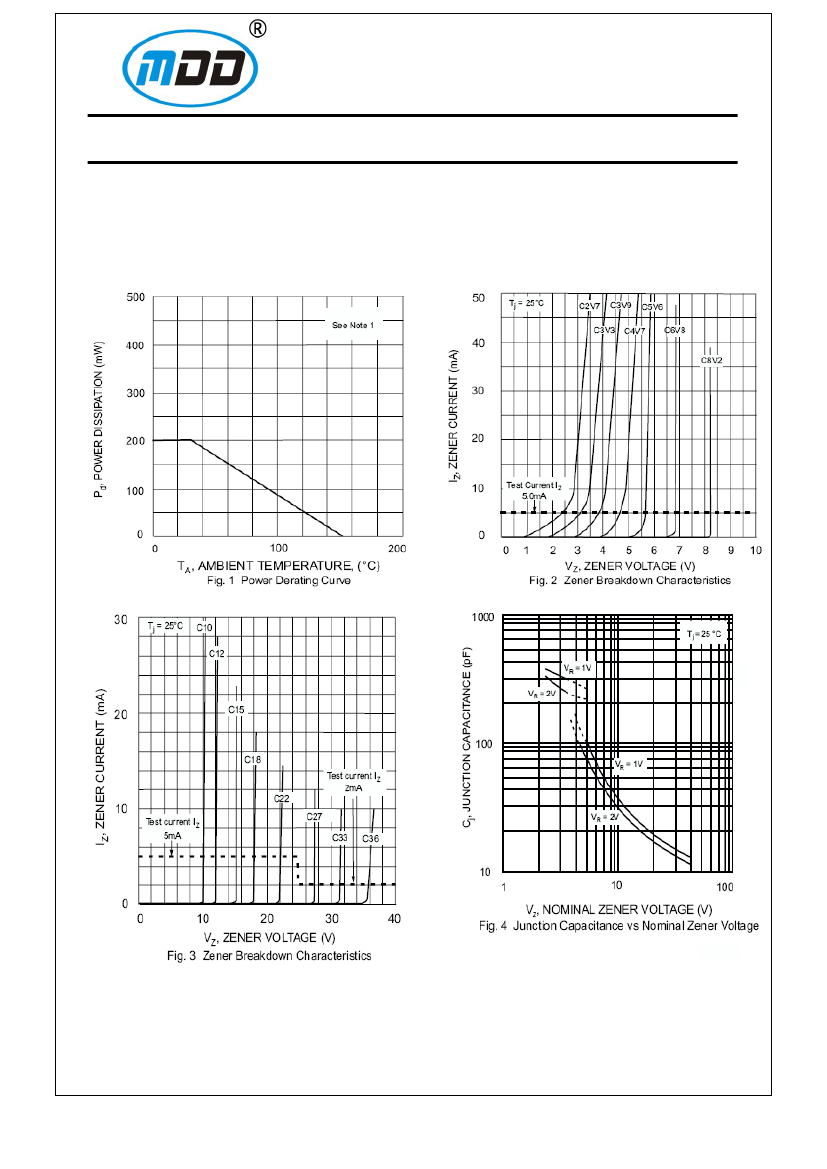

Notes: 1. Valid provided that device terminals are kept at ambient temperature.

2. Short duration test pulse used in minimize self-heating effect.

3. f = 1KHz.

２０１４－０３　０１版

½½½½：／／½½½．½½½½½½½½½½．½½½
