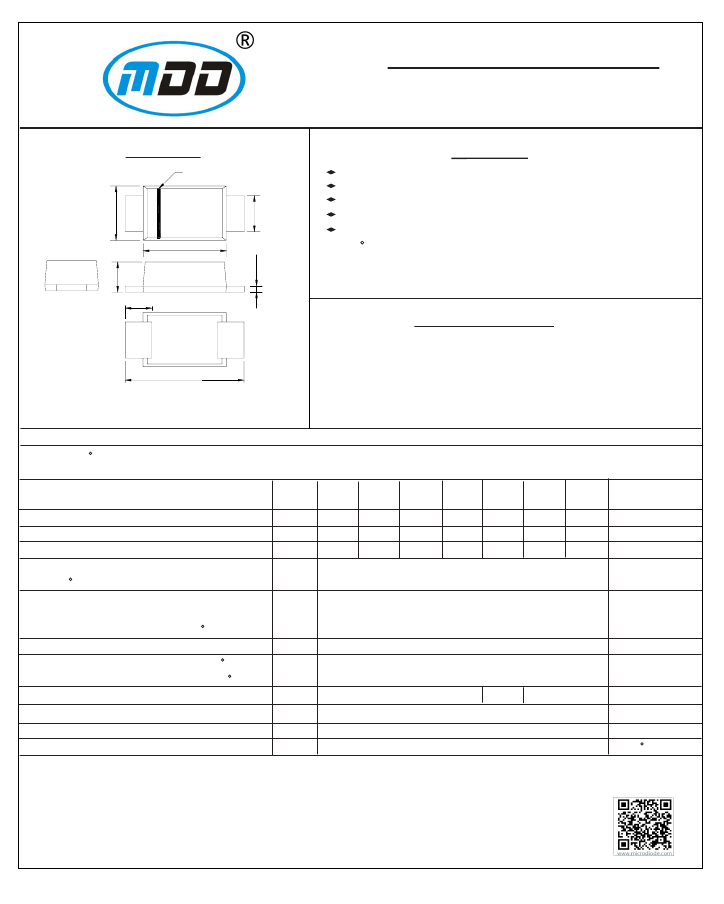

RS07A THRU RS07M
SURFACE MOUNT FAST RECOVERY RECTIFIER
Reverse Voltage - 50 to 1000 Volts
Forward Current - 0.7 Ampere
SOD-123FL
Cathode Band
Top View
FEATURES
Glass passivated device
Ideal for surface mouted applications
Low reverse leakage
Metallurgically bonded construction
High temperature soldering guaranteed:
250 C/10 seconds,0.375
”
(9.5mm) lead length,
5 lbs. (2.3kg) tension
2.8
±
0.1
1.1± 0.15
0.10-0.30
0.6
±
0.25
１．０±
0.2
1.8± 0.1
MECHANICAL DATA
Case:
JEDEC SOD-123FL molded plastic body over passivated chip
Terminals:
Solderable per MIL-STD-750,
Method 2026
Polarity:
Color band denotes cathode end
Mounting Position:
Any
Weight:0.0007
ounce, 0.02 grams
3.7
±
0.2
Dimensions in millimeters
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
SYMBOLS
RS07A RS07B RS07D RS07G RS07J RS07K RS07M
F1
F2
F3
F4
F5
F6
F7
MDD Catalog Number
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
at T
A
=65 C (NOTE 1)
Peak forward surge current
8.3ms single half sine-wave superimposed on
rated load (JEDEC Method) T
L
=25 C
Maximum instantaneous forward voltage at 0.7A
Maximum DC reverse current
T
A
=25 C
at rated DC blocking voltage
T
A
=125 C
Maximum reverse recovery time (NOTE 2)
Typical junction capacitance (NOTE 3)
UNITS
VOLTS
VOLTS
VOLTS
Amp
V
RRM
V
RMS
V
DC
I
(AV)
50
35
50
100
70
100
200
140
200
400
280
400
0.7
600
420
600
800
560
800
1000
700
1000
I
FSM
V
F
I
R
trr
C
J
150
25.0
1.3
10.0
50.0
250
4
180
-50 to +150
500
Amps
Volts
µ
A
ns
pF
°C/W
C
Typical thermal resistance (NOTE 4)
R
θ
JA
Operating junction and storage temperature range T
J
,
T
STG
Note:
1.Averaged over any 20ms period.
2.Measured with IF=0.5A, IR=1A, Irr=0.25A.
3.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
4.Thermal resistance junction to ambient, 6.0 mm2 coppeer pads to each terminal.
RATINGS AND CHARACTERISTIC CURVES RS07A THRU RS07M
FIG.1 --TYPICAL FORWARD CHARACTERISTIC
INSTANTANEOUS FORWARD CURRENT
FIG.2 -- TYPICAL JUNCTION CAPACITANCE
100
10
4
2
10
T
J
=25
Pulse Width=300us
9
CAPACITANCE, pF
8
7
6
5
4
3
2
1
0
0
5
10
15
20
25
30
35
40
AMPERES
1.0
0.4
0.2
0.1
0.06
0.04
0.02
0.01
0.6 0.8
1.0
1.2
1.4
1.6
INSTANTANEOUS FORWARD VOLTAGE,V
REVERSE VOLTAGE,VOLTS
INSTANTANEOUS REVERSE CURRENT
FIG.3 -- TYPICAL INSTANTANEOUS
REVERSE CHARACTERISTICS
AVERAGE FORWARD CURRENT,
AMPERES
100
T
J
= 150
°
C
FIG.4 -- FORWARD DERATING CURVE
1.2
Resistive or Inductive Load
1.0
0.8
0.6
0.4
0.2
10
T
J
= 125
°
C
T
J
= 100
°
C
µ
AMPERES
1
T
J
= 75
°
C
T
J
= 50
°
C
0.1
T
J
= 25
°
C
3.0 x 3.0mm 40
µm
Thick Copper Pad Areas
0
20
40
60
80
100
120
140
160
0.01
0
0
100
200
300
400
500
600
700
800
900
INSTANTANEOUS REVERSE VOLTAGE,V
AMBIENT TEMPERATURE,
The cruve graph is for reference only, can't be the basis for judgment(曲线图仅供参考)!
