CMU1031: DescriptionPotentiometer, Carbon Composition, 2W, 10000ohm, 500V; CategoryPassive components The resistor; File Size204KB，2 Pages; ManufacturerOhmite; Websitehttps://www.ohmite.com

Download Datasheet Parametric View All

CMU1031 Overview

Potentiometer, Carbon Composition, 2W, 10000ohm, 500V

CMU1031 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Ohmite
package instruction	Chassis Mount,
Reach Compliance Code	unknow
structure	Covered
Manufacturer's serial number	CMU
Maximum operating temperature	120 °C
Minimum operating temperature	-55 °C
Package diameter	29.4 mm
Package length	15.9 mm
Package form	Chassis Mou
Rated power dissipation(P)	2 W
Guideline	MIL-R-94
resistance	10000 Ω
Resistor type	POTENTIOMETER
rotation angle	312 deg
series	CMU
technology	CARBON COMPOSITION
Operating Voltage	500 V
Base Number Matches	1

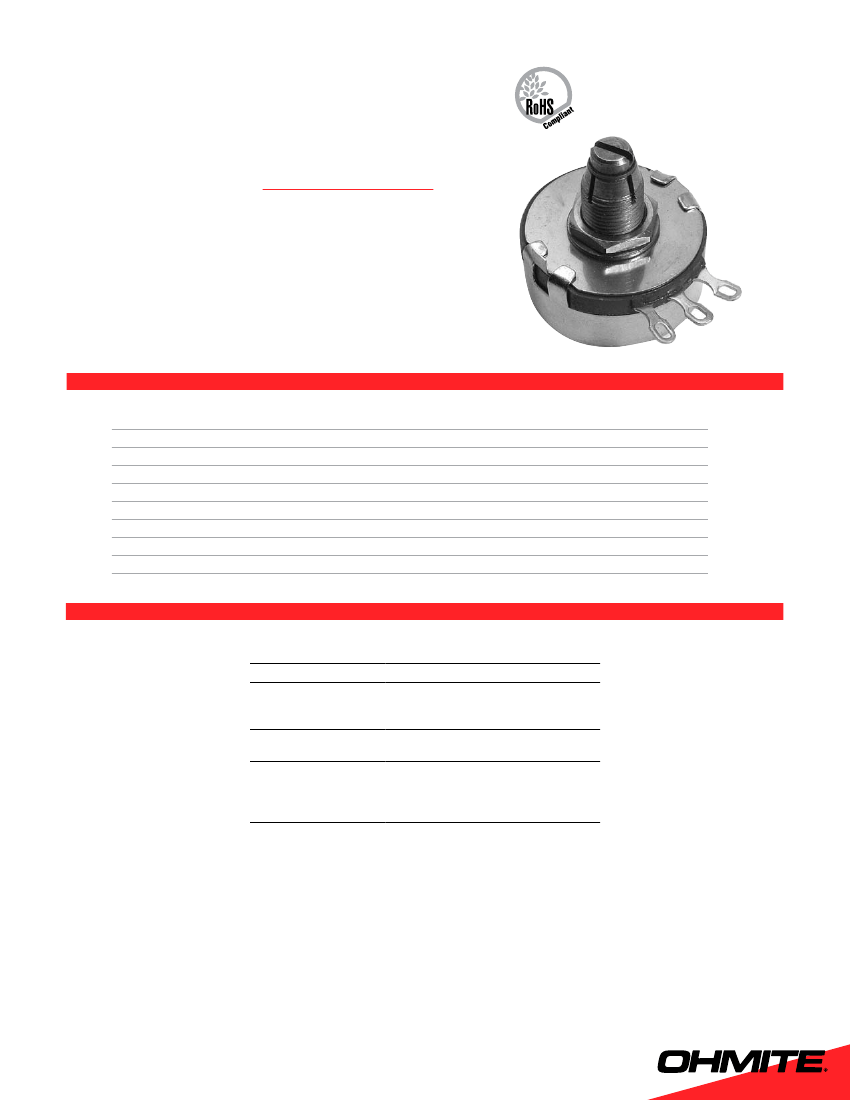

Preview

Download Datasheet

View All

Potentiometers

Molded composition

Ohmite molded composi-

• Low noise, smooth

tion potentiometers are

available in various models operation

for applications in military • In accordance with “Mil”

devices, industrial equip-

RV4N, RV4L, RV6L,

ment and in equipment

RV6N, 2RV7N types

requiring a convenient

• RoHS compliant; non-

resistance control device.

RoHS version unavail-

able.

s e r i e s s P e c i F i c at i O N s

F e at u r e s

Model

AS

ASM

CA

CB

CU

CCU

CLU

CMU

Watts

0.5

2.0

Ohmic

range

50-5M

Behind panel

(in./mm)

0.703/17.9

0.625/15.9

1.266/32.1

0.625/15.9

Diameter

(in./mm)

0.50/12.7

1.16/29.4

Rotation

295° ±5°

312° ±3°

Voltage

(RMS)

350

500

characteristics

Derating

linear from 100% at +70°C to 0% at

+120°C

Operating temp. range

-55°C to 120°C

Construction

Elements molded into a single, integral

structure. Metal cover protects and

shields the internal parts.

Sealing

synthetic resin containing non-mercurial

fungicide

Product life

Since all rheostats/potentiometers are

electro-mechanical devices, they are

subject to mechanical wear and, there-

fore, have a finite life.

(continued)

1-866-9-OHMITE • Int’l 1-847-258-0300 • Fax 1-847-574-7522 • www.ohmite.com • info@ohmite.com

191
